Direct Reading OES Spectrometer used in Foundry

Economical and Easy Metal Analyzer

High resolution CMOS readout system

Low total cost of ownership

Vacuum optics enabling fast stabilization

Unmatched analytical performance and reliability

Excellent long-term stability

Intelligent design, Modular design

Ferrous and non-ferrous applications

Easy to use with full PC control

Friendly user interface



Summary:

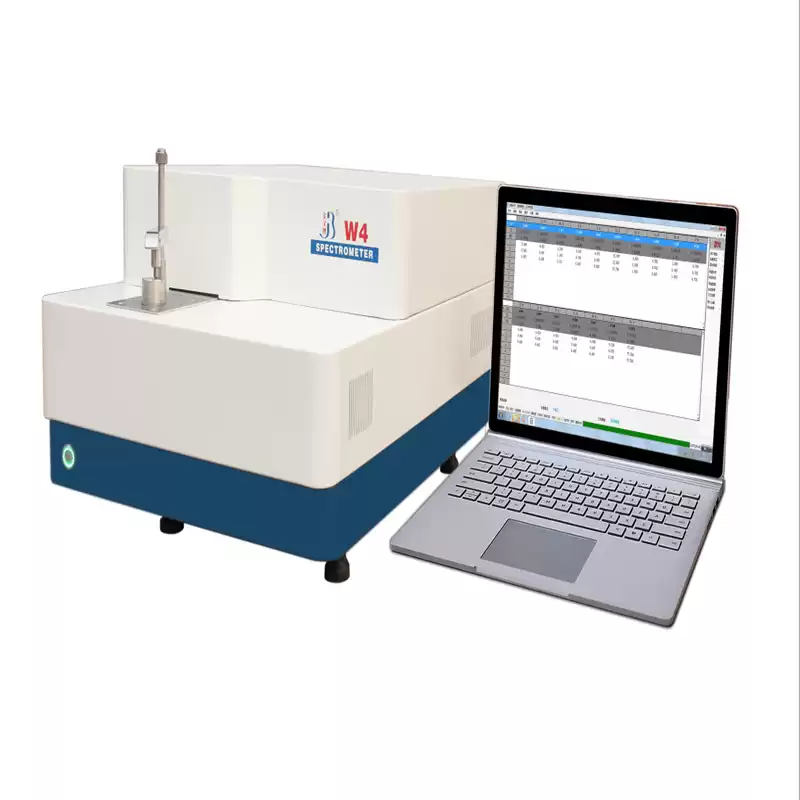

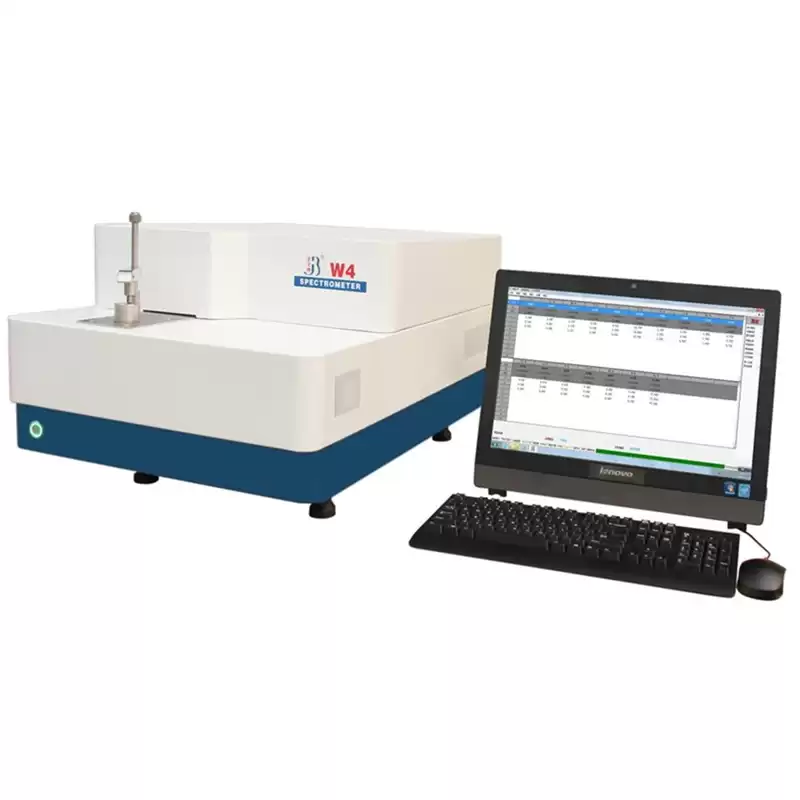

W4 OES Spectrometer is most suitable instrument for the determination of various elements in different matrices (Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, etc ). It is an economical and easy solution to quick analysis near the furnace, metal material quality analysis,research laboratories and metal grade identification

This also gives the user a truly economical spectrometer that’s both easy to use and easy to space saved. The optical system uses a CMOS detector with a spectral range covering all typical materials. It can accurately and reliably analyze from low-level elements to high-content elements.



Applications:

Steel plants where needs are at around 100 PPM levels or elements like C, Cr, S, P etc.

Rolling mills, foundries, workshops: Rapid analysis; test several 100s of samples daily

Alloy manufacturers: Any number of bases / matrices; highly stable and precise

Testing Laboratories: Commercial testing laboratories, Universities and colleges

Foundries which need a quick analysis near the furnace

Warehouse material identification

Base: Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, etc



Features:

1. Vacuum light chamber technology, fast and stable

2. Fingerprint spectrum technology, automatic best spectral line identification

3. Open electrode holder, suitable for sample analysis of various shapes and sizes

4. Automatic spectral library addressing, eliminating tedious peak scanning work

5. Increase the types of analytical materials and analytical elements at any time

6. Advanced CCD digital technology, direct reading of the full spectrum of the analysis spectrum

7. Automatic optical path calibration, not affected by temperature drift, to ensure the accuracy of analysis

8. Intelligent analysis mode, fast and accurate determination of elemental composition in various metal materials



Parameter:

Base

Available for the relevant bases such as Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, etc.



Optical System

Vacuum pump style

Raster focal length 350mm.

Paschen-Runge optical system with full wavelength coverage

Effective wavelength range 165nm~589mn(extendable)

Multi-CMOS detectors with high resolution



Calibration

Standard factory calibrated programs

Freely selected analysis programs

Customized calibrated programs according to individual requirements



Spark Stand

Argon flushed and optimized argon flow

Easily operated sample clamp adapted to different sample geometrics

Durable electrode and easy maintenance

Easy operated small sample clamp



Readout system

High performance DSP and FPGA processor with super high speed

External PC optional

Ethernet data transmission

Internet network technology and data cloud storage.



Spark Source

Programmable pulse DDD digital spark source

Optimized electronics and complete excitation protection

Available spark, arc and combined discharge waveform for different bases

High-energy pre-spark

Frequency: 100Hz~1000Hz

Maximum discharge current:400A



Software

Easy used and graphic interface based on Windows

Automatic diagnosis system

Database management

Microsoft Windows operating system

The perfect database management function can easy to inquire and summary data.

Intelligent correction algorithm can keep the instrument stable and reliable.



Electrical and Environmental Requirement

AC220±20VA, 50HZ

Max 400VA in sparking

Average standby power 50VA

Room temperature: 10℃~35℃

Relative humidity:20%~80%



Dimension

L * W * H: 750*560*350mm

Net weight: 70kg
