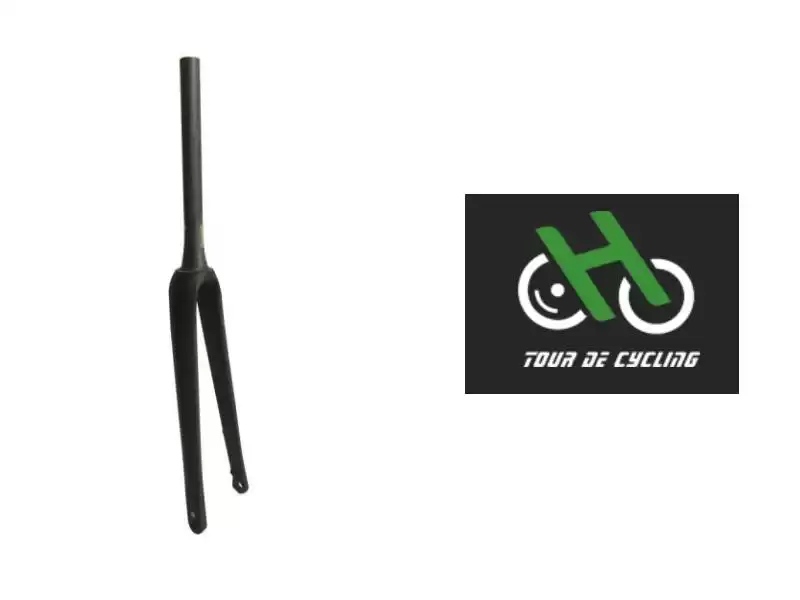

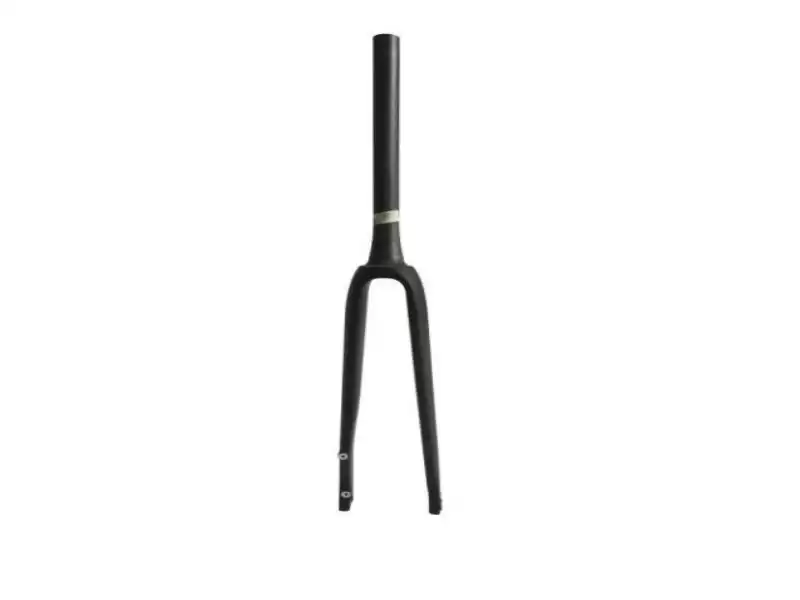

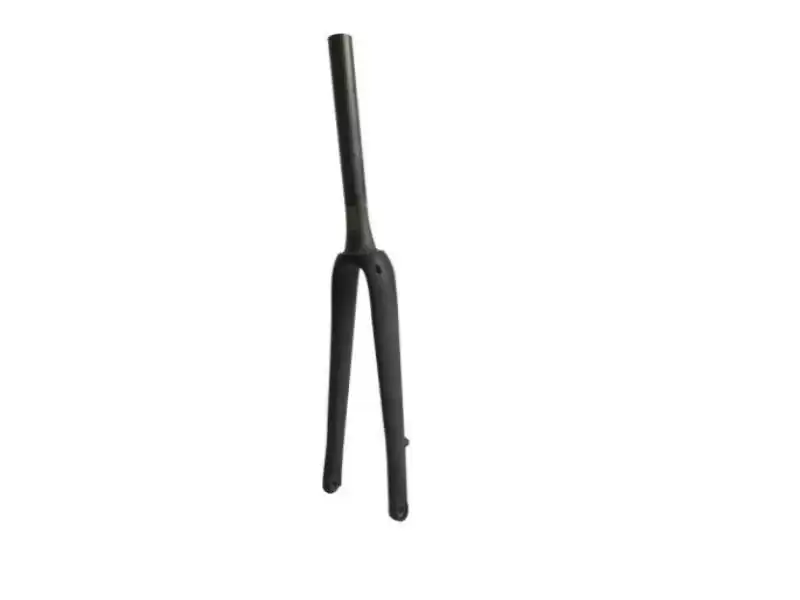

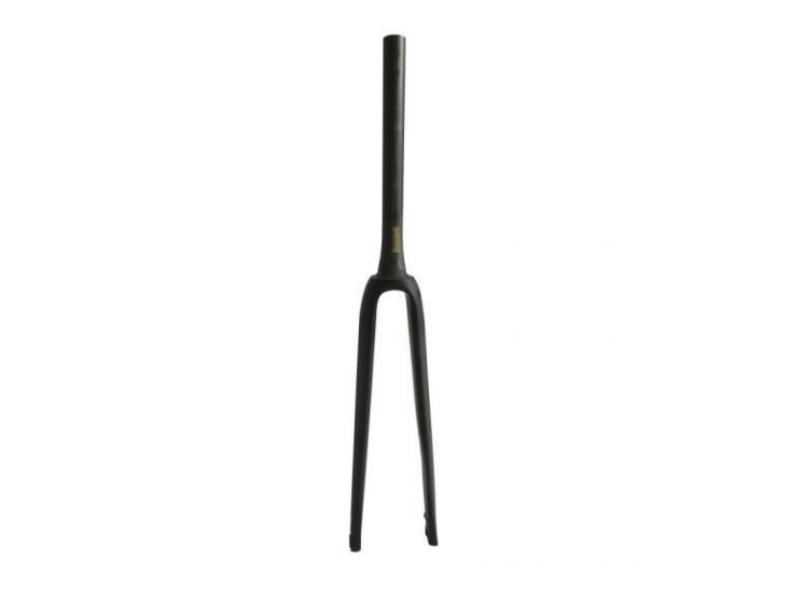

Disc Brake 700C*28C Carbon Road Bike Fork

Disc Brake 700C*28C Carbon Road Bike Fork

• 700C*28C carbon road fork
• Disc brake (flat mount)
• Tapered Steer
• Weight 380g±20g

Many kinds of fork size for customer more option,please send email to sales@tourdecycling.com for more fork size geometry.

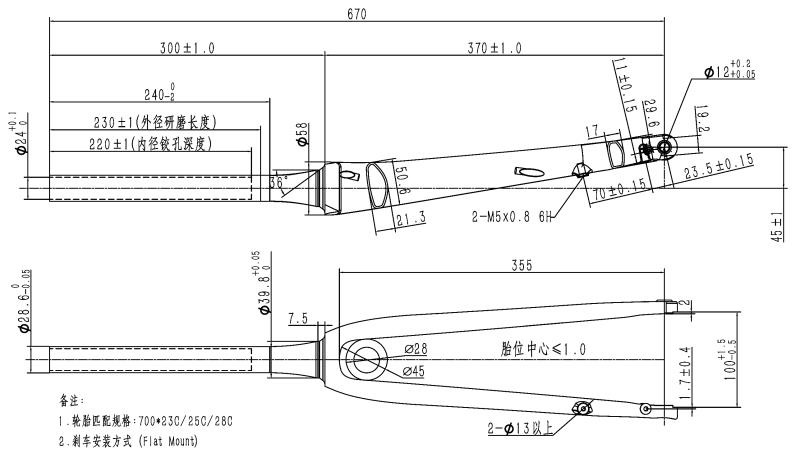

Product Detail:

Fork: Disc brake 700C*28C road bike carbon fork

Brake: Disc Brake;                             Steer: 1-1/8'', 1-1/2''

Blade Length: 370mm;                      Crown Race: φ58mm

Offset: 45mm;                                  Dropout: Carbon dropout

O.L.D: 100mm*φ12mm(TA)               Weight: 380g±20g;

Finish: UD / Color

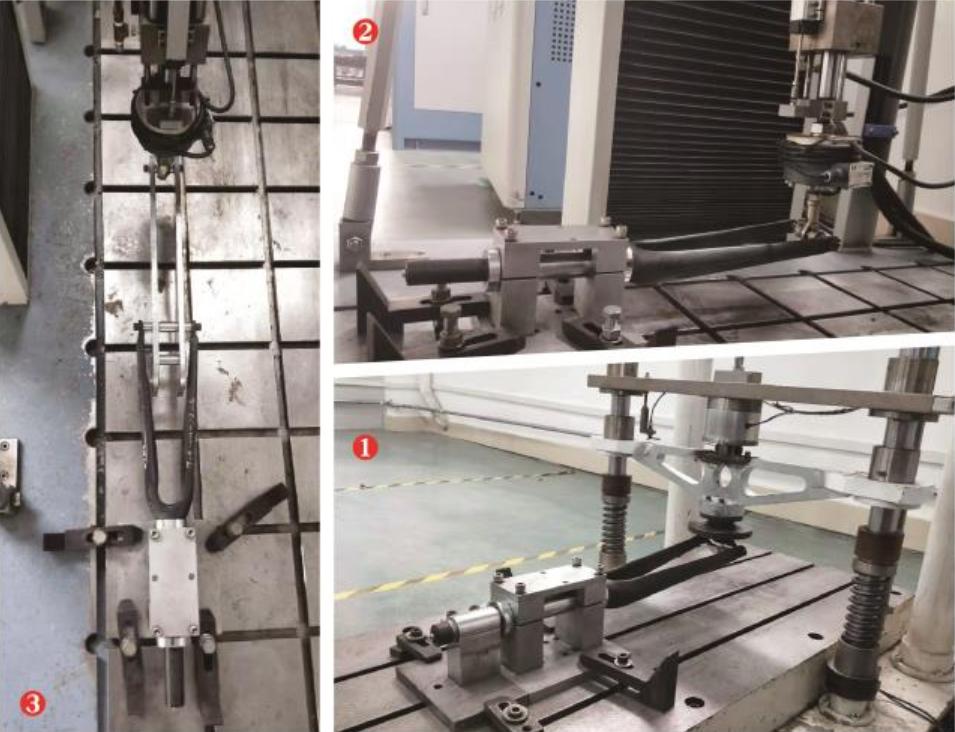

Lab Test:

TECHNOLOGY

	Italy Design Team we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.

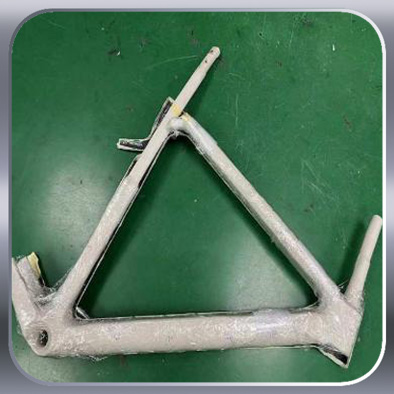

	3D latex mandrel technology we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.

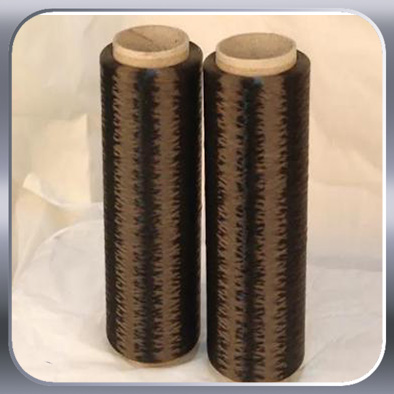

	Carbon Fiber Material Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.  Combining with stable resin system to make consistent quality and light weight frame.

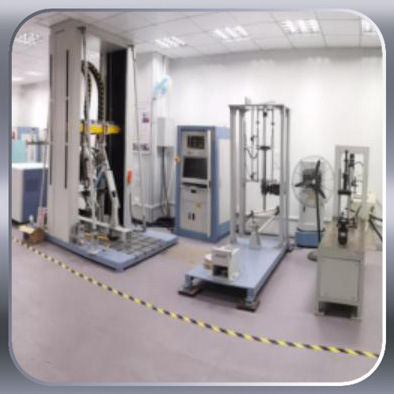

	Lab Test All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.
	2-Year Warranty We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty  to see more details in another page.

Why choose us ?

-Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing..

-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services.

-More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.

Q1: How long should a carbon bike fork last?

A1: It is about every 5000 cycles. Every fork will eventually break.A strong forks will last more than 10,000 cycles with a load of 270 lb.

Q2: Do carbon bikes break easily?

A2:When made it well, carbon fiber fork can be tougher than steel and quite safe. But when made incorrectly, carbon fiber components can easily break. The parts are built by layering fibrous carbon that's bound together with resin.So the processing also is very important.

Q3: Do carbon forks make a difference?

A3:Carbon forks have become a cyclist's choice for every type of ride because of their light weight and high tensile strength. Carbon fork replacing a steel fork can help reduce the weight of your bike to up to 50% of the weight of the fork.

Q4:Can you put a carbon fork on a steel frame?

A4:Yes,carbon forks can be installed on a steel frame.

Q5:What is the advantage of a carbon fork on a bike?

A5: Carbon material famed for being light and strong. Carbon road bike forks can do a great job of reducing road buzz, which aids comfort on long rides.
