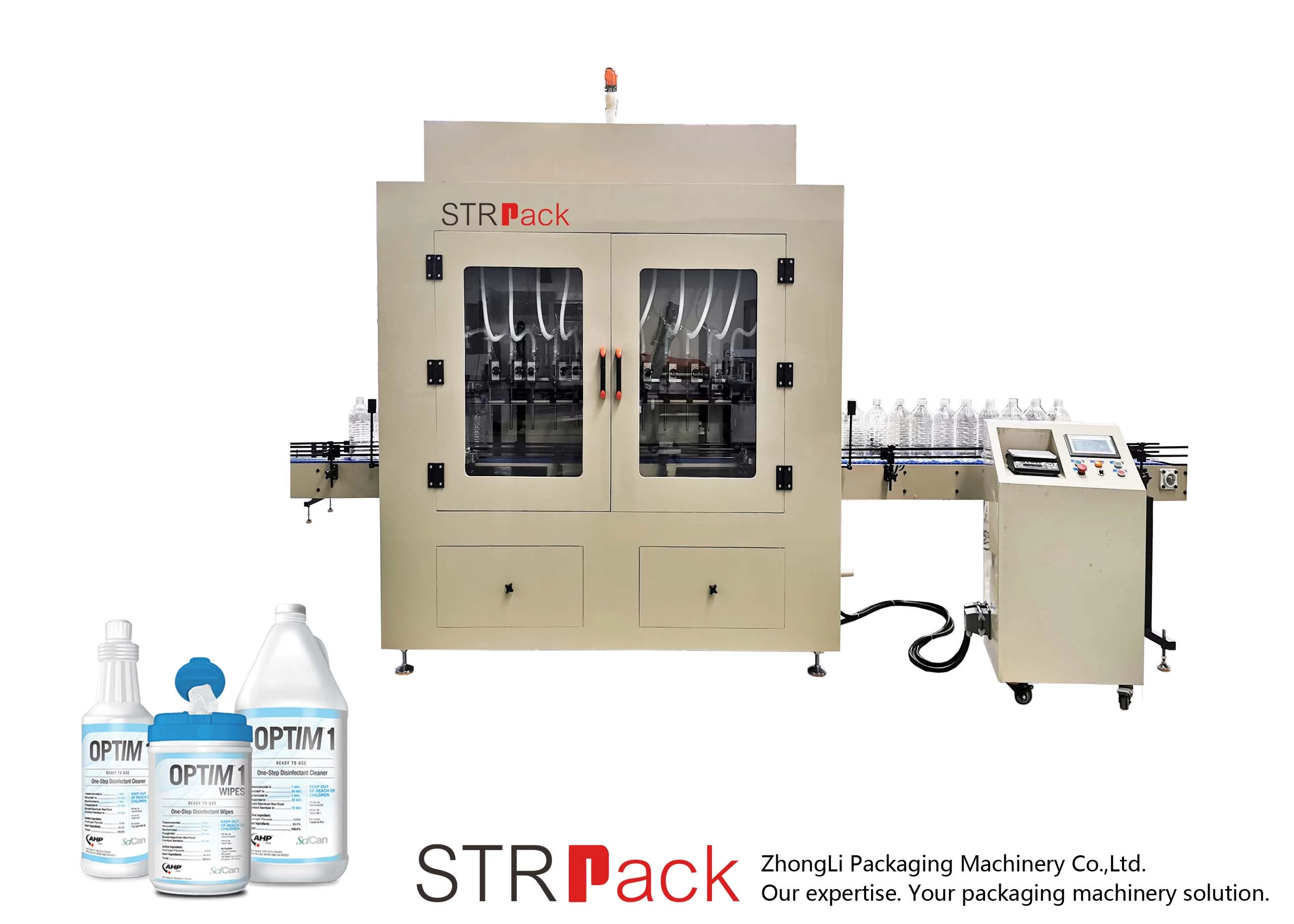

Disinfectant Liquid Cleaner Bottle Filler
Brief Introduction
The series filling machine is a kind of full-anticorrosive (PLC) program controlled high-tech filling machine with photoelectric sensing and pneumatic actuating researched and developed by our company. The machine is specially used for filling strong corrosive liquids and liquids such as cosmetics that can't contact the metal. The parts of the machine that contact the liquids are all made of nonmetal anticorrosive materials. It is designed with submersible filling function, featured by accurate measurement and no bubble and drooping during the filing.
Features:
◎Heavy duty plastic construction for
filling corrosive liquid
◎Filling range from 100-5000ml
◎The parts in the whole machine that contact the materials can be specially allocated according to product features. Therefore, it is suitable for filling most strong corrosive products. If it is added with PVC bucket, it will become an ideal cold wave fine filling machine.
◎ If combined with lifting filling system with anti-dripping function, it will become an ideal filling machine for high foam water injection products.
◎It has such features as timed filling, no filling in case of no bottle, counting of filling volume etc.
◎ It can be conveniently maintained without any special tools.
American anticorrosive pneumatic diaphragm pump is adopted for automatic material adding.
Main Parameter:
|
Model
|
Unit
|
STRFGC
|
|
Nozzle Number
|
PCS
|
8
|
10
|
12
|
16
|
|
Filling volume
|
Ml
|
100-5000ml
|
|
Production capacity
|
Bottle/h
|
1000-6000pcs(Depends on filling volume)
|
|
Quantitative error
|
%
|
100-1000ml:≤±2% , 1000-5000ml:≤±1%
|
|
Voltage
|
V
|
AC220V 380V ±10%
|
|
Consumed power
|
KW
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Air pressure
|
MPA
|
0.6-0.8Mpa
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.5
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
