Distributed Industrial & Commercial Energy Storage Series

The Distributed Energy Storage Systems (DESS) series offers advanced, scalable energy storage solutions designed for industrial and commercial applications. These systems integrate high-performance lithium iron phosphate (LFP) batteries, a sophisticated battery management system (BMS), and a power conversion system (PCS) for efficient, eco-friendly energy management. DESS supports both grid-connected and off-grid operations, providing reliable backup power, peak shaving, and energy optimization to reduce costs and improve energy efficiency. Ideal for businesses seeking sustainable, flexible energy solutions, DESS enhances energy independence and supports green energy goals.

Facebook Twitter Pinterest LinkedIn 分享







  • Distributed Industrial & Commercial Energy Storage Series Features
  • # High-Quality LFP Cells

    Ensures safety and long lifespan, making them reliable for various applications.
  • # Modular Design

    Allows for easy capacity expansion to meet different energy needs.
  • # Effective Cooling Systems

    Utilizes air and liquid cooling options to enhance performance and extend battery life.
  • # Intelligent Monitoring

    Integrated systems for operation data management, ensuring optimal performance and safety.
  • # Outdoor Application Design

    IP54 rating for protection against dust and water, ensuring adaptability to various environments.
  • # Cost Efficiency

    Supports remote updates for operational strategies and firmware, reducing overall maintenance costs.









  • Application Scenarios





Grid and Off-Grid Power Supply

 Peak Shaving and Valley Filling Renewable Energy Integration Backup Power for Critical Infrastructure
Provides reliable power in both grid-connected and off-grid setups, ensuring continuous energy availability. Stores energy during low demand and discharges during peak times to optimize energy use and reduce costs. Integrates seamlessly with solar and wind power, storing excess energy for later use. Offers reliable backup power for essential services, ensuring no interruptions during outages.

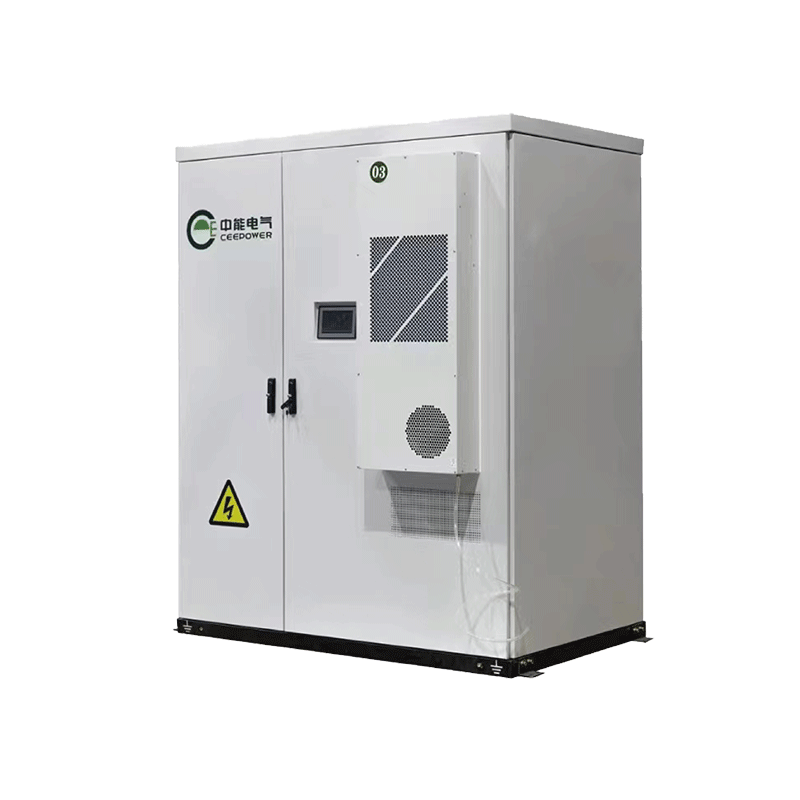

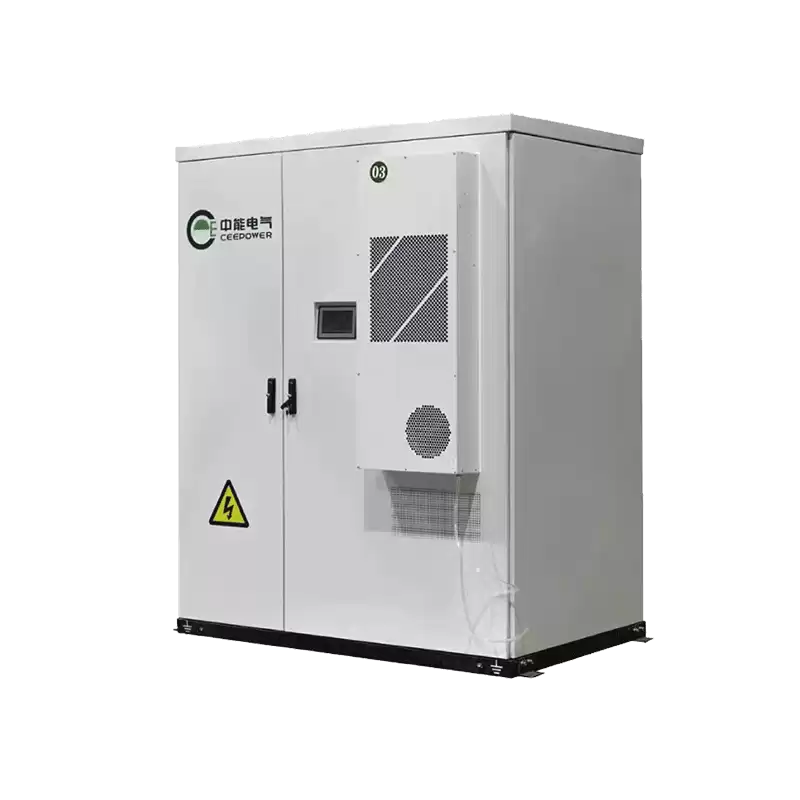

  • DESS100/200 Distributed Air-Cooling Energy Storage System Specifications





 DC Relevant
Cell Type LFP 3.2V/280Ah Rated Voltage 716V
Battery Pack Configuration 1P16S/14.336kWh Rated Capacity 200.7kWh
Battery System Configuration 1P224S Supported Charge/Discharge Rate ≤ 0.5C



AC Relevant


Rated Output Power 100kW AC Current Harmonic (THDi) <3% (Rated Output Power)
Maximum Output Power 110kW Rated Grid Frequency 50Hz/60Hz
Power Factor >0.99 (Rated Output Power) Isolation Transformer No Transformer
Adjustable Power Factor Range 1 (Leading) ~ 1 (Lagging) Maximum Output Current 150A
Rated Grid Voltage 380V Connection Method Three-Phase Three-Wire System or Three-Phase Four-Wire System



Main System


Cycle Life ≥6000 Times @80%SOC Ingress Protection Rating IP54
Dimensions (W*D*H) 184*120*230cm Cooling Method Forced Air Cooling
Inlet Method AC Bottom Inlet Fire Suppression System Fire Detection Tube + HFC Fire Extinguisher
Relative Humidity 0~95% (No Condensation) Communication Interface CAN/RS485/Ethernet
Weight Approx. 2.5 tons Operating Temperature -30°C ~65°C
Maximum Operating Altitude 3000m Communication Protocol IEC61850/MODBUS-RTU/MODBUS-TCP

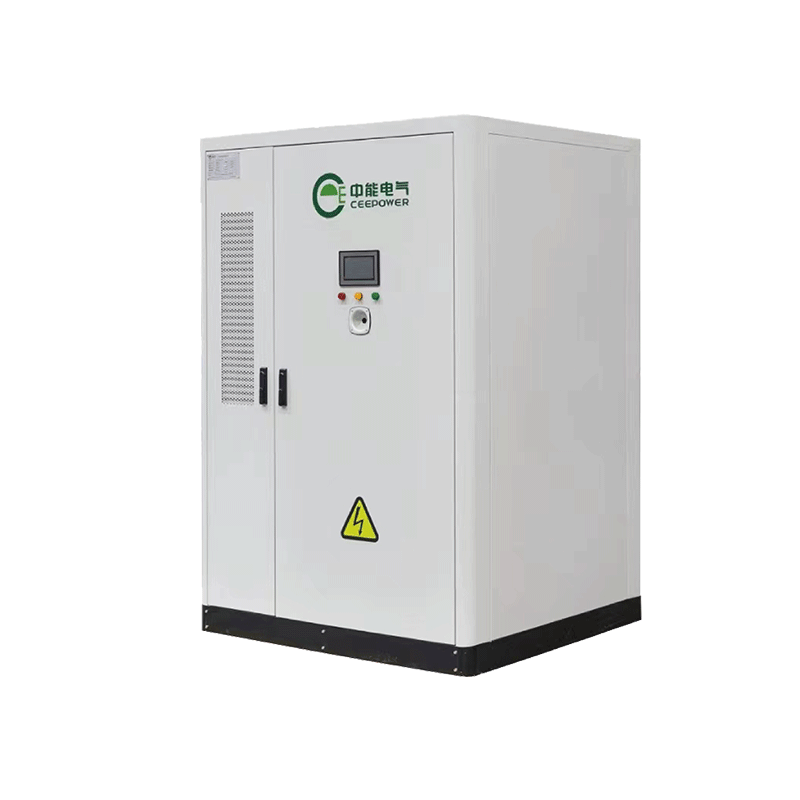

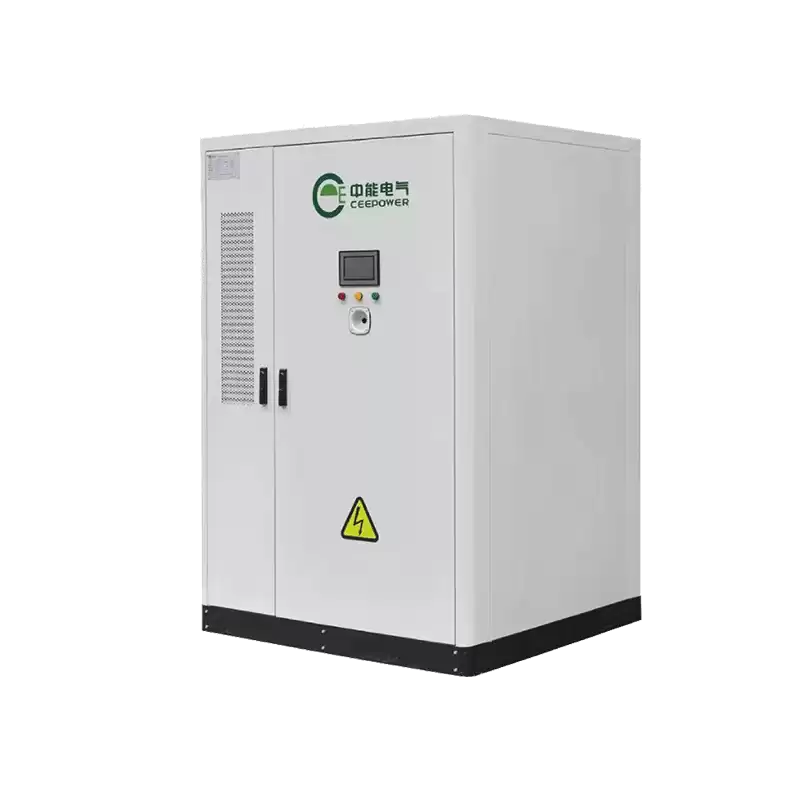

  • DESS100/215, DESS100/233, DESS200/372 Distributed Liquid-Cooling Energy Storage System Specifications







 DC Relevant DESS-100/215 DESS-100/233 DESS-200/372
Cell Type LFP 3.2V/280Ah LFP 3.2V/280Ah LFP 3.2V/280Ah
Battery Pack Configuration 1P48S 1P52S 1P52S
Battery System Configuration 1P240S 1P260S 1P416S
Rated Voltage 768V 832V 1331.2V
Rated Capacity 215kWh 233kWh 372kWh
Support Charge/Discharge Rate ≤ 0.5C ≤ 0.5C ≤ 0.5C



AC Relevant



DESS-100/215



DESS-100/233



DESS-200/372
Rated Output Power 100kW 100kW 200kW
Maximum Output Power 110kW 110kW 220kW
Power Factor >0.99 (Rated Output Power) >0.99 (Rated Output Power) >0.99 (Rated Output Power)
Adjustable Power Factor Range 1 (Leading) ~ 1 (Lagging) 1 (Leading) ~ 1 (Lagging) 1 (Leading) ~ 1 (Lagging)
Rated Grid Voltage 380V 380V 690V
AC Current Harmonics (THDI) <3% (Rated Output Power) <3% (Rated Output Power) <3% (Rated Output Power)
Rated Grid Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Isolation Transformer None None None
Maximum Output Current 150A  50A  185A
Connection Method Three-Phase Four-Wire System Three-Phase Four-Wire System Three-Phase Four-Wire System



Main System



DESS-100/215



DESS-100/233



DESS-200/372
Cycle Life ≥ 6000 Times @80% ≥ 6000 Times @80% ≥ 6000 Times @80%
Dimensions(W*D*H) 150*222*135cm 150*222*135cm 150*300*135cm
Weight 2700kg 2800kg 3800kg
Operating Temperature -30°C~65°C 30°C~65°C 30°C~65°C
Ingress Protection Rating IP54 IP54 IP54
Cooling Method Water Cooling Water Cooling Water Cooling
Relative Humidity 0~95% (No Condensation) 0~95% (No Condensation) 0~95% (No Condensation)
Inlet Method AC Bottom Inlet AC Bottom Inlet AC Bottom Inlet
Maximum Operating Altitude 3000m 3000m 3000m
Fire Suppression System PFC + PACK-Level Immersion Sprinkler + Active Warning PFC + PACK-Level Immersion Sprinkler + Active Warning PFC + PACK-Level Immersion Sprinkler + Active Warning
Communication Interface CAN/RS485/Ethernet CAN/RS485/Ethernet CAN/RS485/Ethernet
Communication Protocol IEC61850/MODBUS-RTU/MODBUS-TCP IEC61850/MODBUS-RTU/MODBUS-TCP IEC61850/MODBUS-RTU/MODBUS-TCP

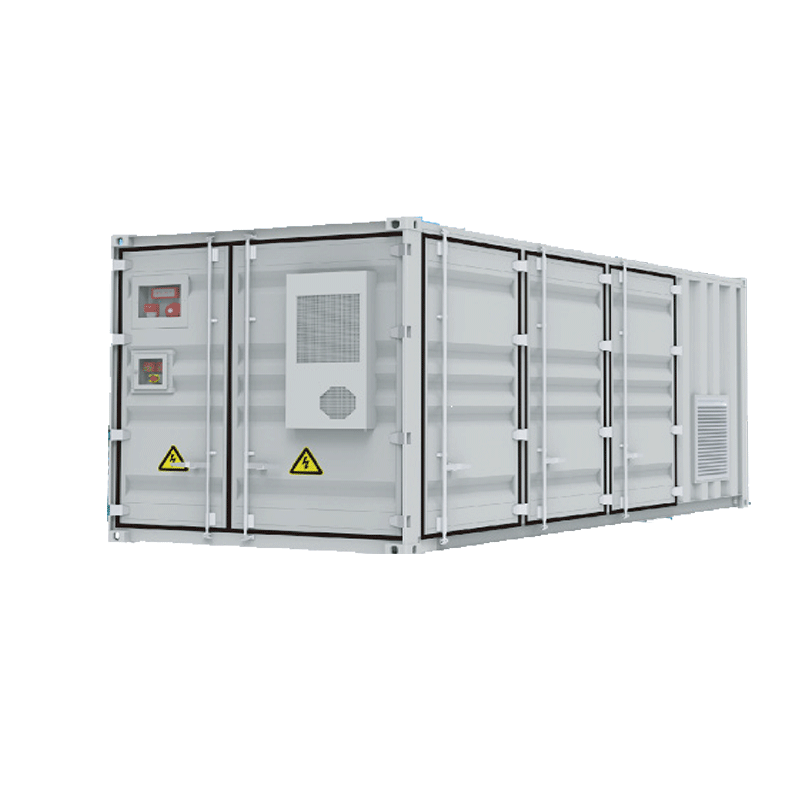

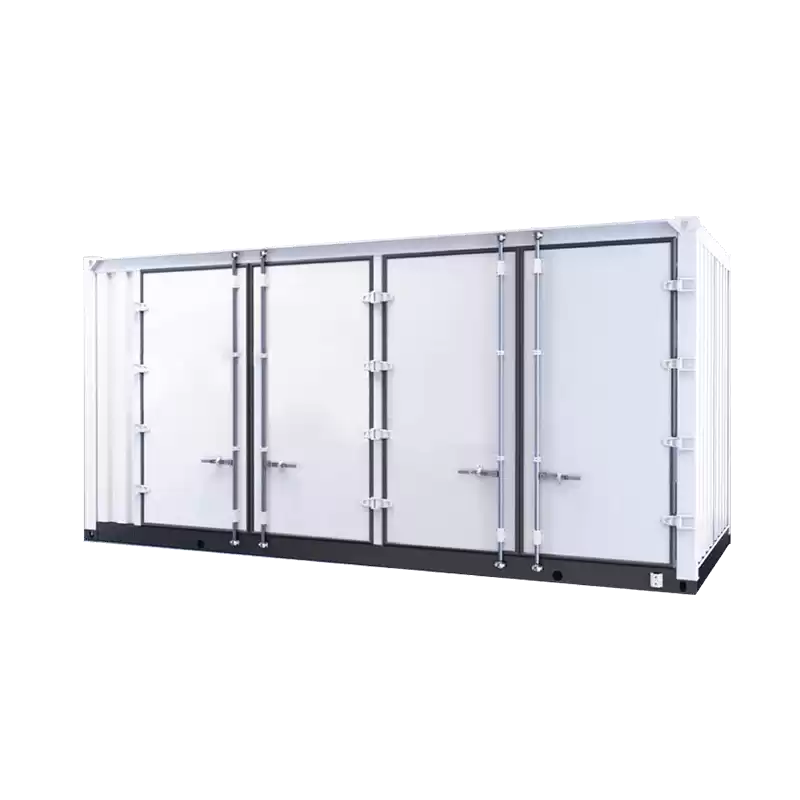

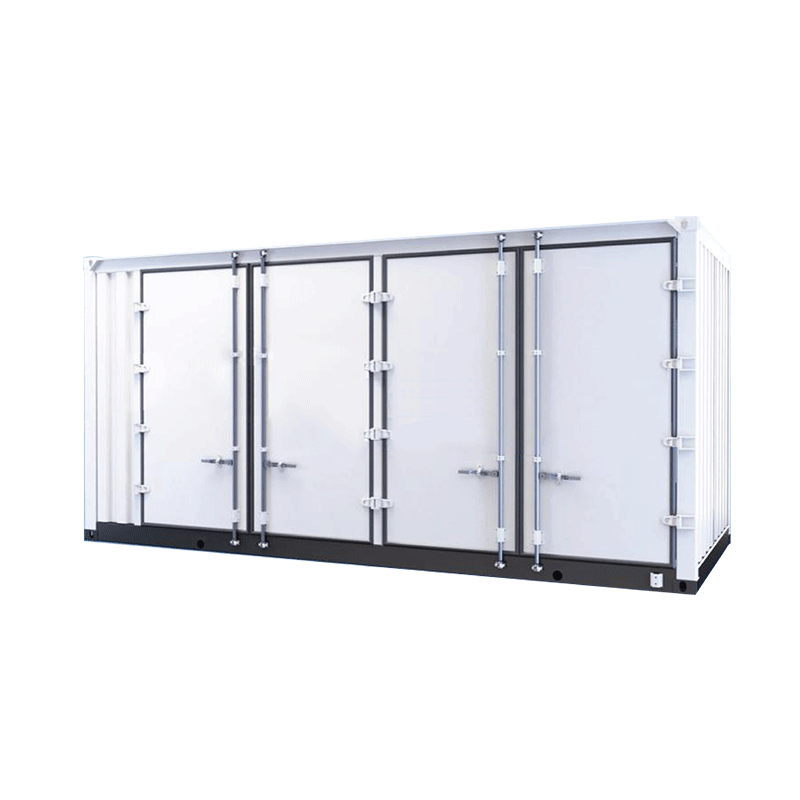

  • DESS1000/2000 Distributed Large-Capacity Air-Cooling Energy Storage System Specifications





DC Relevant
Cell Type LFP 3.2V/280Ah Rated Voltage 716.8V
Battery Pack Configuration 1P16S/14.336kWh Rated Capacity 2007kWh
Battery System Configuration 10P224S Support Charge/Discharge Rate ≤ 0.5C



AC Relevant


Rated Output Power 1000kW Rated Grid Voltage 400V/10kV (Step-up Transformer)
Maximum Output Power 1100kW Rated Grid Frequency 50Hz/60Hz
Power Factor >0.99 (Rated Output Power) Isolation Transformer 400V Grid Connection without Transformer
Adjustable Power Factor Range 1 (Leading) ~ 1 (Lagging) Maximum Output Current 1600A
AC Current Harmonic (THDi) <3% (Rated Output Power) Connection Method Three-Phase Four-Wire System



Main System


Cycle Life ≥ 6000 Times @80% DOD Cooling Method Air Conditioning
Dimensions(W*H*D) 8550*2540*2240mm Inlet Method AC Bottom Inlet
Weight Approx. 25 Tons Operating Temperature -30°C ~65°C
Maximum Operating Altitude 3000m Relative Humidity 0~95% (No Condensation)
Fire Suppression System PFC and HFC Immersion Type with Active Warning Communication Protocol IEC61850/MODBUS-RTU/MODBUS-TCP
Ingress Protection Rating IP54 Communication Interface CAN/RS485/Ethernet











  • DESS1500/3000 Distributed Large-Capacity Liquid-Cooling Energy Storage System Specifications



DC Relevant
Cell Type LFP 3.2V/280Ah Rated Voltage 1331V
Battery Pack Type 1P16S/14.336kWh Rated Capacity 2982kWh
Battery System Configuration 8P416S Support Charge/Discharge Rate ≤ 0.5C



AC Relevant


Rated Output Power 1500kW Rated Grid Voltage 690V or 10kV (Step-up Transformer)
Maximum Output Power 1650kW Rated Grid Frequency 50Hz/60Hz
Power Factor >0.99 (Rated Output Power) Isolation Transformer 690V Grid Connection without Transformer
Adjustable Power Factor Range 1 (Leading) ~ 1 (Lagging) Maximum Output Current 1400A
AC Current Harmonic (THDi) <3% (Rated Output Power) Connection Method Three-Phase Four-Wire System



Main System


Cycle Life ≥ 6000 Times @80% Inlet Method AC Bottom Inlet
Dimensions(W*D*H) 9940*3200*2100mm Fire Suppression System PFC and HFC Immersion Type with Active Warning
Weight Approx. 28 Tons Communication Interface CAN/RS485/Ethernet
Maximum Operating Altitude 3000m Relative Humidity 0~95% (No Condensation)
Ingress Protection Rating IP54 Operating Temperature -30°C ~65°C
Cooling Method Liquid Cooling Communication Protocol IEC61850/MODBUS-RTU/MODBUS-TCP
