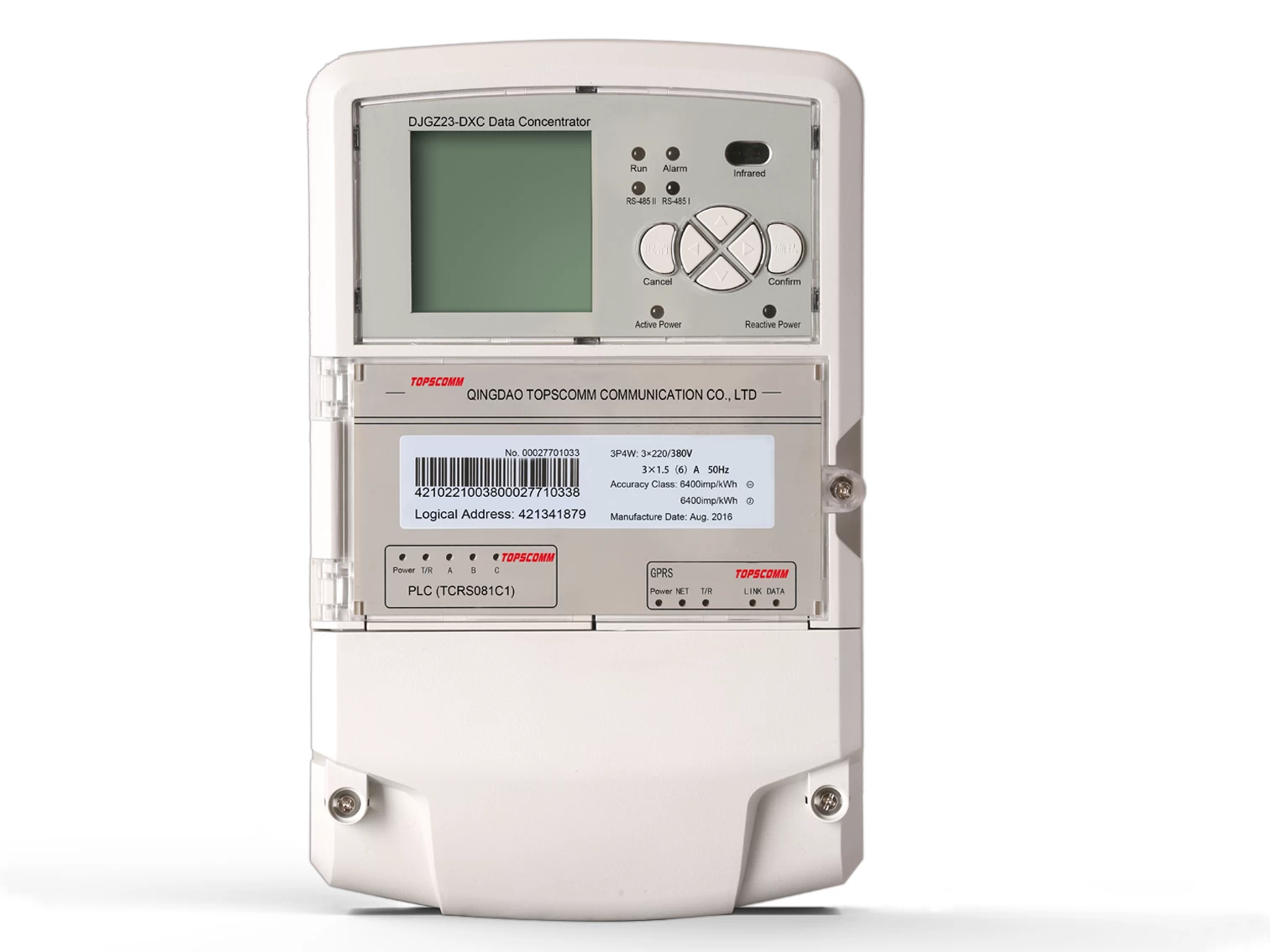

DJGZ23-DXC Energy Data Concentrator Unit

DJGZ23-DXC Data Concentrator Unit is a smart data collection terminal integrated with smart meter reading and wireless communication.



DJGZ23-DXC is equipped with various communication methods, it is capable to contact the utility master station through 3G/4G/GPRS/CDMA, or Ethernet, acting a critical role in the AMR/AMI smart metering system. The data concentrator also features transformer monitoring, data statistics, phases statistics functions, greatly benefits the utilities in improving meter reading efficiency and power loss management applications.


Power supply
3*220/380V; 3*57.7/100V
1.5(6)A
Accuracy
Active: 0.5   Reactive 1.0
Power consumption
≤10W, 15VA
Communication

3G/4G/GPRS/CDMA, PLC, RF replaceable communication modules;

Ethernet, RS232/RS 485, Infrared communication port.

Communication protocol
DLT/645, DLMS/COSEM
Startng time
<5s
Service life
>10 years
Operature temperature
-40℃~+85℃
Humidity
≤100%
Dimension
290mm*180mm*95mm
