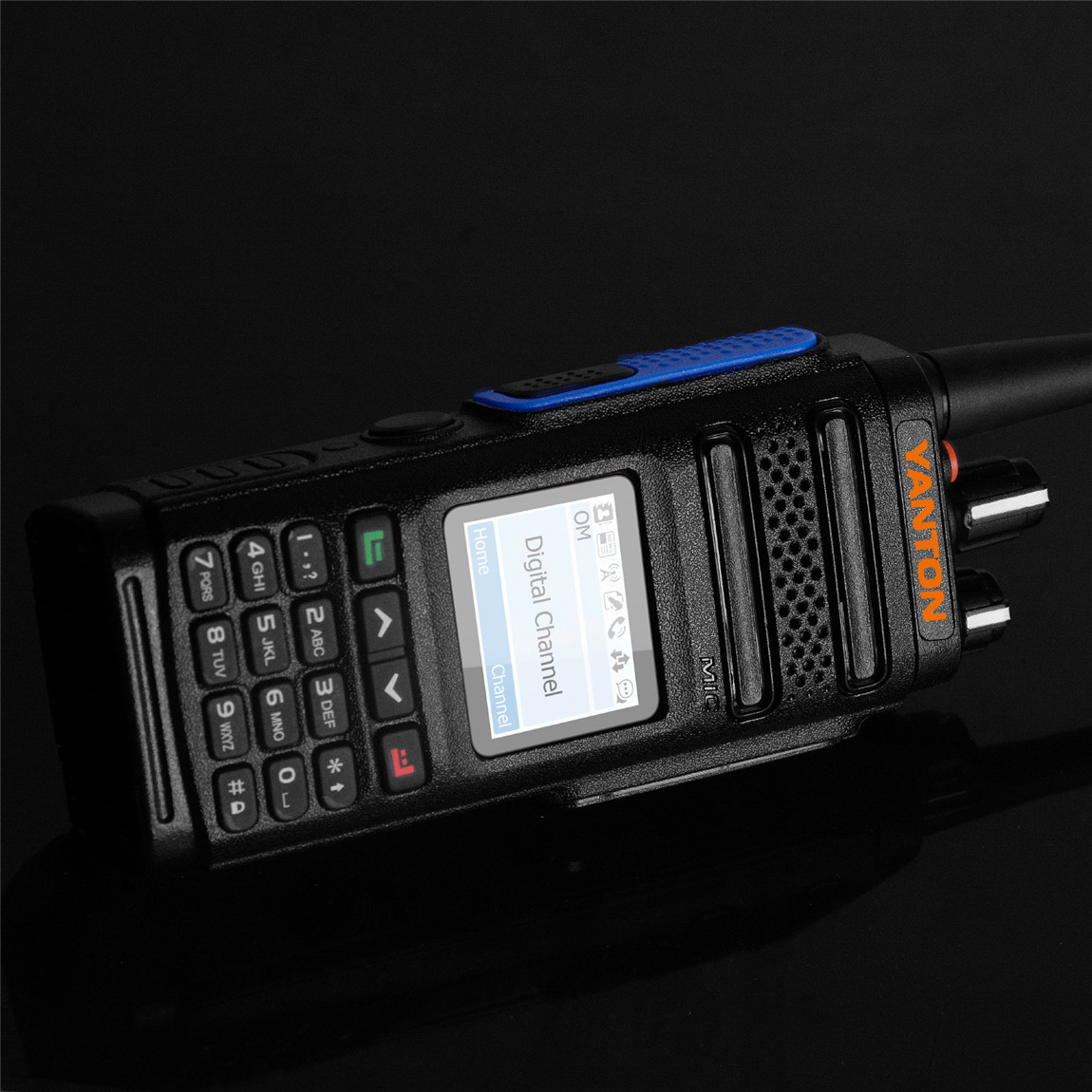

DMR IP67 Digital Trunking Communication System
DMR GPS Waterproof Trunking Radio,beside all the conventional analog radio,dual-mode DM-860 bring you a whole new set of digital fature, man down, 1024 channels, 64 zone, 2 slots, versatile call ,remote kill/revive,GPS function and a clear digital audio.
Quick Details
1.136-174MHZ or 400-480MHZ
2.1024Channels
3.Digital Contacts (All call & Group call & Single call)
4.Alarm Function
5.Scan Function
6.Wide/Narrow bandwidth Selection
7.Hight/ Low Power Switch
8.DTMF/Remote Kill,Stun,Activate&Revive
9.CTCSS/DCS
10.Digital Encryption
11.Side key Function
12.Chinese/English Voice prompt
13.Duplex Repeater Function
14.Talk Around
15.MAN DOWN
16.GPS Function Optional
17.Patrol Function Optional
18.200 Hours Recorder Function
Specification
|
GENERAL
|
|
Frequency
Range
|
136-174/400-480MHz
|
|
Operating
Temperature
|
-30°C~
+60°C
|
|
channel
spacing
|
Analog:
12.5/20/25KHz Digital: 12.5KHz
|
|
battery
life
|
About
15/20 hours according to 5-5-90 duty cycle
|
|
Memory
Channel
|
1024ch
|
|
Working
voltage
|
7.2V
DC ± 10%
|
|
Antenna
Impedance
|
50Ω
|
|
Frequency
Stability
|
±2.5ppm
|
|
Dimensions
|
136*65*40mm(without
antenna)
|
|
Weight
|
265g
|
|
TRANSMIT PART
|
|
RF
power
|
10W
|
|
Modulate
Mode
|
12.5KHz
: 7K60FXD(Data Only)/12.5KHz: 7K60FXW(Voice & Data)
|
|
Hum
& Noise
|
≥
45dB
|
|
Spurious
Emission
|
≥65dB
|
|
Modulation
Distortion
|
≤ 5%
|
|
RECEIVER PART
|
|
Sensitivity
|
5%
BER:0.25μV
|
|
Audio
Distortion
|
≤
5%
|
|
Spurious
Response Rejection
|
≥
70dB
|
|
Adjacent
Channel Selectivity
|
≥
65dB
|
|
Inter-modulation
|
≥
60dB
|
|
Audio
Output
|
≥
1W
|

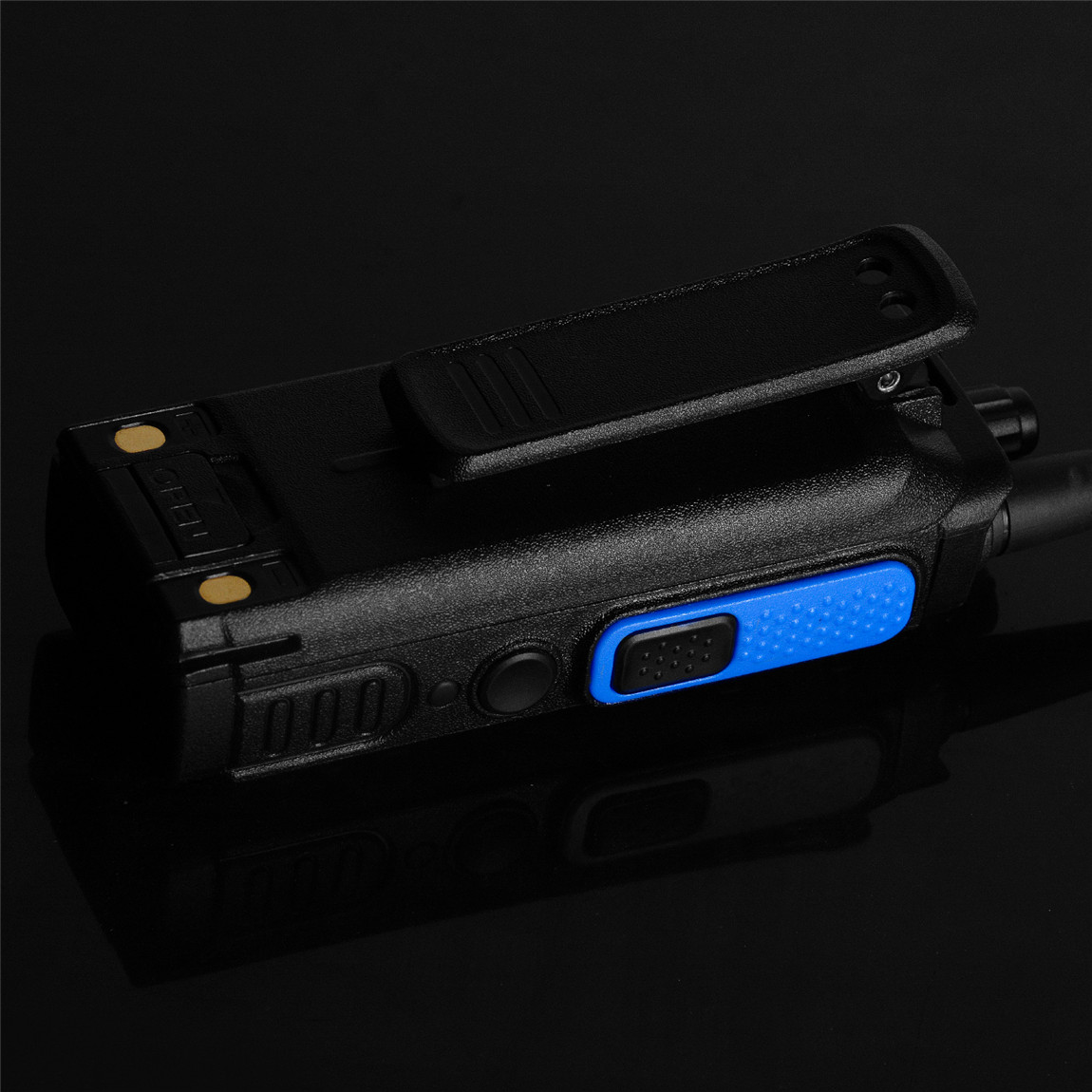

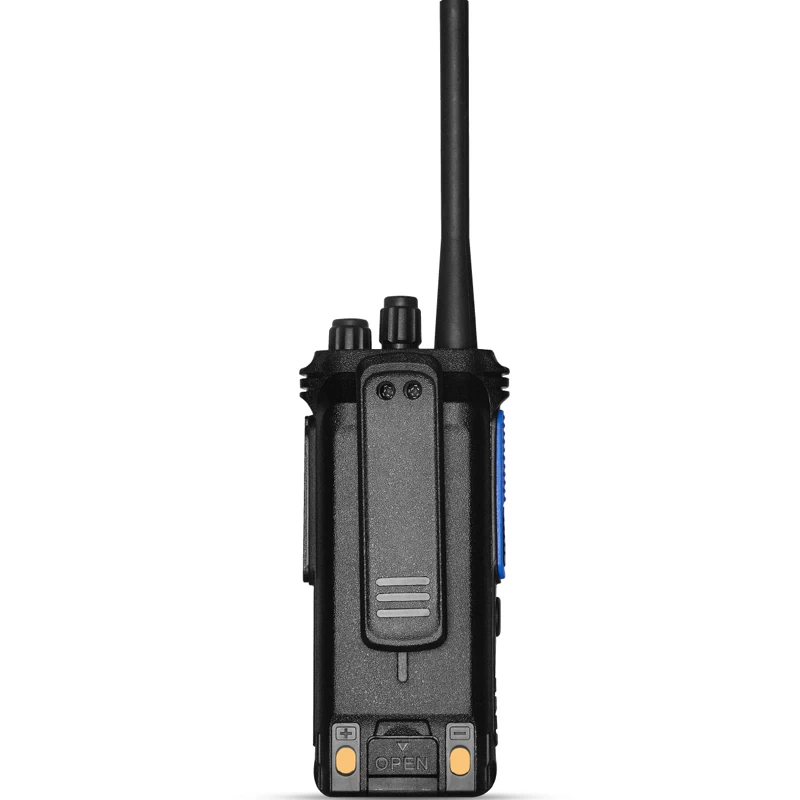

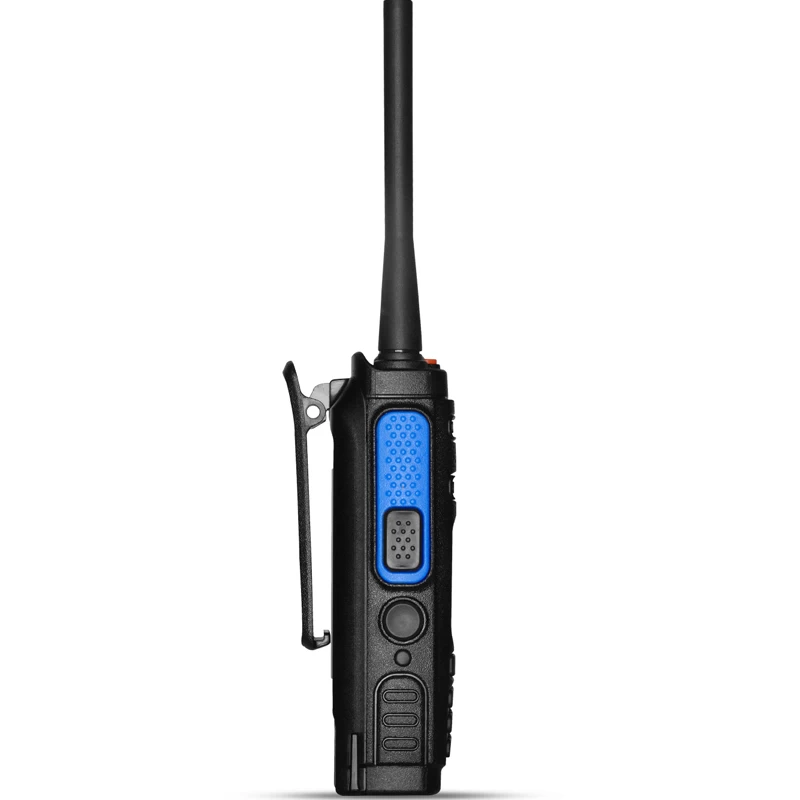

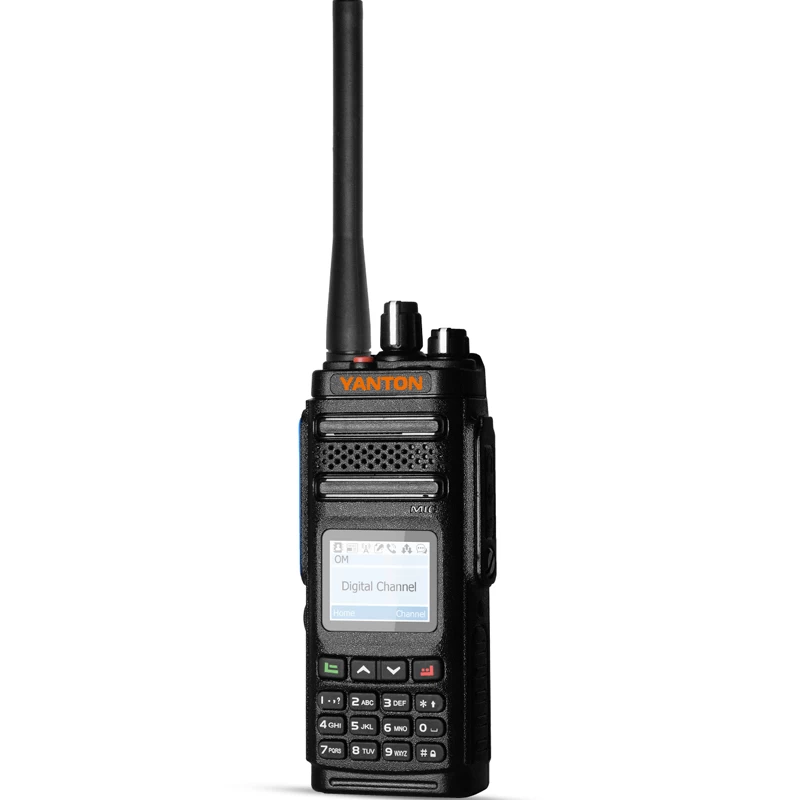

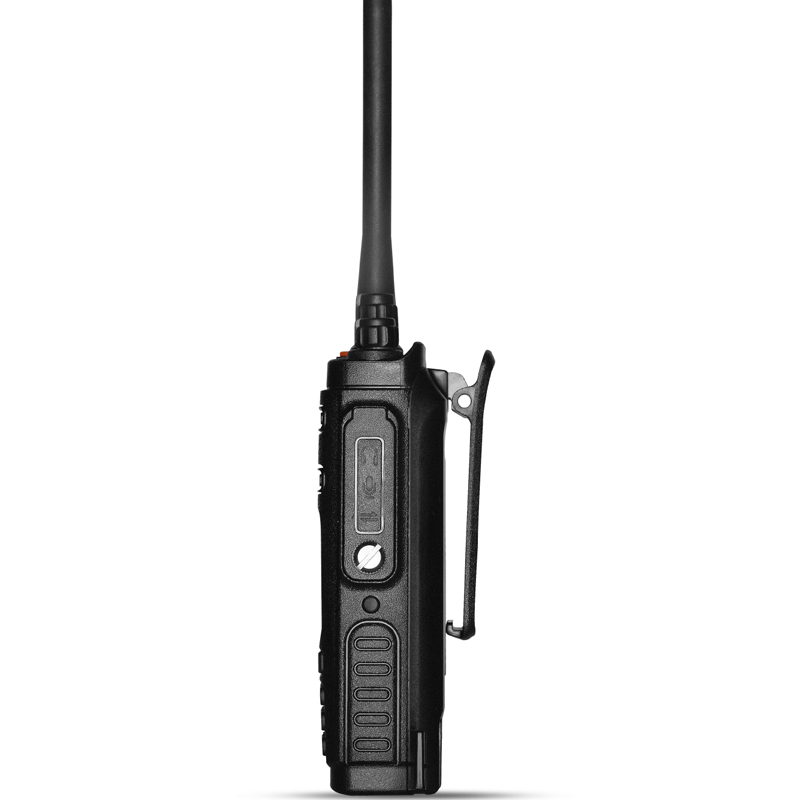

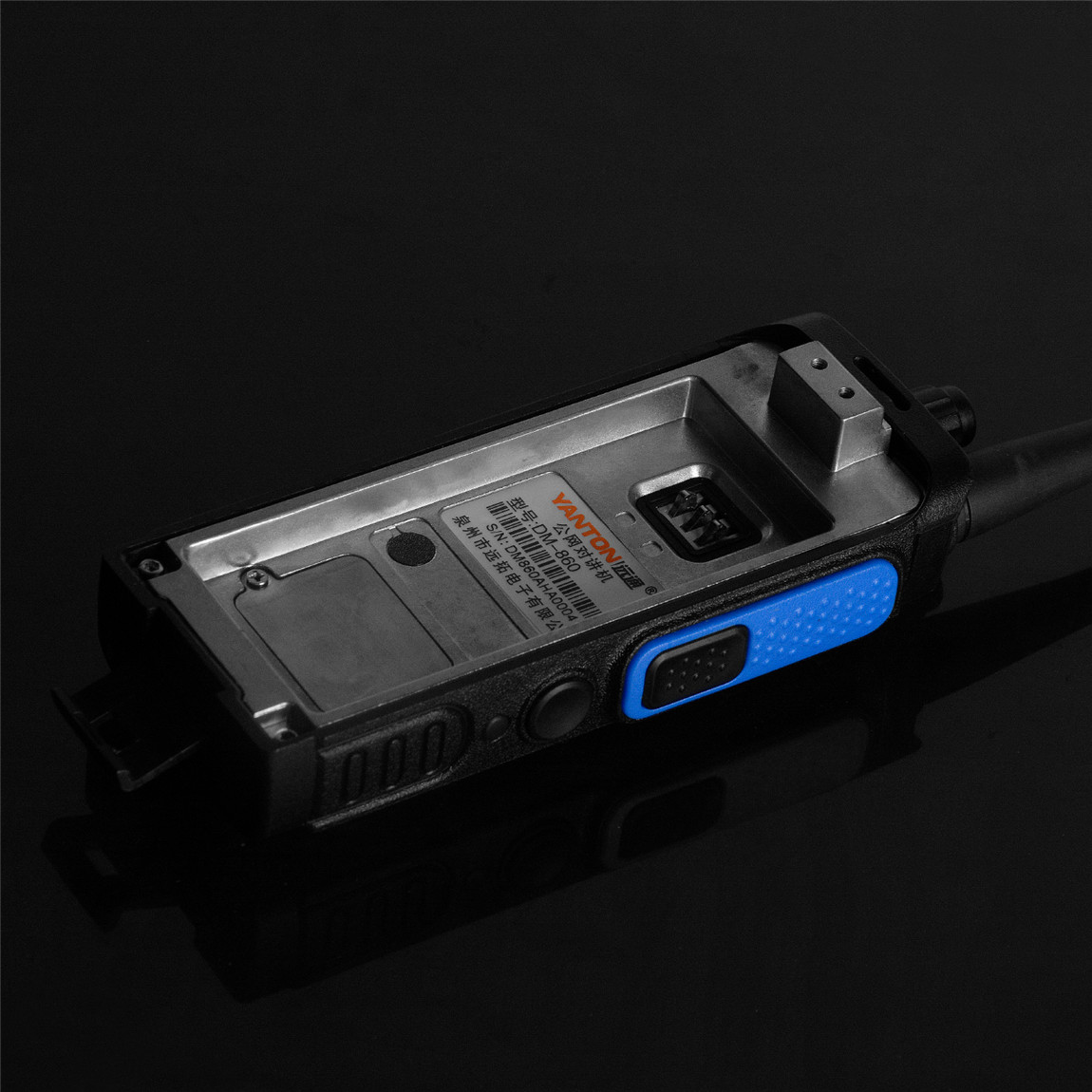

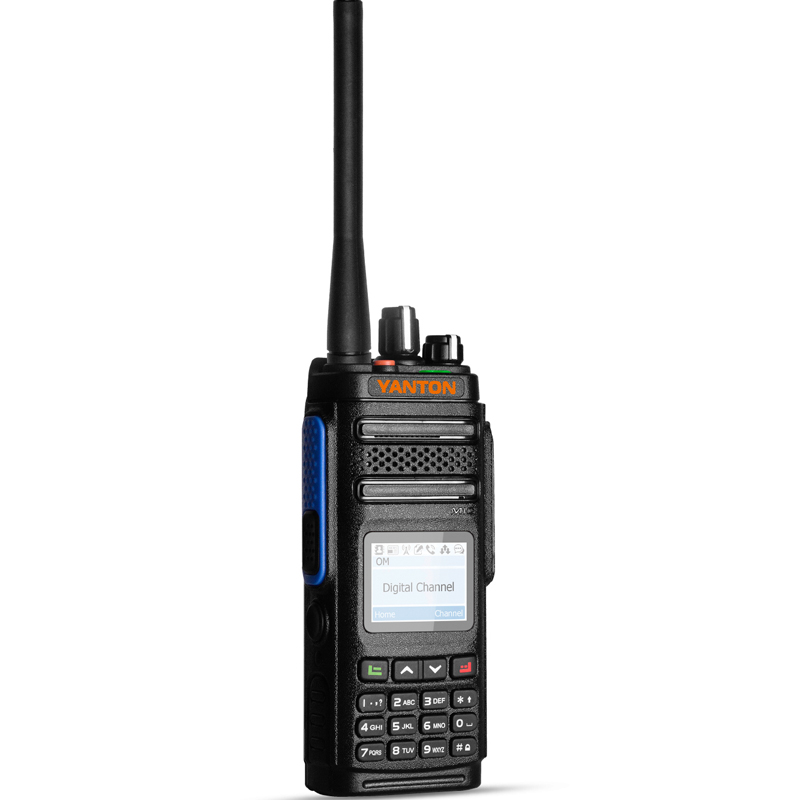

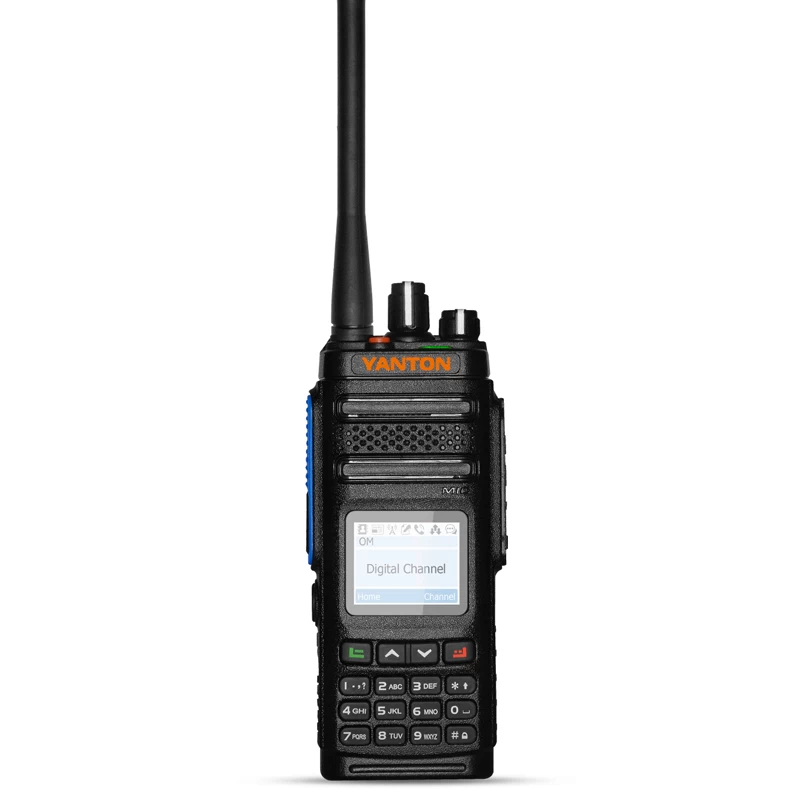

DMR GPS Waterproof Trunking Radio
Service
Package: Each package in gift box; 20PCS in strong carton
Payment: Paypal, Western Union, T/T, LC
Lead time: Sample: 1-3 working days
Wholesales order: 500PCS within in 5-7 days
OEM order: 7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express: door to door service DHL,UPS, FEDEX, TNT and so on.
By air: To destination airport, need to assist clear customs, without door to door service.
By sea: To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days
