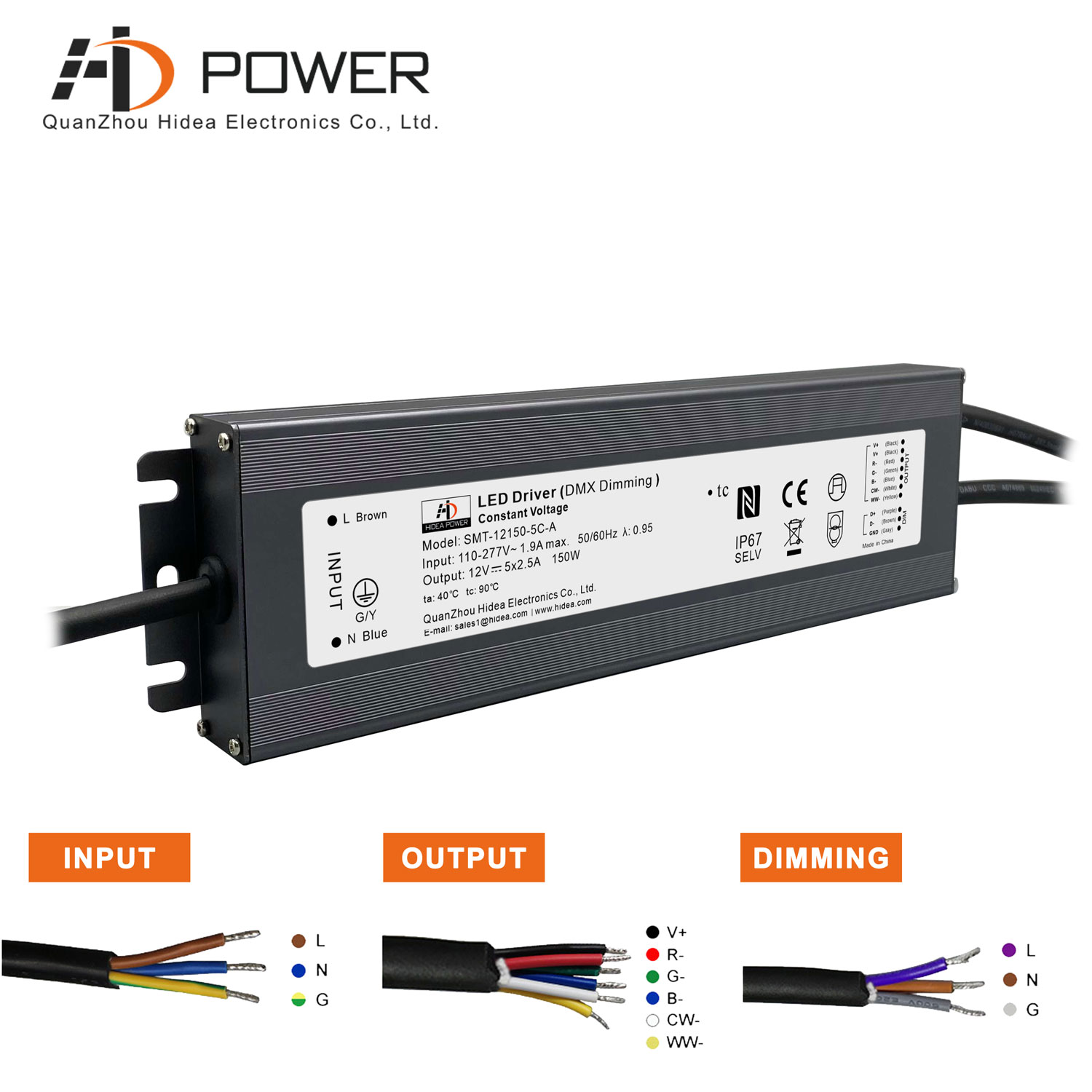

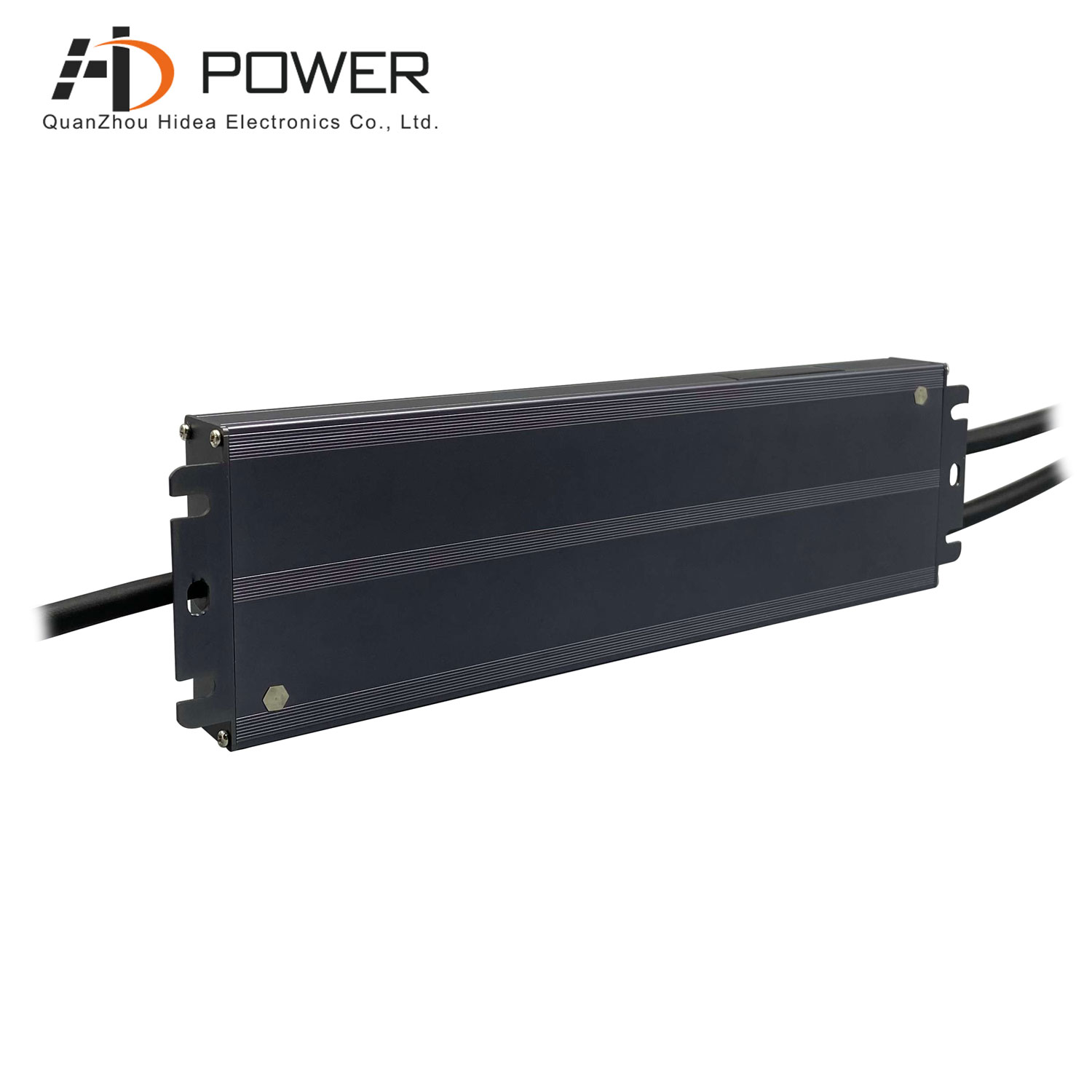

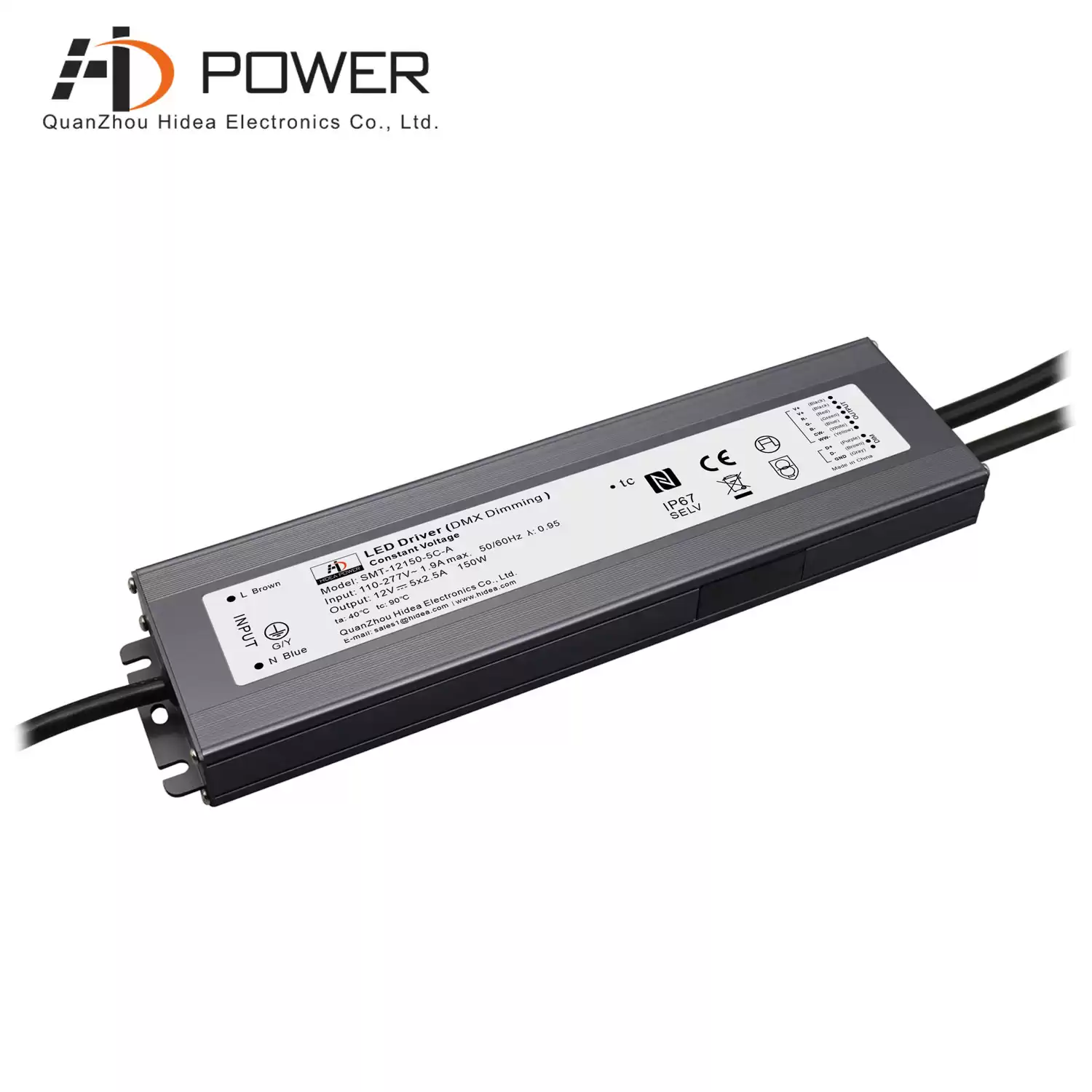

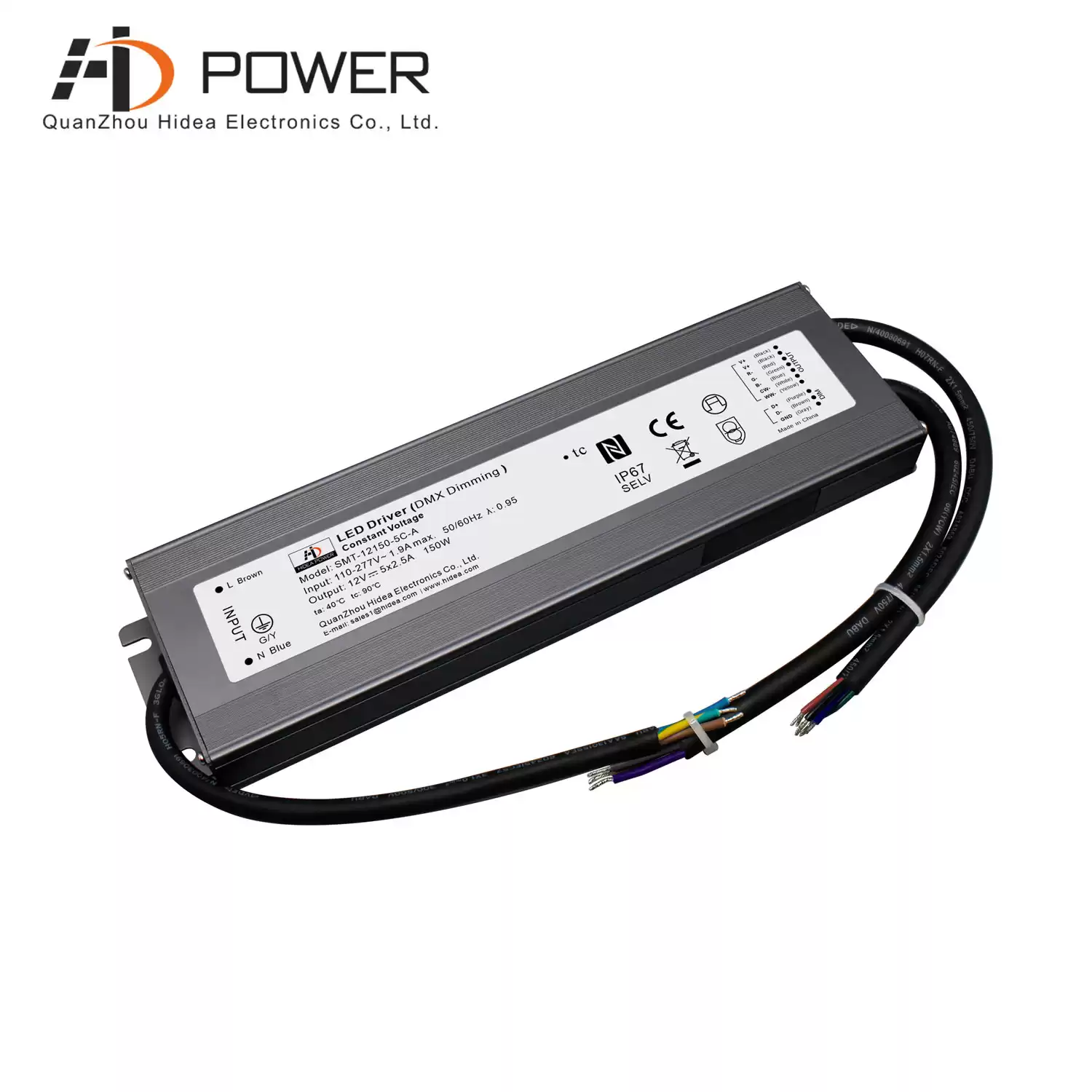

This DMX led driver 150w 12v has a maximum load
of 150 watts, no minimum power load; dimming works
equally well whether powering Maxtar single color or
multi-color LED tape lighting. The sealed driver allows
for indoor or outdoor use.
|
|
Specification
|
Model
|
SMT-12150-XC-A
|
SMT-24150-XC-A
|
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
|
|
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=12.5A
|
CH1+CH2+CH3+CH4+CH5=6.25A
|
|
Rated power
|
150W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
PowerFactor(Typ.)@ full load
|
PF≥0.97@230VAC
|
|
THD(Typ.)@ full load
|
≤10%
|
|
Efficiency(Typ.)@full load
|
91%@230VAC
|
92.5%@230VAC
|
|
AC Current(Max.)
|
1.85A
|
1.85A
|
|
Inrush Current(Typ.)
|
88A (Twidth 120us measured at 50% I peak, COLD START, 230VAC)
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US) (≥60% loading)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11, EN61547
|
|
Others
|
Net Weight
|
0.75KG
|
|
Dimension
|
277x78x25mm (LxWxH)
|
|
packing
|
10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

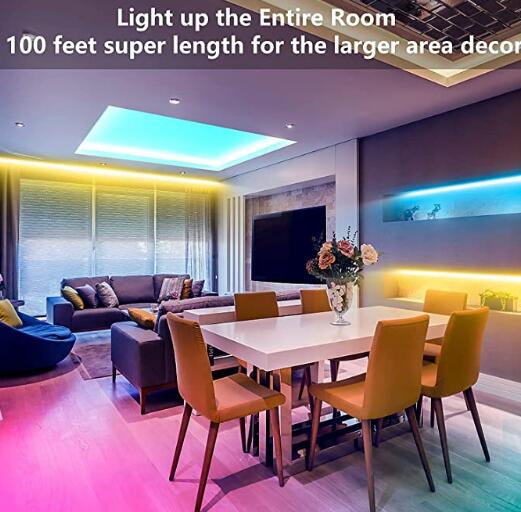

Cuttable design allows users to adjust the length of Bosco light strip however like, no need for any other devices,simply stick the strip lights on clean, dry surface. start to enjoy strip lighting, 100ft led strips are long enough to reach around your entire room and light the whole place up after connect with DMX led driver 150w 12v.
Related Products
|

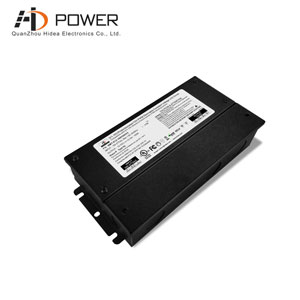

 The led power supply 12v 150w constant voltage driver has 4 entry points to screw terminals for easy wire access and is encased in a durable, vented aluminum enclosure.
