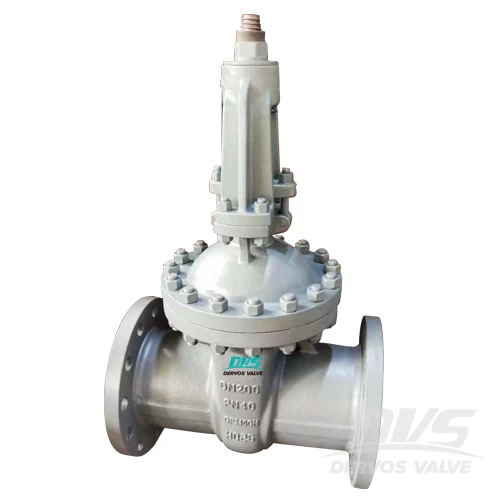

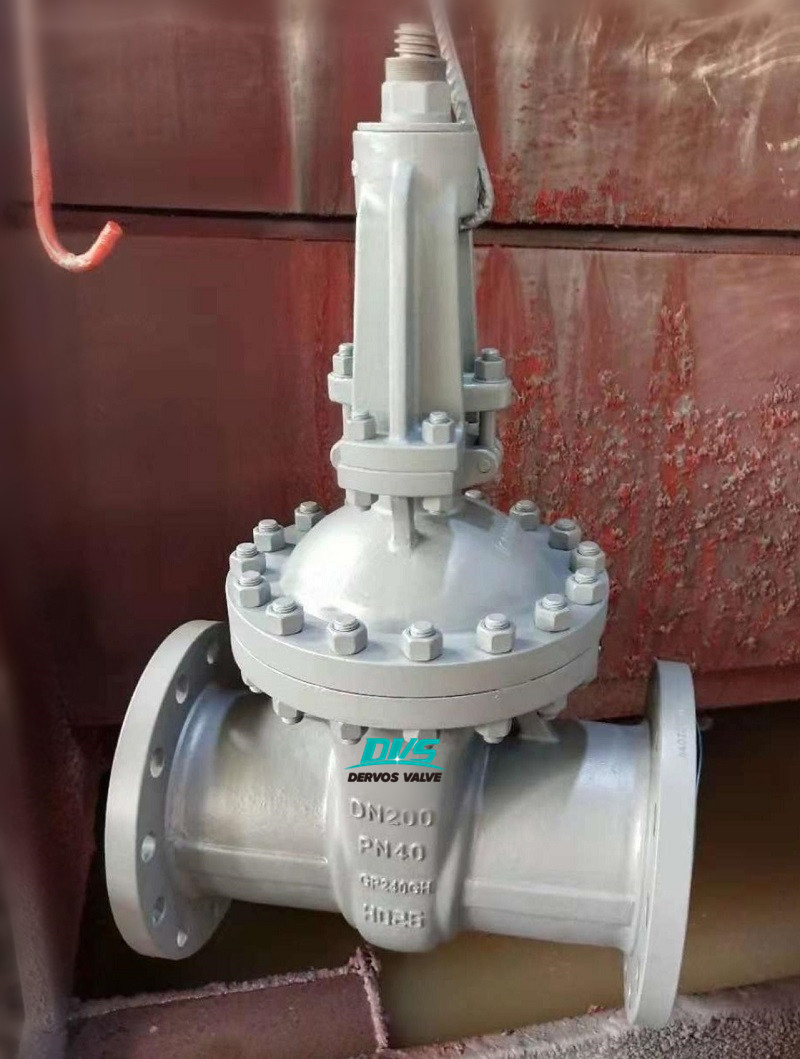

Bolt bonnet Gate valve follow EN1984 design standard, raised face flanged connection, outside screw and yoke, handwheel operation, GP240GP body/bonnet/wedge material, F6a stem, metal seal/seated.
Quick Detail
|
Type
|
Gate Valve
|
|
Size
|
DN200
|
|
DesignPressure
|
PN40
|
|
Construction
|
Bolt Bonnet Gate Valve
|
|
Connection Type
|
Raised Face Flange Connection
|
|
Operation
|
Handwheel
|
|
Design Code
|
EN 1984
|
|
Face to Face
|
DIN 3202
|
|
End Connection
|
EN 1092-1
|
|

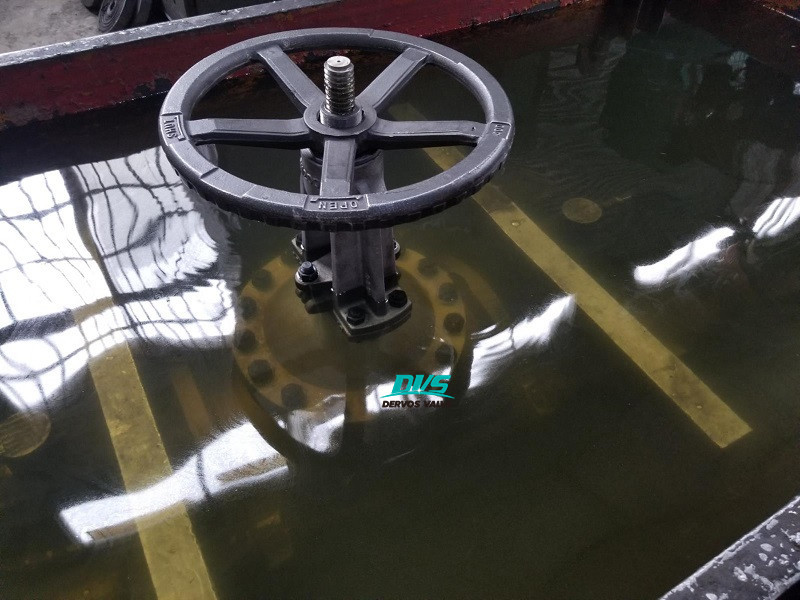

Test & Inspection
|
EN 12266-1
|
|

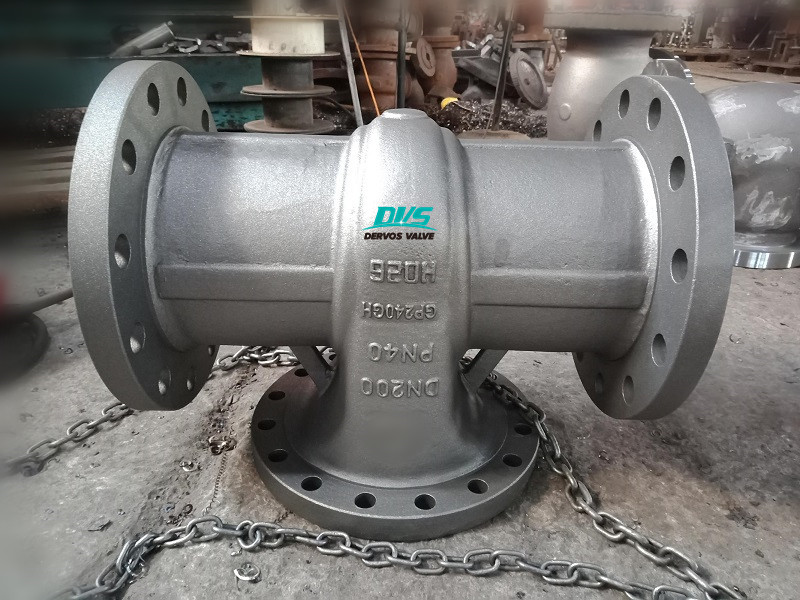

Body Material
|
GP240GH
|
|
Temperature Range
|
-29~425℃
|
|
Application
|
WOG
|
