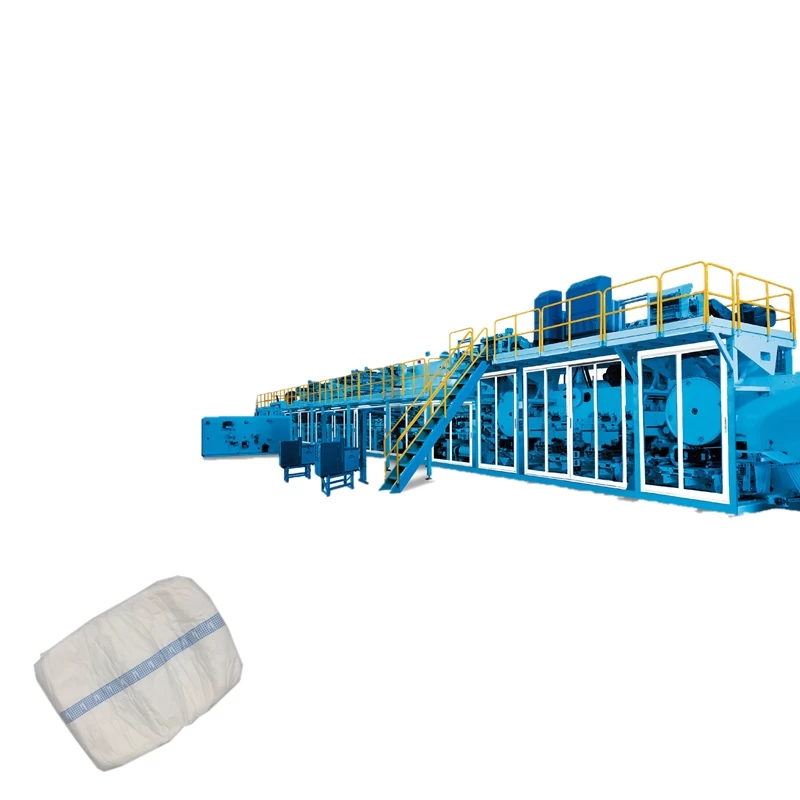

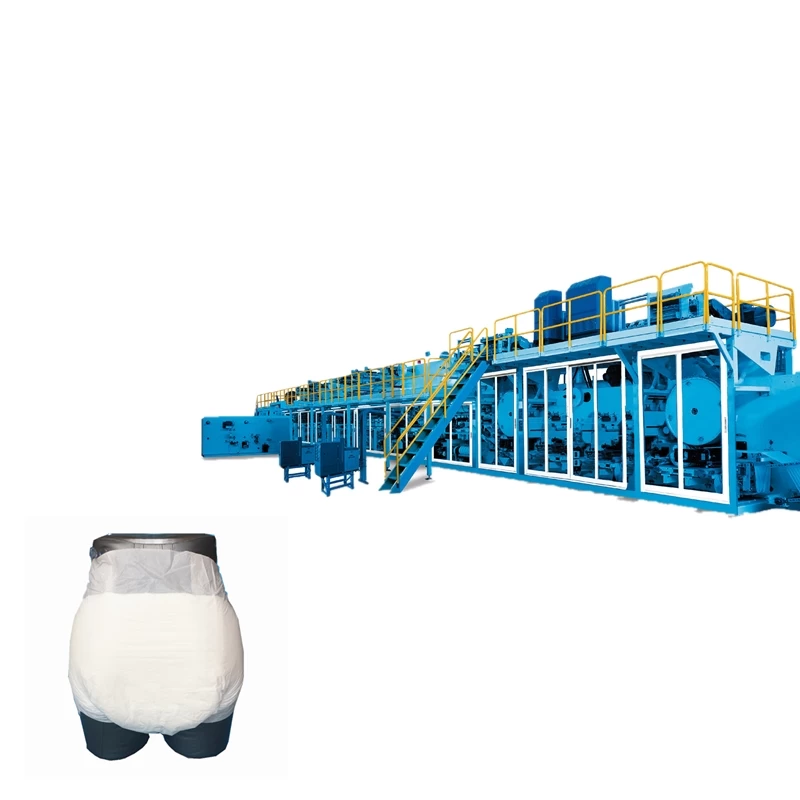

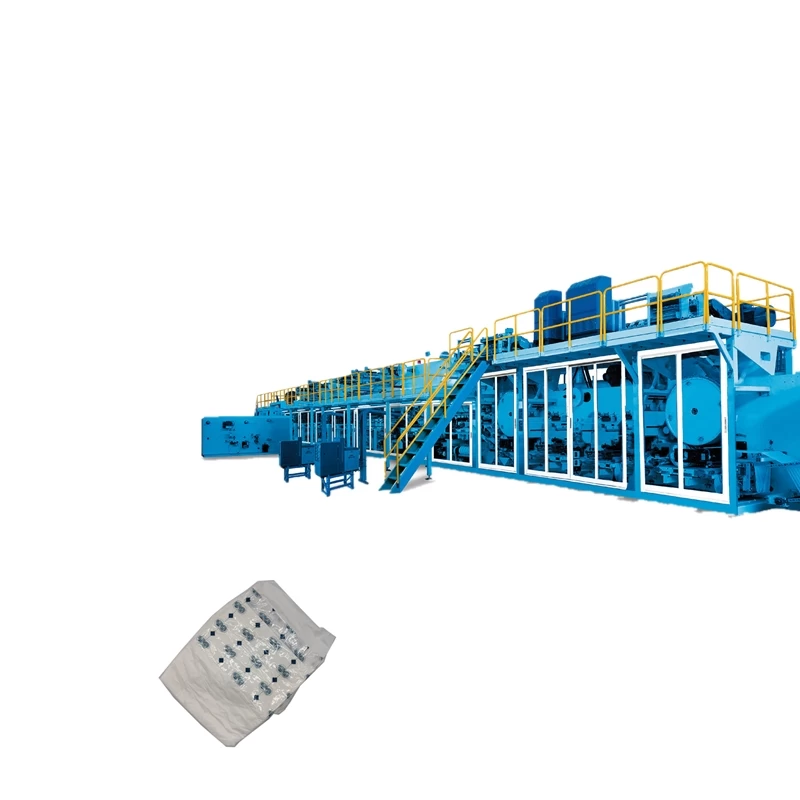

DNW-01 Adult diaper machine for make adult diaper product
|
Subject
|
Parameter
|
|
Overall size(L*W*H)
|
24M*4M*3.6M(For reference only)
|
Machine size(L*W*H)
|
22m*2.1m*3.3m,based on the product provided by client
|
|
Design speed
|
300pcs/min
|
|
Stable speed
|
180pcs/min
|
|
Pass precentage
|
98%
|
|
Work efficiency
|
85%-90%
|
|
Power source
|
380V,50HZ,(3phase,4lines+ground wire)
|
|
Machine capacity
|
about 400KW
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Machine weight
|
About 95T
|
|
Machine color
|
Customized
|
Configuration:
1. Product structure:
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.
2. Product size:
M: 680*450 L: 800*650 XL: 950*760
3. Control system:
PLC control system,operating on the touch screen,man-machine interface
4.Tension system:
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.
5.Drive system:
Servo Drive(Easy to change size),timing belt and flat belt are imported products,and all the key parts are imported bearings.
6.Safety system:
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.
7.Packing way:
Equipped with the stacker at the request of client.
8.Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
