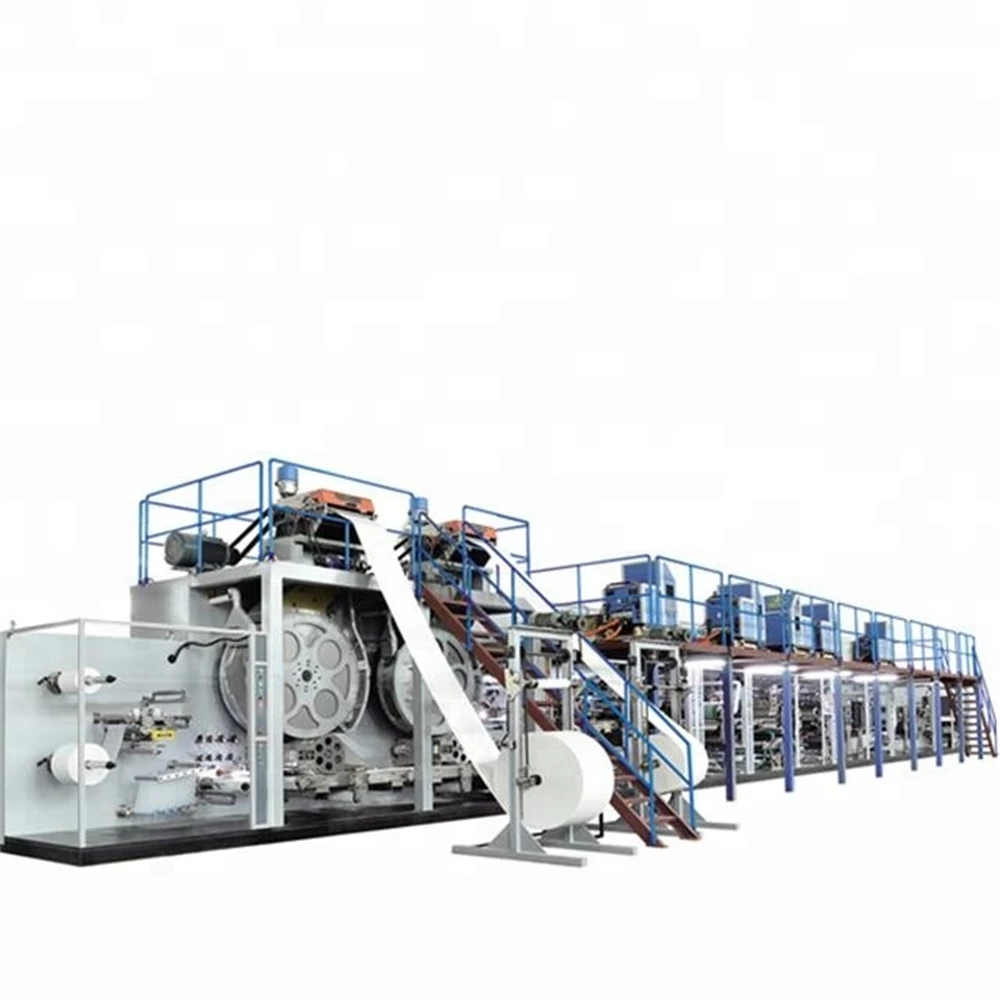

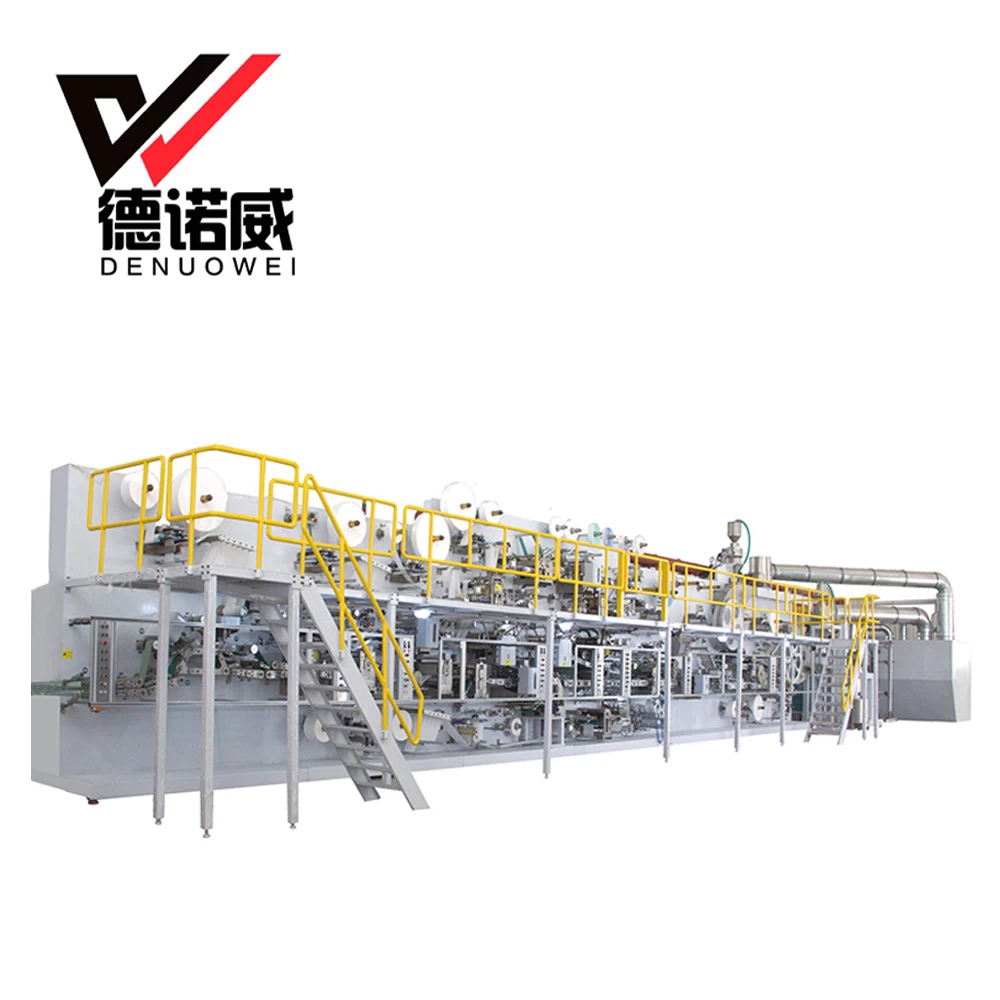

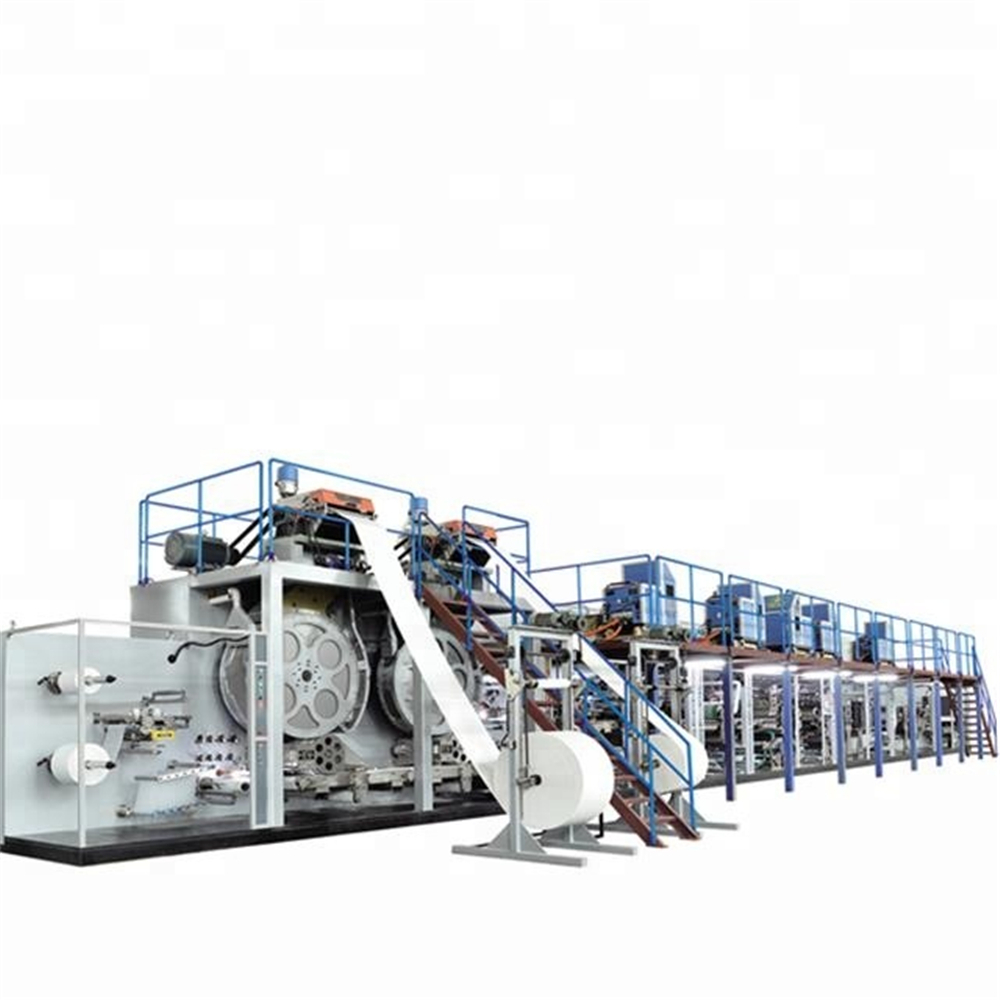

DNW-11 T shape servo baby diaper machine
|
Subject
|
Parameter
|
|
Overall size(L*W*H)
|
24M*4M*3.6M(For reference only)
|
Machine size(L*W*H)
|
22m*2.1m*3.3m,based on the product provided by client
|
|
Design speed
|
500pcs/min
|
|
Stable speed
|
400pcs/min
|
|
Pass precentage
|
98%
|
|
Work efficiency
|
85%-90%
|
|
Power source
|
380V,50HZ,(3phase,4lines+ground wire)
|
|
Machine capacity
|
about 280KW
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Machine weight
|
About 55T
|
|
Machine color
|
Customized
|
Configuration:
1. Product structure:
Up & Down Tissue Fluff core(mix with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,Side tap, waistband.
2. Product size:
S: 390*280 M: 450*320 L: 500*320 XL: 525*330
3. Control system:
PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.
4.Tension system:
Up & Down Tissue,ADL,Back sheet,Top sheet,Cuff N.M,are adopt A& B shaft active unwinding by inverter motor.
5.Drive system:
3-shaft mechanical drive,semi servo,full servo can be choose by customer's requirements
6.Safety system:
It has safty device on the operating side,matched with urgent stop switch,High audio fan uses sound insulation or silencer.
7.Packing way:
Equipment with the stacker at the request of client.
8.Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)

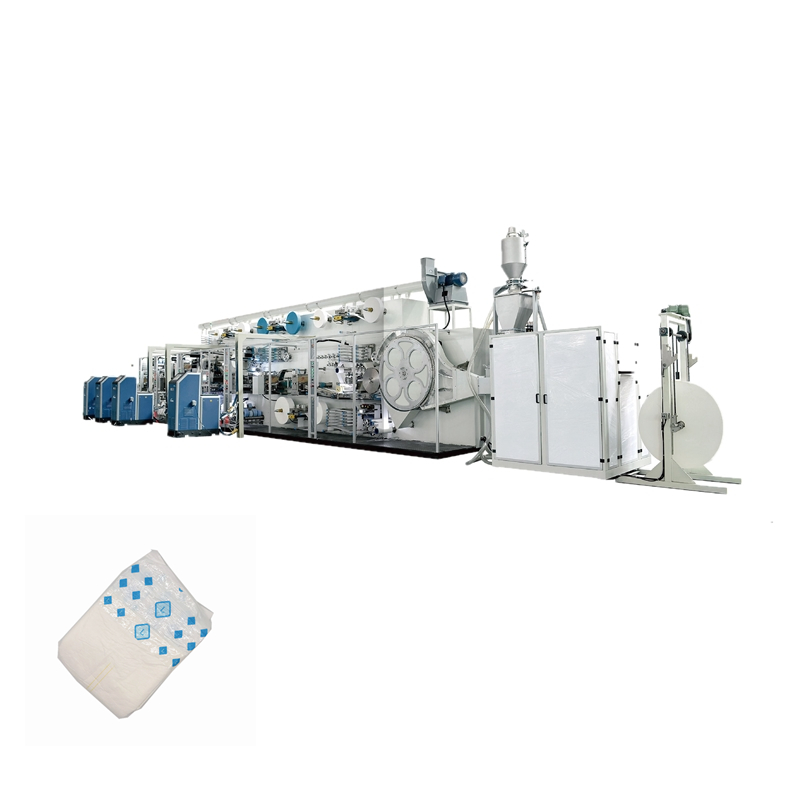

2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
