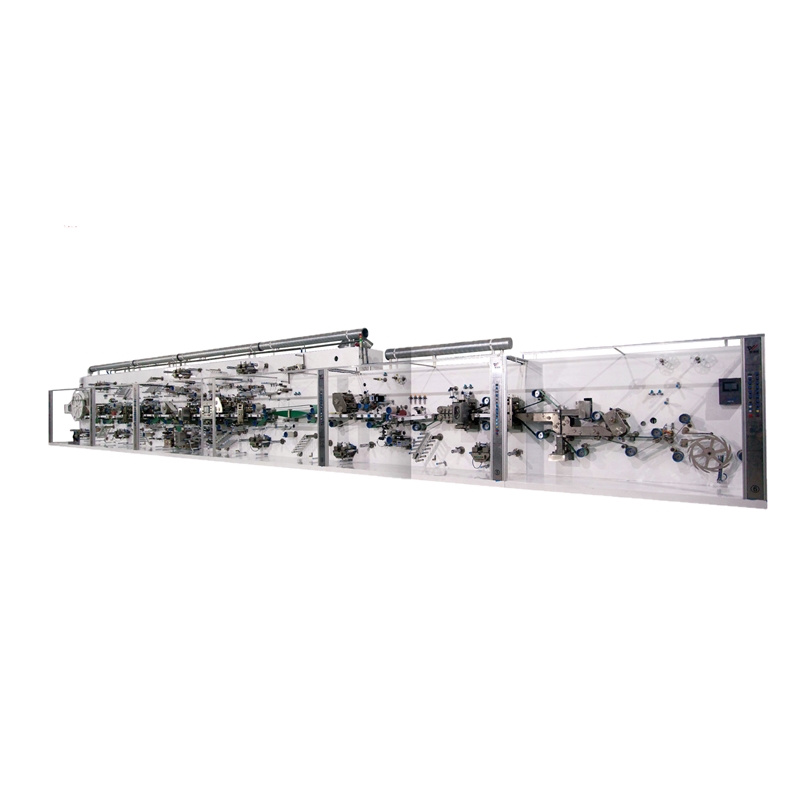

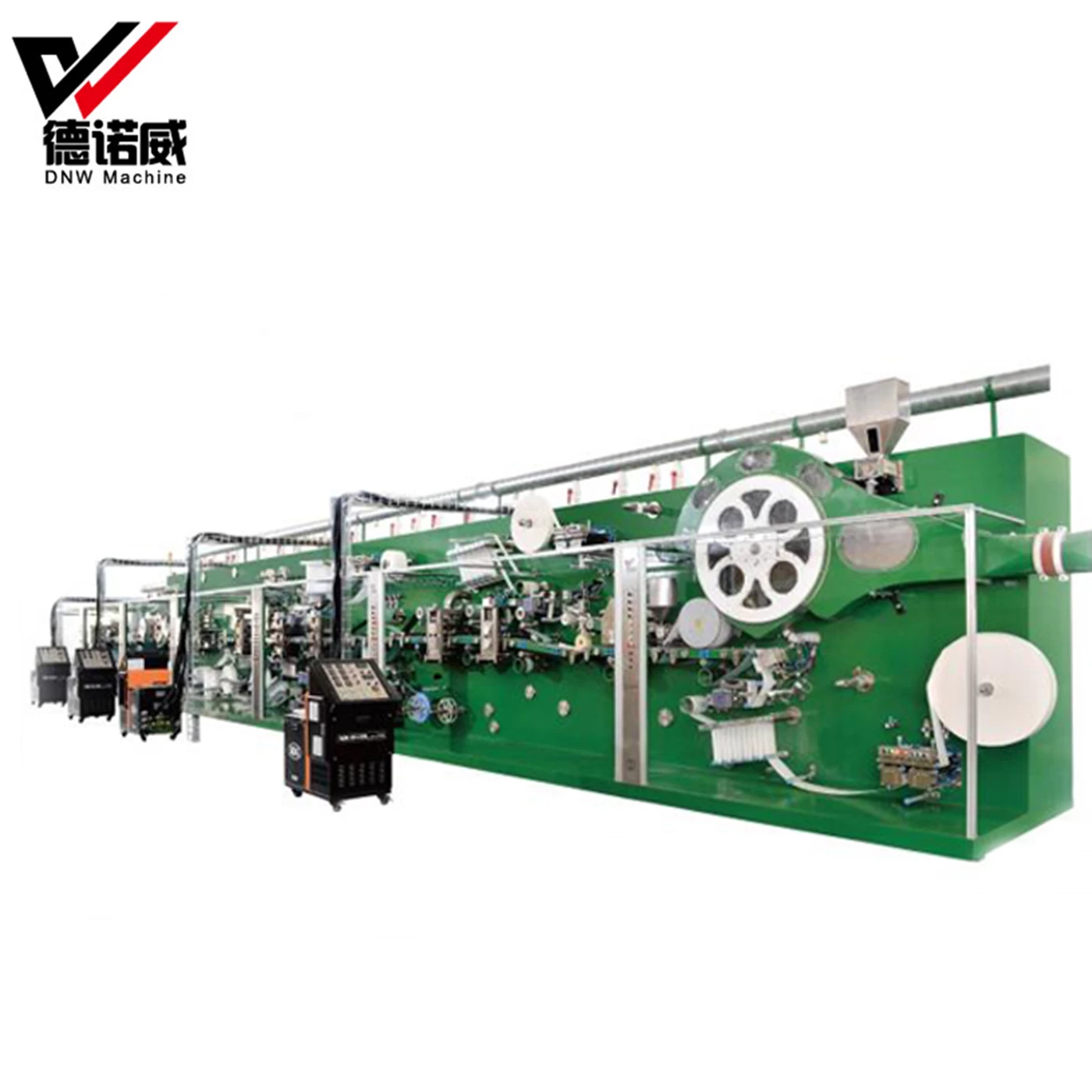

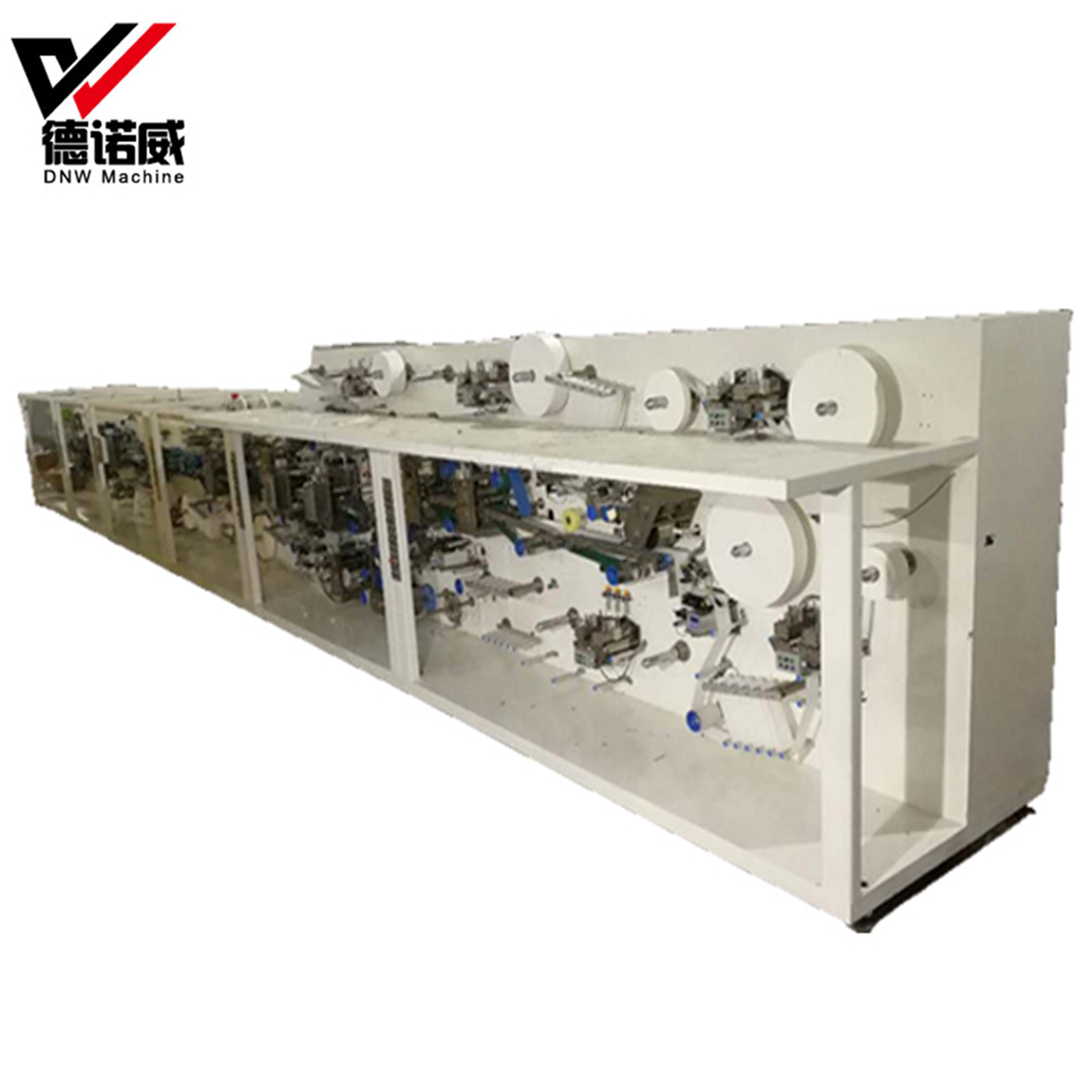

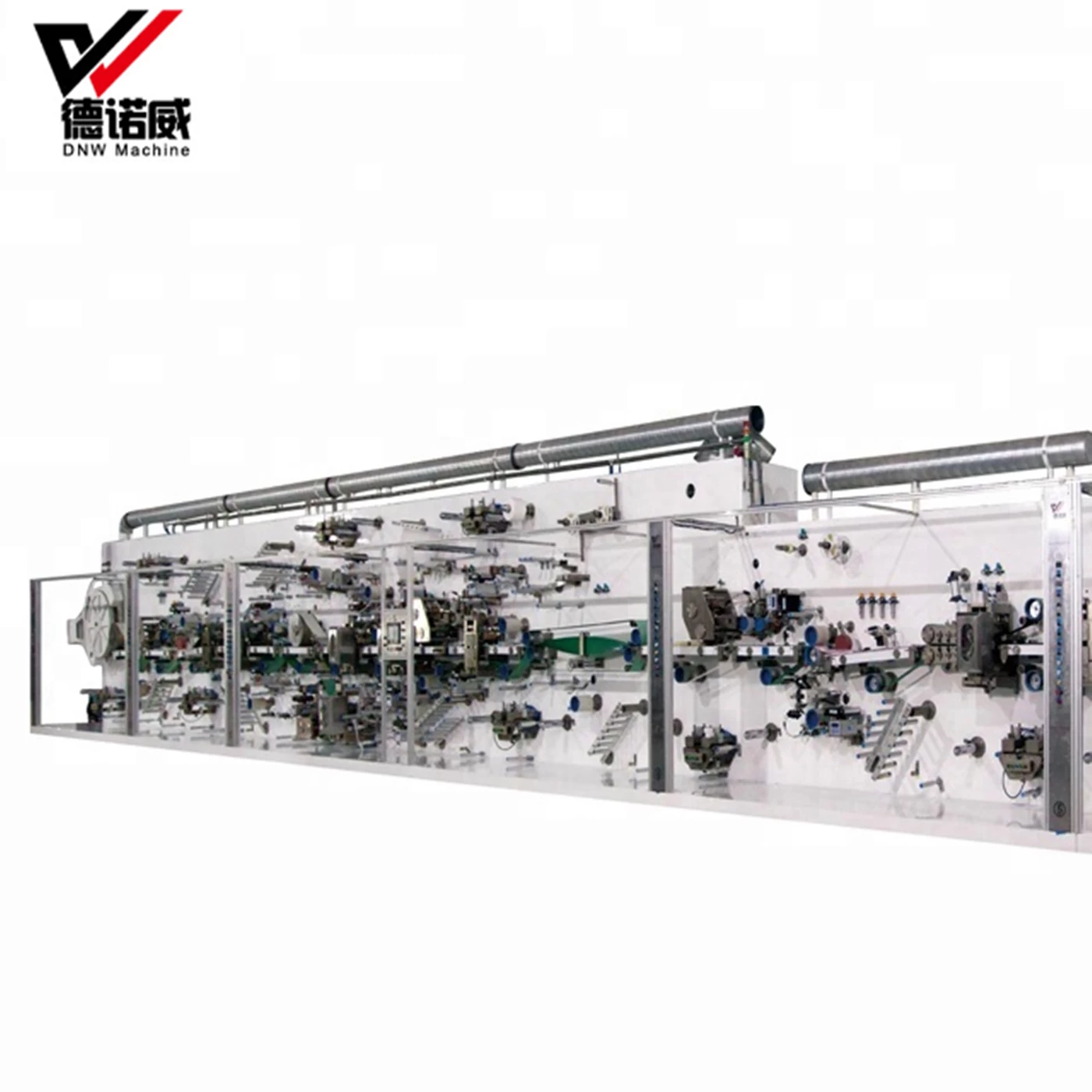

DNW-19 Sanitary napkin pads making machine with CE
|
Subject
|
Parameter
|
|
Overall size(L*W*H)
|
30M*6M*3M(For reference only)
|
Machine size(L*W*H)
|
22m*2m*2.5m,based on the product provided by client
|
|
Design speed
|
600pcs/min
|
|
Stable speed
|
500pcs/min
|
|
Pass precentage
|
98%
|
|
Work efficiency
|
90%
|
|
Power source
|
380V,50HZ,(3phase,4lines+ground wire)
|
|
Machine capacity
|
about 180KW
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Machine weight
|
About 50T
|
|
Machine color
|
Customized
|
Configuration:
1. Product structure:
Topsheet,ADL(Blue core layer),Layer tissue,fluff pulp(mix with SAP)/SAP paper,back sheet,wings/back release paper.
2. Product size:
Daytime use: 240mm Night use: 285mm(Customized)
3. Control system:
PLC programming control,HMI operation.
4.Tension system:
Carrier tissue,absorbent paper,topshee NW,leg cuffs NW,ADL,PE film,back release paper,Wings release paper,pouch fillm
A&B shaft active unwinding by inverter motor.
5.Drive system:
Single-axle gear,imported timing belt,key position adopt the imported bearing.
6.Safety system:
Safty guard installed at the operating side,equipped with emergency stop switch,security identifier.Driven side is equipped with sadety pull wire.
7.Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)

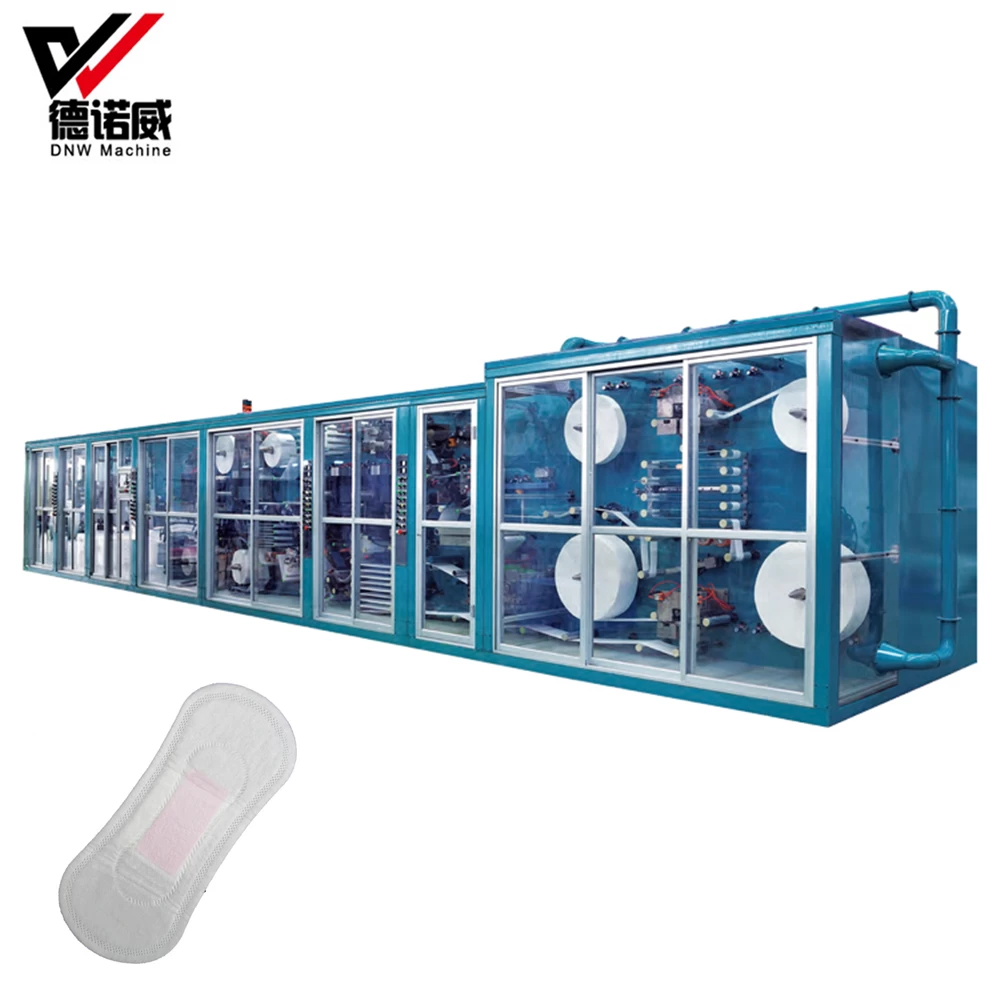

3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
