Applications:

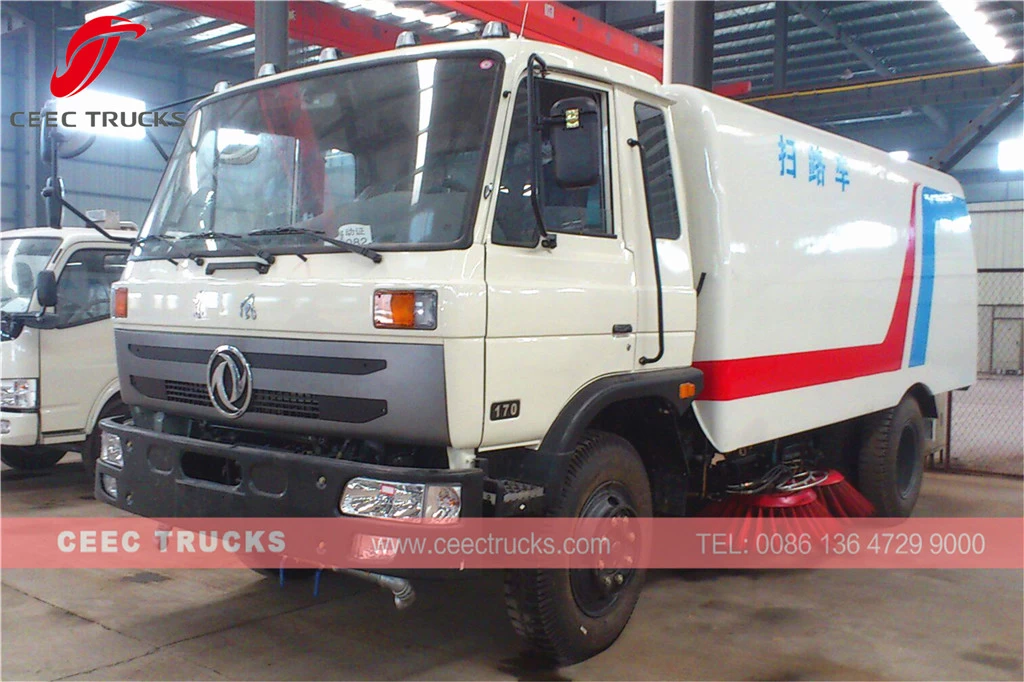

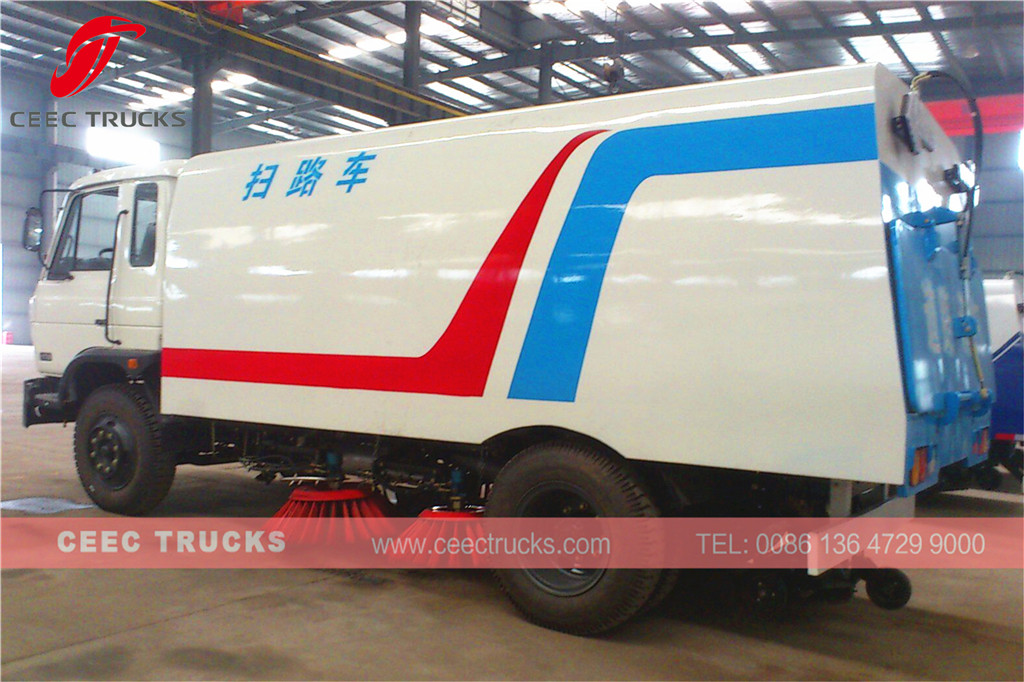

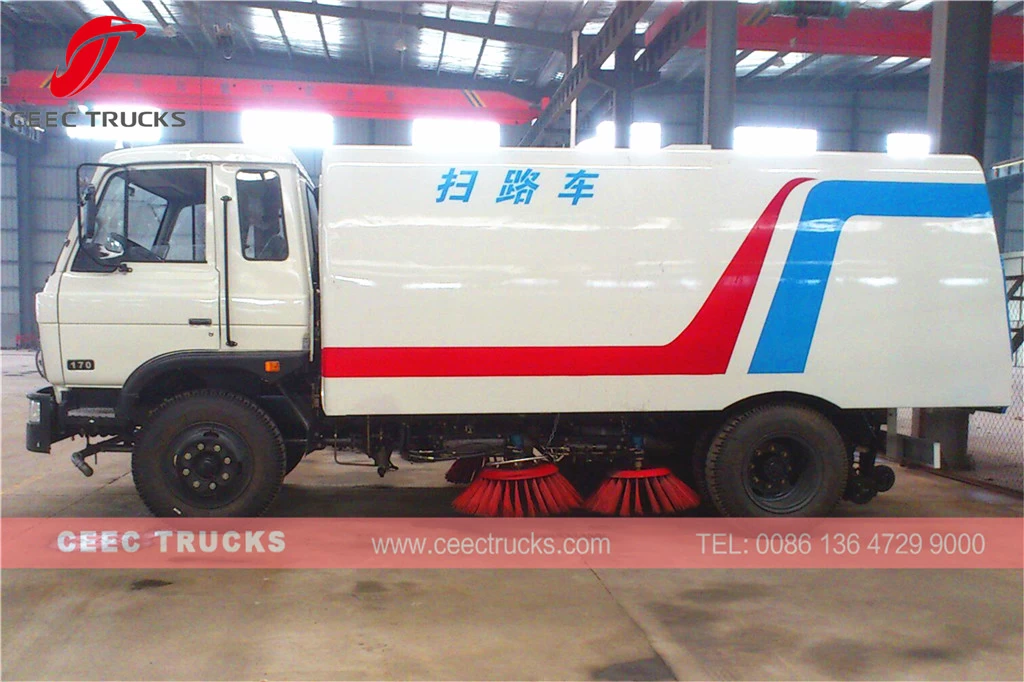

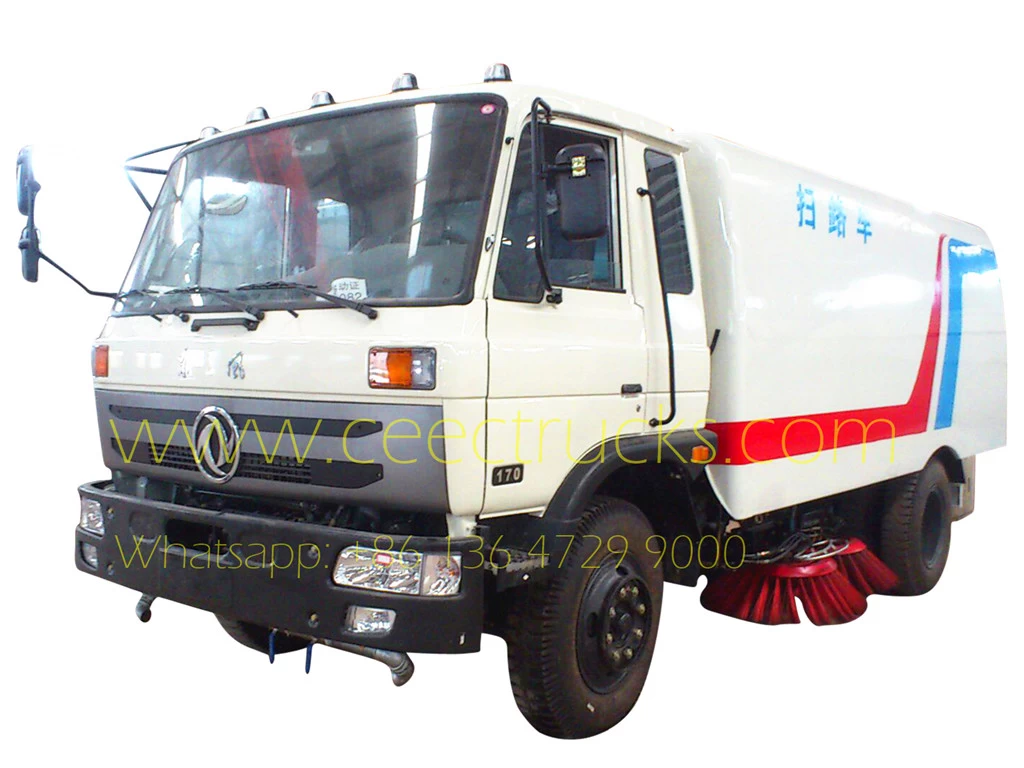

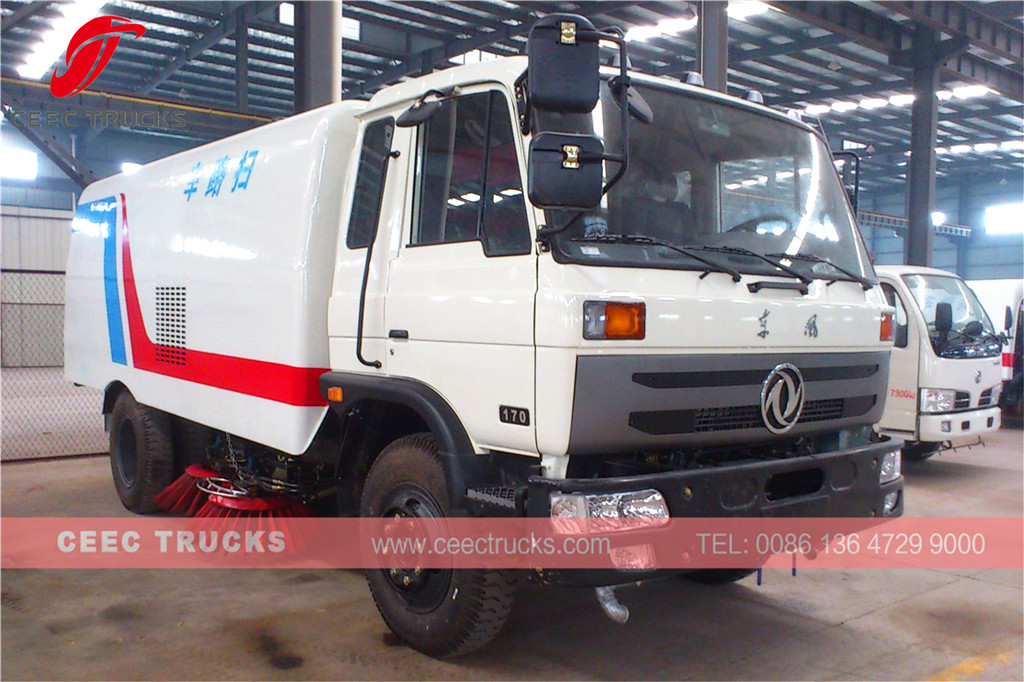

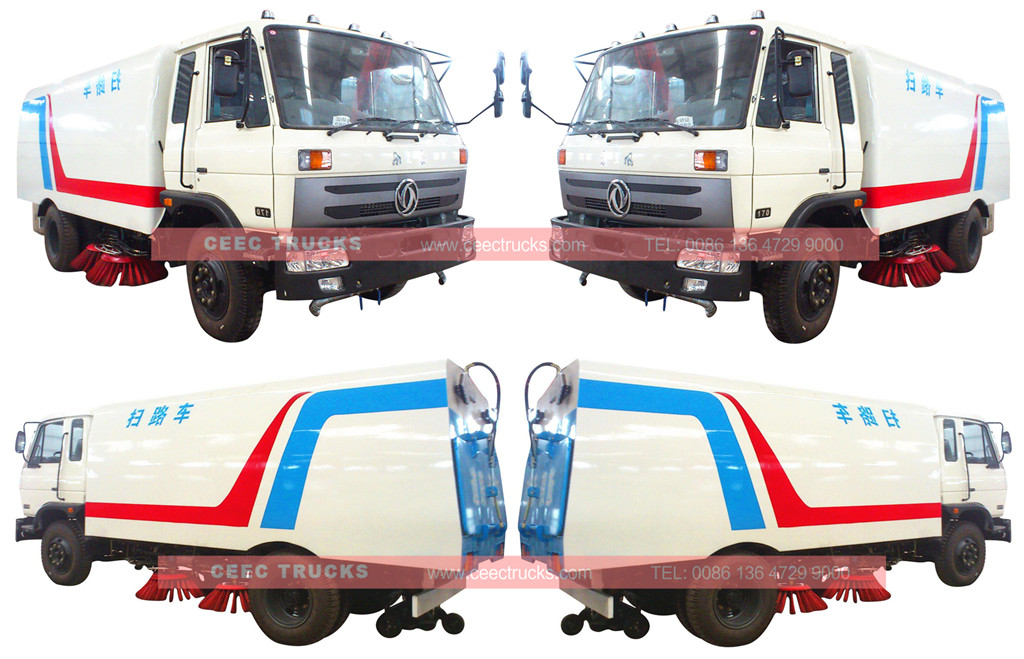

Road Sweeper truck Dongfeng (also called road sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle, vacuum road sweeper, DFAC road sweeper) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.
CEEC TRUCKS produced DFAC 10000L road sweeper is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- DONGFENG chassis, perfect performance
---- YUCHAI diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
| DONGFENG Road sweeper truck (10,000L)
|
| General
|
Vehicle Brand
|
CEEC TRUCKS
|
| Chassis Brand
|
DONGFENG
|

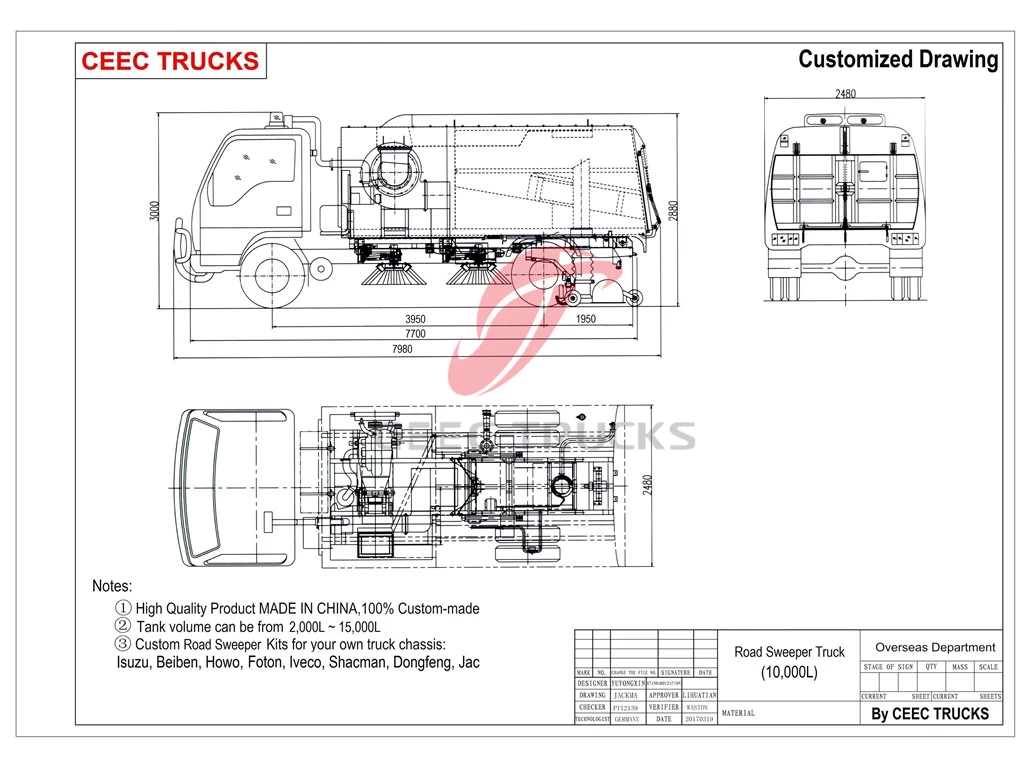

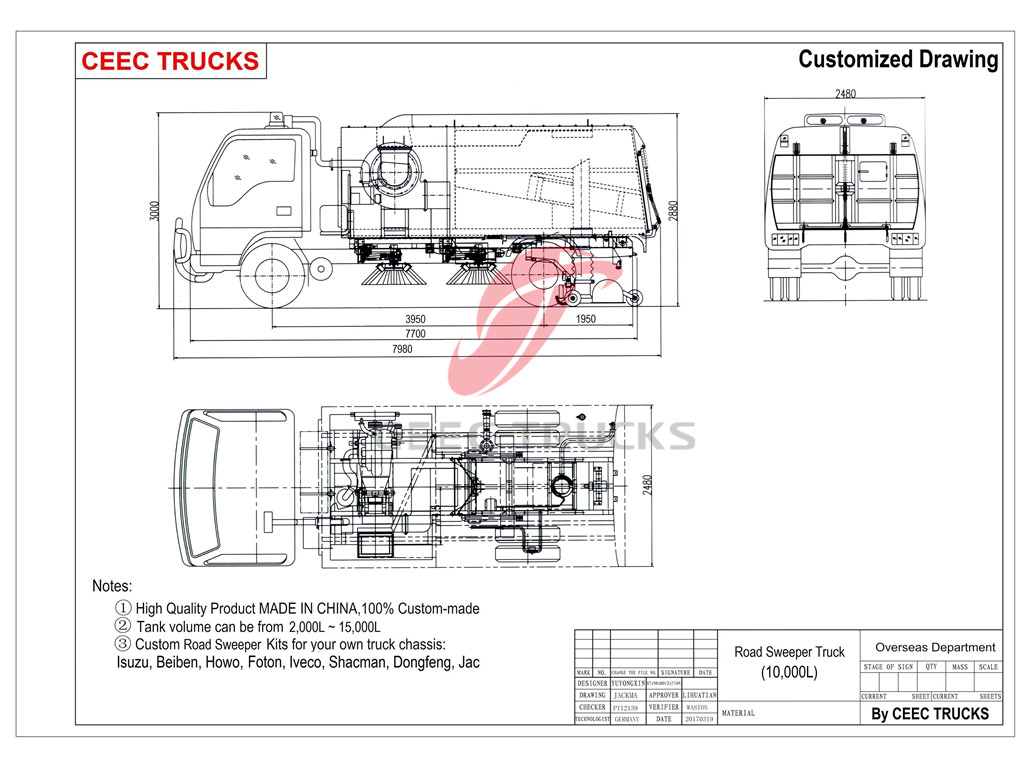

| Overall Dimension
|
7980*2480*3000 mm
|
| GVW / Kerb Weight
|
16,000kg / 8,900 kg
|

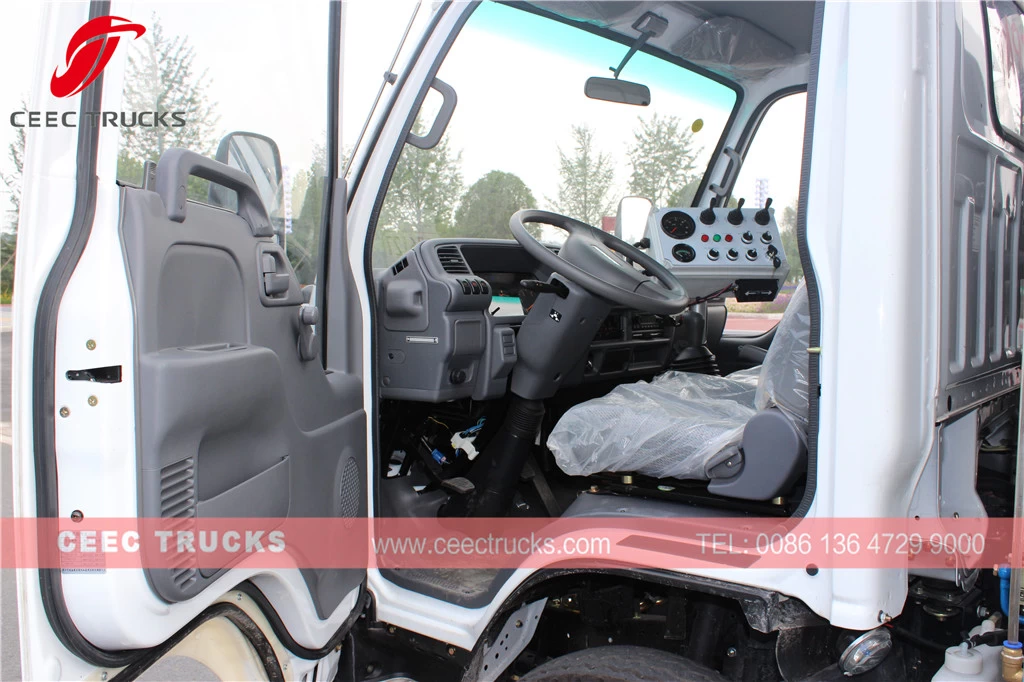

| Cab
|
Cab Capacity
|
2 persons allowed
|
| Air Conditioner
|
Heating/cooling air conditioner
|
| Engine
|
Fuel Type
|
Diesel
|
| Engine Brand
|
YUCHAI
|
| Power
|
160 HP (118 KW)
|
| Displacement
|
4257 ml
|
| Emission Standard
|
Euro 2 or 3
|
| Chassis
|
Drive Type
|
4X2, (left hand drive)
|
| Transmission
|
5 speed levers with 1 reverse
|
| Wheelbase/No. of axle
|
3950 mm / 2
|
| Tire Specification
|
9.00-20
|
| Tire Number
|
6 tires and 1 spare tire
|
| Max Speed
|
90 km/h
|
| Paint
|
Metallic paint
|
| Superstructure
|
Body capacity
|
8 cbm dust tank & 2 cbm water tank
|
| Tanker material
|
Stainless steel
|
| Sweeping capacity
|
42,000 cbm/h
|
| Sweeping speed
|
3-15 km/h
|
| Max. sweeping width
|
3200 mm
|

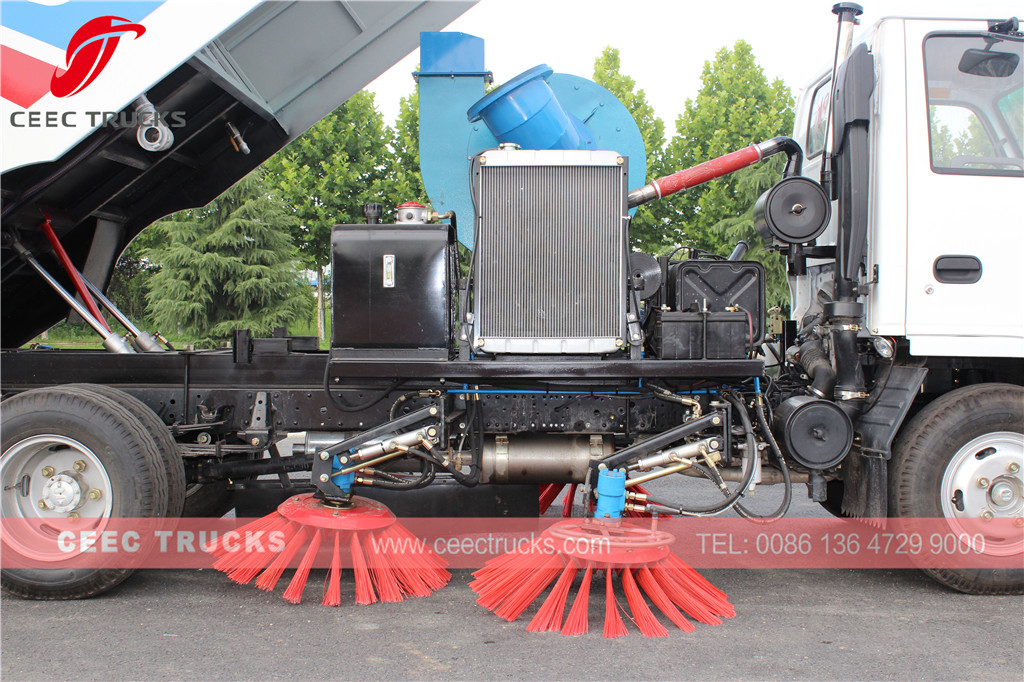

| Brooms
|
2 set at each side, at diameter 800 mm
|

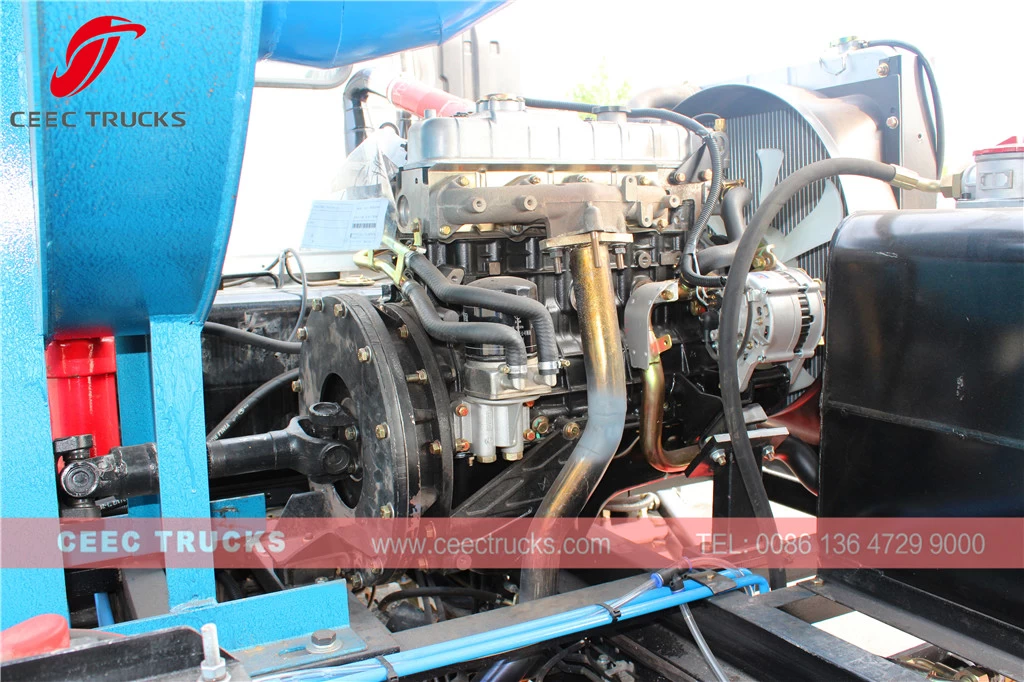

| Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|

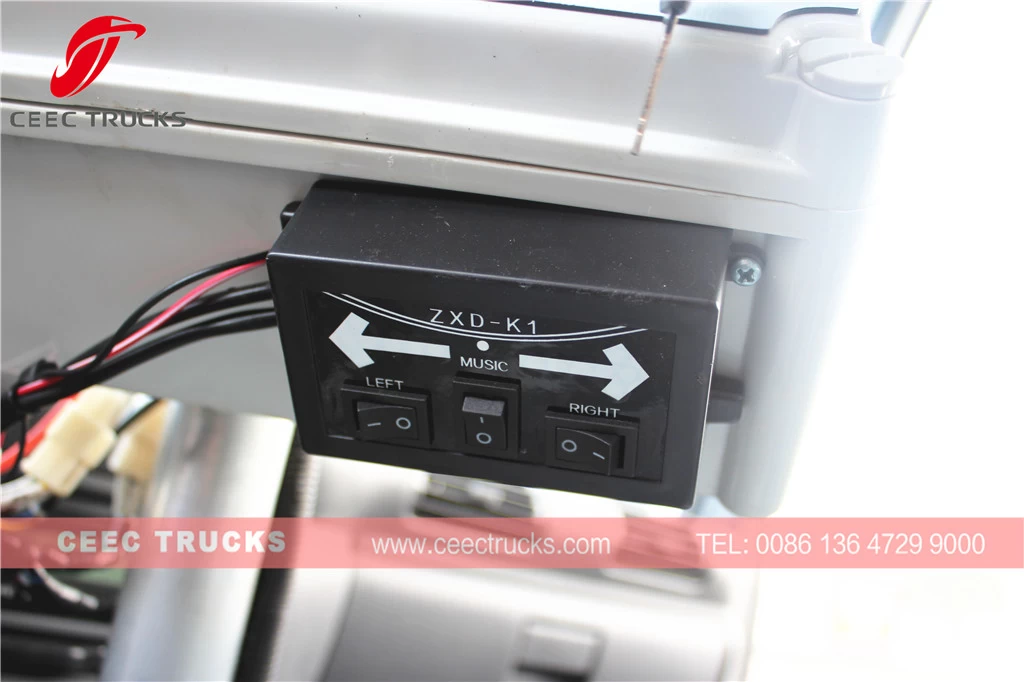

| All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
| Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.
** Air blower can be of stainless steel
|
