Applications:
Dongfeng Water-foam Fire truck (also called Water-foam Fire rescue truck, Foam Fire Fighting Truck Dongfeng, 4*2 Water-foam tanker fire fighting truck, Good quality Water-foam Fire Vehicles manufacturer, good price fire rescue trucks Dongfeng) is apply
for fire brigade of large and medium city, petrochemical enterprises,
airports and harbors and so on, to put our large area fire of oil and
other substance.
CEEC TRUCKS can supply water fire truck, foam fire truck, Foam and powder fire
vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle,
CAFS fire trucks and so on.
All our fire trucks with huge fire equipment and you can put fire-fighting immediately.
Key Features:
---- Dongfeng chassis, perfect performance
---- CHAOCHAI engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
Specifications:
|

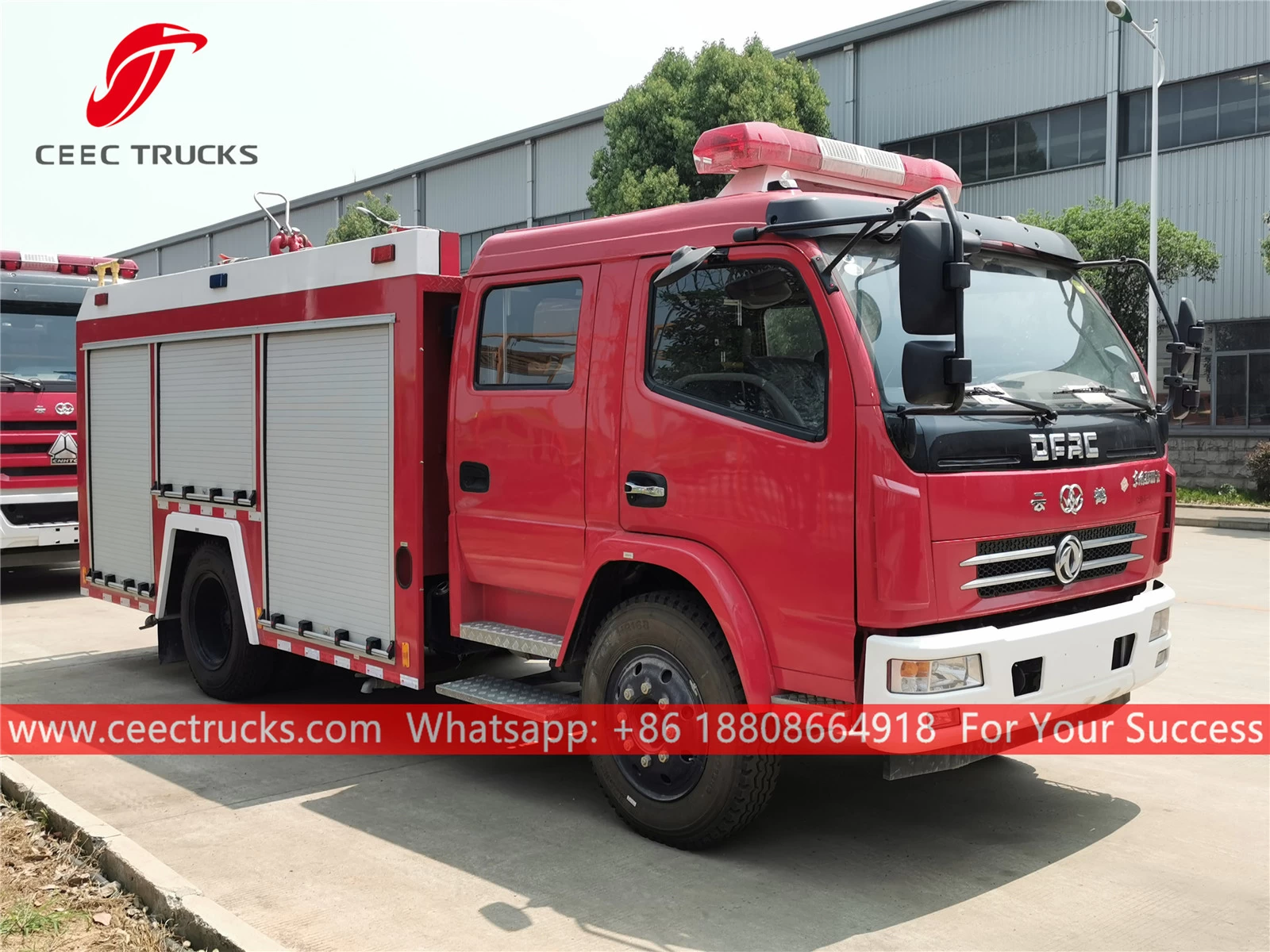

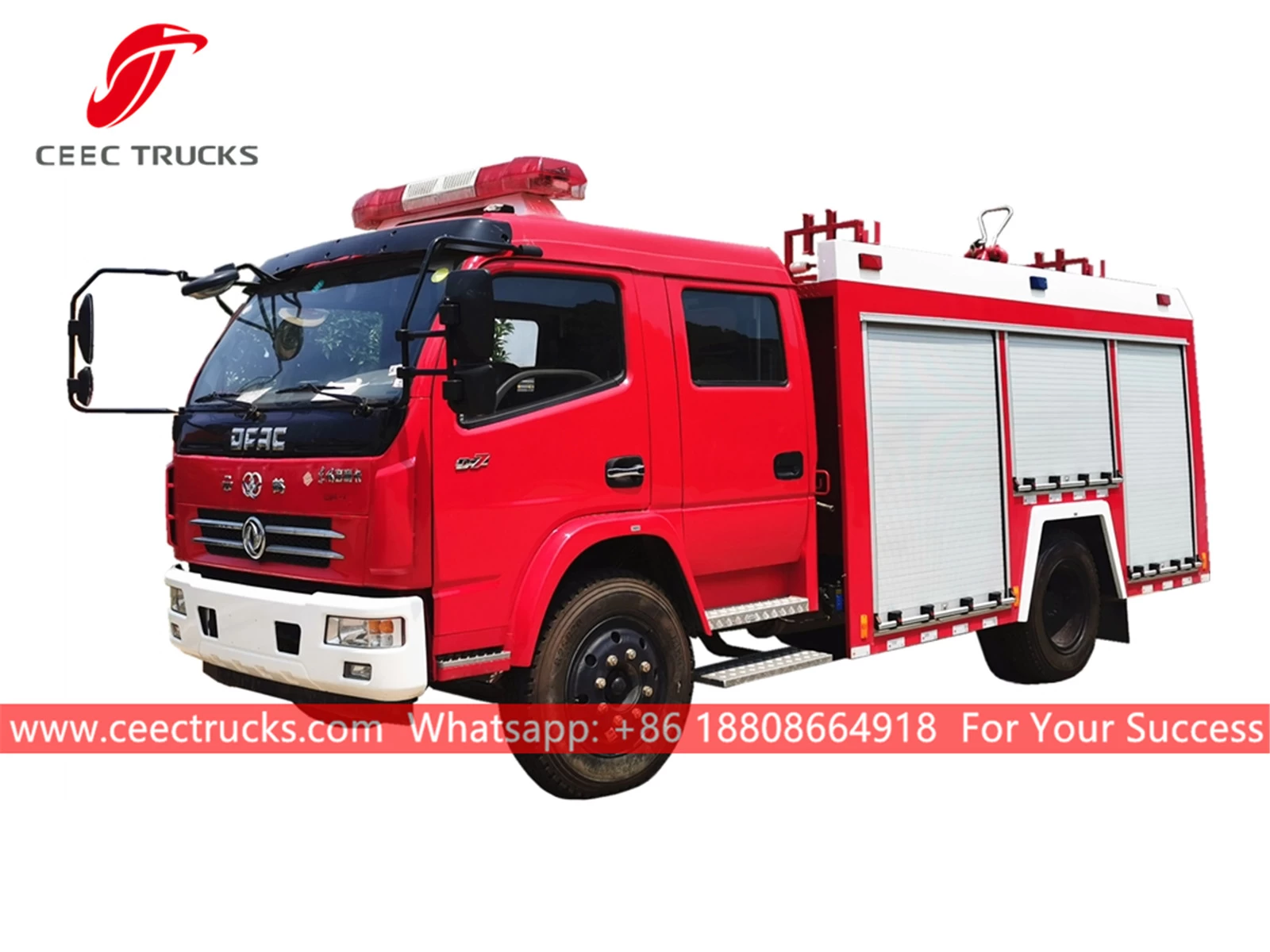

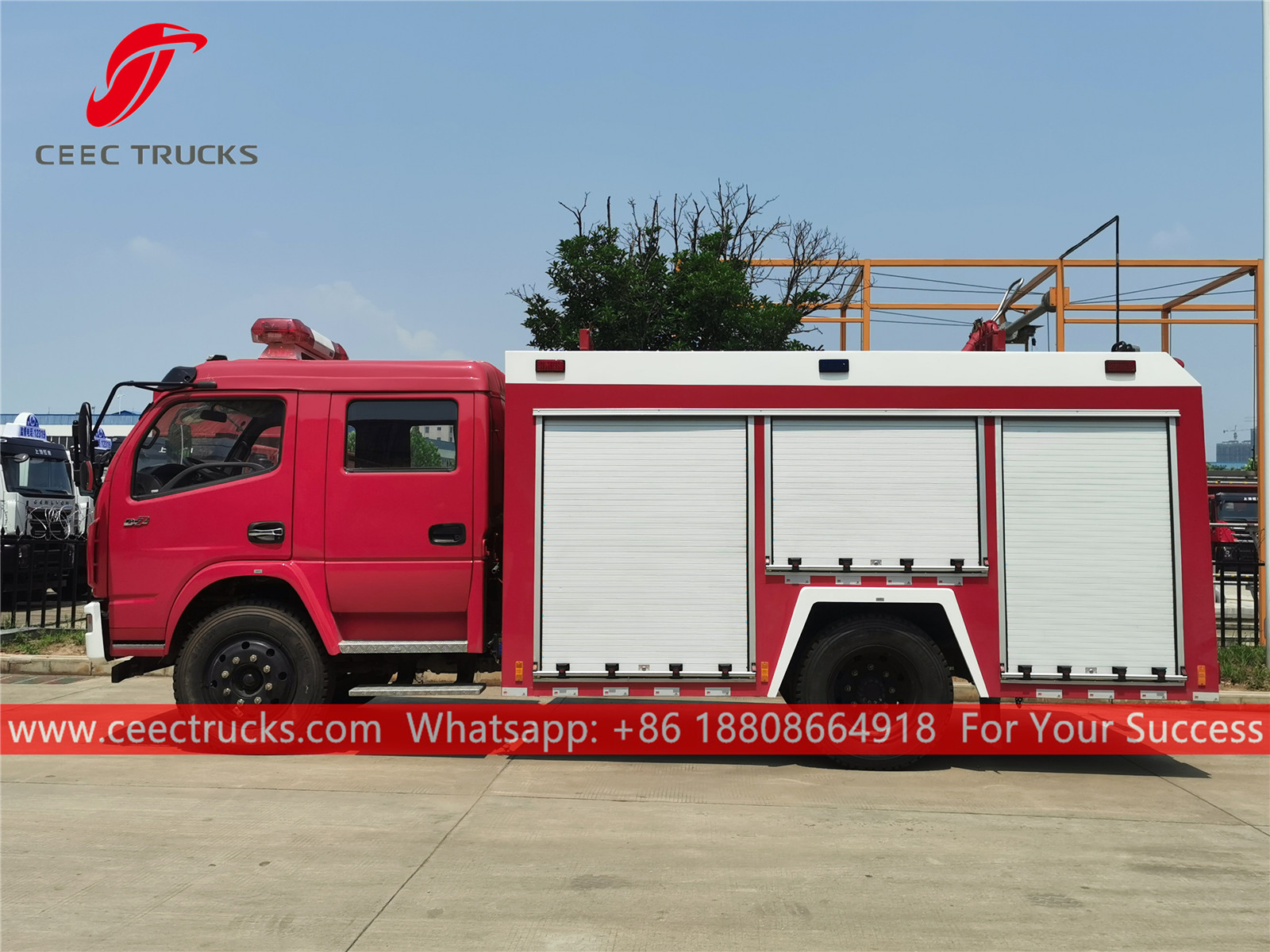

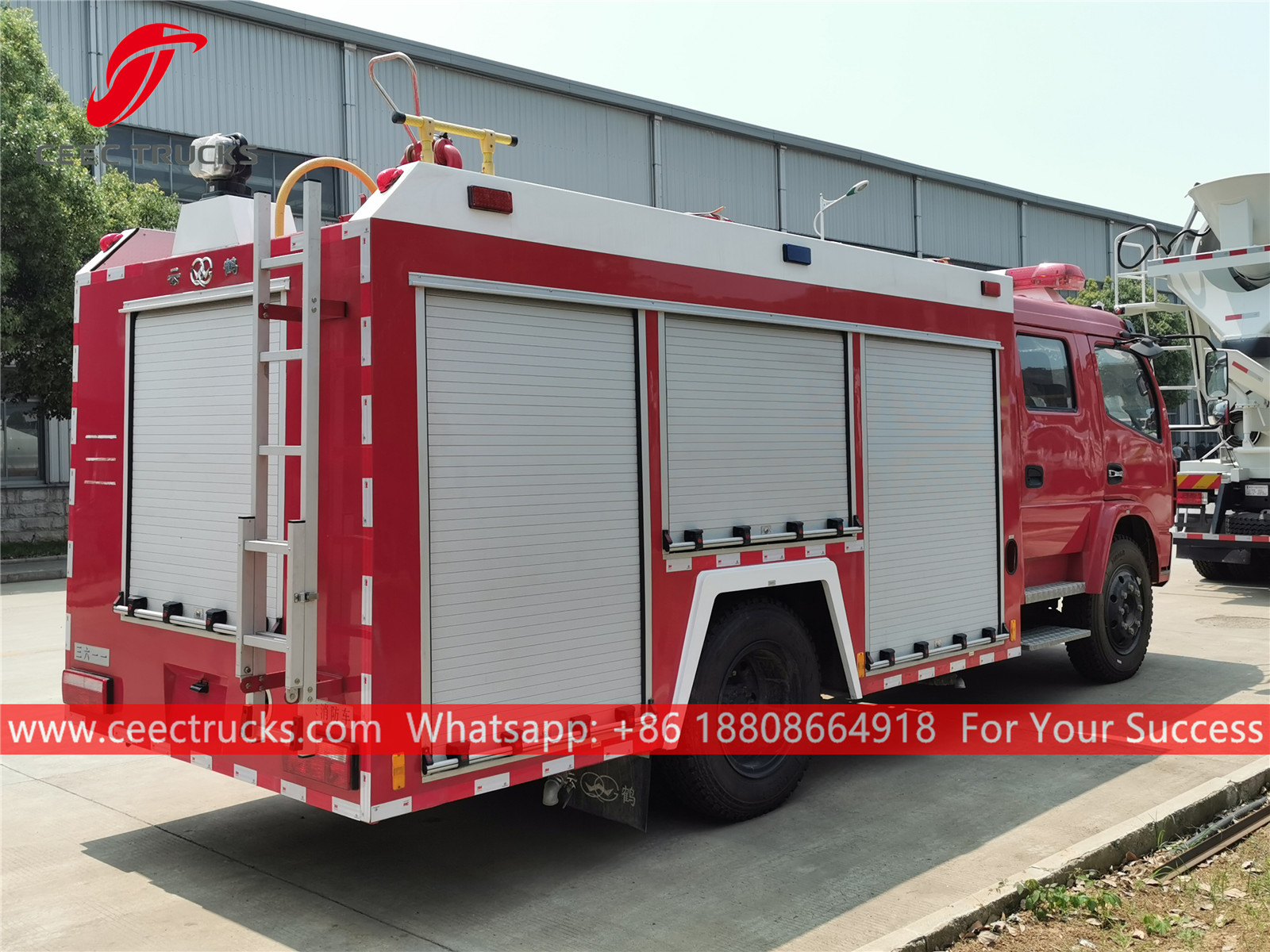

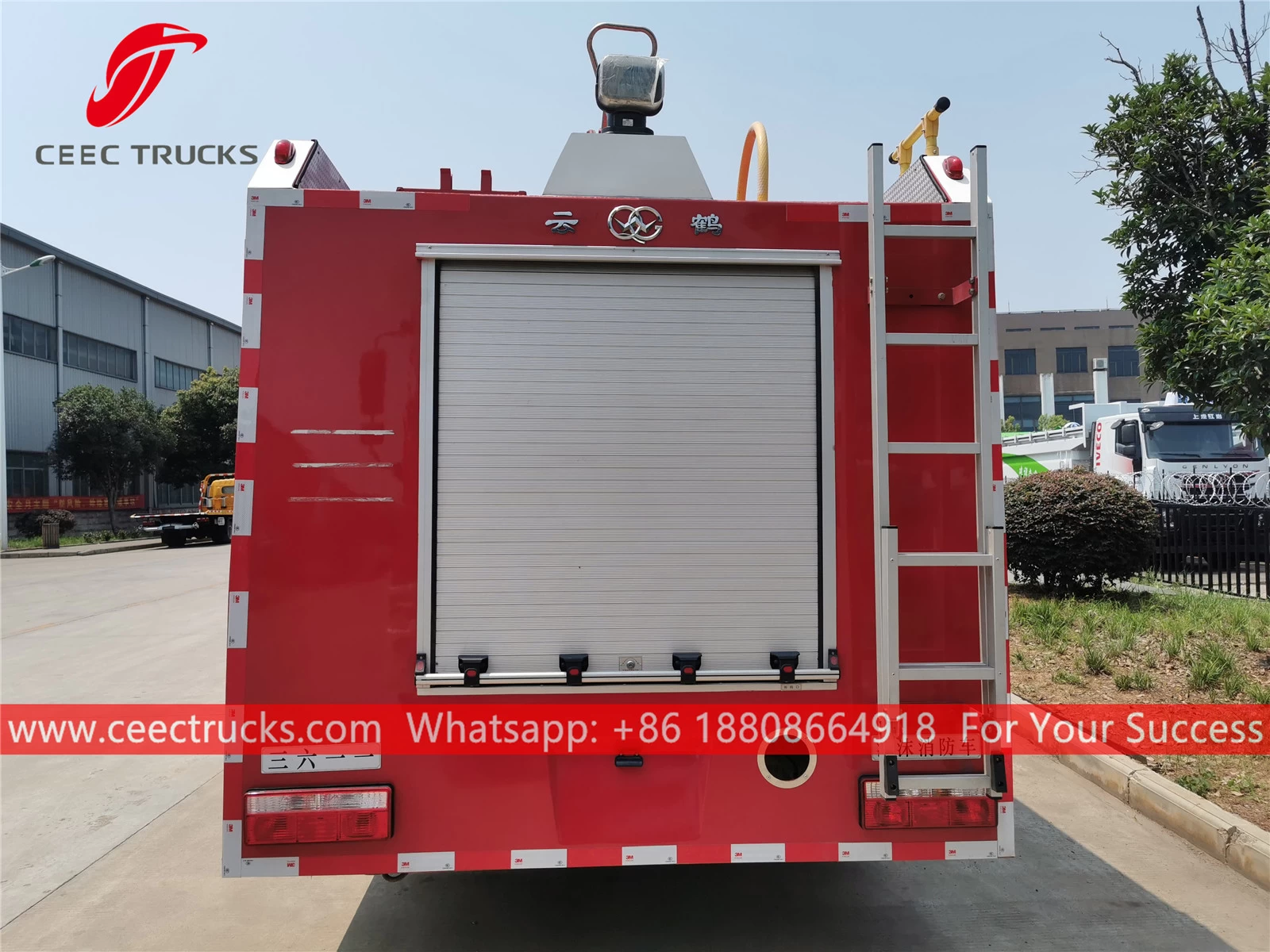

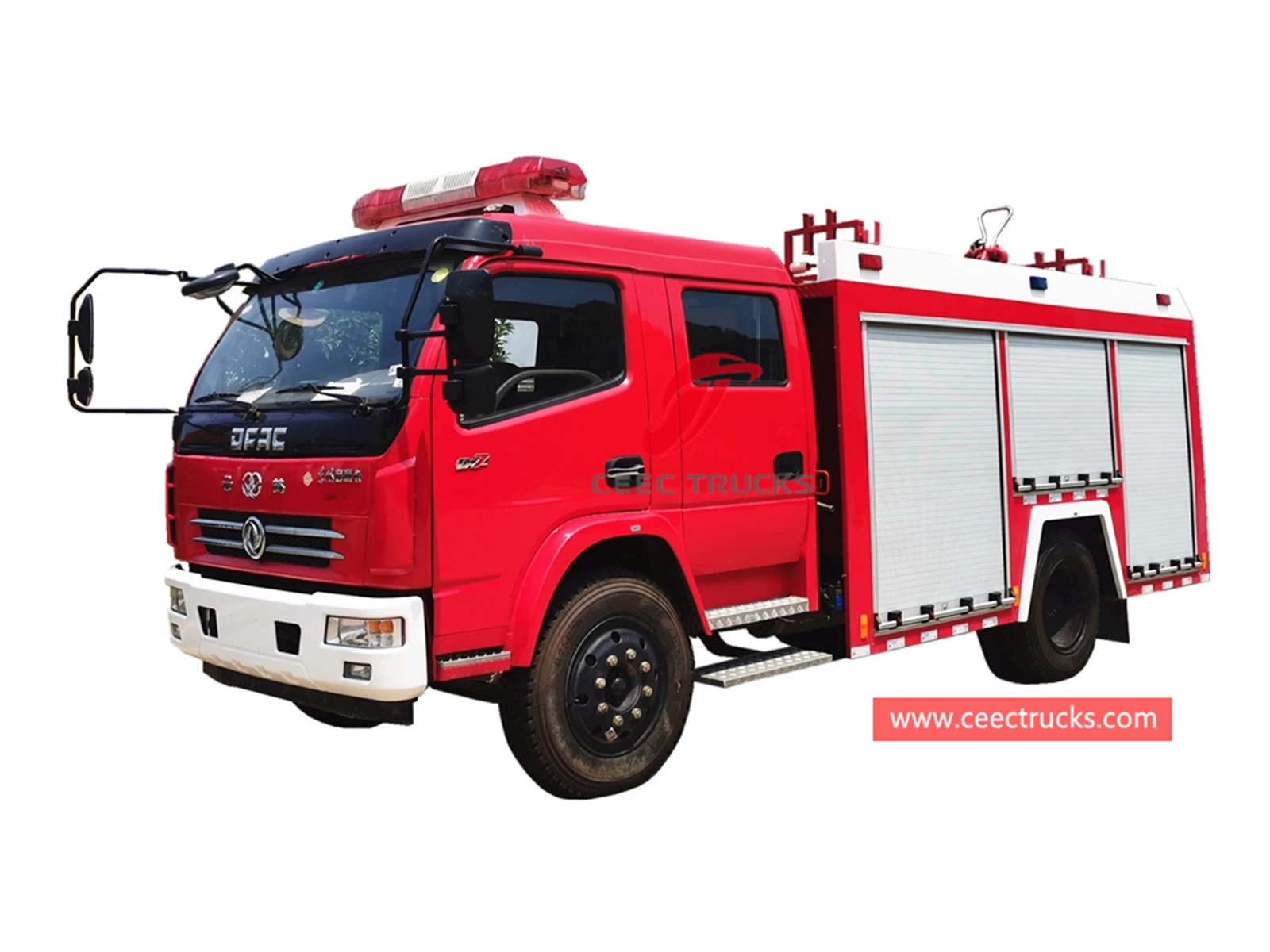

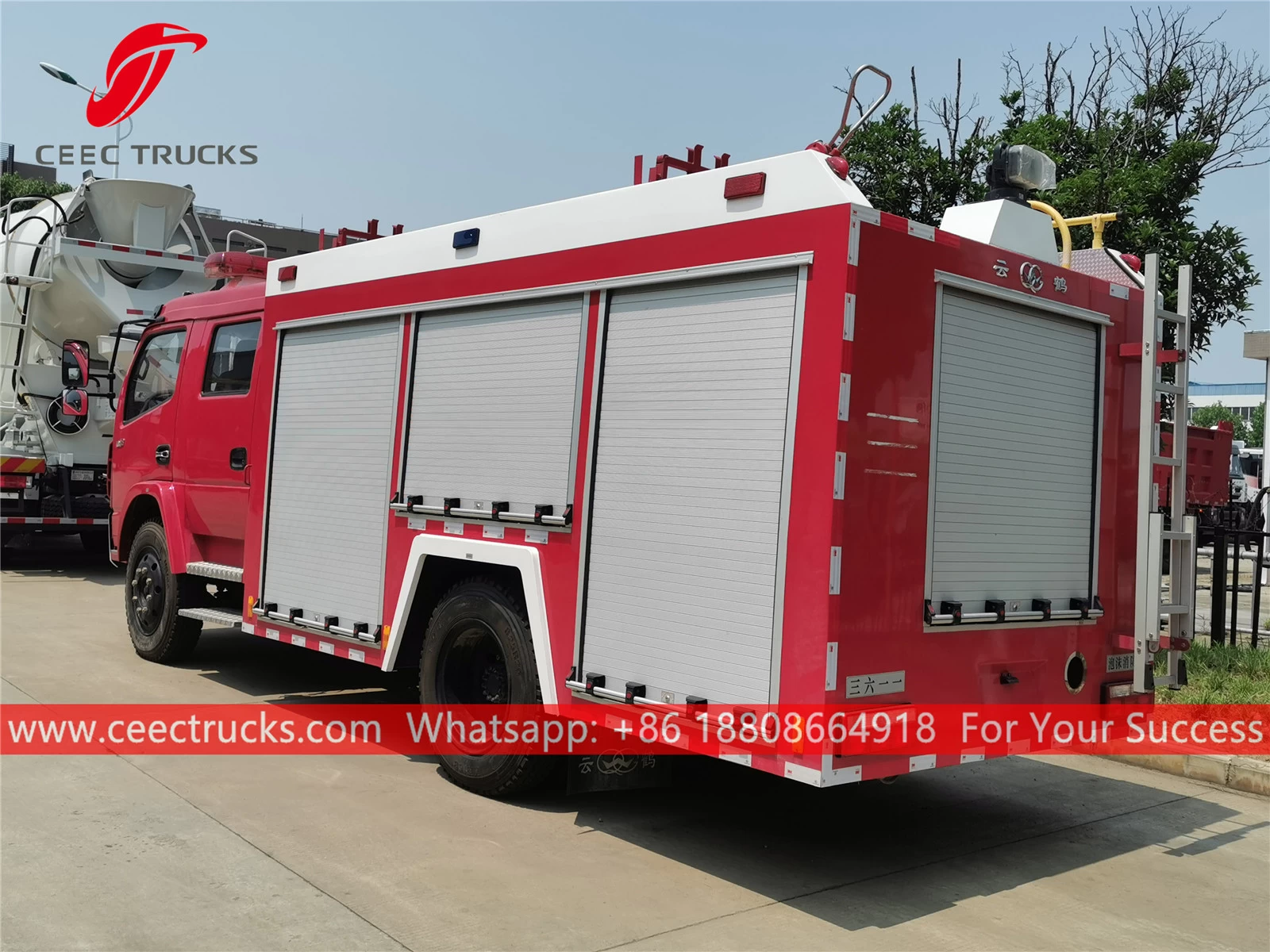

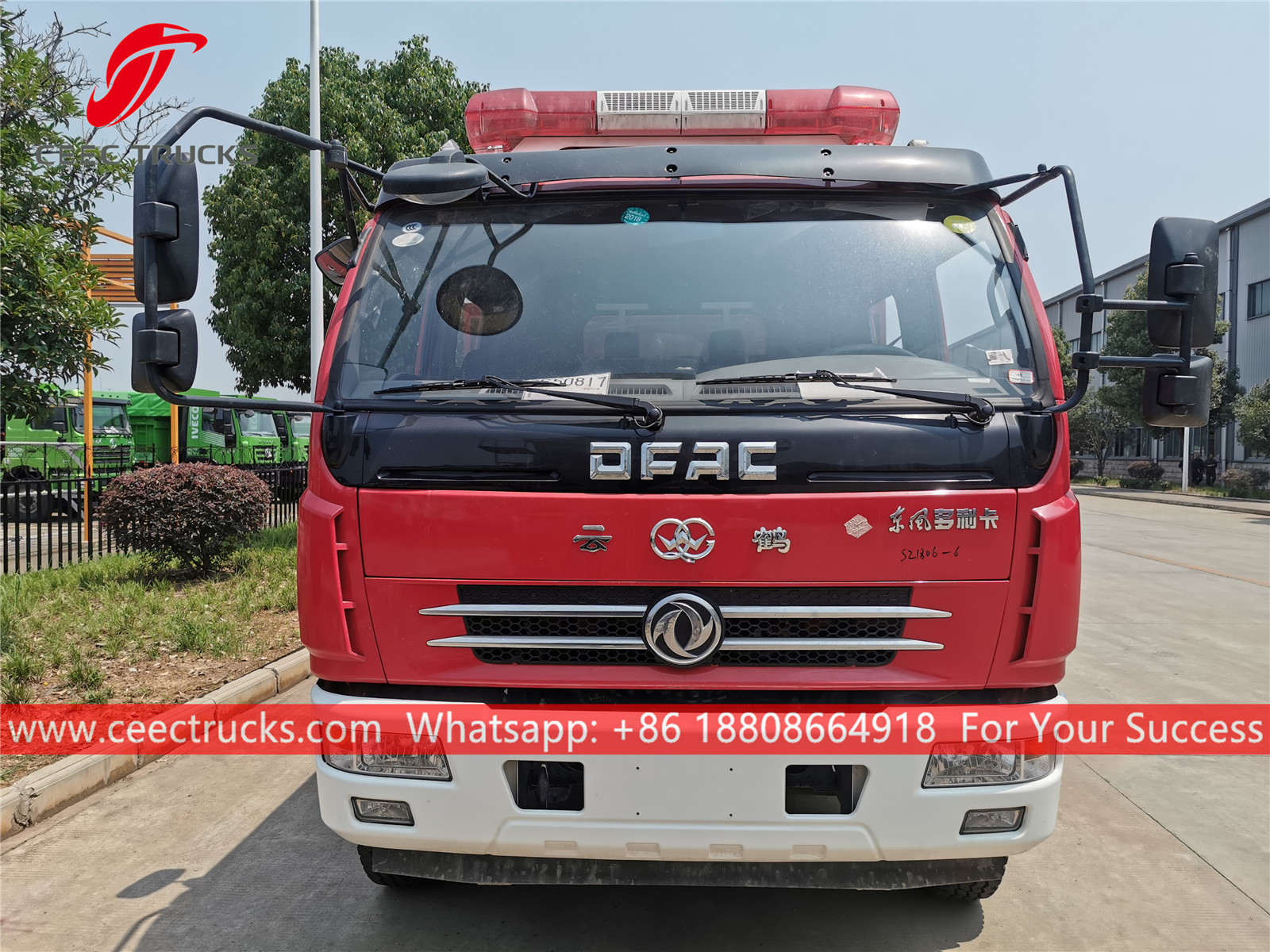

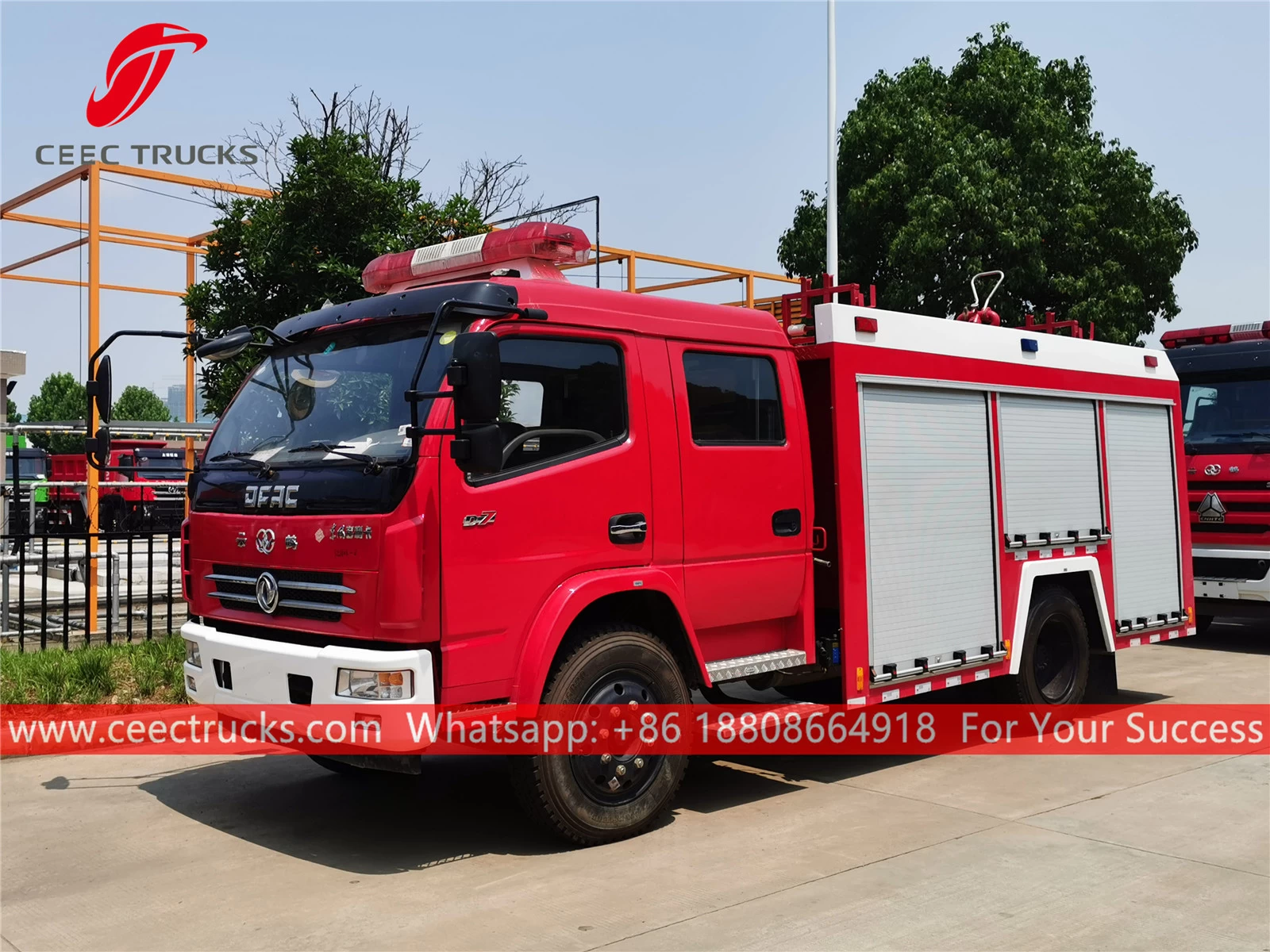

Dongfeng Water-foam Fire Rescue truck (3,000L+1,000L)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
7540 * 2300 * 3050 mm
|
|
GVW / Kerb Weight
|
10,000kg / 5,900kg
|
|
Cab
|
Cab Capacity
|
5 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CHAOCHAI
|
|
Power
|
156 HP (115 KW)
|
|
Displacement
|
3856 ml
|
|
Emission Standard
|
Euro 4 / 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 5-shift speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3800 mm / 2
|
|
Tire Specification
|
8.25R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|

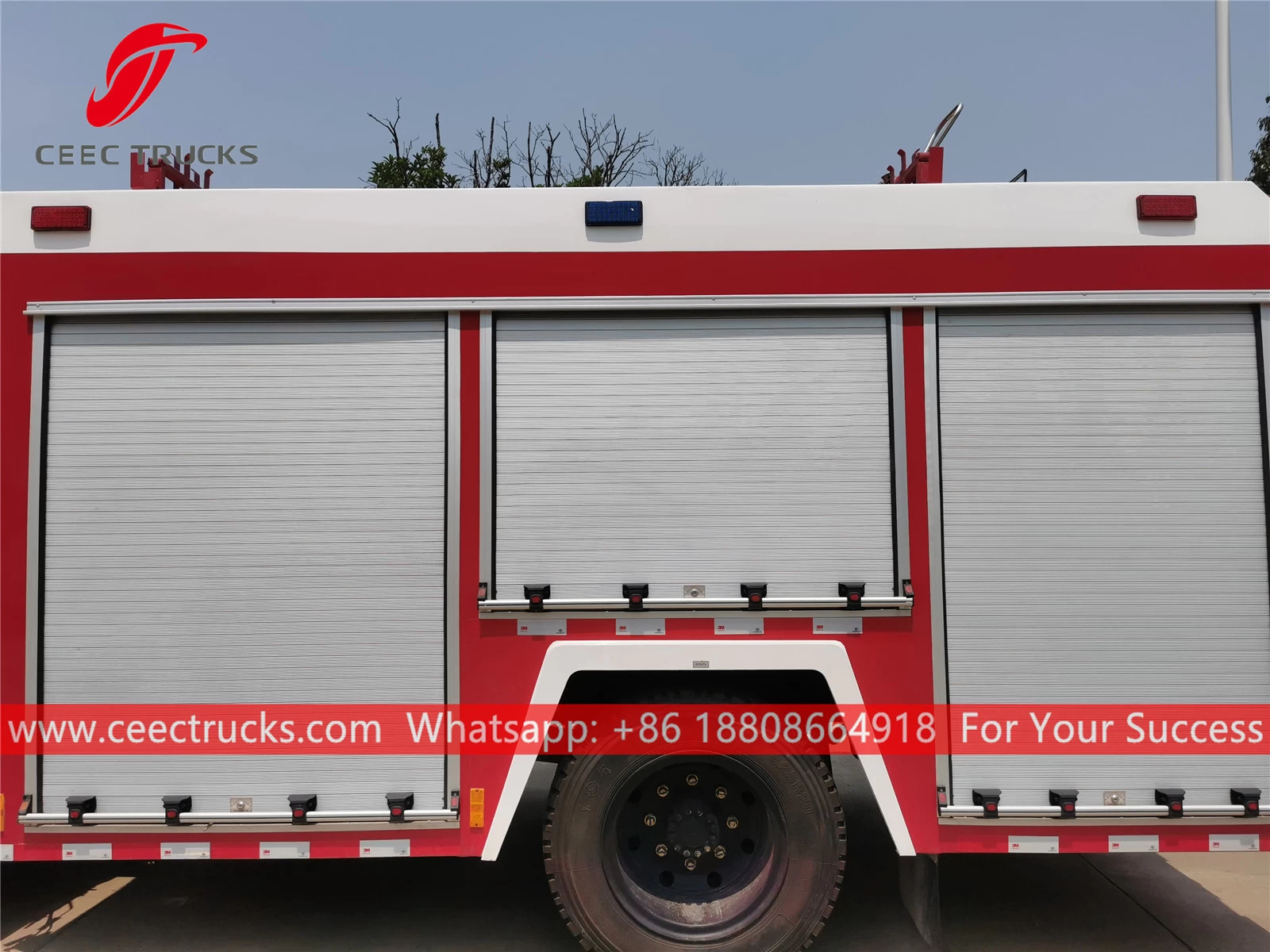

Superstructure
|
Water tank capacity
Foam tank capacity
|
3,000L water
1,000L foam
|
|
Tanker Material
|
Carbon Steel
|
|
Fire pump
|
CB10/30, 30L/S
|
|
Fire pump location
|
Center or rear
|
|
Fire monitor
|
Water jet distance: ≥45m
Foam jet distance: ≥40m
|
|
Electronic alarm
|
1.2 m long
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Standard carbon steel, stainless steel optional.
** USA or Germany fire pump can be optional
|
