Applications:

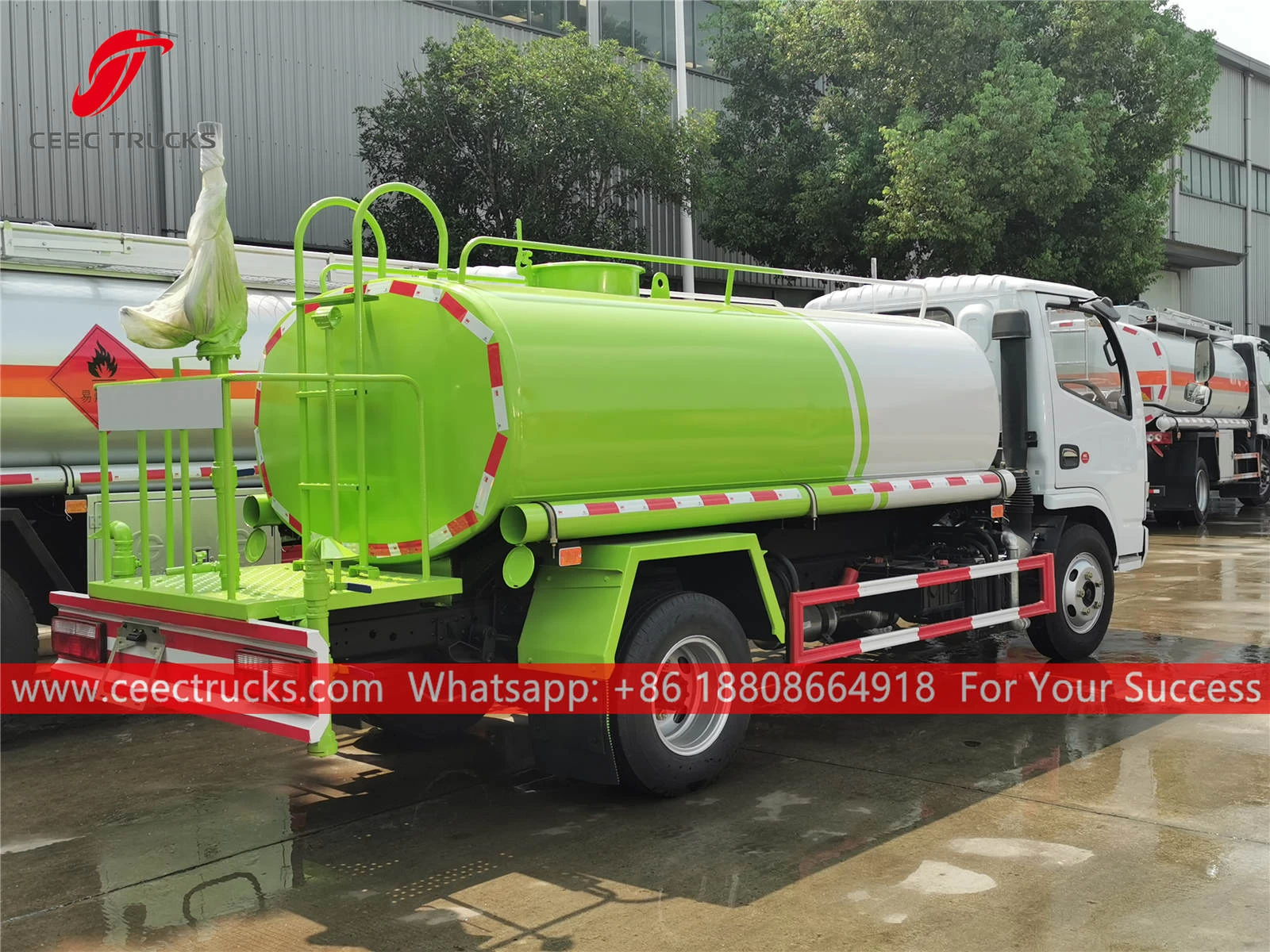

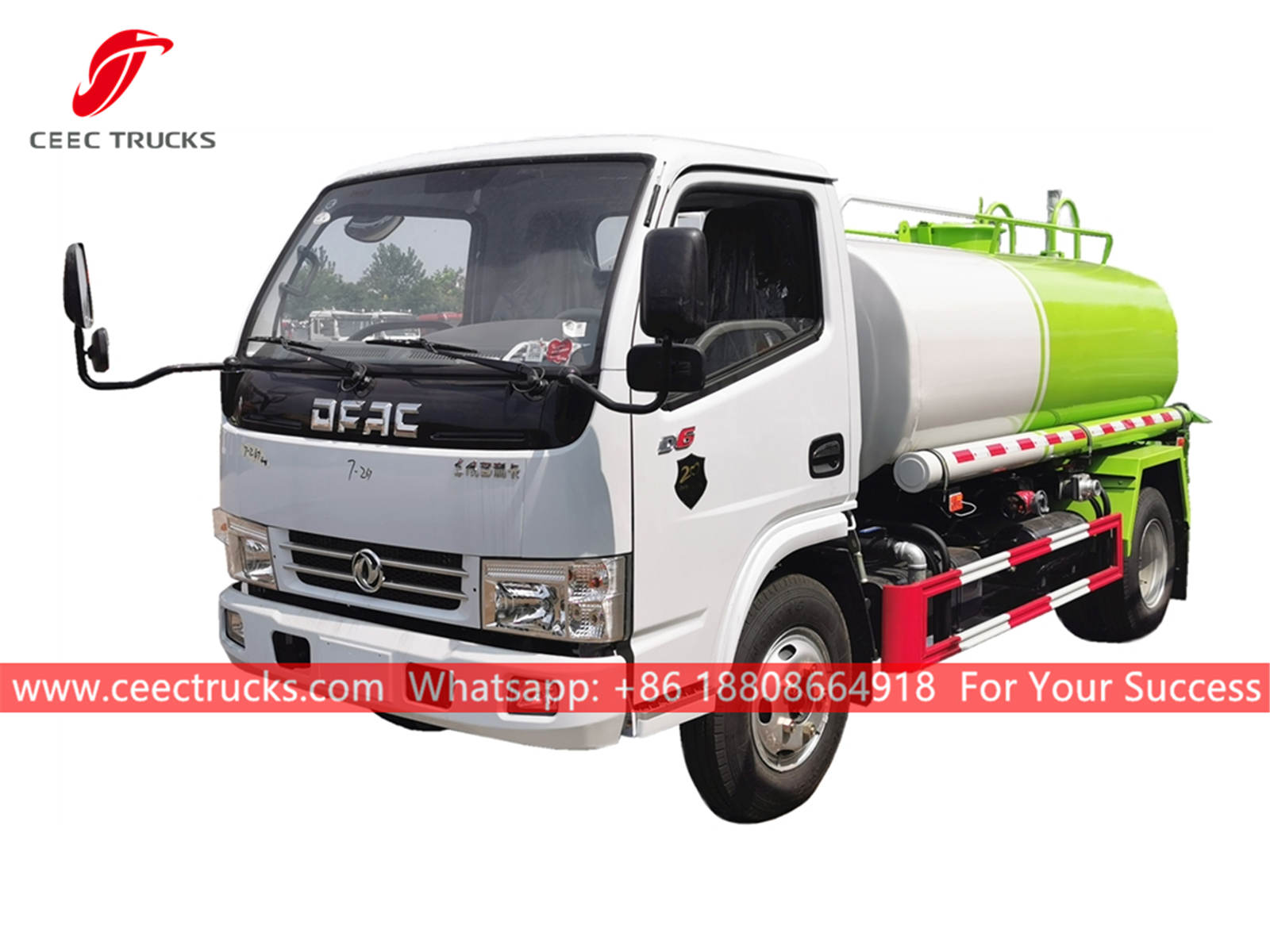

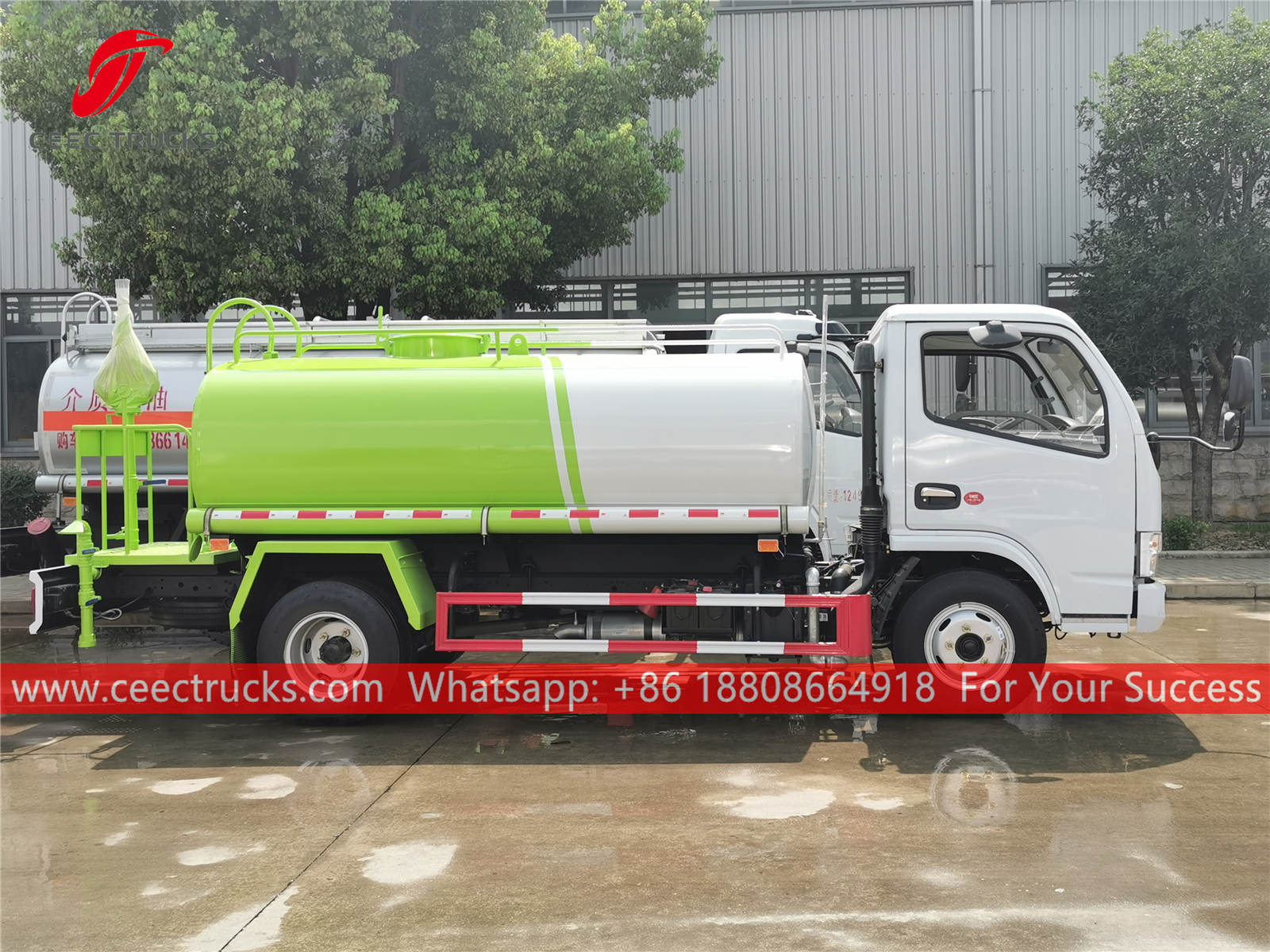

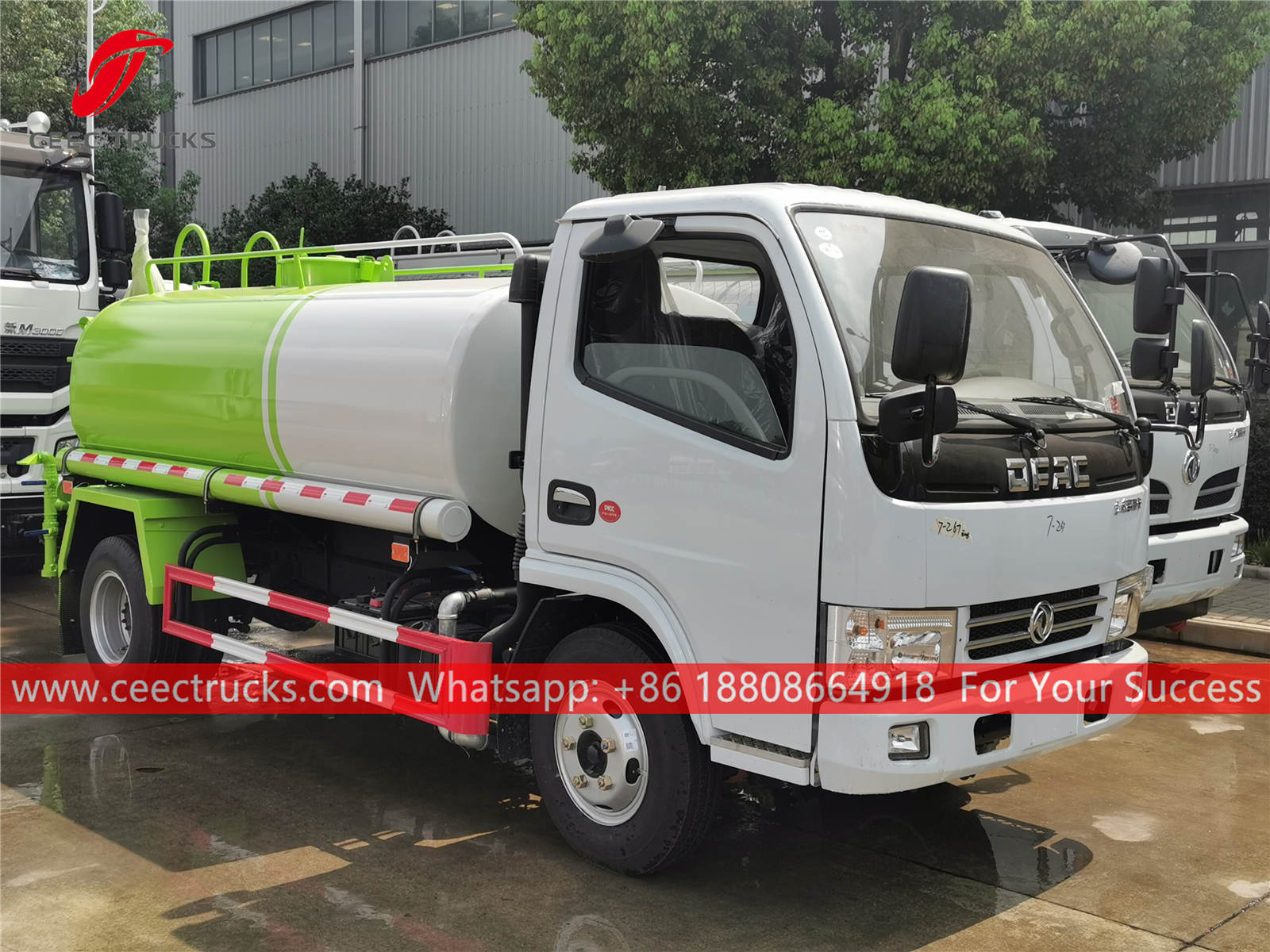

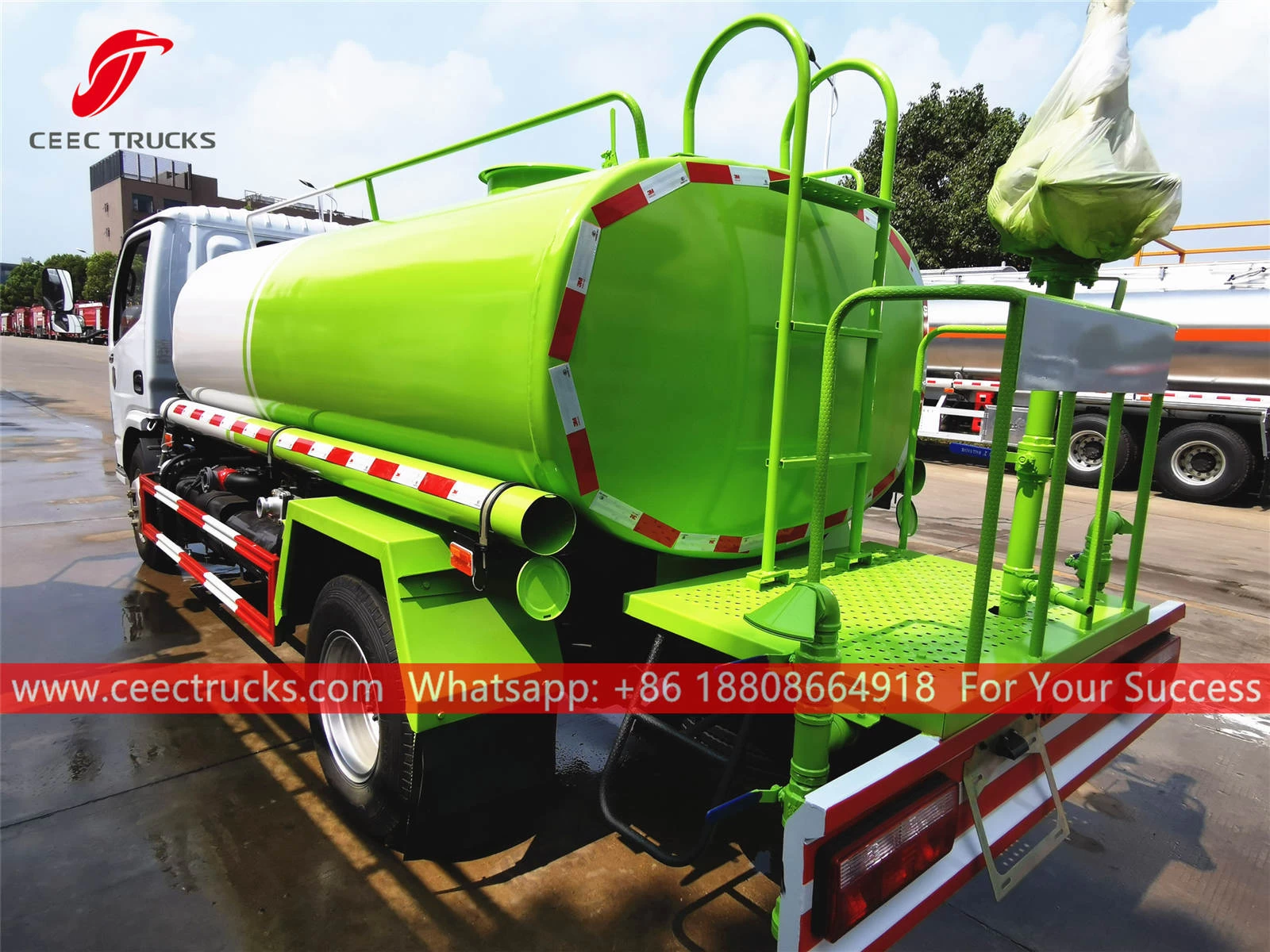

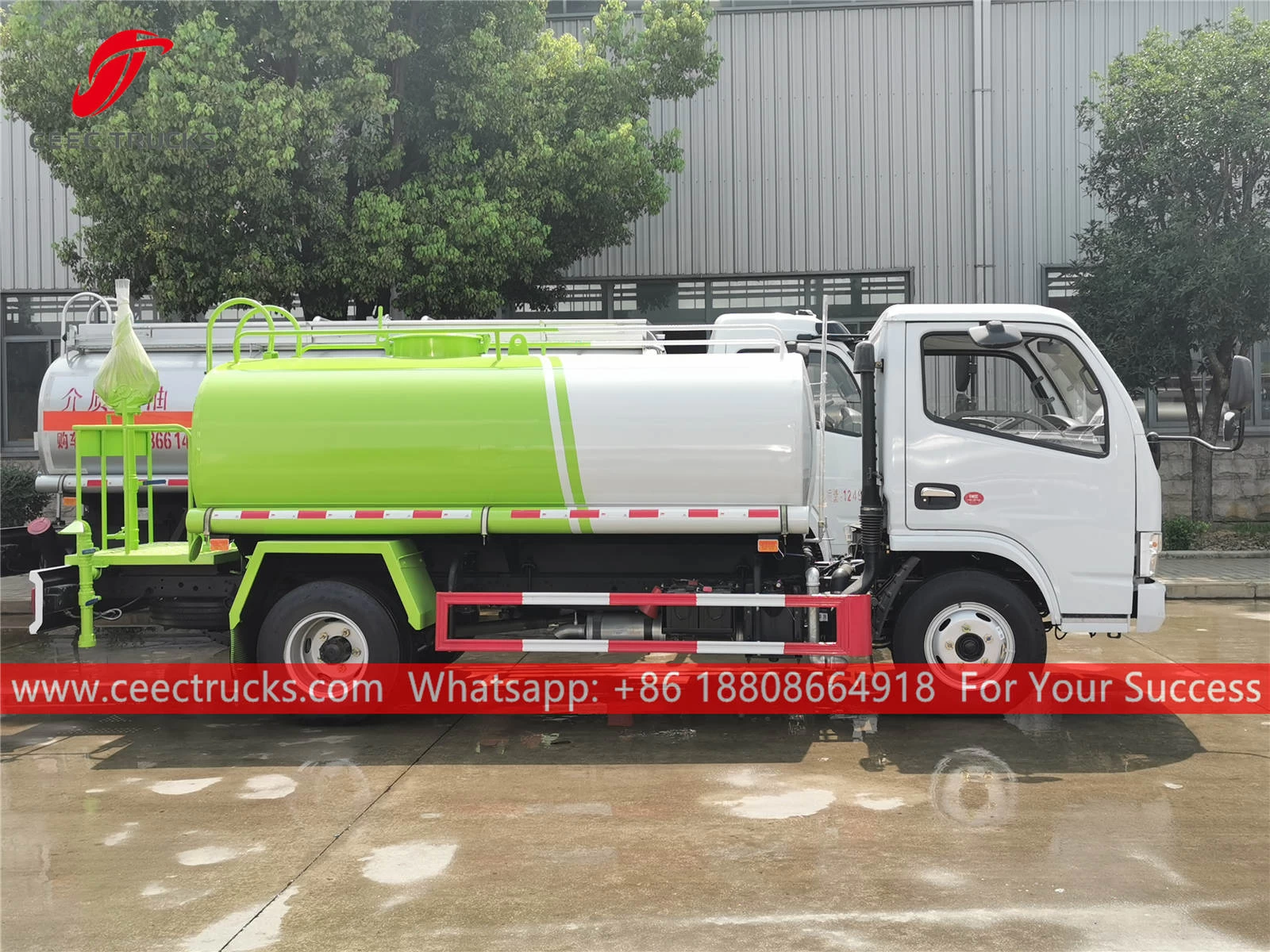

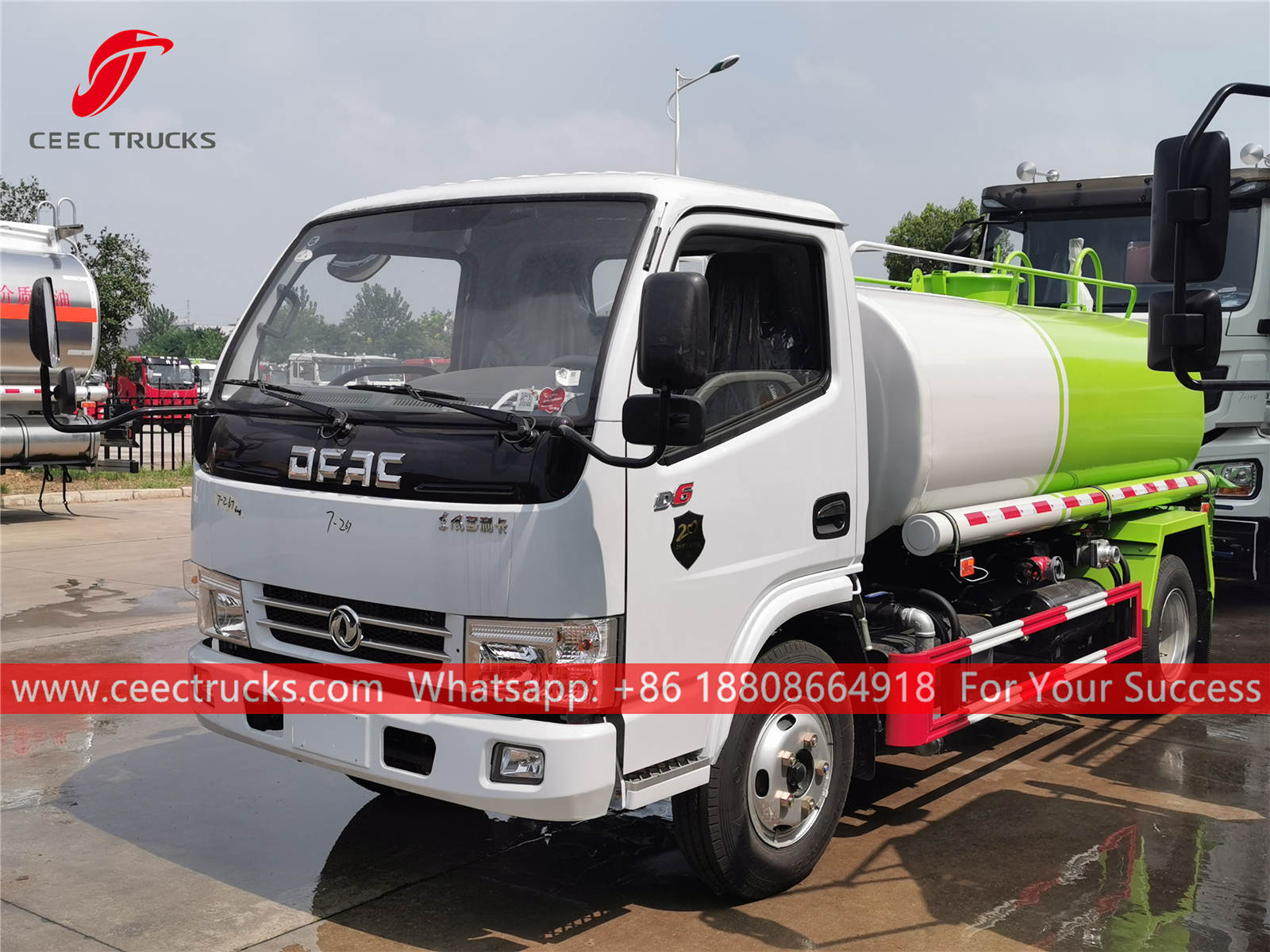

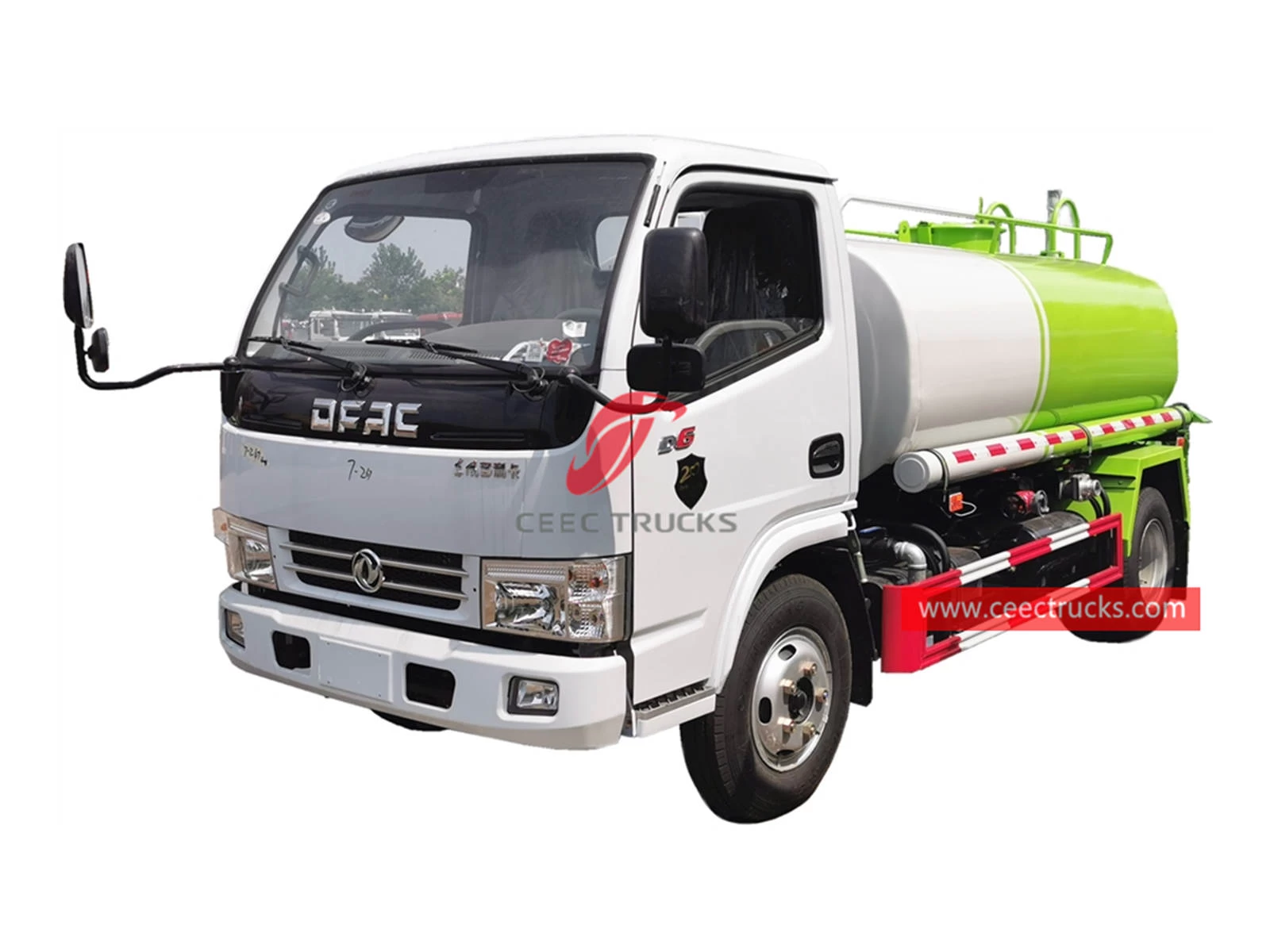

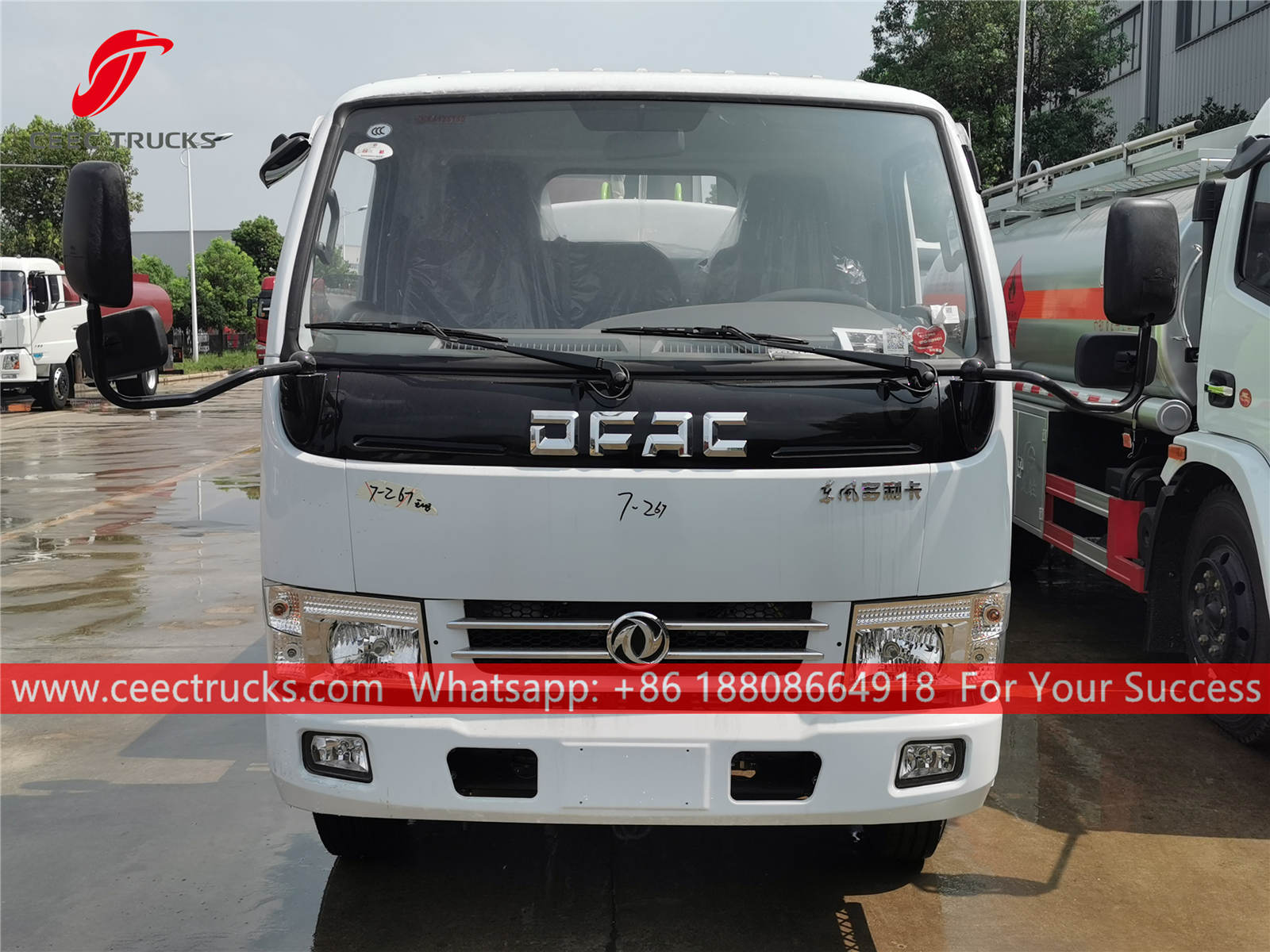

5CBM Water spray truck DONGFENG (also called 5
Tons Watering Truck, hot sale Water bowser truck, Dongfeng
Water tanker lorry, low price Water transportation truck, Water spray vehicle) is used for the road flushing, tree and lawn greening, high building
cleaning, construction of road and factories. It has the functions of
flushing, watering, transporting water and fire fighting.
CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and
the water pipe, sprinkler and other parts. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- DONGFENG chassis, perfect performance
---- YUCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|
Water Sprinkling Truck DONGFENG (5,000L)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
DONGFENG
|
|
Overall Dimension
|
5990 * 2020 * 2400 mm
|
|
GVW / Kerb Weight
|
7,360kg / 3,360kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
YUCHAI
|
|
Power
|
115 HP (75 KW)
|
|
Displacement
|
3707 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3308 mm / 2
|
|
Tire Specification
|
7.00R16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
99 km/h
|
|
Paint
|
Metallic paint
|
|

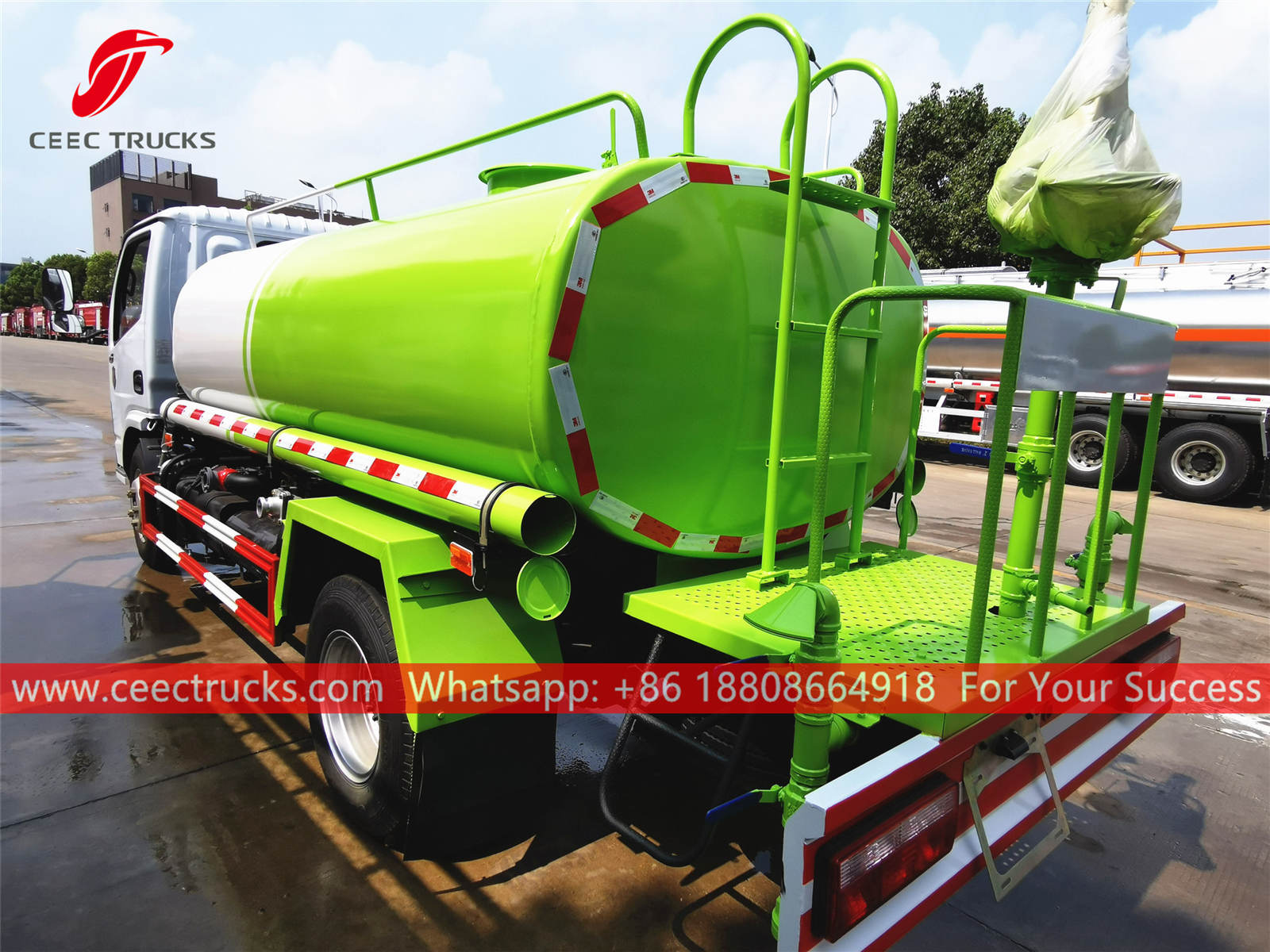

Superstructure
|
Tank Capacity
|
5,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 4mm
|
|
Body Material
|
Whether resisting steel
|
|

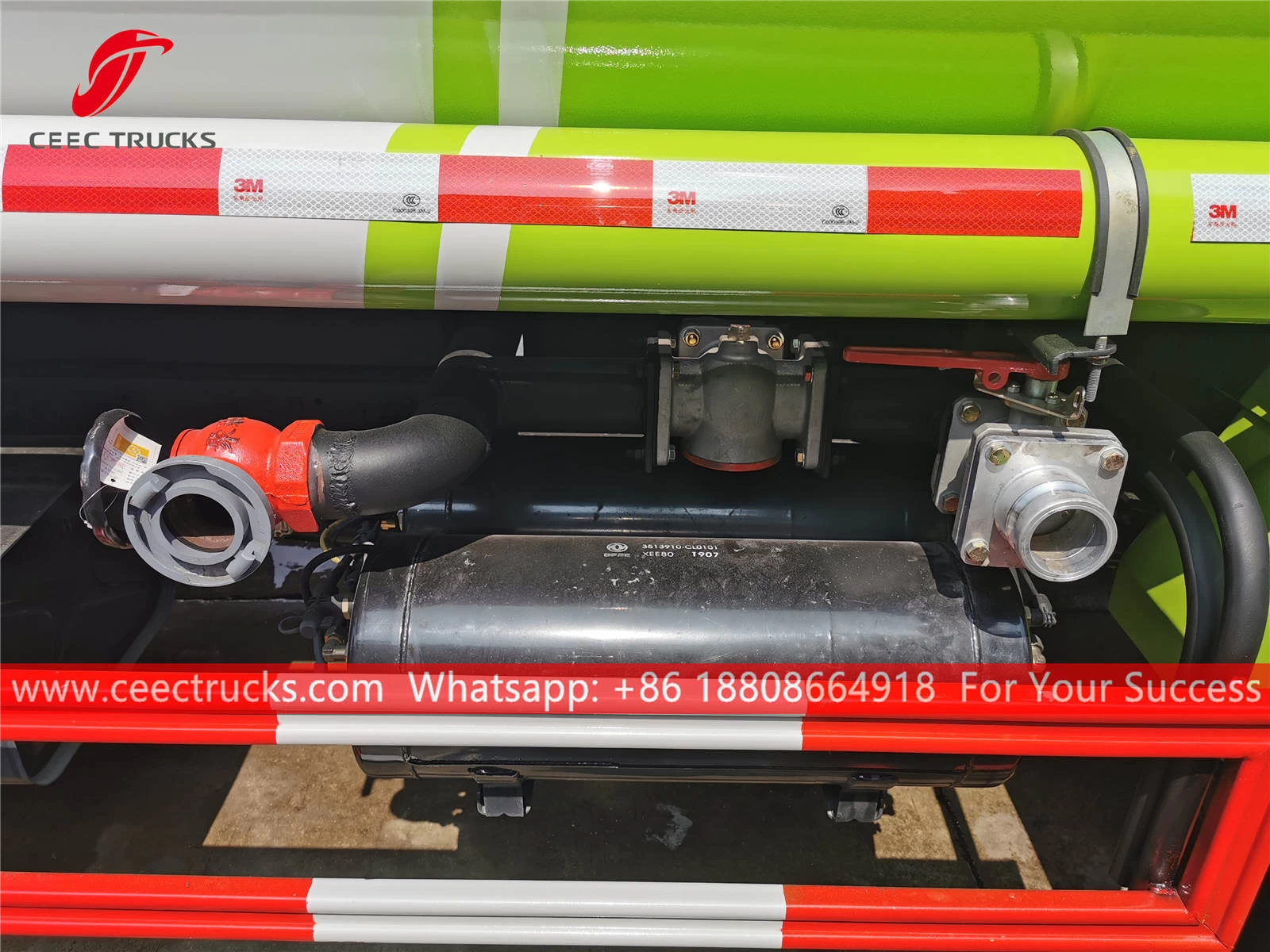

Water pump
|
China famous brand
|
|
Loading type
|
Self loading
|
|
Front spray bar
|
YES
|
|

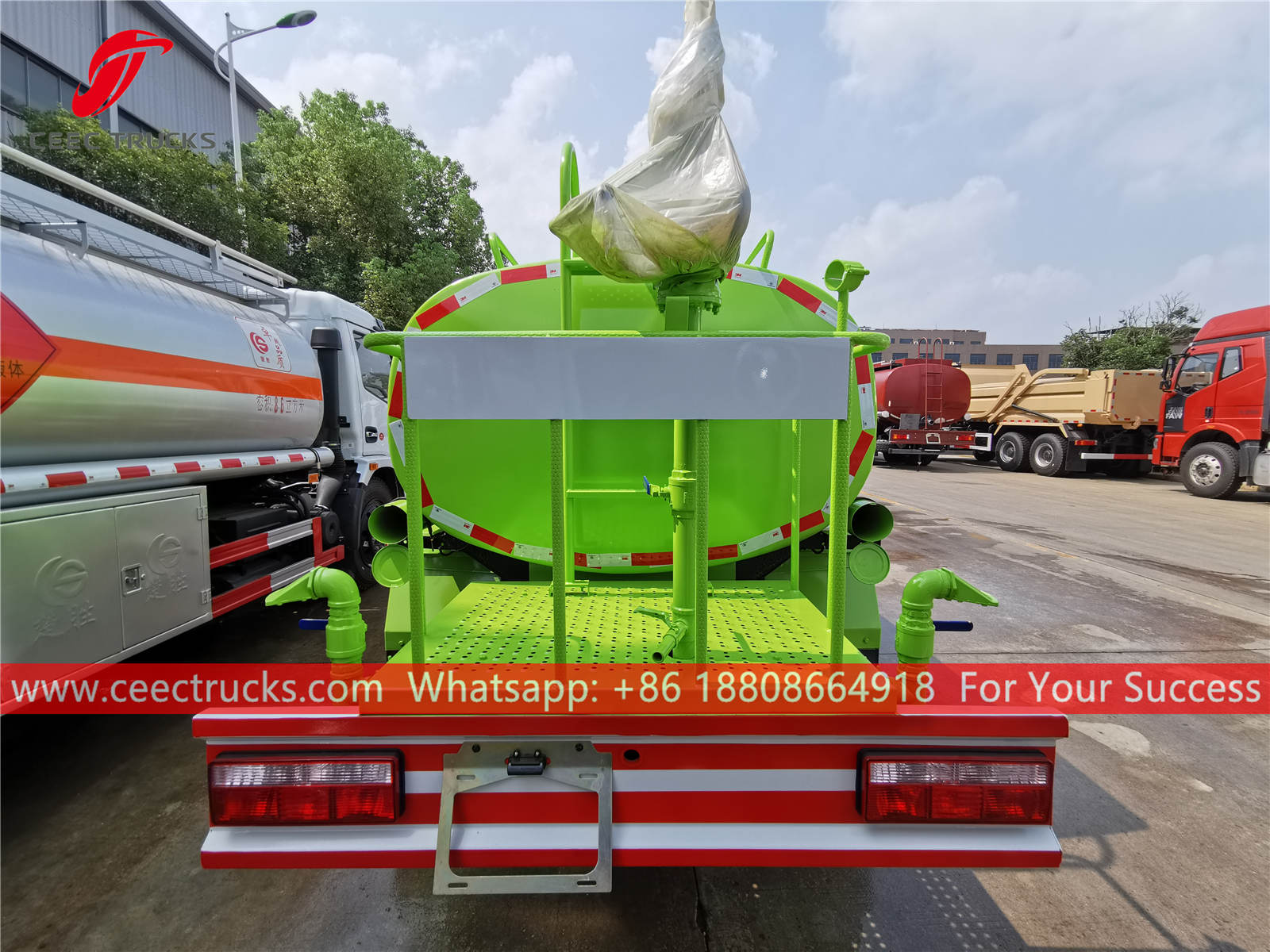

Rear spray bar
|
YES
|
|
Water Canon
|
28 meters
|
|
Fire coupling
|
Standard
|
|
Control
|
Manual (Optional air operated)
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
