Applications:

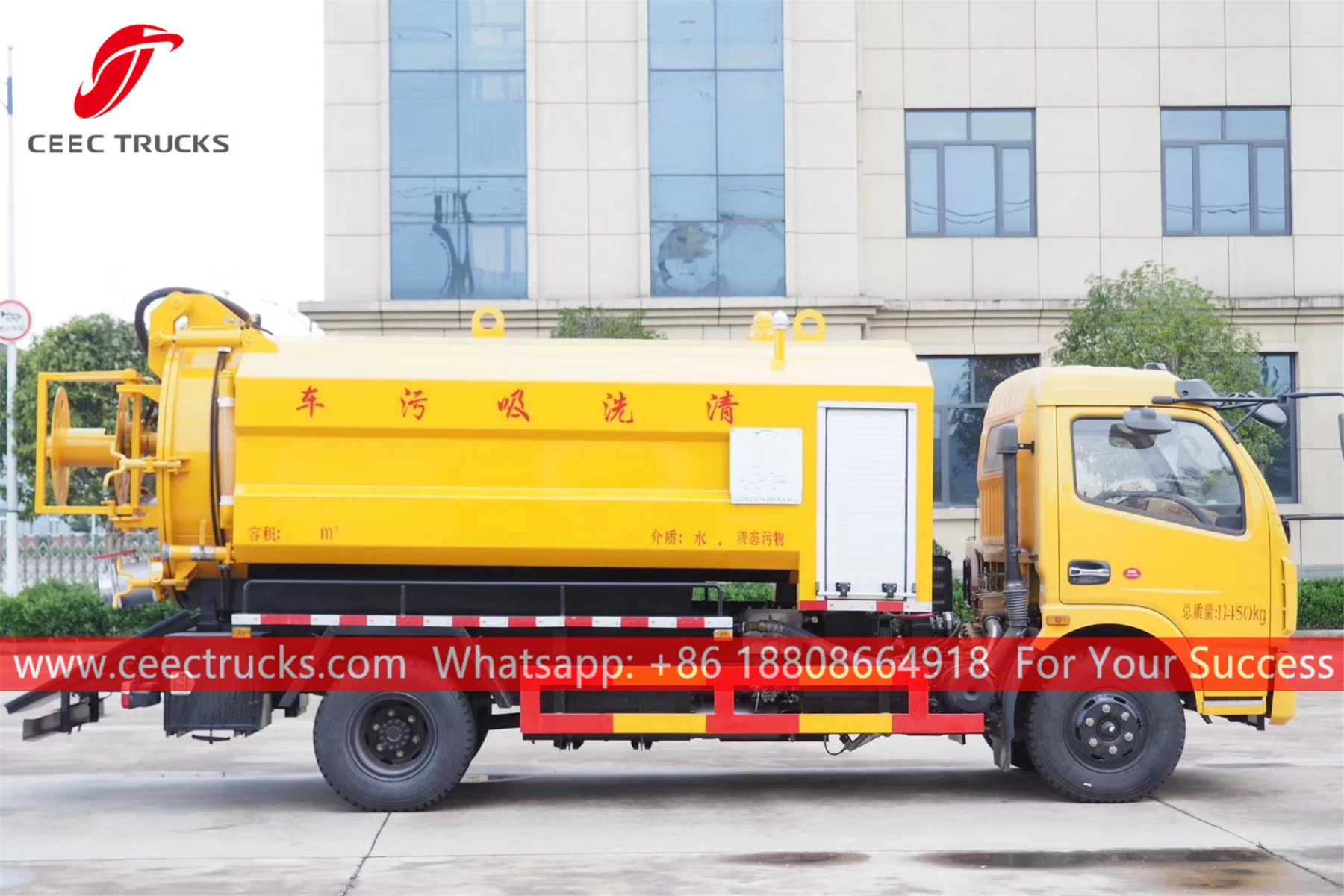

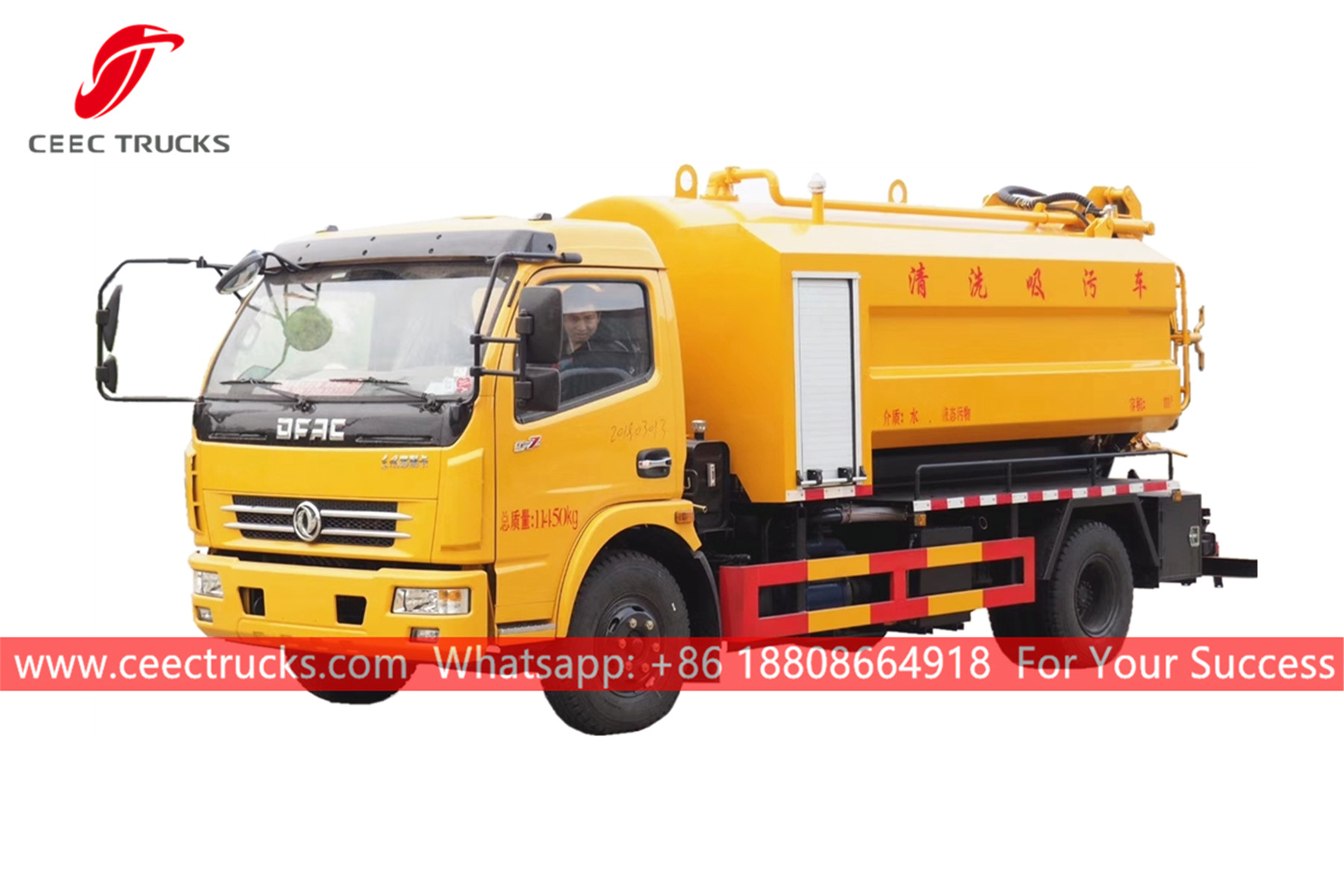

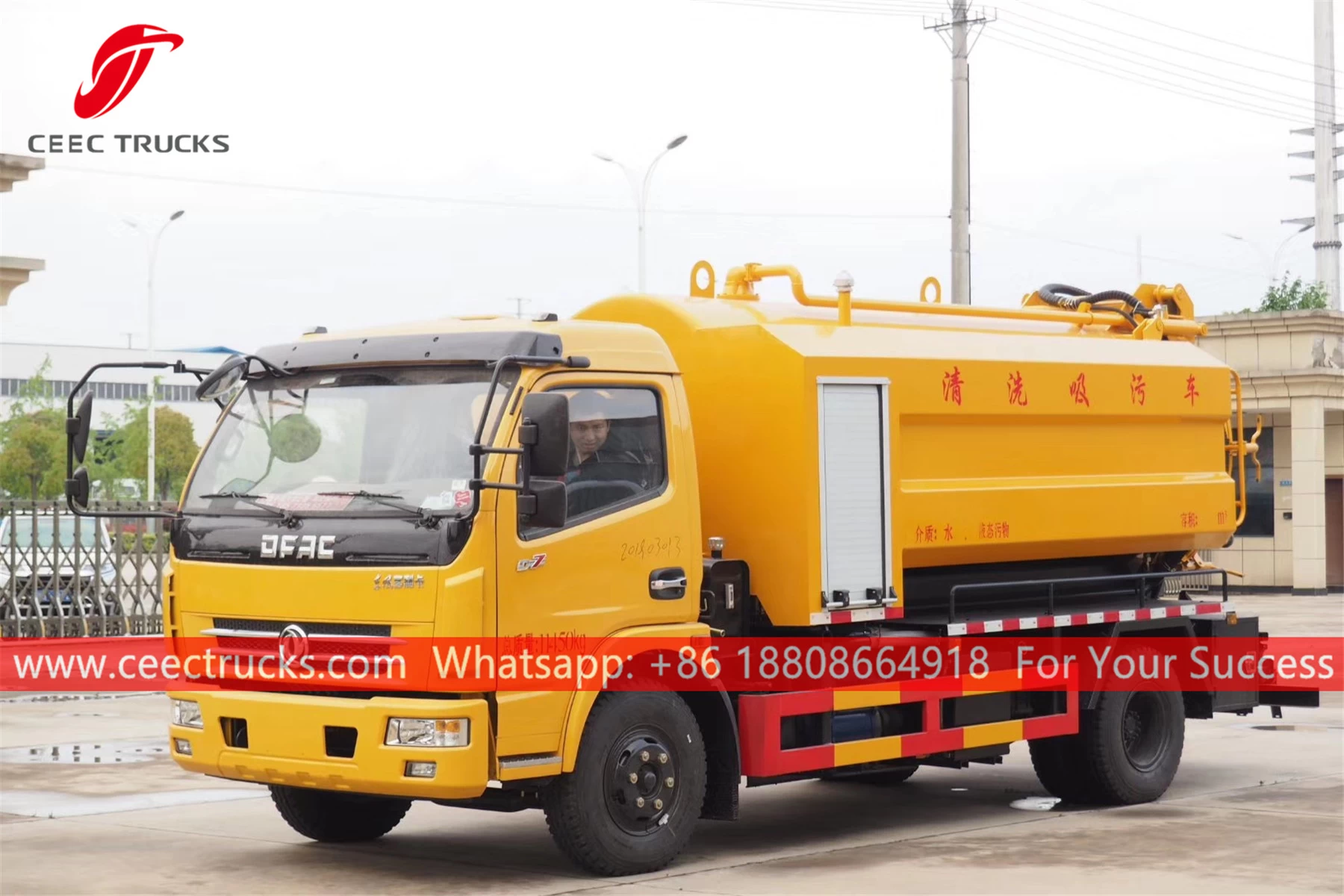

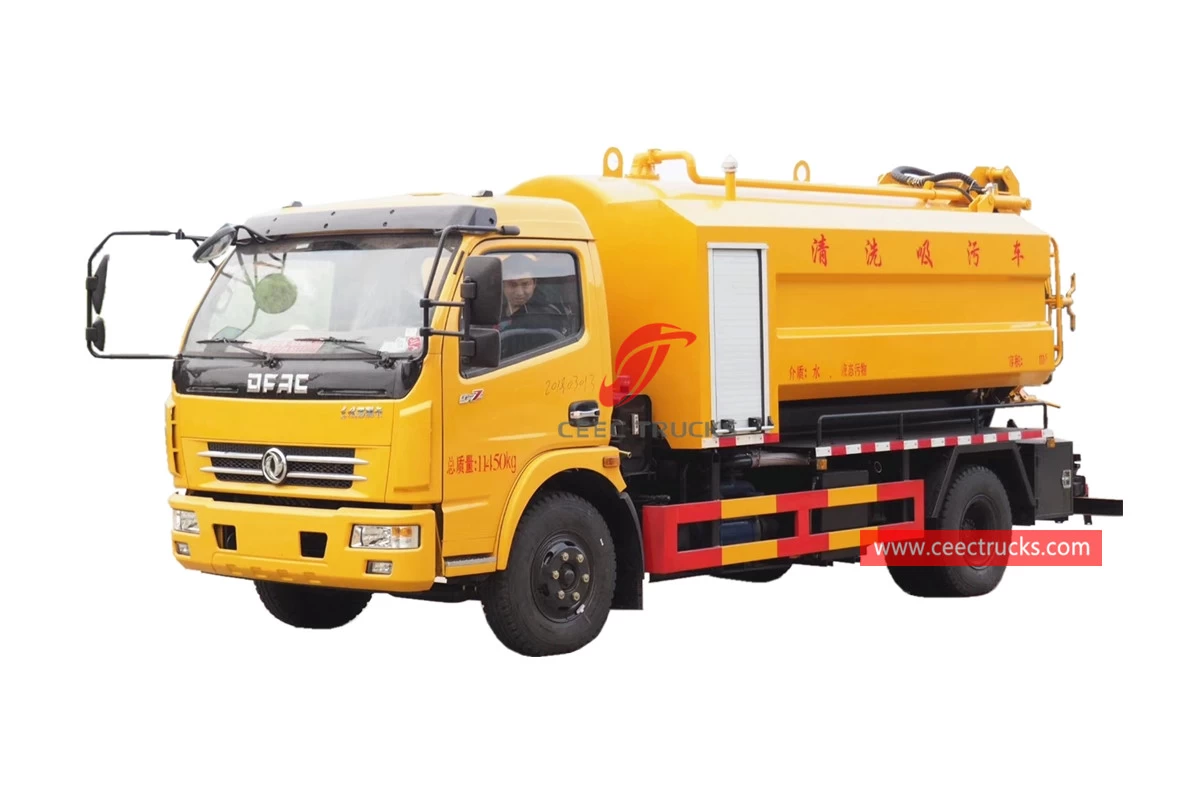

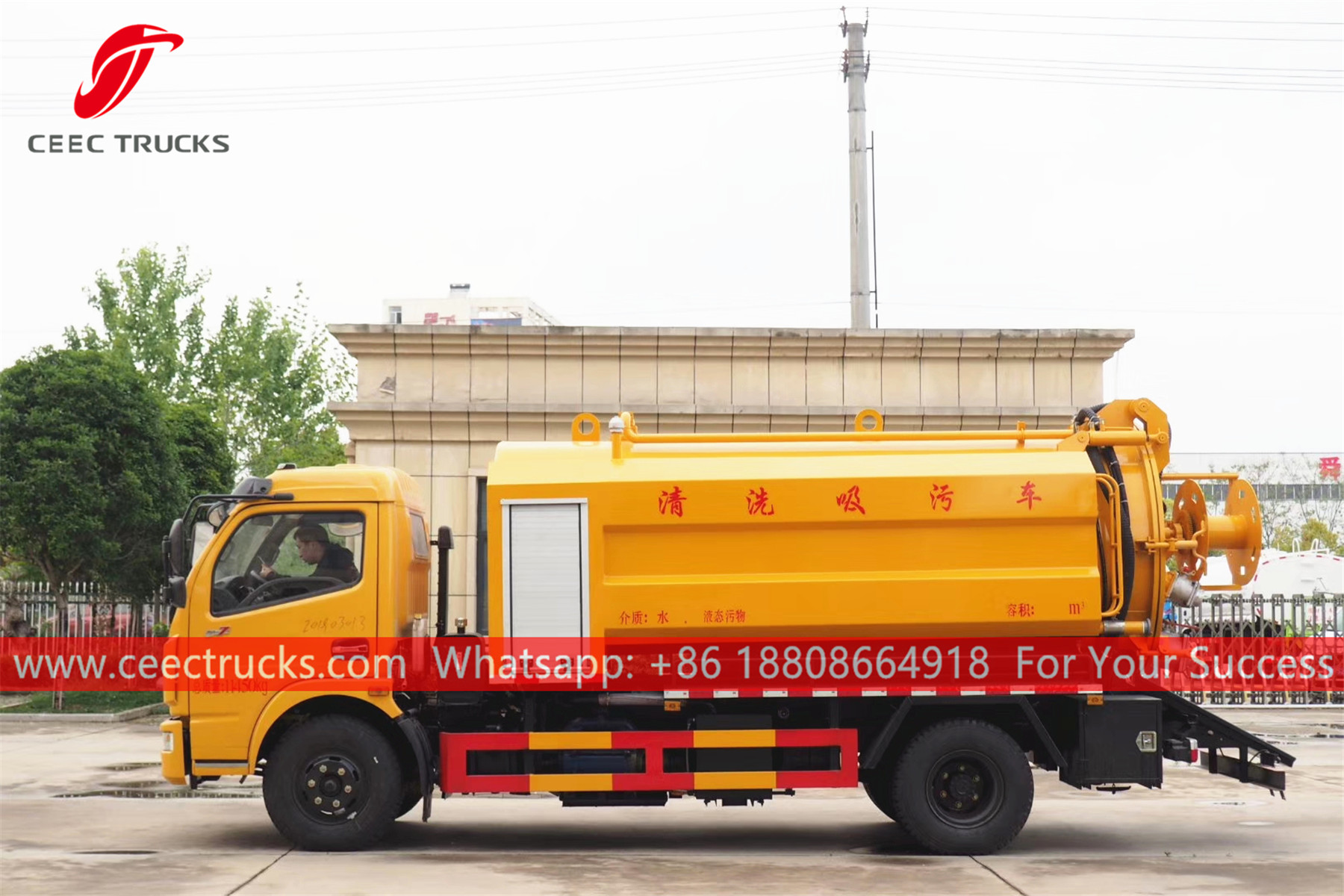

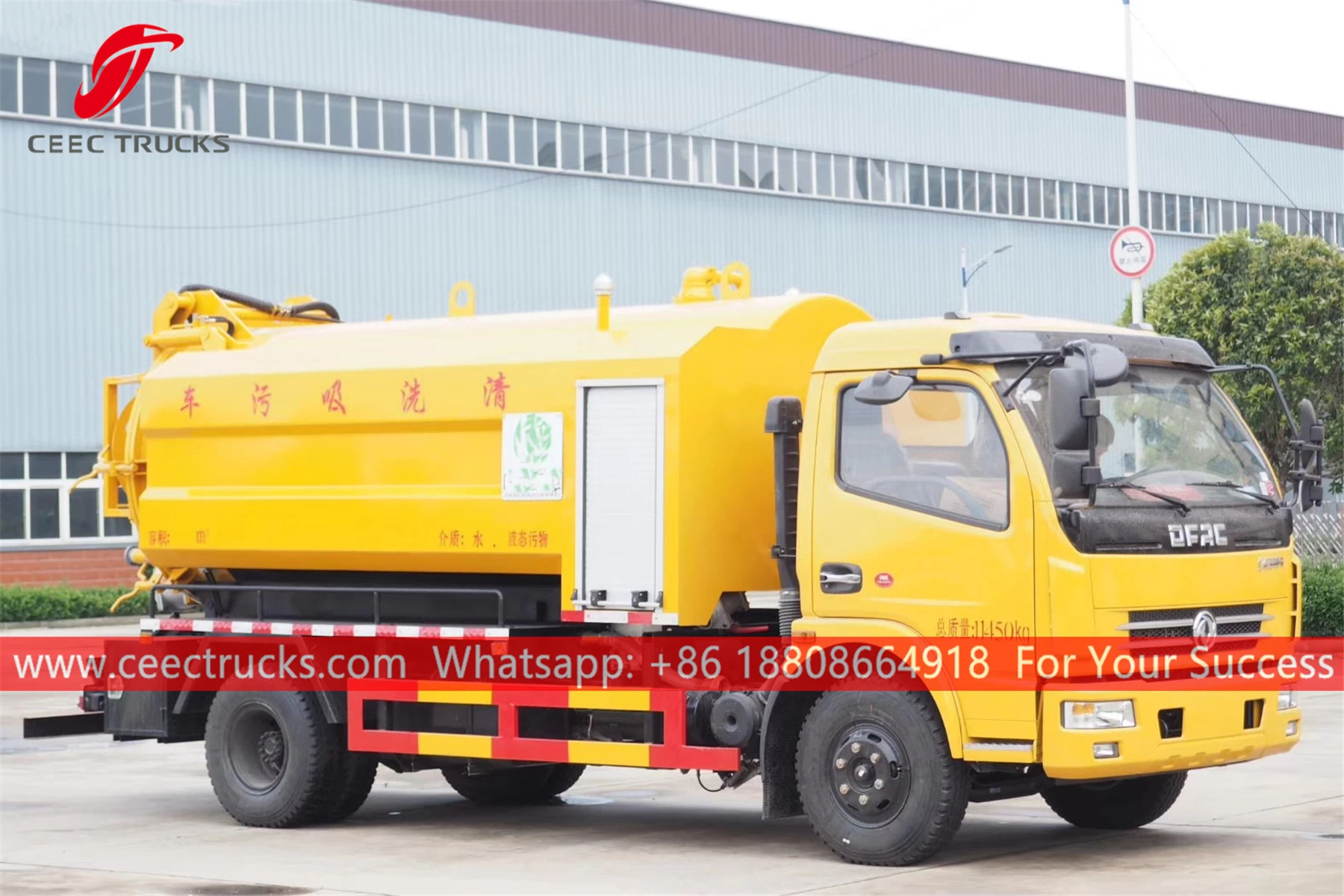

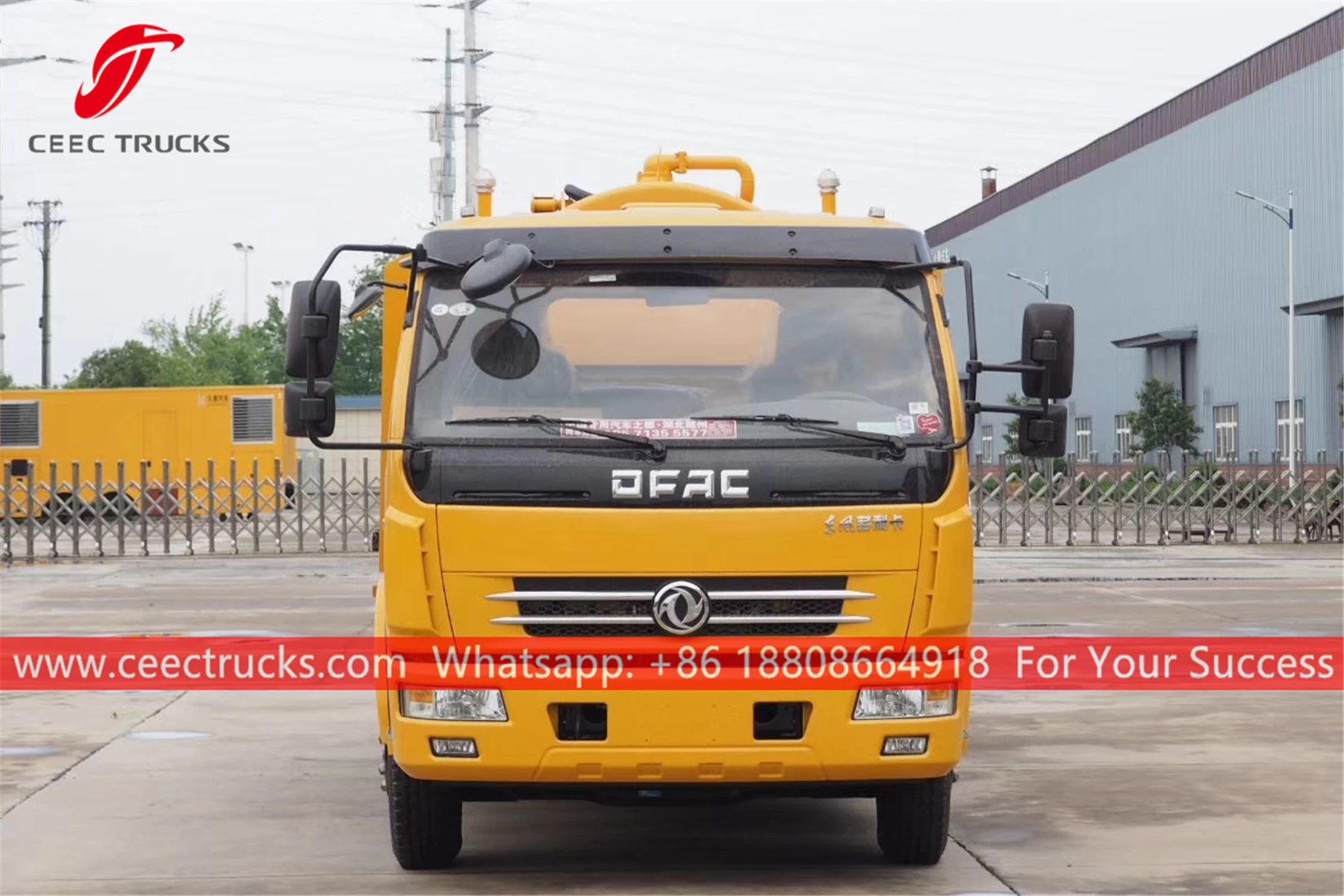

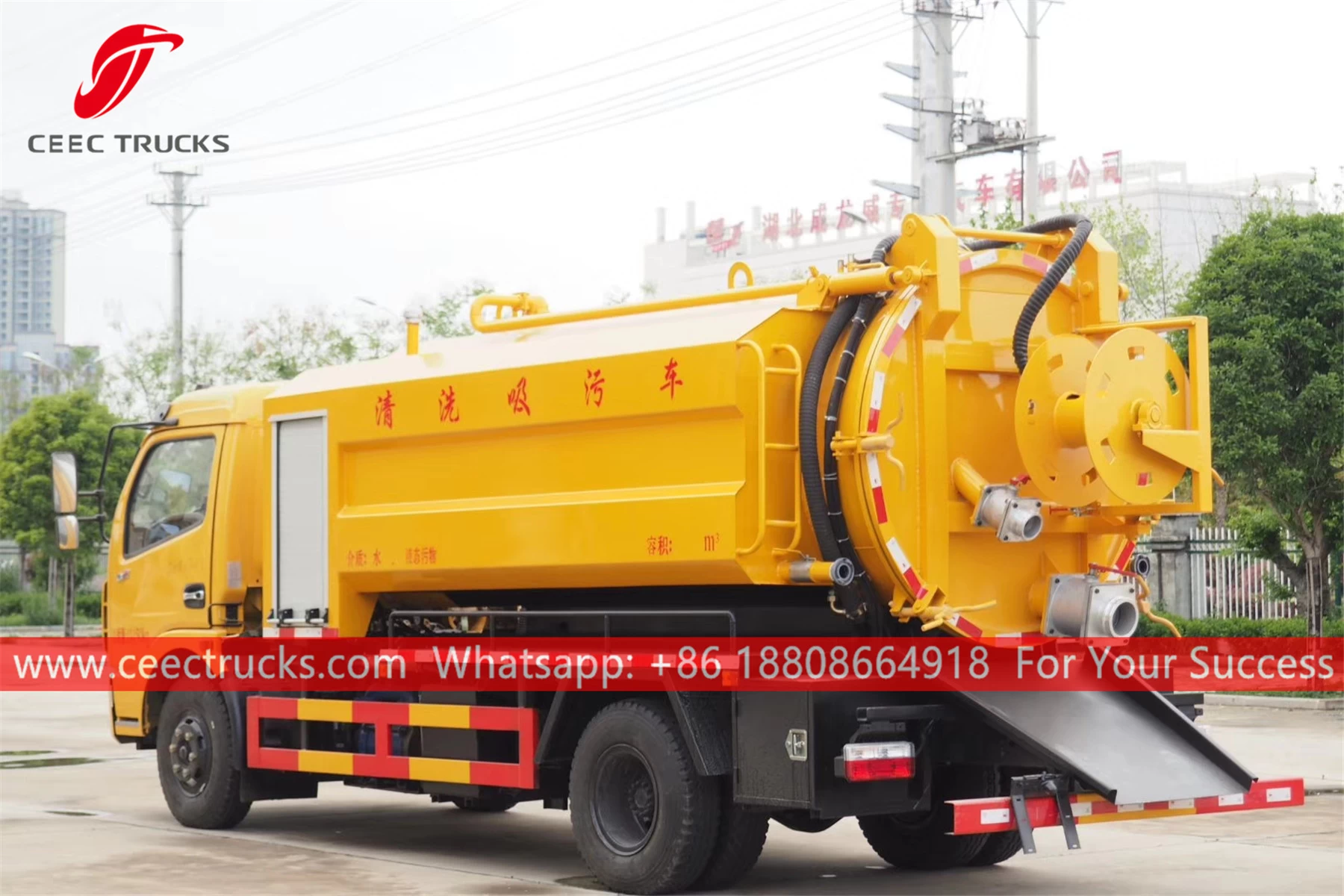

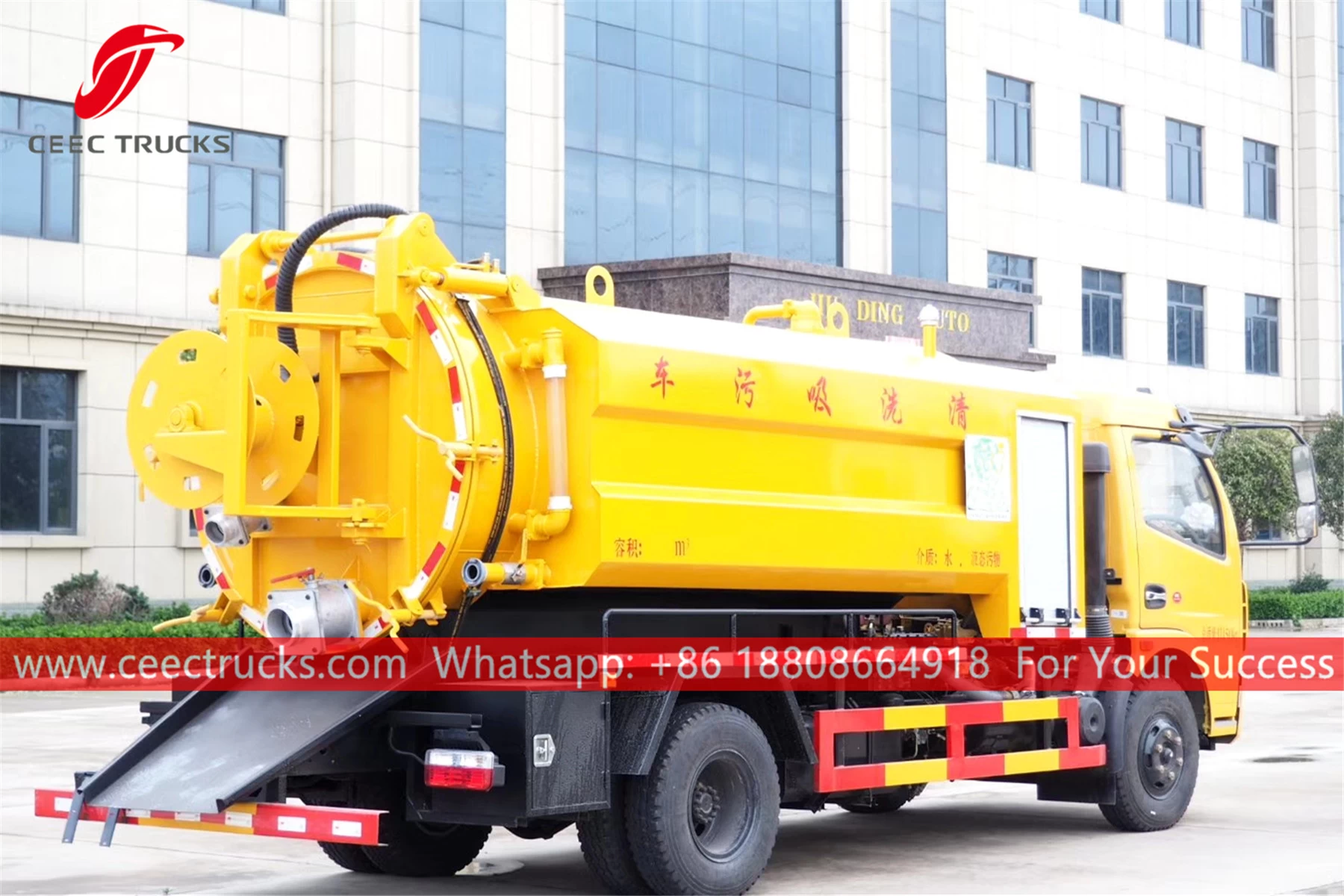

Combined Jetting Suction Truck Dongfeng (also called Combined
vacuum jeting truck, suction jet truck, combination sewer cleaning truck,
combined jetting suction vehicle, jetting and vacuum truck, vacuum sewage jetting combined truck , combined jetting and suction truck )
is a vehicle that is designed to clear any blockage with jetting
nozzles moving in sewage pipeline under high pressure, and clear sewer
drain lines by means of a powerful vacuum suction to suck all water plus
mud from sewer hole. This truck is widely used for environmental protection.
CEEC TRUCKS combined vacuum jetting truck carry a high pressure pump, a water tank,
high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction
pipeline. and can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
---- Famous Chinese brand vacuum pump, effictive and dur
---- High pressure cleaning hose with automatic reel
---- Strong, durable, perfect performance
Specifications:
|
Combined Jet
Vacuum Truck DONGFENG (3,000 Litres + 3,000 Litres)
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
DONGFENG
|
|
Overall Dimension
|
7050 * 2250 * 2900
mm
|
|
GVW / Kerb Weight
|
11,450kg / 6,550kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air
conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
YUCHAI
|
|
Power
|
150 HP (110 KW)
|
|
Displacement
|
3767 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
4X2, (left hand
drive)
|
|
Transmission
|
Manual 6 speed
levers with 1 reverse
|
|
Wheelbase/No. of
axle
|
3800 mm / 2
|
|
Tire Specification
|
8.25R20
|
|
Tire Number
|
6 tires and 1 spare
tire
|
|
Max Speed
|
103 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Water Tanker System
|
Tank capacity
|
3,000 Liters
|
|
Tank material
|
Carbon steel
|
|
High pressure pump
|
Optional 1: China brand pump 24Mpa
Optional 2: Italy
import pump 16Mpa
|
|
Flow speed
|
120L/min
|
|
High pressure hose
|
High pressure hose 60m long
|
|
Auto reel
|
Auto hose reel
|
|
Suction head
|
6m
|
|
Nozzles
|
A cluster of nozzles included
|
|
Sewer Tanker System
|
Tank capacity
|
3,000 Liters
|
|
Tank material
|
Carbon steel
|
|
Vacuum pump
|
High efficient, vacuum rate over 93%, quick suction
and discharge, suction lift 6m
|
|

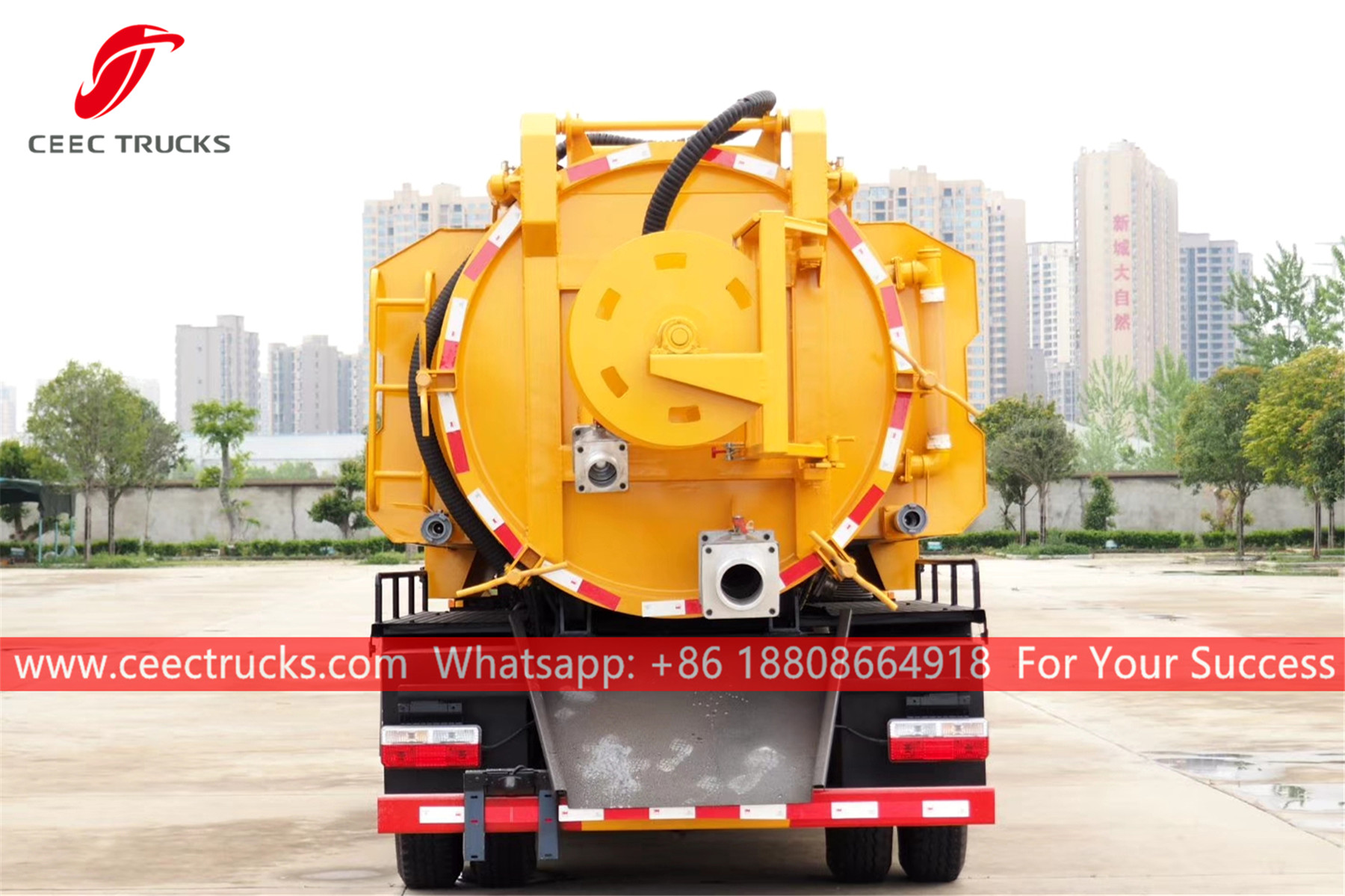

Rear door can be hydraulic open / close for
complete discharge of solid stuff
|
|
All standard
accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Tank material
could be stainless steel.
** High pressure hose length could be customized.
|
