Three phase diesel power 30kva 40 kva soundproof DCEC Cummins engine generator price
Our power system products include diesel and gas-powered generator sets ranging from 15 – 3750 kVA, alternators, diesel engines ranging from 49 – 5,500 hp, generator-drive engines, battery storage systems and integrated power systems that combine generator sets, paralleling controls and switchgear technologies, all connected to our industry-leading digital solutions for complete power system control.
All aspects of generator set design, manufacturing and service have been brought together in one company. All the major components – the engine, alternator, control systems and containers – are manufactured and built by Cummins. This integrated approach means each element of a generator set is matched to work in harmony from the start.
Regardless of the power system architecture required to meet your market or application needs Cummins provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site.
|
Diesel Generator Set Data Sheet
|
|
Generator Model
|
AC44
|
|
Power
|
32kw/40kva
|
|
Rated Voltage
|
400/230V
|
|
Frequency
|
50HZ
|
|
Power Factor
|
0.8(Lagging)
|
|
Dimension(L*W*H)
|
2250*1000*1500mm
|
|
Weight
|
1200kg
|
|
Diesel Engine Data Sheet
|
|
Brand
|
DCEC
|
|
Model
|
4BT3.9-G2
|
|
Number of Cylinder
|
4
|
|
Speed
|
1500RPM
|
|
Cycle
|
Four Stroke
|
|
Cooling Method
|
Water Cooling
|
|
Bore*Stroke
|
102*120mm
|
|
Speed Governor
|
Electronic
|
|
Power
|
36kw
|
|
Lubrication oil Capacity
|
3.9L
|
|
Fuel Consumption @100%
|
10L/H
|
|
Starting Method
|
24V Electrical Starting
|
|
Alternator Data Sheet
|
|
Brand
|
Leroy somer
|
|
Model
|
TAL-A42-E
|
|
Power
|
32kw/40kva
|
|
Connecting Type
|
3 Phase and 4 Wires
|
|
Number of Bearing
|
Single
|
|
Protection Grade
|
IP23
|
|
Insulation Class
|
H
|
|
Exciter Type
|
Brushless, Self-excited, AVR Controller
|
|
Altitude
|
≤1000M
|
Product Overviews

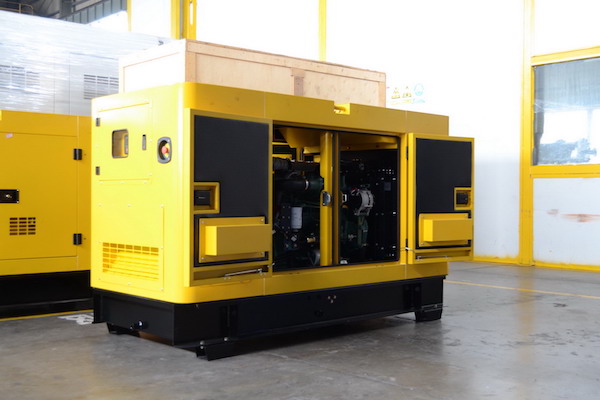

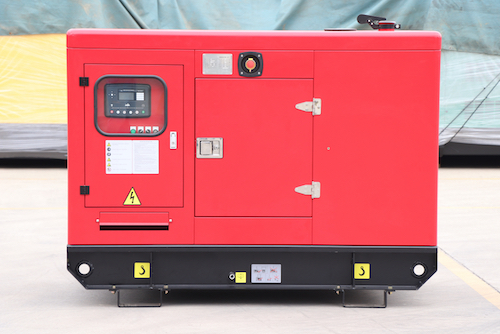

Ai Power silent generator is featured by its elegant design, lower noise level, high quality soundproof materials, thick steel metal plate. Its rainproof and soundproof function has been proved in the last 16 years experiences. It adopts international famous brand paint and skilled technicians to make the canopy powder paint. It has full transparent view windows for monitoring generator parameters.
Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
Product Details
Q1:What is your power range of your diesel generator?
Answer: We can provide 6KVA to 3000KVA.
Q2:What is the different between prime power and standby power?
Answer: Prime power is 12 hours continuous power, Standby Power is 1 Hour peak power.
Q3:How to choose the power?
Answer: Collect all power of your equipments, take the surge current into your consideration.
Q4:What is your payment term?
Answer: We accept T/T, L/C, Western Union.
Q5:What is your warranty?
Answer: We will warrant our diesel generator for 1000 hours or one year which comes first.
Q6:What is your MOQ?
Answer: MOQ is 1 set.
Q7:Do you offer OEM service?
Answer: OYes!
Q8:What is your lead time?
Answer:15-20days after receive your deposit.
