We offer customized sizes.
It is helpful that if you can send us your drawings.

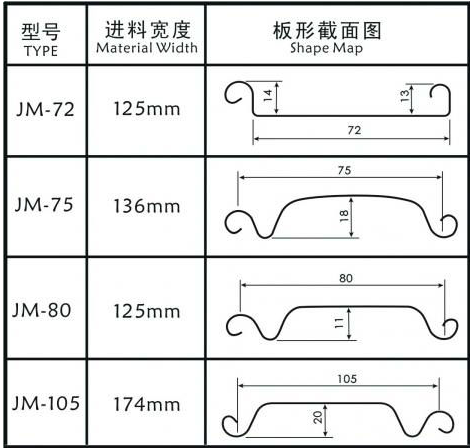

Profile Drawing
Main Technical Parameters:
|
Technical Parameter
|
Description
|
|
Material Thickness
|
1.0mm
|
|
Material Width
|
174mm
|
|
Effective Width
|
105mm
|
|
Forming Station
|
14steps
|
|
Motor power
|
4.0Kw
|
|
Weight
|
1500KG
|
Machine Parts

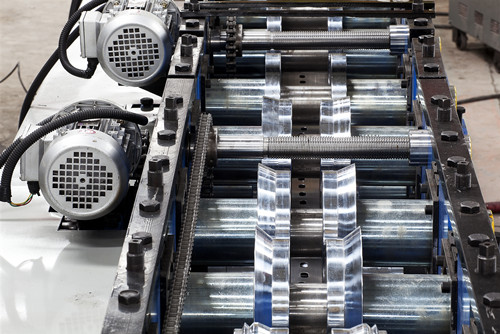

1. Machine Roller
Rollers manufactured from high quality GCR15, CNC lathes, heat treatment.
With black treatment or hard-chrome coating for options
Body frame made from 200#H type steel by welding.

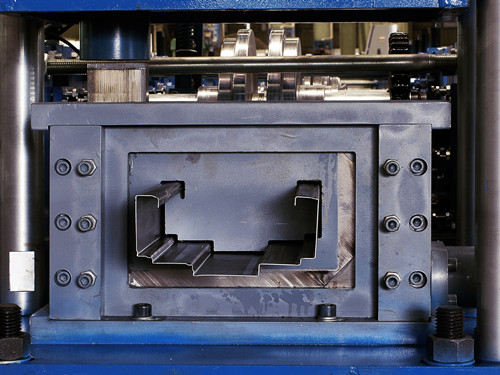

2. Machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 2.2KW
Hydraulic pressure range: 1-16Mpa

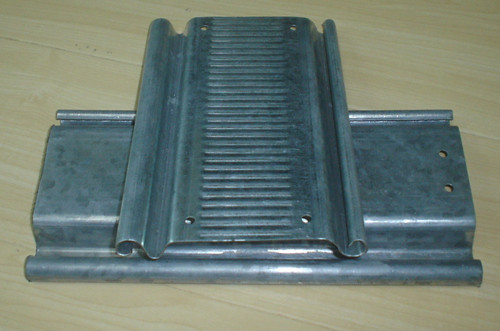

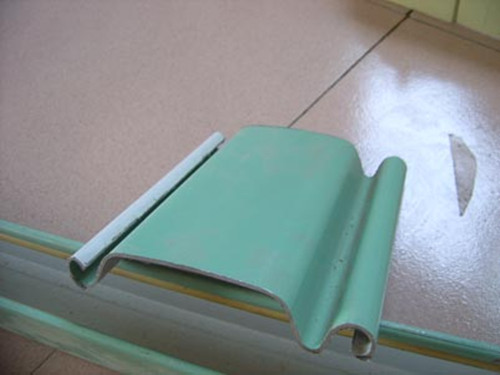

3. Product show

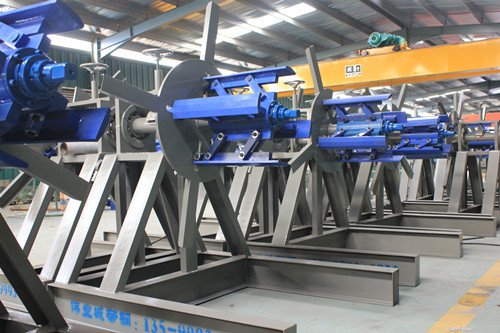

4. Uncoiler
Manual dedoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
With hydraulic uncoiler for option
5. Exit rack
