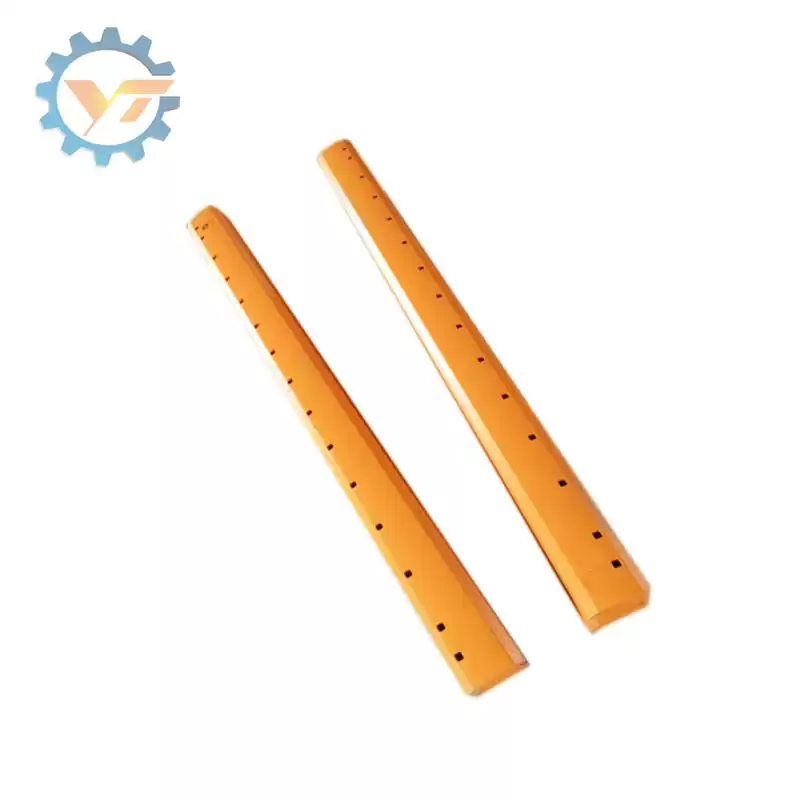

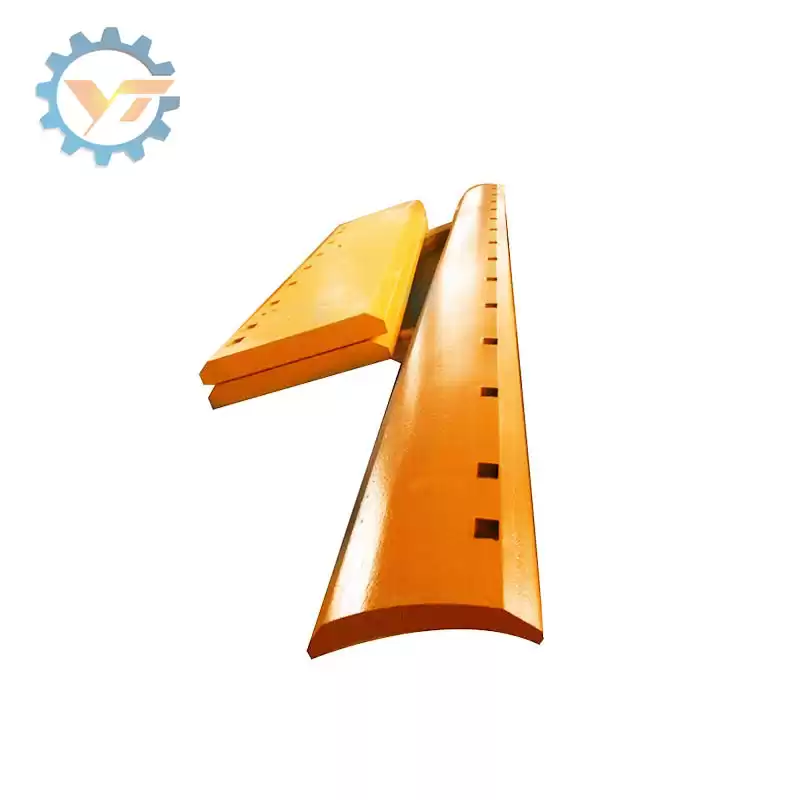

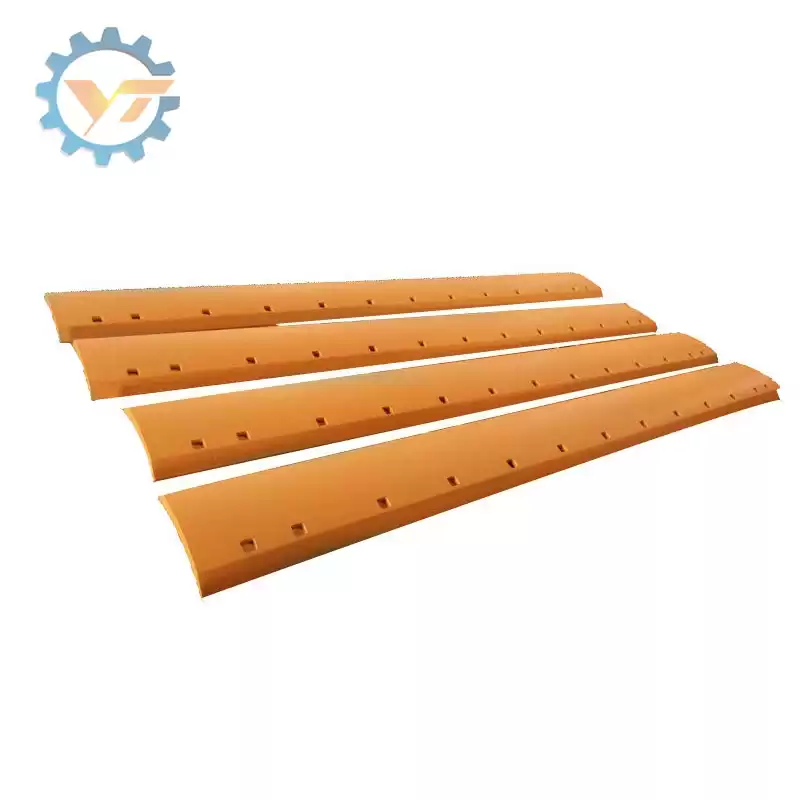

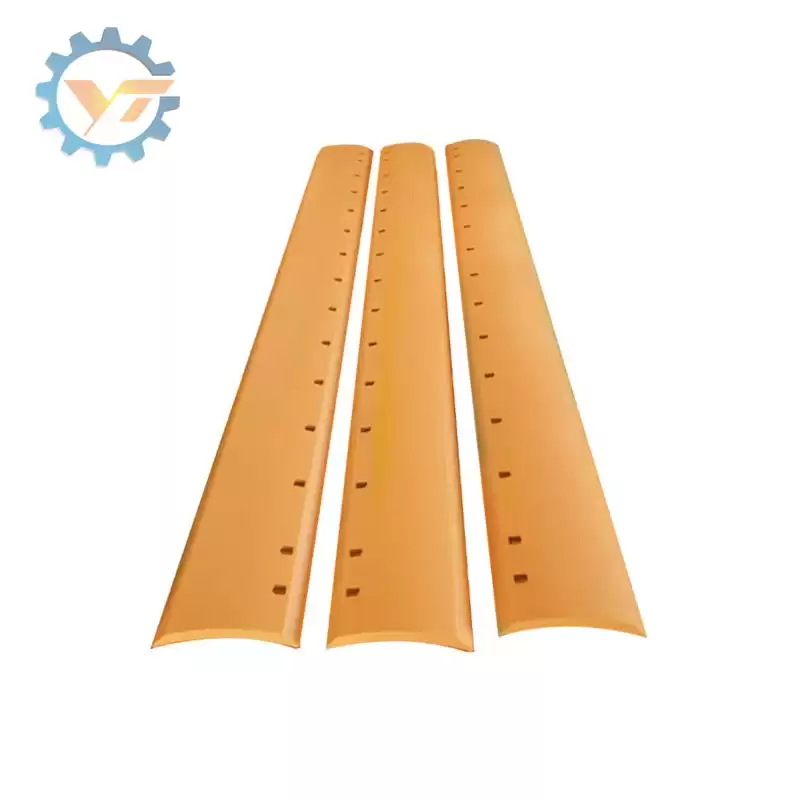

Double Bevel Curved Grader Blade Replacement Wear Parts

Our G.E.T. parts are made from both high carbon and boron steel that are heat-treated and hardened to improve the lifespan.


  • PackingWooden Pallet Packing

Double Bevel Curved Grader Blade Replacement Wear Parts


1. Description


Manufactured from steel with properties that maintain hardness for long wear life, our durable grader blade make it possible for your machines to deliver the performance you demand.



2. Why Choose Us?


  • Through professional quench-tempering processes to guarantee excellent mechanical properties,high strength and superior wear resistance to avoid bending and breakage.
  • Meet OEM and industry standard for earthmoving machinery and equipments.
  • Optional material with high carbon steel or heat treated boron steel for different application.
  • Available dimensions for all standard grader blades or customized dimensions.



3. Production Processes


Grader Blade Manufacturing Processes


4. Main Dimensions



Part No.

L * W * T

(mm)

No.of Holes Part No.

L * W * T

(mm)

No.of Holes
5B5564 1828×152×16 8 7D1158 2133×203×16 15
5D9553 1828×152×16 13 7T1624
7T1633 8J9821 2438×203×16 17
5B5561 2133×152×16 9 7T1628
5B5562 7T1634 1828×203×19 13
5D9554 2133×152×16 15 5D9558
7T1645 5D9559 2133×203× 19 15
8J4043 2438×152×16 17 7T1623
7T1632 5D9732 2438×203×19 17
9J3657 1828×152×16 13 7T1630
7T1637 7D1576 1828×203×19 13
9J3658 2133×152×16 15 7T1638
7T1626 7D1577 2133×203×19 15
9J3655 2438×152×16 17 7T1625
7T1629 7D1949 2438×203×19 17
5D9556 1828×152×19 13 7T1627
7T1635 4T2244 1828×203×25 13
5D9557 2133×152×19 15 4T2242 2133×203×25 15
7T1644 4T2237 2438×203×25 17

The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to send us your inquiry.
