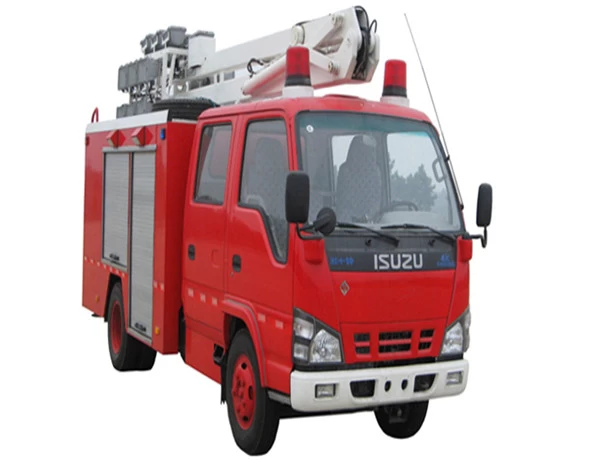

Double Cabin Isuzu
Lighting Fire Truck with Light System
Tags: Best quality
Double Cabin Isuzu Lighting Fire Truck with Light System manufacturer, Isuzu
Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type
fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with
fire truck
Main
specifications:
|
Chassis
|
NKR77/600P
Light-duty chassis for Fire-fighting application
|
|
Model
|
PT5070GXF
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
3360
mm
|
|
Overall Dimension
|
5825×1890×2860 mm
|
|
Light Mast System
|
Ground height≥8m，Working Cycle time＜500s，Level rotation time＜180s，Level rotation angle:-175°to +175°，Elevation angle≥+15°，Depression angle≤-30°，elevation and depression time≤120s.
|
|
Lamp
|
Main lamp:4×1000W， Mobile lighting:2×400w
|
|
Vehicle generator
|
power:5kW，380/220V，Electric
control box is provided with the dustproof, waterproof, short circuit and
earth leakage protection device.
|
|
Cab
|
Double cab with Four
doors, 5 seats with safe belts.
|
|
Engine
|
Model:
|
4KH1-TCG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power:
|
88
KW (120HP)
|
|
Gearbox
|
MSB
5-shift, mechanical type, 5 forward and 1 reverse with
|
|
Tire
|
7.00-16
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|
Accessories List:
(With below equipment,
you can put into fire-fighting immediately)
Recently Customer
Build Examples:
