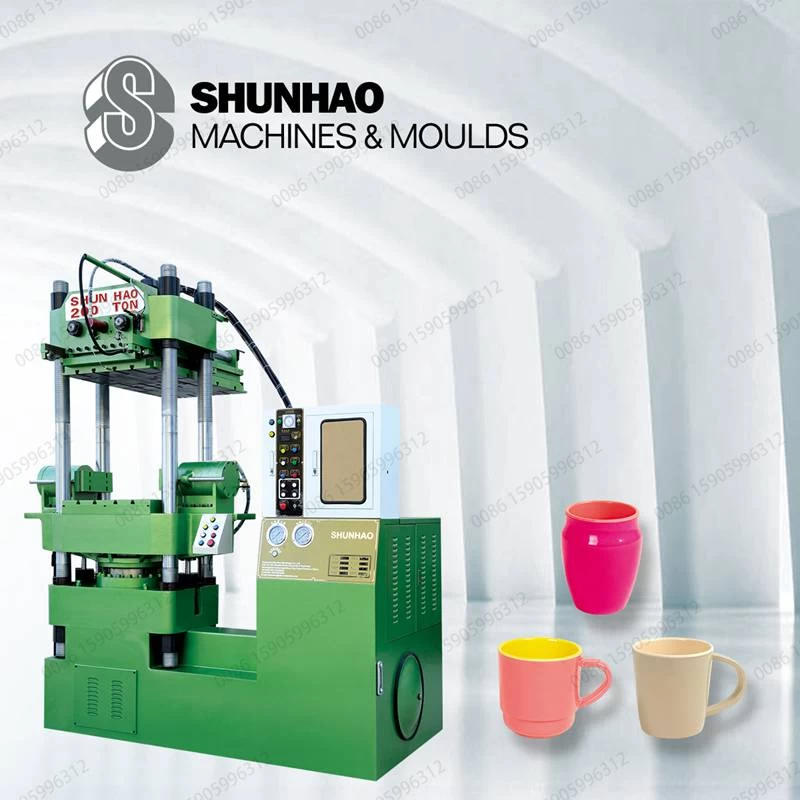

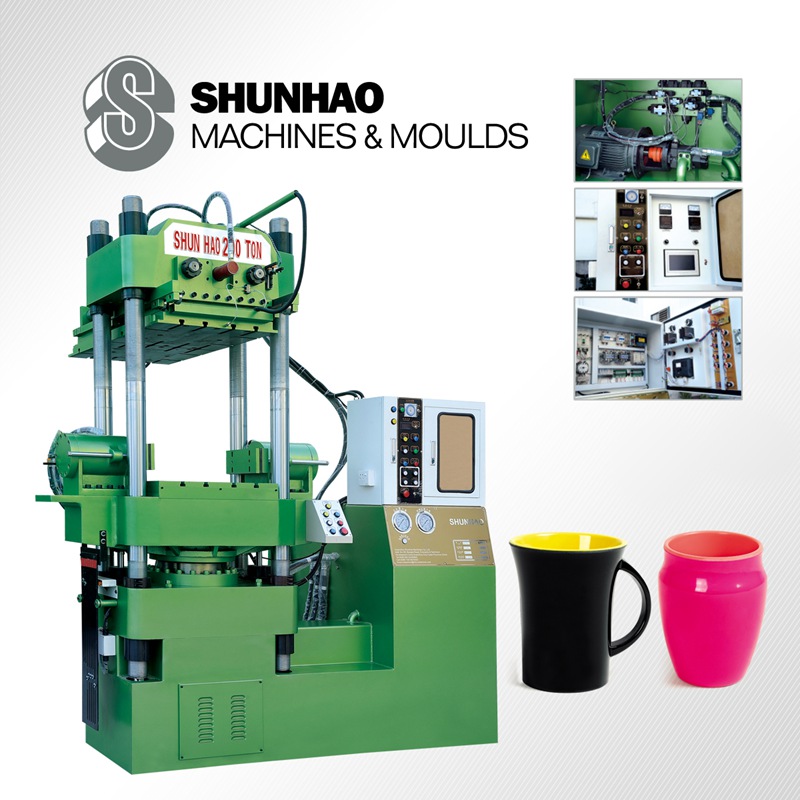

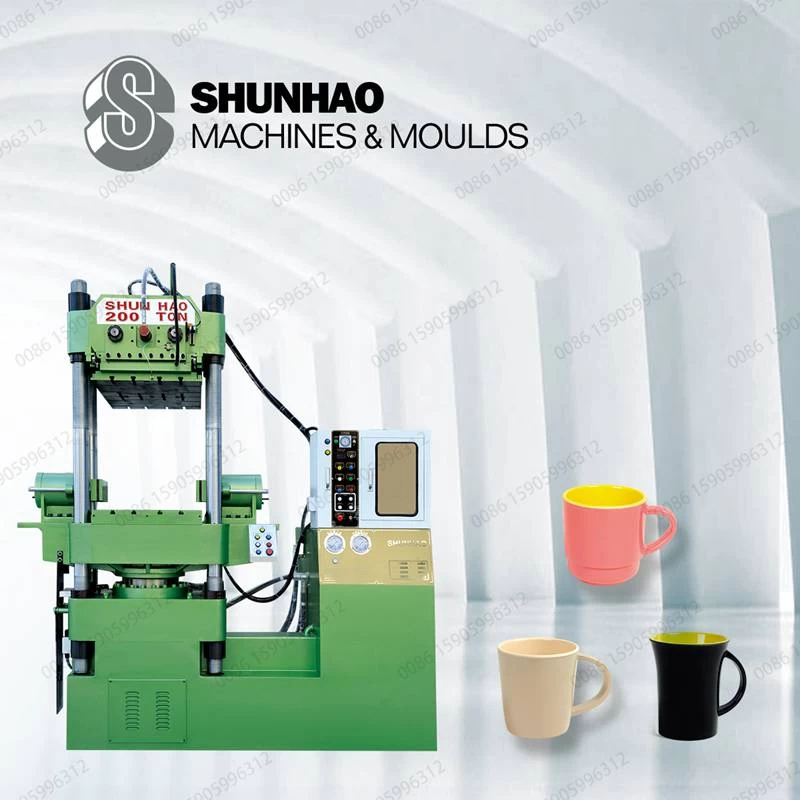

Automatic Double Color Melamine Crockery Making Machine-DTS 200TONS
Features
1. Using advanced technology, low energy consumption, low noise, high speed, high efficiency
2. The movable beam has safety limiters in the up and down directions
3. This hydraulic machine is equipped with a photoelectric protection device to ensure safe operation
4. With automatic and manual functions, can be freely converted
5. Two operation modes: pressure adjustment and stroke adjustment, which can be selected through the operation panel, with pressure holding and delay
Four Steps to Install Molds on Melamine Ware Making Machine
Preparation: Check whether the mold specifications are suitable for installation on the heating plate of the machine model
1. If the mold is tall, you can loosen the nut on the outside of the upper plate. After raising the mold to the highest position, tighten the inner nut and tighten, and then unscrew the upper nut, but firmly fix the upper plate.
2. If the mold is lower than the previous mold, the upper plate should be lowered to a suitable position. Unload the previous mold and replace it with a new one
3. Fix the upper mold to the upper plate with the fixing clamp iron.
4. Check and tighten all nuts to prevent them from loosening during operation.
Technical Parameters
No.
|
Content
|
DTS 200
|
1
|
Main Cylinder Nominal
Pressure
|
200Tons. Single color
|
2
|
Cup Mould Cylinder
Nominal Pressure
|
64Tons
|
3
|
Maximum Working Pressure
|
210kg/ cm2
|
4
|
Main Cylinder Piston
Diameter
|
Ø370mm
|
5
|
Main Cylinder Working
Stroke
|
560mm
|
6
|
Adjustable Table Distance
|
500~960mm
|
7
|
Heating Plate Size
|
680*620mm
|
8
|
Working Layers
|
1 layer
|
9
|
Heating Plate Material
|
45#
|
10
|
Tension Column (Heat
Treatment Grinding)
|
Ø100*2100mm
|
11
|
Oil Hydraulic Pump
|
21Mpa
|
12
|
Motor Specifications
|
10HP
|
13
|
Heating Sheet Total Power
|
11KW
|
14
|
Machine Total Power
|
18.5KW
|
15
|
Machine Size(length *
width * height)
|
2.28*1.4*2.5 M
|
16
|
Mechanical Weight (tons)
|
5000KGS
|
PS: Specifications subject to change without notice
