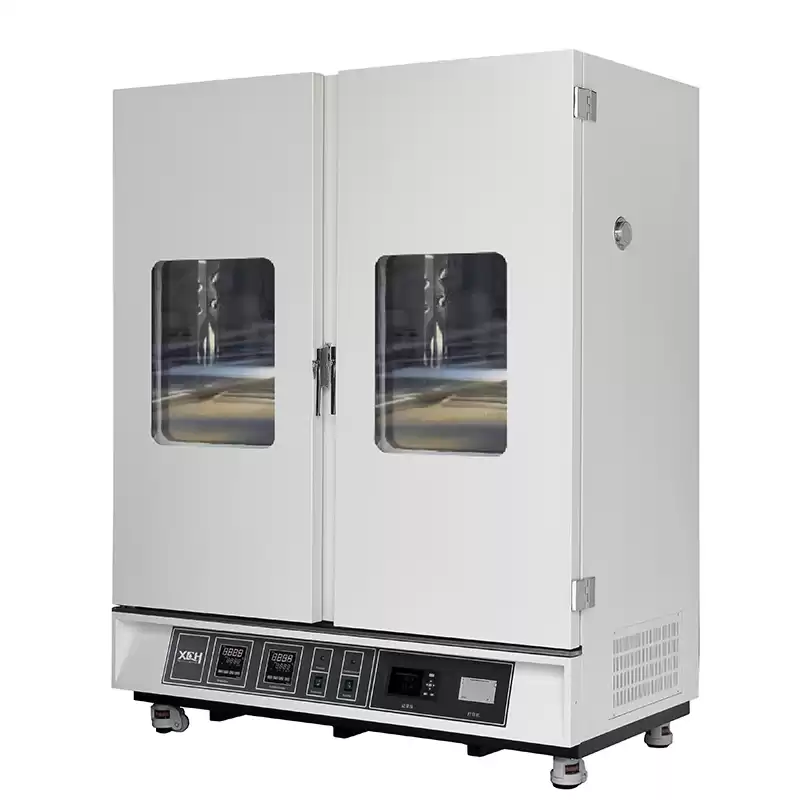

Double door constant temperature humidity test chamber 1000L
Constant temperature and humidity controlled chambers is a reliability and efficiency environment test chamber which satisfies the test requirements. This stability climatic chamber adopt imported process design, choose the original imported high quality parts, Stable and reliable performance. It is a reliability and efficiency environment test chamber and temperature and humidity test chamber which satisfies the test requirements.
Model: XCH-1000CH
Temp.Range:10℃~60℃
Humi.Range: 50~90%RH
Environment temperature: +5 ~ 35℃
Temperature Fluctuation: <±0.5℃
Temperature deviation: <±2.0℃
Humidity deviation: < ±5%RH
Power: AC 220V±10% 50HZ
Double door constant temperature humidity environmental chamber
The constant temperature & humidity chamber, environmental testing chamber is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using.
Key Features:
• Temperature Control: Temperature Fluctuation ≤ ±0.5℃ ,Temperature Deviation < ±2.0℃ ,Temperature Uniformity ≤ 2.0℃
• Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±5%RH,,Humidity Uniformity ≤ 5%RH
• Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.
• Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.
• Refrigerating System: The imported brand fully enclosed compressor,long-term use ,stable performance.
• Humidity System: Original imported chip capacitive humidity sensor,High sensitivity, low annual drift, direct humidity detection
• Control System: The imported temperature and humidity controller,High control accuracy.
• Safety Device: Compressor overheat protection and overload protection、Fan overheating protection、Water scarcity protection
• Dual protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;
• Live Alarm: Temperature and humidity upper and lower limit deviation alarm;Independent overtemperature protection alarm system.
• Installed Power: AC220V±10% 50HZ
• Environment temperature: +5~35℃
• SMS alarm : Optional
• Data record: Optional
Model & Parameters:
MODEL | TEMP CONTROL RANGE |
Humidity control range |
CAPACITY | INTER DIMEN W×D×H |
EXTER DIMEN W×D×H |
POWER | TRAYS |
XCH-800CH | 10℃ ~ 60℃ | 50 ~ 90% | 800L | 1200×490×1360(mm) | 1360×850×1960(mm) | 2.5KW | 4 |
XCH-1000CH | 10℃ ~ 60℃ |
50 ~ 90% |
1000L | 1400×510×1400(mm) | 1560×870×1980(mm) | 3.0KW | 4 |
Double door constant temperature humidity environmental chamber |
Application:
The constant temperature and humidity testing environmental chamber is applied to temperature and humidity environmental tests of electrical and electronic products, materials, textiles, and pharmaceutical packaging.
Advantages:
Sensitive, small system error
Independent over-temperature protection alarm system
No pollution source and is easy to clean
Low cost
