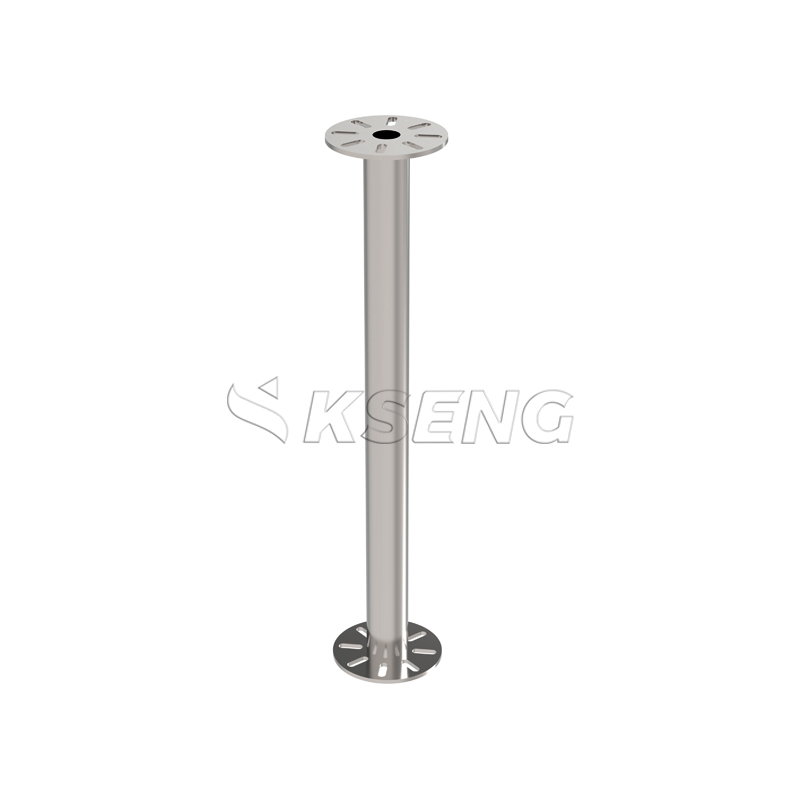

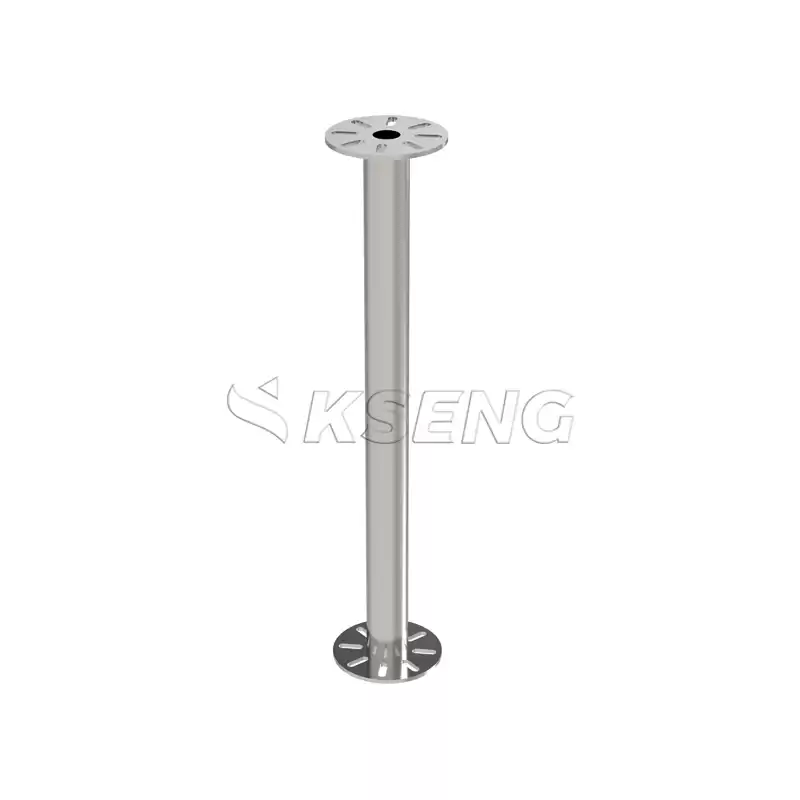

Double FlangedTube for Ground Screw

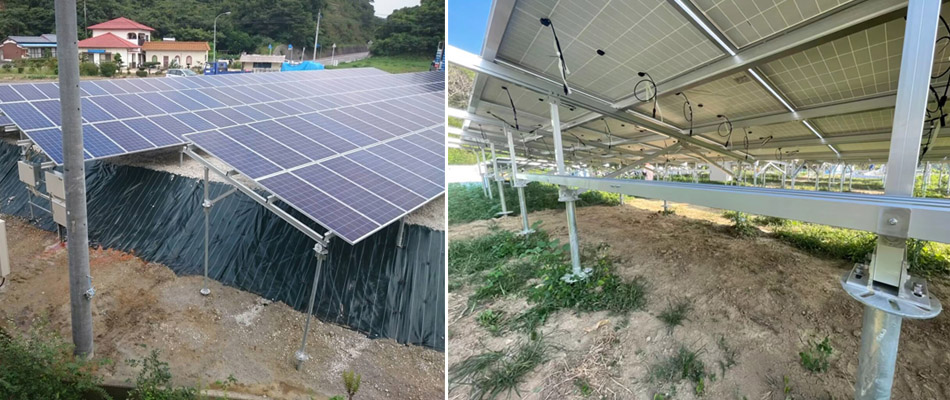

The main purpose of the double flanged tube is to target at complex terrain and increase installation height of the bracket.
Hot dip galvanizing tube with double flanges, the flange is convenient and easy to connect with the solar bracket and it can increase the height.
Compared with concrete base, ground screw doubel flanged tube features lower cost, shorter construction period,environment friendly, all weather workable and resuable.
|
Material:
|
Hot Dip Galvanizing Q235B
|
|

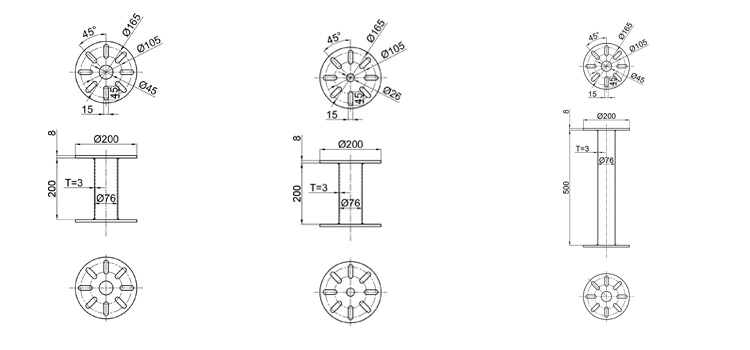

Outer Diameter:
|
76mm
|
|
Length:
|
200mm,300mm,500mm or Customized
|
|
Flang Diameter:
|
200mm&220mm
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
