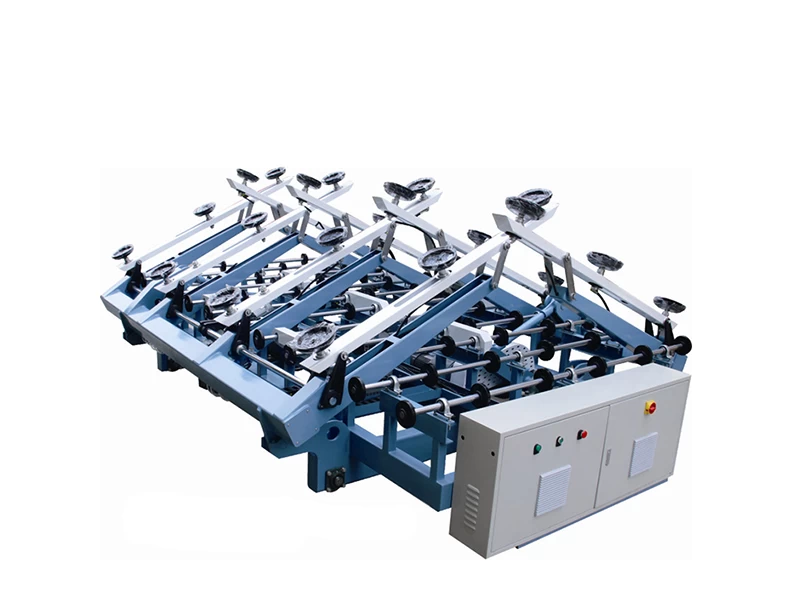

Performance and working principle of equipment
Mainly used for automatic glass loading and transmission, the back can be connected to glass cutting machine, glass edging machine, glass cleaning machine, glass hollow processing equipment and so on. When the glass is placed in the specified position, the sheet sucker is automatically turned up and placed on the transfer roller table after the glass is adsorbed, and the glass is automatically transported to the main machine of the cutting machine.
Note: the number of glass can be automatically controlled, that is, before cutting the number of cut glass, after the completion of the cutting manual operation on the loading machine can continue to take pieces, to avoid human factors to cut the glass.
Equipment Parameters
Flip sprocket chain: special high-precision reinforced type.
Transmission roller: imported pu material
Vacuum sucker: imported natural rubber material (double adsorption structure)
Transmission / flip motor: Bonnie motor
Vacuum pump: Wenling stone bridge vacuum pump
Bearing: Harbin, China.
Electrical components
PLC controller: Panasonic Japan
Frequency converter: Taiwan Delta
Optoelectronic switch: Shanghai SONON
Circuit breaker and motor protector: China CHINT
Control elemer: imported flexible shielded elemer
Contactor: Siyan technology
Main control vacuum solenoid valve pneumatic original: Zhejiang Yongqing manufacturing
Technical Parameter
Loading glass size range: minimum size: 1500*1000mm, maximum size: 3700*2500mm
Loading thickness 3-25mm
Fastest loading time 40s
Transport speed 0-40m/min (adjustable )
Maximum suction depth: 700mm
Maximum loading weight : 1000KG
Number of loading arm on one side: 4 arms
Number of suckers on one arm :3
Flip side: double
Loading station: double
Voltage： 308V/50hz （could be customized）
Power: 10KW
Compressed air: 0.3~0.5Mpa
Vacuum pressure: -70 ~ 90 KPA (adjustable according to glass thickness)
X axis conventional walking speed: 25m / min (variable frequency adjustable)
Y-axis conventional walking speed: 5 m / min (variable frequency adjustable)
Technical description:
Walking -- Flip arm -- Automatic induction glass -- Sucker adsorbed glass -- The lifting of the sucker separates the glass from the rack -- Return to original -- Reverse arm reposition -- Conveying glass
Program settings: can automatically set the loading pieces and loading station order. The equipment carries on the movement automatically, the automatic takes the piece, the automatic conveys.
Position walking mode: it can automatically adjust zero position, automatically detect workstations, and automatically return to original position

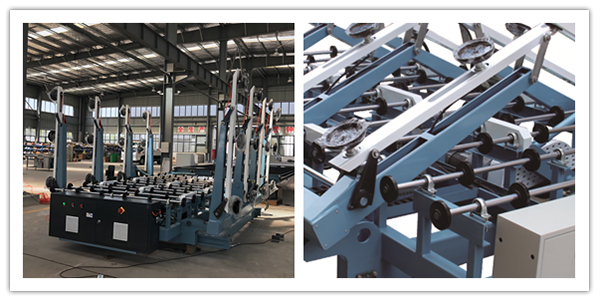

Related pictures
