advanced core patented technology
|
|
high safety, triple anti-pinch
|
|
high stability, optimize the mechanism structure
|
|
long life, longer than 10 million times
|
| |
|
|
|
|
|
|
|
accurate & fast detection
|
|
high visitor flow rate usage
|
|
modular design, easy maintenance
|
|
high compatibility, high integration
|
| |
|
|
|
|
|
|
|
interlocking double gate, anti-tailgating
|
|
|
|
|
|
|

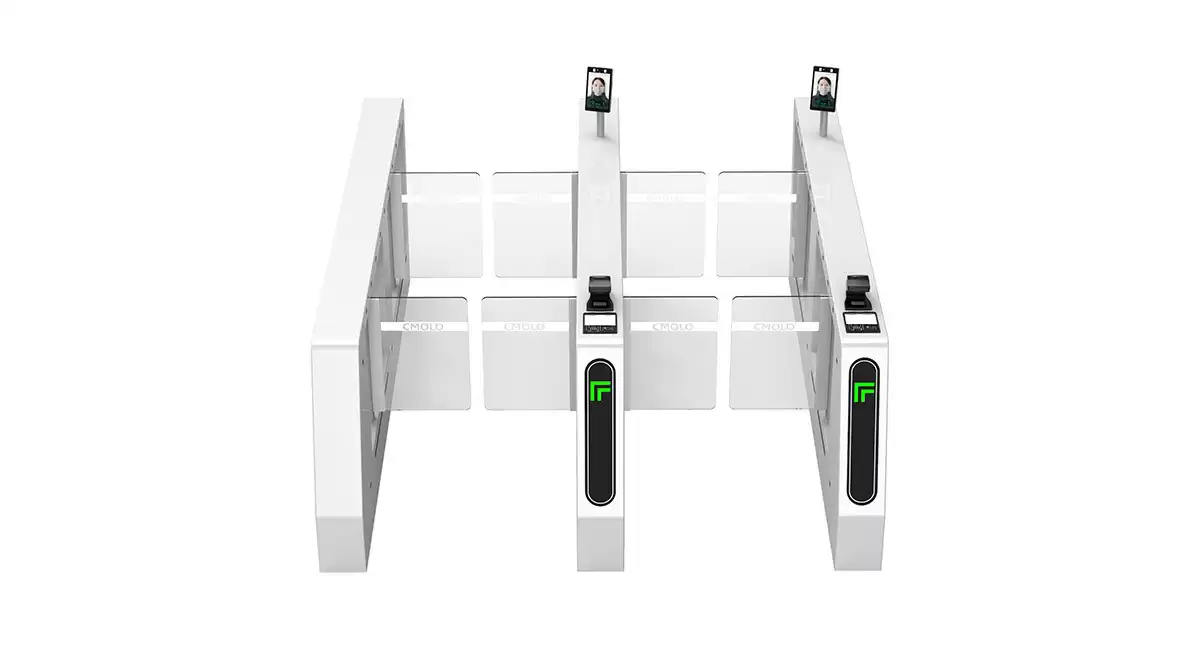

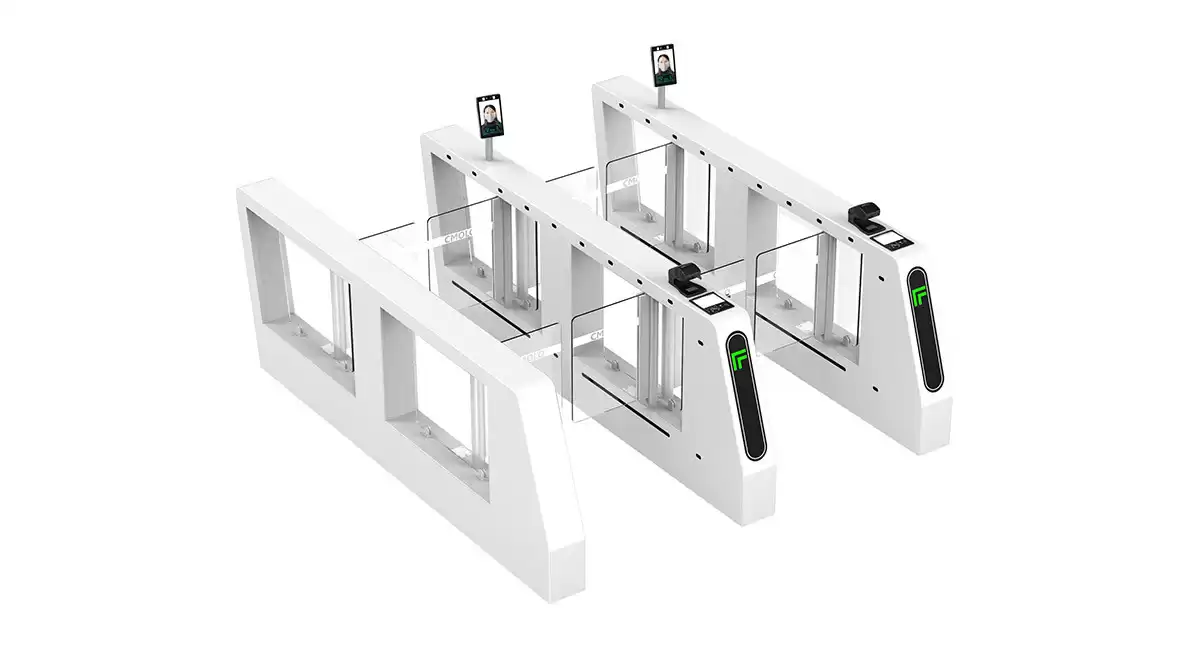

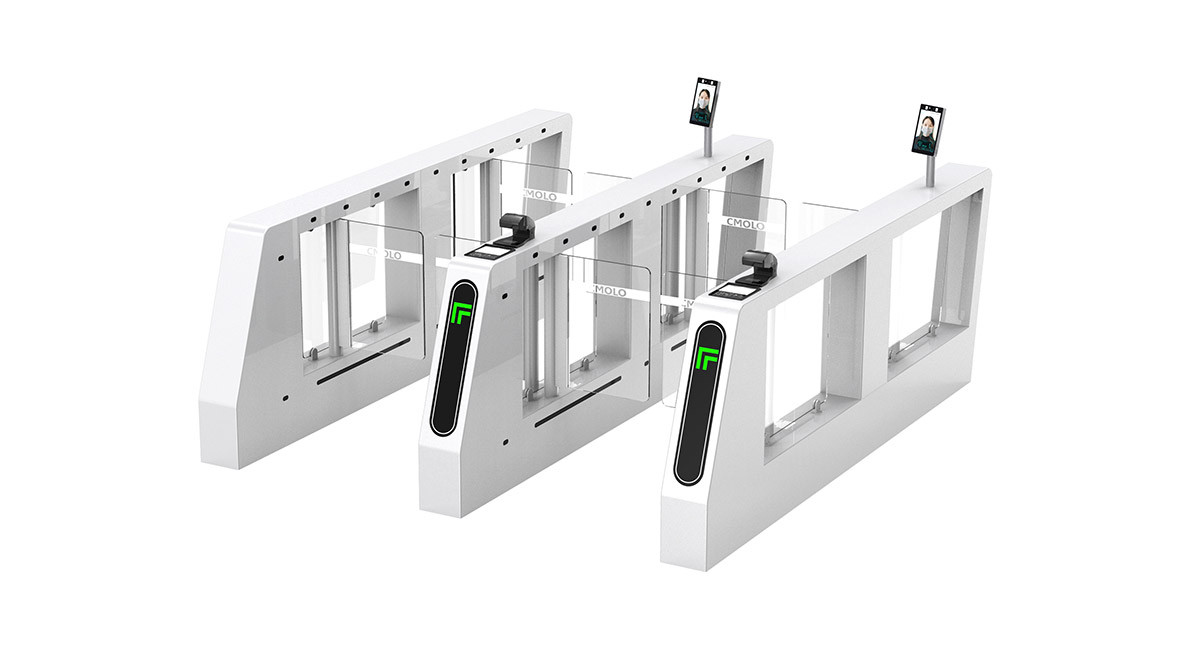

Unique Features of Double-gate Interlocking Face Recognition Turnstile
Two gates are interlocked. When A/B gates are opened, B/A gates are closed. Pedestrian is allowed to access after passing the verification of two gates, so the security level is very high.
Strong & Stable Turnstile Control Core
Core logic algorithm
The speed gate turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's original motor control algorithm, to achieve precise control and positioning of the obstacle and maintain stable performance.
The turnstile adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, which can sensitively detect illegal intrusions such as reverse passing and tailgating, and can issue warnings in the form of sound and light, and can be linked with other security systems.
Strong mechanism structure
The lossless modular mechanism structure independently developed by CMOLO and the full CNC processing technology ensure the precision, strength, concentricity of the mechanism, and the transmission ratio are accurate, efficient and stable, which can precisely control the rotation angle of the gate and reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism.
Long service life
The mechanism and control system of the face recognition double gate speed gate turnstile have passed 10 million times life tests.
All-around Pedestrian Safety Protection
Triple anti-clamping
With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, speed gate turnstile can protect pedestrian safety more comprehensively.
Over-force feedback control
When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.
Anti-electric shock
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.
Turnstile opens when power failure
With the independently developed advanced mechanical structure, the system will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.
Emergency open
The turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.
Customization
| Appearance |
Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized. |
| Lane width |
The maximum lane width of turnstile is 900mm, and the cabinet length will be increased accordingly. |
| System integration |
Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.
Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.
Integrate with card collection system, and customize card collection device
|
