Double Glass Thin Film Solar Panel Mounting inner Clamp Kit POW-TIC

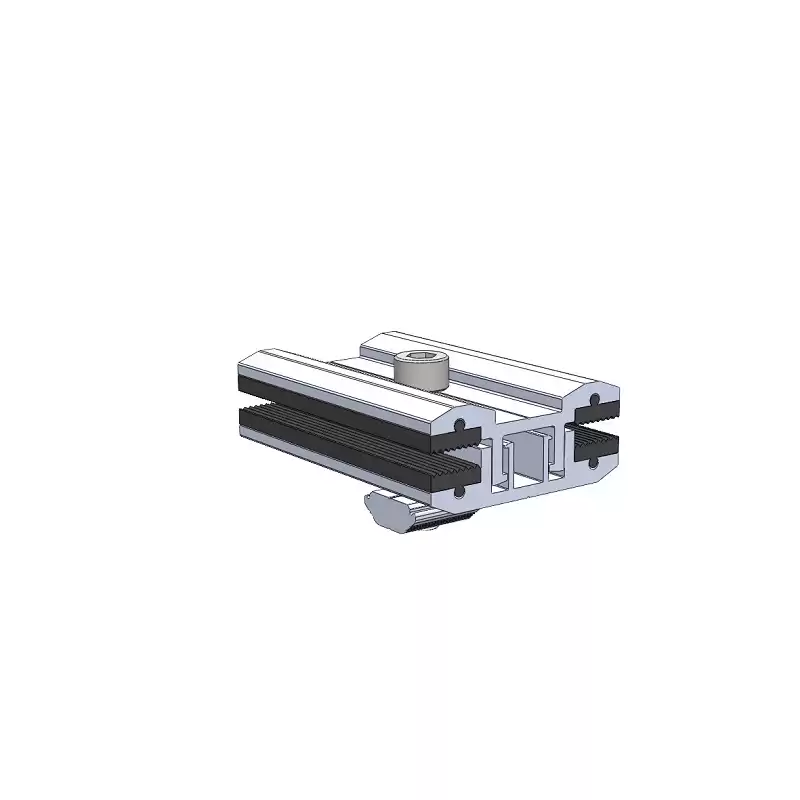

Double Glass Thin Film Solar Panel Mounting inner Clamp Kit.

This kind of frameless solar clamp is special design for double glass solar panel, thin film solar panel.  Thin film solar clamps are anodized with average thick 10μm。







Double Glass Thin Film Solar Panel Mounting inner Clamp Kit POW-TIC



Product Description:

Compatible for thin film module, double glass module, framless modulethickness 3-8mm.  We put bolt head in the hollow part to avoid shading on thinpanels.  Fixed EPDM rubber sliding off problem.  Anodized silver orelectrophoresis black is optional.Made of high strength extrusion aluminum 6005-T5,It’s suit for all the  aluminum rail.



Product Name:

Double Glass Thin Film Solar Panel Mounting inner Clamp Kit



Product Code:

POW-TIC



BOM:

Product name
Material
Quantity
Thin film inner clamp upper part Al6005-T5
1
Thin film inner clamp base part  Al6005-T5 1
M8X35 hex socket head bolt SUS 304
1
Thin film clamp rubber SUS 304
4
POW nuts Al6005-T5
1



Why choose us:

Powerack have many types of Tile Rail, suitable for most roof types of Tile, Flat Tile, Slate Tile, Asphalt Shingle Tile.  Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules.  A design that includes major specifications saves you inventory cost, quick and easy to install.  Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use.  Powerack have a large variety of rail provide customers options.  Customized allowed according to customer needs to meet special installation requirements.
