Product Name

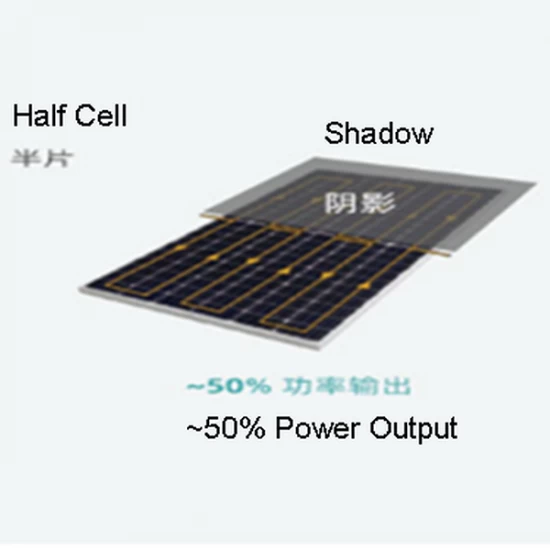

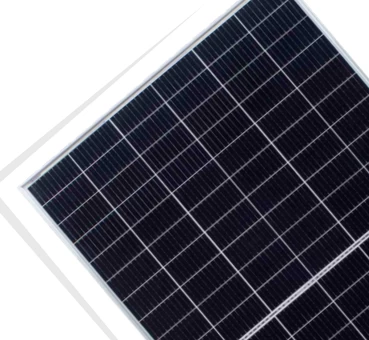

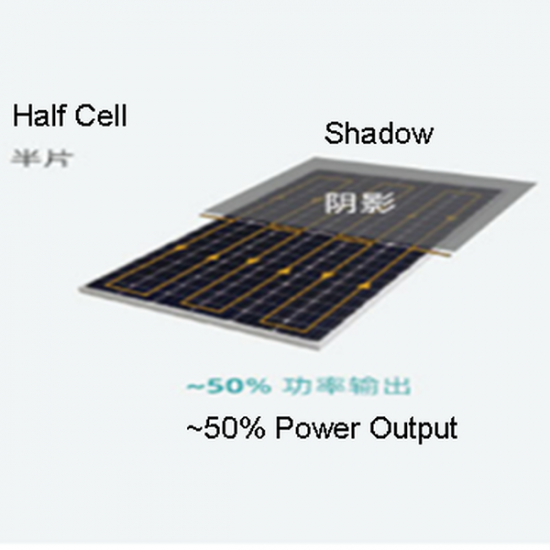

Half Cell Bifacial Module PERC
Advantages
High Efficiency
Module efficiency leading in industry, up to 20.3%
High Reliability
Passed 3*IEC standard test, 15 years materials warranty, 30 years power warranty
Dual Sides Power Generation
Bifaciality is up to 70%, up to 25% more energy yield than conventional modules
Excellent Appearance and Performance
Both side black cell, symmetrical design, low risk of micro-crack
Extensive Application Scenes
More extensive application scenes, such as BIPV, snow field, vertical installation, high humidity, strong wind and desert region
Product and Quality Certifications
IEC 61215, IEC 61730
ISO 9001: 2015 Quality Management System
IEC 62716, IEC 61701: Ammonia, Salt mist corrosion test
IEC TS 62804-1, IEC 60068-2-68: PID test, Dust and Sand test
IEC TS 62941: 2016 Terrestrial photovoltaic (PV) modules. Guideline for increased confidence in PV module design qualification and type approval
Technical Parameters

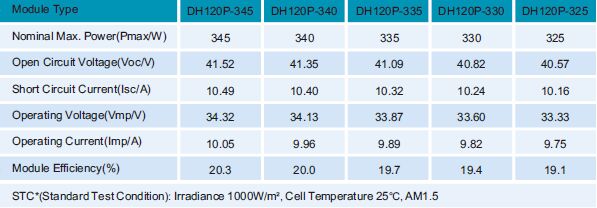

Electrical Parameters (STC*)

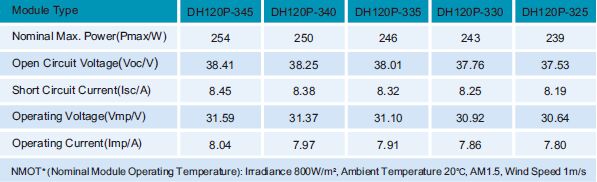

Electrical Parameters (NMOT*)

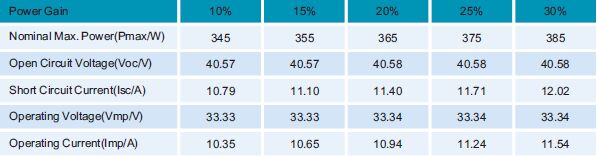

Back Power Gain (For 325W)

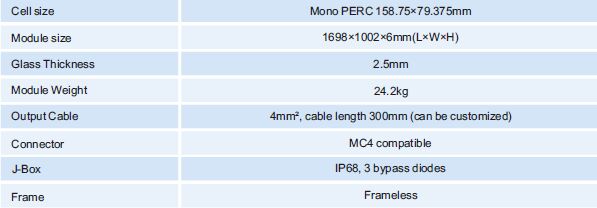

Mechanical Parameters

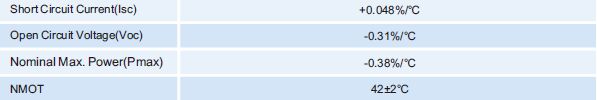

Temperature Coefficients

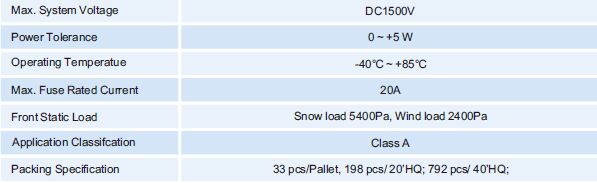

Operating Parameters
