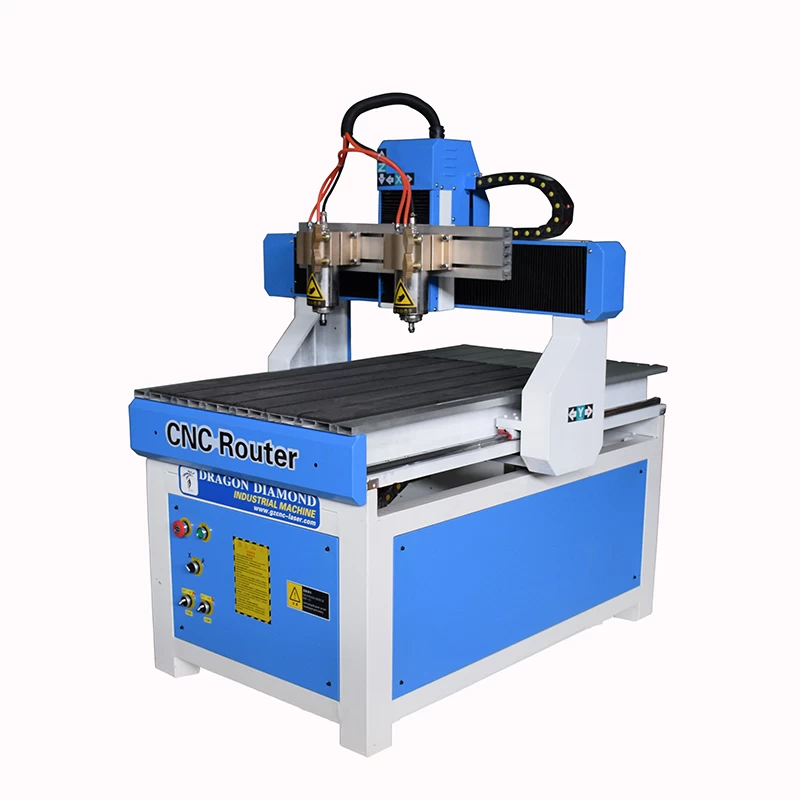

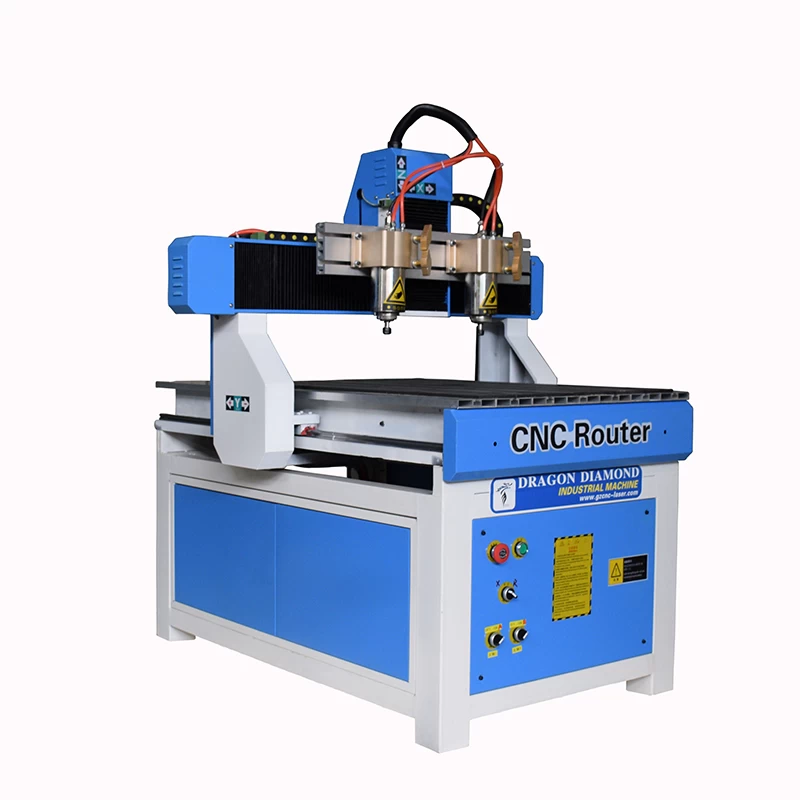

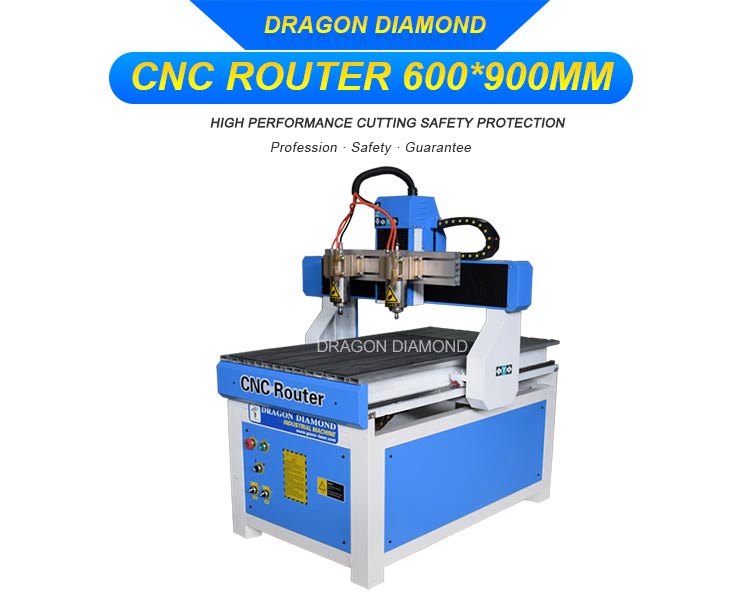

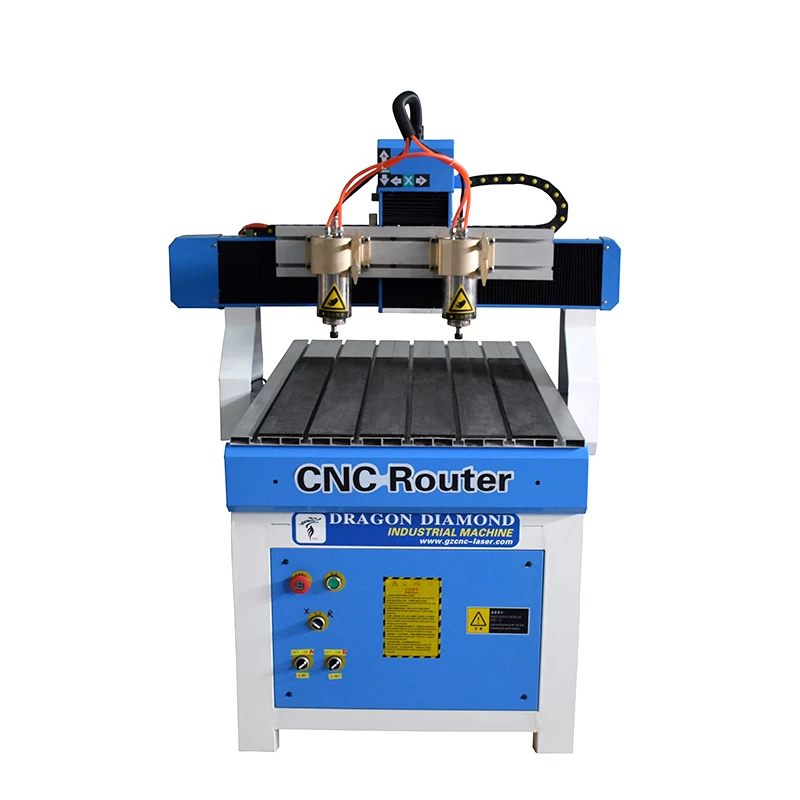

Double Head 3 Axis Cnc Engraver Woodworking Cutter
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-6090 Double Head
|
|
1
|
Working Area
|
600x900x200mm
|
|
2
|
Packing Size
|
1300x1600x1400mm
|
|
3
|
Working Table
|
Aluminum alloy T Slot with PVC protection layer
|
|
4
|
Spindle
|
0.8KW/1.5KW/2.2KW Water Cooling Spindle
|
|
5
|
Cooling System
|
Water Cooling
|
|
6
|
Control System
|
NC Studio Controller
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
Lead ball screw for XYZ-axis
|
|
9
|
Guide Rail
|
Linear square guide rail, Hiwin, Taiwan, diameter 20mm
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Stepper motor
|
|
12
|
Machine Structure
|
Cast iron structure
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Suitable Software
|
Artcam, Type3, Ucancam V9, etc
|
|
15
|
Traveling Speed
|
>8000mm/min
|
|
16
|
Engraving speed
|
>6000mm/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC 220V±10%, 50/60Hz, Single Phase,
AC 380V±10%, 50/60Hz, Single Phase
|

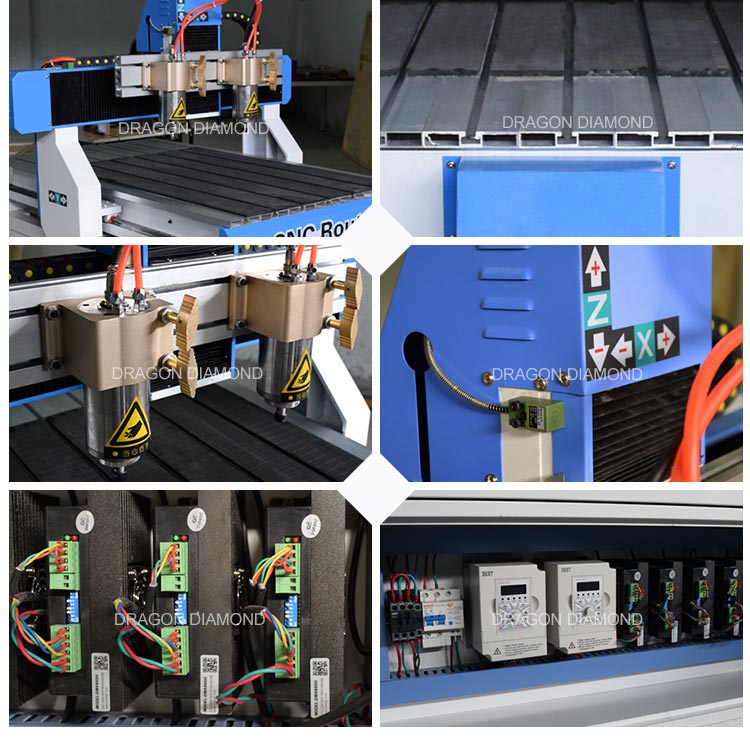

PRODUCT FEATURES
1.Durable Structure
Cast iron lathe bed.Aluminum with PVC working table stable running with less vibration.
2.All In One Control Box
Control box is included inside the machine boday.Save space and easy to examine and repair.
3.Good Quality Water Cooling Spindle
Double spindle can be improved working efficiency.Machine supports two options.One is single head with two spindle,another is double heads with two spindles.
4.Guide Rail And Transmission
XYZ three axis are with linear square guide rail.Hiwin,Taiwan Ball screws transmission for all axis.Durable running with higher accuracy.
5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.
6.Motor And Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000mm per min.
7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.
8.Favorable Compatibility Software
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
