Double Pile Solar PV Ground Structures Support System

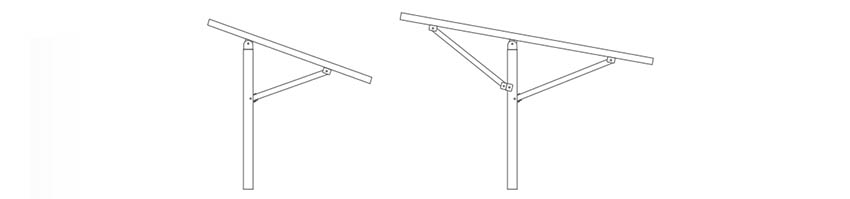

Jesfer Solar Ground Aluminum Panel Mounting System made of high quality Anodized AL6005-T5 & Steel Q235B(hop dip galvanized) material,GM03 has excellent corrosion resistance performance.The single arms side &double arms side support design can saves installation time and cost with good compatibility to varied framed or framless solar modules.

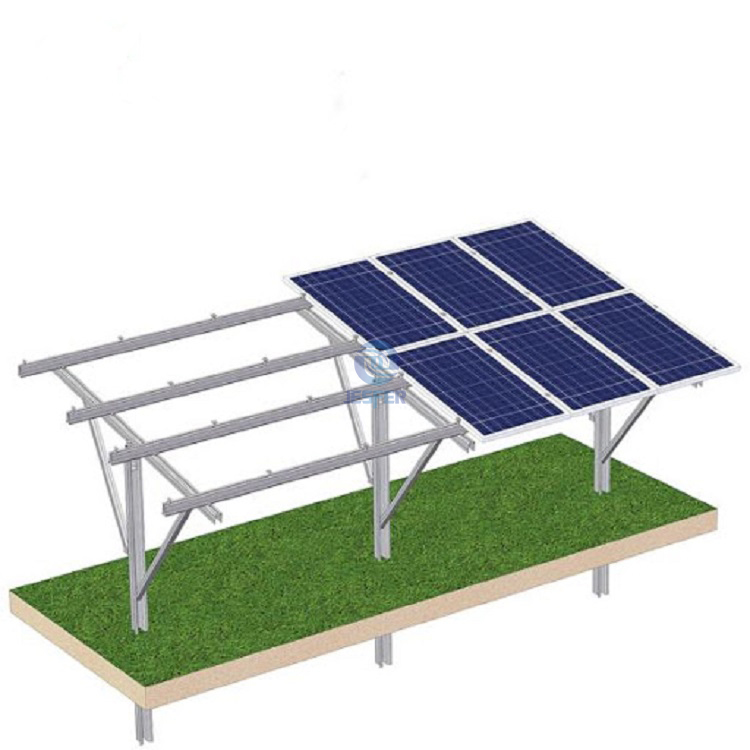

Structure
Technical Parameters
System Name
|
Ground Mount System GM03
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Piles
|
Material
|
Anodized AL6005-T5 & Steel Q235B(hop dip galvanized)
|
Tilt Angle
|
0-60degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-2000mm
|
Small Components
|
Anodized AL-6005-T5
|

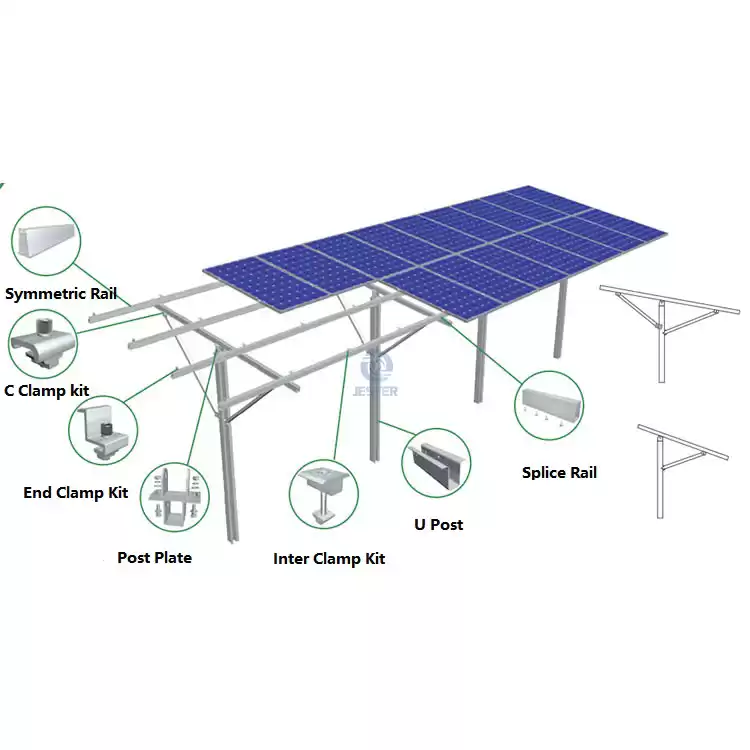

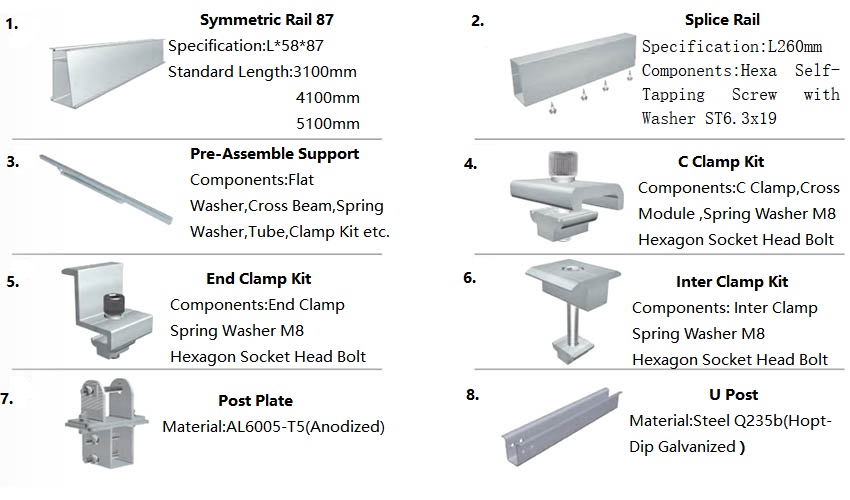

System Components

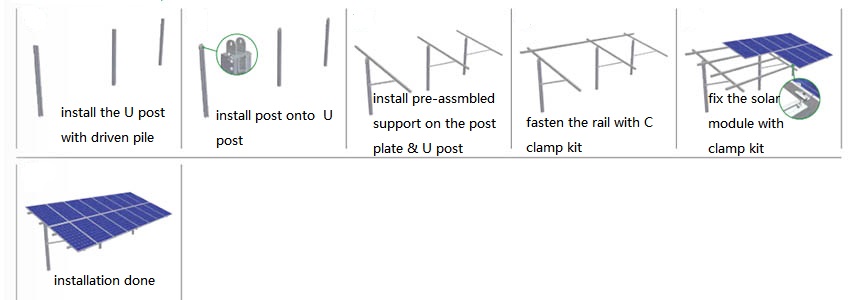

Installation Guide
FAQ
Q: Are you a factory or trading company ?
A:We are a factory.
Q: Can I put my company logo or private label on the Pv Ground Solar Brackets?
A: Sure, any of your design in cover, logo, packing etc. is workable. OEM and ODM is availble.
Q: What documents you provide?
A: Usually, we provide Commercial Invoice, Packing List, Bill of loading. If your markets have any special requirements, let us know
Q: How about after-sales service?
A: We will be online all day. If you have any questions, please feel free to contact us and we will do our best to assist you.
