Product Name
|

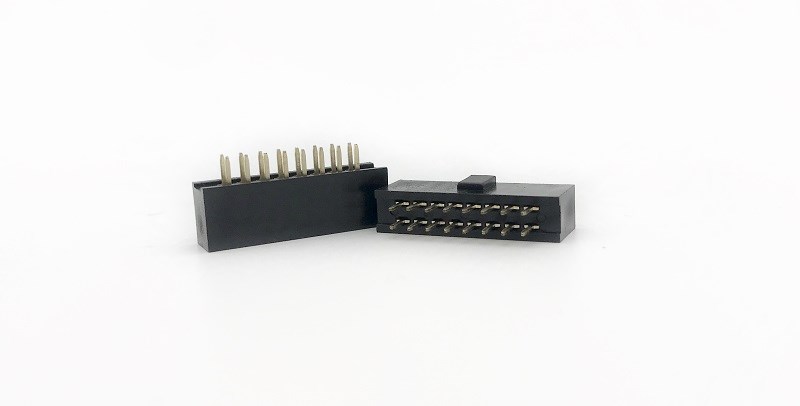

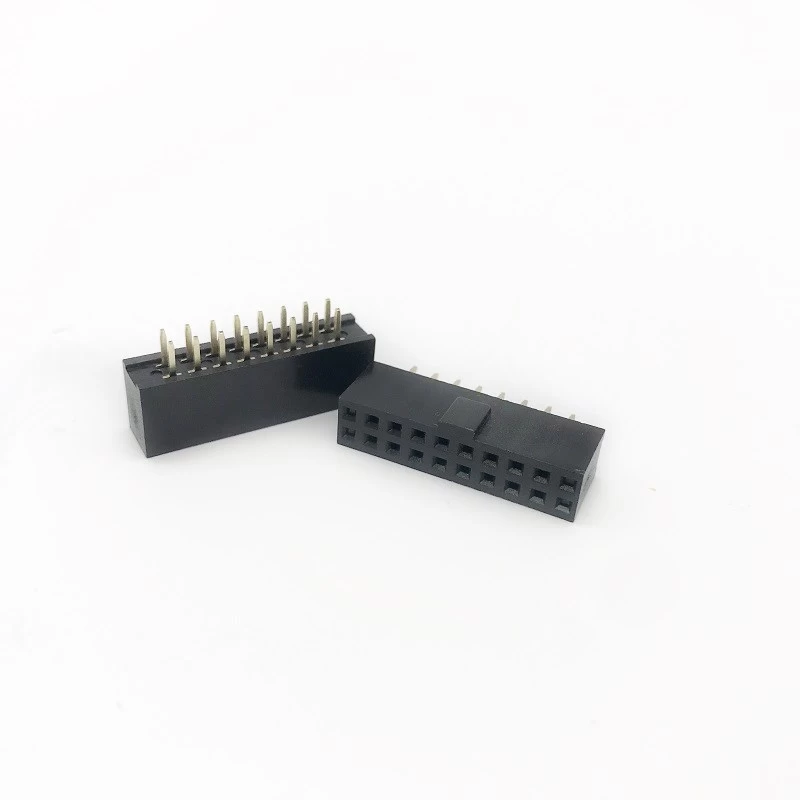

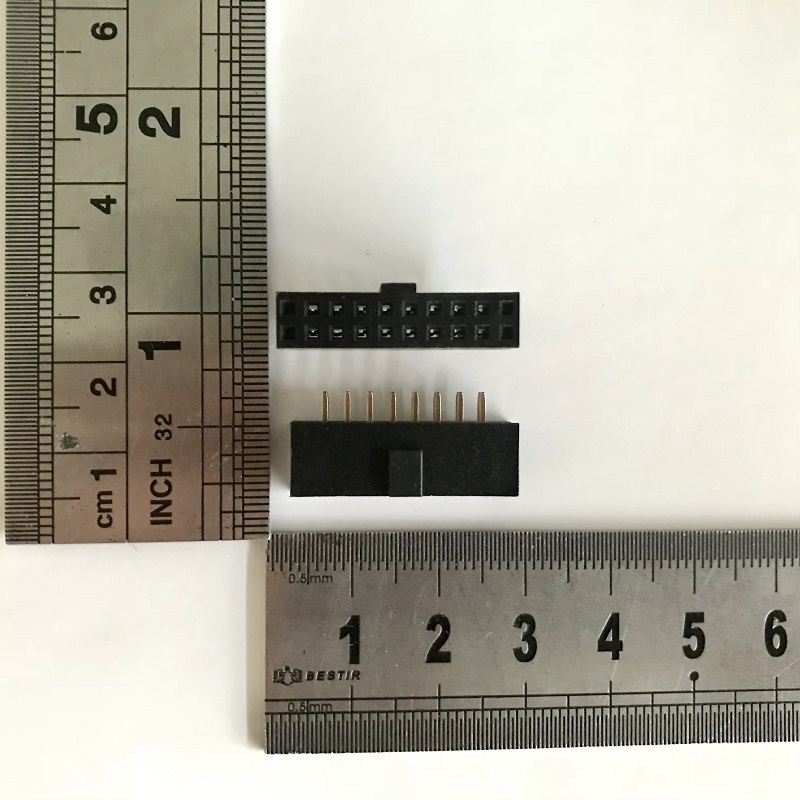

2.54mm Pitch Pin Header Female Socket
|
|
Certification
|
HSF, RoHS, UL
|
|
Contact Material
|
Brass
|
|
Contact Plating
|
Au Over Ni
|
|
Insulator Material
|
Polyester (UL94V-0)
|
|
Standard
|
PA6T
|
|
Max. Processing Tem
|
230°C for 30-60 seconds; 260°C for 10 seconds
|
Rated Current
|
3.0Amp
|
|
Contact Resistance
|
20mΩ Max
|
|
Withstand Voltage
|
1000C AC/DC
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Operation Temperature
|
-40°C to +105°C
|
More Information
1. Package: Bubble bag, polybag, carton
2. Package size: 21×12×14(cm)
3. Shipment: There're shipping way of DHL, TNT, UPS, FedEx, EMS you can choose from, we will check the most competitive way according to your request.
