Double row sealed deep groove ball bearing 6008-2RS

All above mentioned bearing size in the list we can manufacturer open, ZZ and 2RS design. all the small size and miniature size have pressed steel cage, and middle size can be Brass and pressed steel cage. large and extra large must be brass cage.

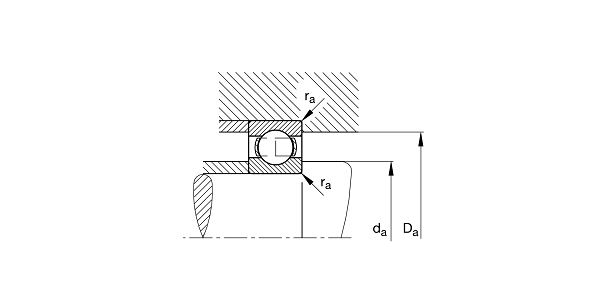

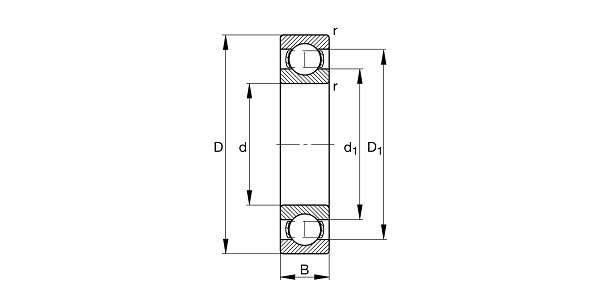

d 40  mm    D 68  mm    B 15  mm    D1 59,1  mm    Da max 63,4  mm    d1 49,3  mm    da min 44,6  mm    ra max 1  mm    rmin 1  mm    m 0,194  kg  Mass Cr 17800  N  Basic dynamic load rating, radial C0r 11500  N  Basic static load rating, radial Cur 600  N  Fatigue limit load, radial nG 14600  1/min  Limiting speed nϑr 10600  1/min  Reference speed f0 15,2  Calculation factor

Deep groove ball bearings are mainly used to support radial loads, but they are also commonly used to support combined radial and axial loads. Especially when the speed of mechanical equipment is very high, when the thrust bearing is not suitable, this bearing can be used to bear bidirectional pure axial load, and it requires no maintenance during work. It is a kind of bearing with low price and wide application.
