Double Side Resistance Welding Equipment for Cylindrical Cell Modules
Products Description

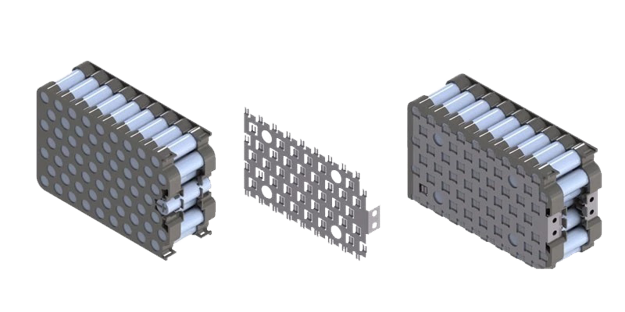

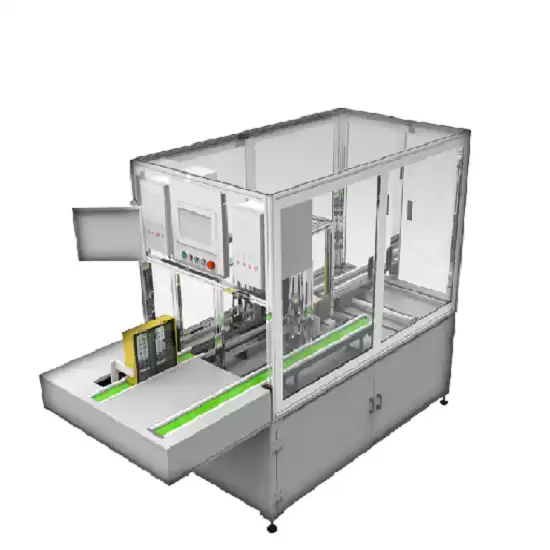

The resistance welding equipment for 18650, 21700, 26650 and other cylindrical cell modules and aluminum nickel composite sheet resistance welding, double-sided positive and negative electrodes at the same time spot welding, 1.2 seconds can complete a welding, can form positive and negative 8 solder joints, high efficiency, good quality, through the servo module high-speed movement, loading and unloading switching, can be connected with the conveyor line to the front and back.
Performance Characteristics
1. It can realize convex spot welding, pointer welding and eccentric electrode welding;
2. With high precision, it can realize the simultaneous welding of positive and negative electrodes of the cell;
3. The average beat is 1.2s/pcs and the work efficiency is high;
4. It can realize 4-point welding at the same time, and can travel 8 positive and negative nuggets at one time;
5. Real time monitoring of welding to ensure welding quality.
Technical Parameter
|
Model Number
|
TMAX-PEW12-D-01
|
Beat
|
1.2s/pcs
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
1.5KW
|
Table Height
|
850mm
|
|
Pressure
|
6kgf/cm²
|
Dimensions
|
2600*1100*2000(mm)
|
