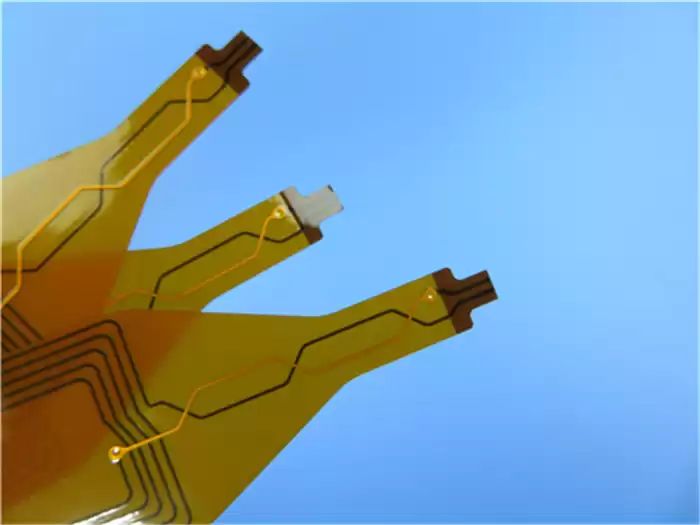

Double
Sided Plated-Through Flexible Circuits 2-Layer Flexible PCB Dual Layer FPC
(FPC’s
are custom-made products, the picture and parameters shown are just for
reference)
General
Description:
This
is a type of flexible printed circuit (FPC) for the application of Wi Fi
Antenna. Polyimide as stiffener is applied on the
connector part. The base laminate is from Shengyi and they're fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 200 pieces are packed for
shipment.
Parameter
and Data Sheet:
|
Number
of Layers
|
2
|
|
Outline Dimension
|
21.15
x 58.93mm = 1PCS
|
|
Board Type
|
Flexible
Circuit
|
|
Board Thickness
|
0.15mm
+/-10%
|
|
Board Material
|
Polyimide
(PI) 50 um
|
|
Board Material Supplier
|
ITEQ
|
|
Tg Value of Board Material
|
60℃
|
|
|
|
PTH Cu thickness
|
≥20 um
|
|
Inner Iayer Cu thicknes
|
N/A
|
|
Surface Cu thickness
|
35
um (1oz)
|
|
|
|
Coverlay Colour
|
Yellow
|
|
Number of Coverlay
|
2
|
|
Thickness of Coverlay
|
25
um
|
|
Stiffener
|
200
um
|
|
|
|
Type of Silkscreen Ink
|
IJR-4000
MW300
|
|
Supplier of Silkscreen
|
TAIYO
|
|
Color of Silkscreen
|
White
|
|
Number of Silkscreen
|
1
|
|
|
|
Mininum Trace (mil)
|
4
mil
|
|
Minimum Gap(mil)
|
4
mil
|
|
|
|
Surface Finish
|
Immersion
Gold
|
|
RoHS Required
|
Yes
|
|
Famability
|
94-V0
|
|
|
|
Thermal Shock Test
|
Pass, -25℃±125℃, 1000 cycles.
|
|
Thermal Stress
|
Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
|
|
Function
|
100%
Pass electrical test
|
|
Workmanship
|
Compliance
with IPC-A-600H & IPC-6013C Class 2
|
Features
and Benefits:
Excellent
flexibility;
Reducing
the volume;
Weight
reduction;
8000
types of PCB per month;
Quick
CADCAM checking and free PCB quotation;
No
minimum order quantity. 1 piece is available;
Volume
Production capability;
On-time
service;
More
than 18 years of experience;
Applications:
Keypad
FPC; Toy lamp strip; Display backlight; Flex keyboard for mobile phone keys;
POS antenna soft board; LCD TV soft
board; Digital camera soft board.
Double-Sided Flexible
Circuits
As
the name suggests, the circuit consists of a thin and flexible base material
with copper foil laminated to each side. The outer sides of the finished
circuits are frequently provided with coverlays bonded to the outer sides
(copper). Plated-through holes in double-sided flexible circuits are usually
drilled, instead of punched. Usually the flexible circuits are provided with a
coverlays on both sides

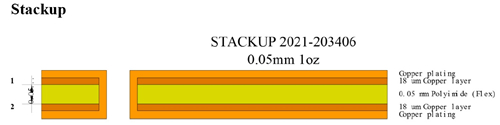

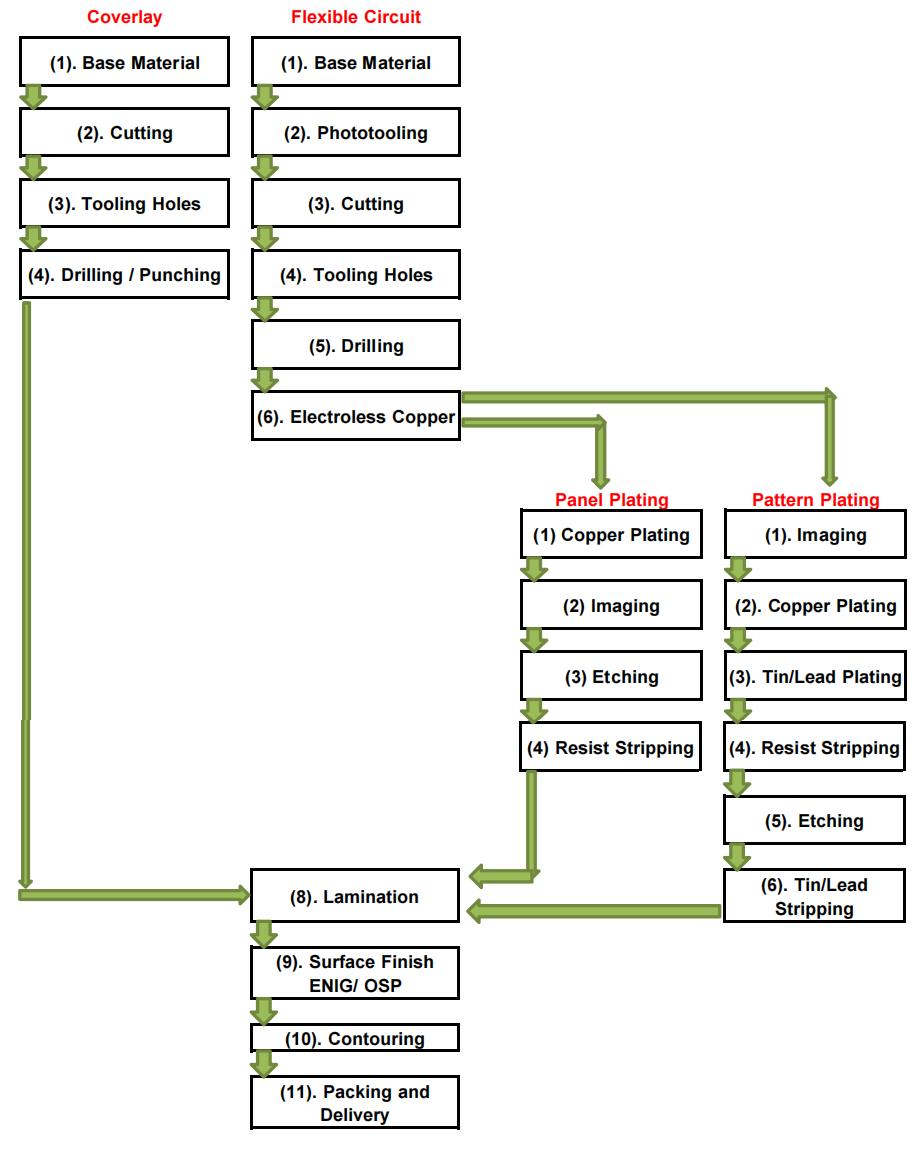

Manufacturing
Process of Double Sided FPC:
Although
manufacture of double-sided PTH flexible PCB resembles that of single-sided non-plated-through
boards, some of the manufacturing processes are not identical and appear in
another sequence. Below it shows the processes of how to manufacture a double
sided flexible circuits.

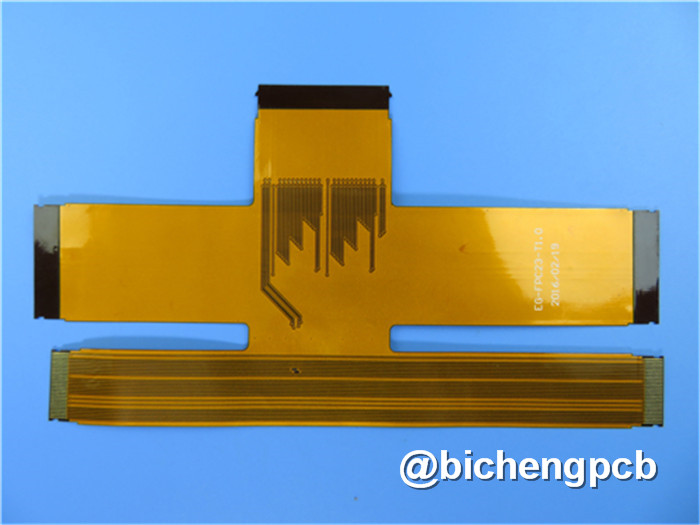

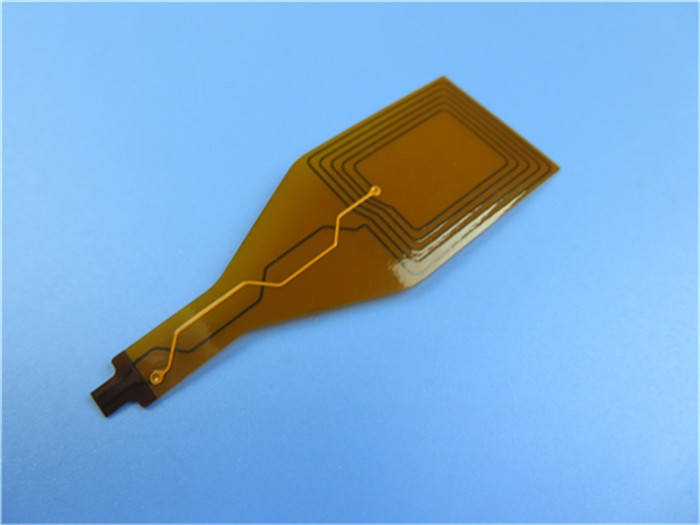

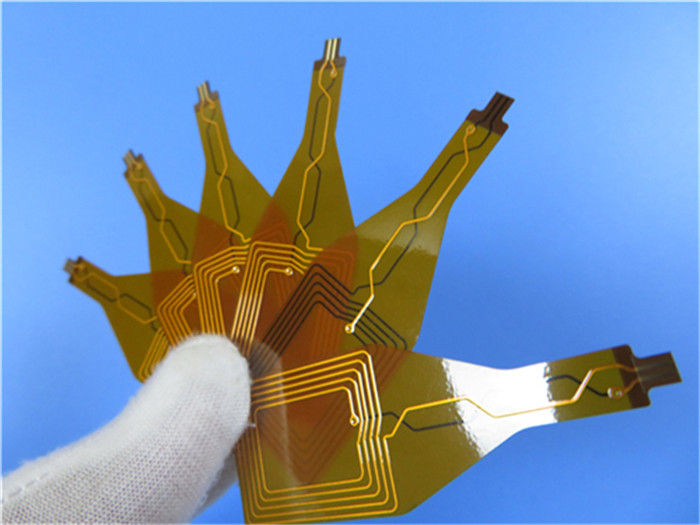

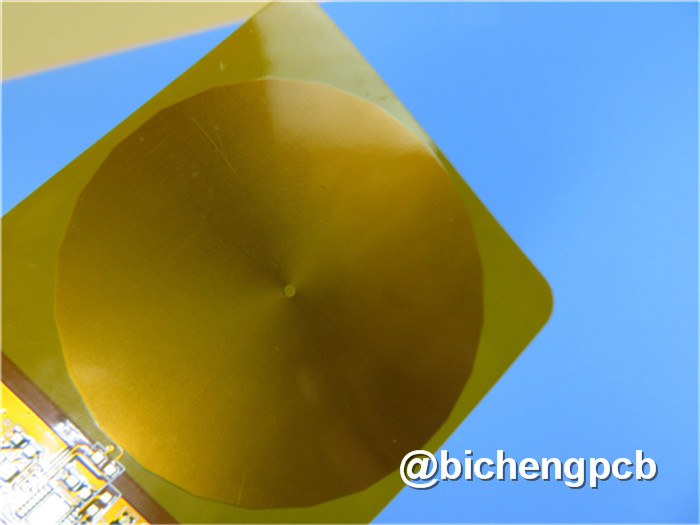

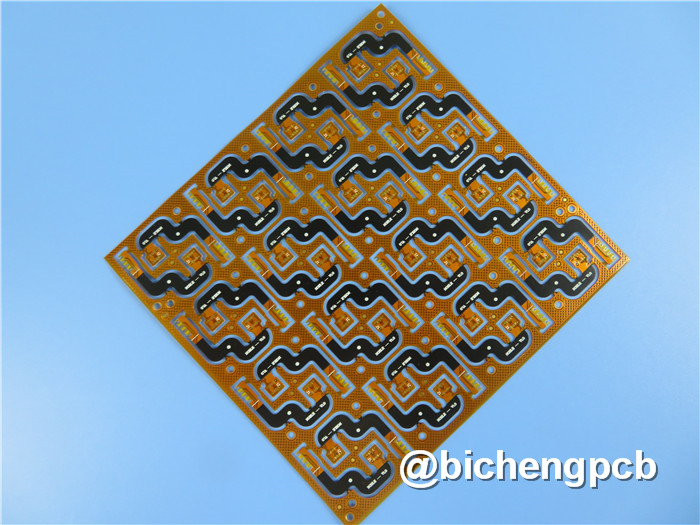

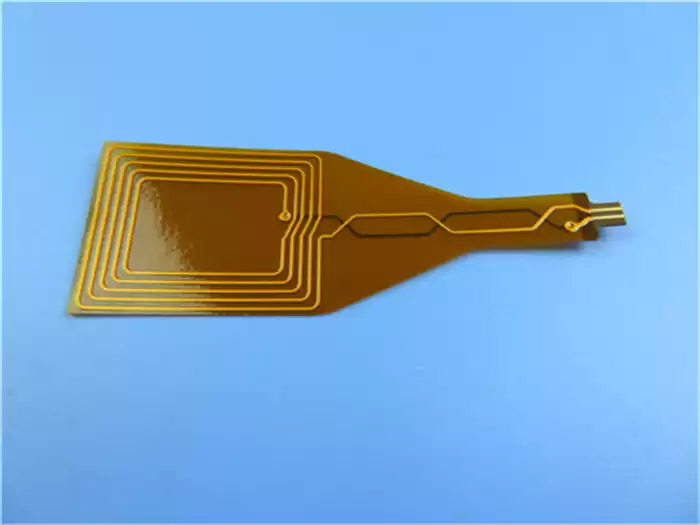

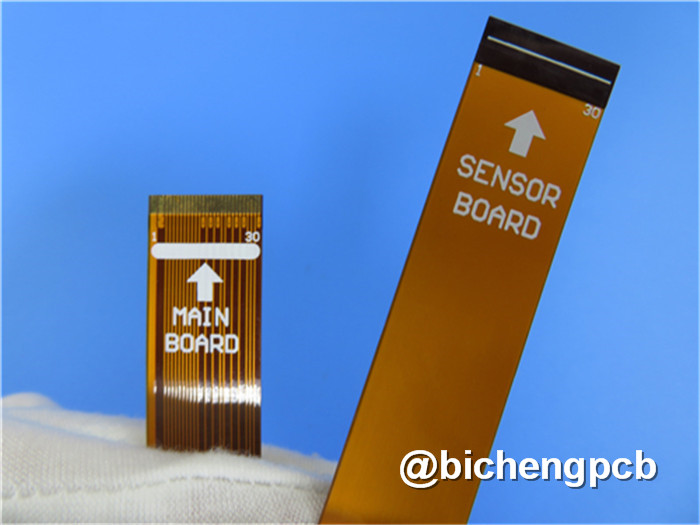

More
Displays of Double Sided FPC:
