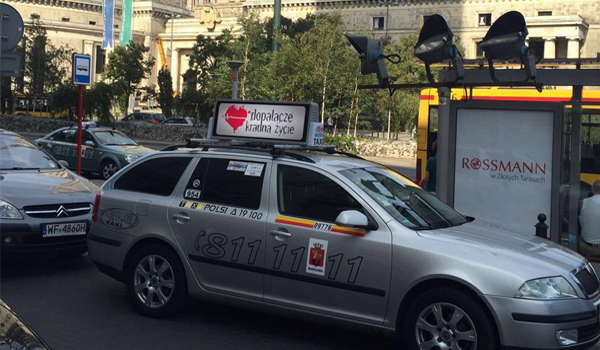

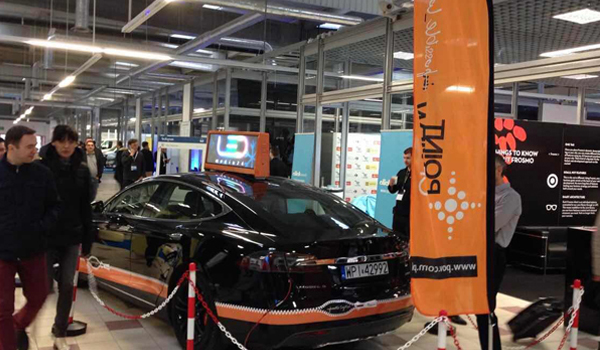

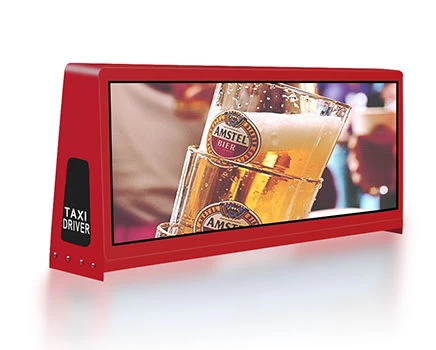

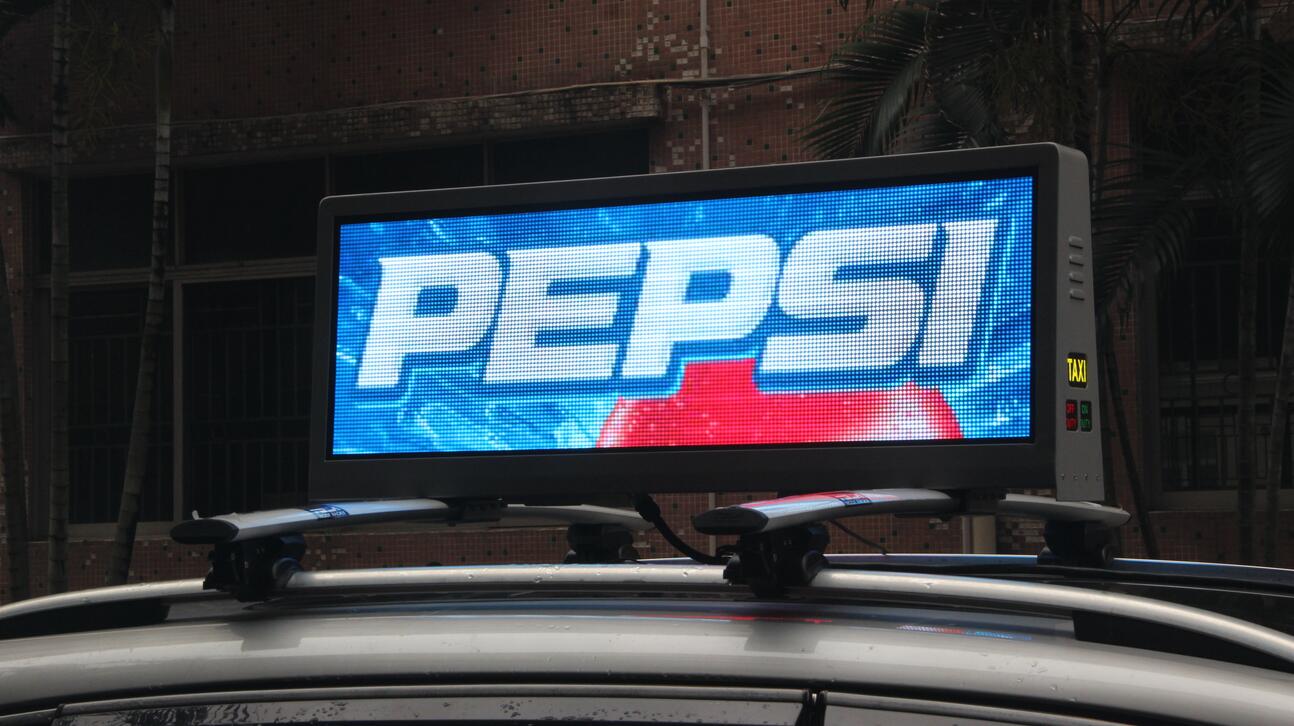

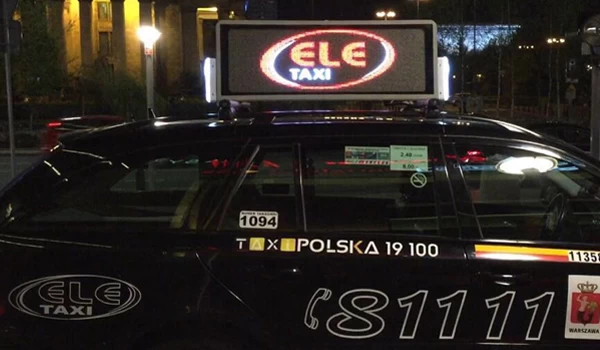

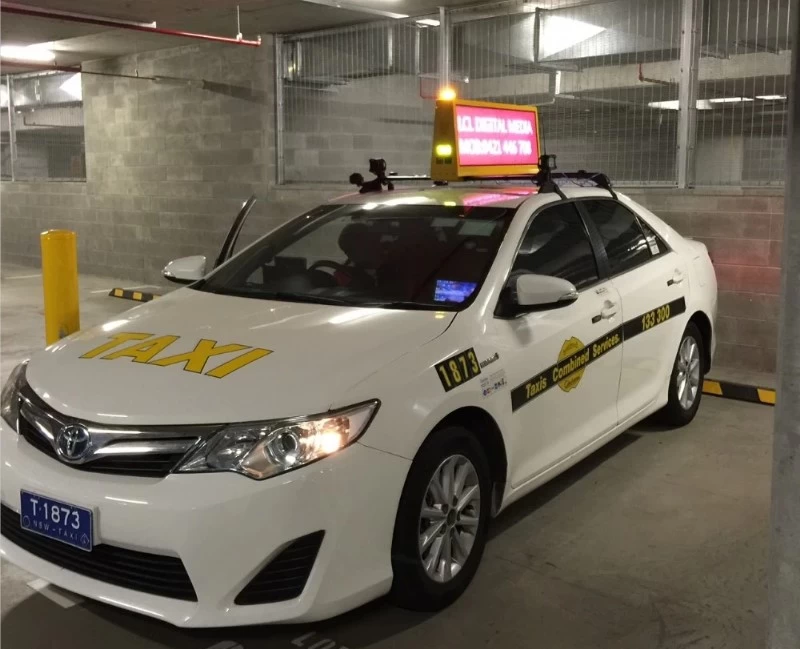

Double Sided Taxi Top Advertising Light Box LED Display Sign
Key Features:
1.High Resolution 2.5,3,3.33,5 mm pixel Spacing
2.Intensity >=5000 nit
3.Intelligent Power Supply Management
4.Quick installation and maintenance
5.Multiple control Options
6.Made of high quality LEDs
7.Lower Power Consumption
Muiti-Connection Mode Group Control
(USB/WIFI USB/3G USB/4G USB&WIFI/3G/4G/5G/GPS)
High Brightness.
Taxi TOP LED display enable to reach 6500nit by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.
Most Safe, Reliable and Stable

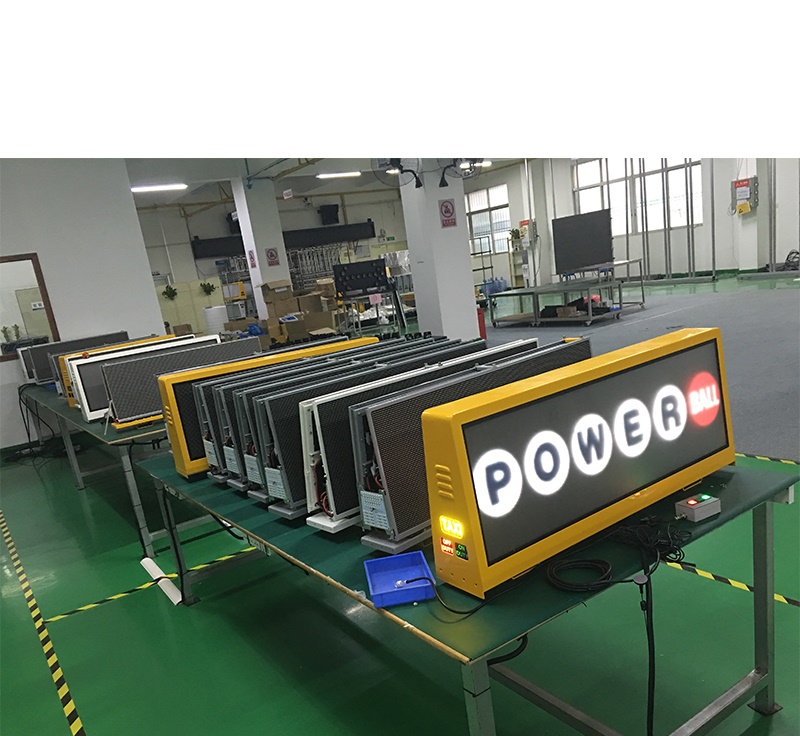

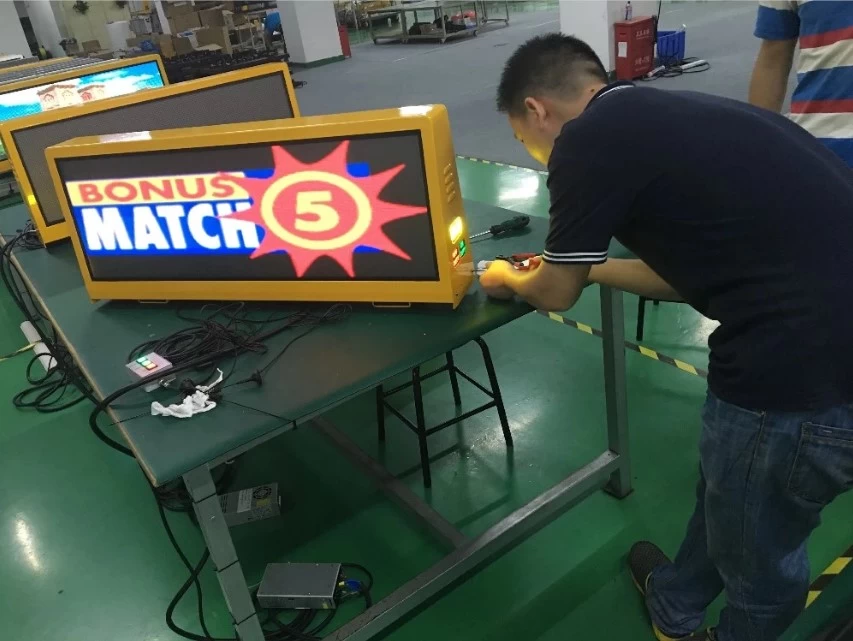

Taxi LED display panel tested under the temperature 70℃ and 80% humidity for 96 hours. Whole display tested at 70℃ for 24 hours. 100% vibration Testing.
Taxi Roof LED display has many advantages:
Easy installation and maintenance
Easy SD-Card installation
Easy installation with Card Bracket
Easy replacement of module& power supply
Smart Asynchornous Control
Group Intelligent Control(GIC System)
Location Precise Advertising
Advertising Management System
3G/4G/WIFI/USB control
GPS real-time monitoring
Taxi LED Display with Intelligent Design on Power & Heat dissipation
Lower Power Consumption of whole sign, which enable to be running on any car embedded battery system.
Intelligent Power Supply Management.
Good Ventilation by using high speed & ball-bearing Fan.
Rapid Technical Support on Software and Hardware
Online technical support
Installation Trainning Courses
Customized design available
Hight Resolution Space Available

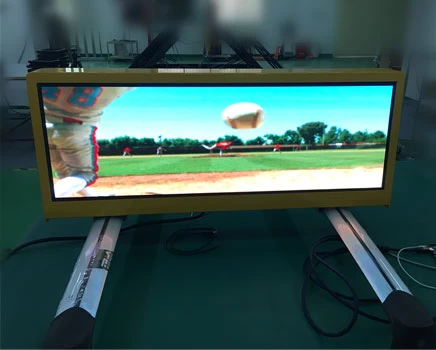

Taxi Roof LED display with P2.5mm High Resolution
3D Performance with Hard Decoding Technology
Taxi Top LED Display with Optional MultiFuctional Integrated System
Lighting & Temperature Sensor Integrated
Optional Camera System
Specifications:
1. High reliability. 24h/7day advertising all the time and all weather conditions.
2. Low power consumption.12V DC input.Vehicle battery is enough to make the taxi top LED sign work.
3. High brightness. Using P5 SMD LED display module, luminance reach 4300nit plus. Our taxi top LED sign can be seen very clearly in the sunlight.
4. High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.
5. It can play a variety of media resources such as text, photos, animation, video and so on.
6. The controlling and editing has never been as easy as now. Through WIFI network, no matter where you are,as long as your device can access. The Internet and open your browser, you can easily control the taxi top LED sign.
7. High quality acrylic cover keep the surface of the taxi top LED sign always clean.
BARCO LED TAXI TOP ADVERTISING BILLBOARD Specification
|
Model Type:
|
P2.5
|
P3
|
P5
|
|
Pixel Pitch
|
2.5 mm
|
3mm
|
5mm
|
|
LED Type
|
SMD 2121
|
SMD1921
|
SMD 2727
|
|
Pixel Density
|
160,000 dot/ m2
|
111,111 dot/ m2
|
40000 dot/ m2
|
|
Module Size
|
160*160mm
|
192*96mm
|
160*160mm
|
|
Frame Size
|
1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top)
|
820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top)
|
1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top)
|
|
Screen Size
|
960mm*320mm
|
768mm*288mm
|
960mm*320mm
|
|
Screen Resolution
|
384*128 dot
|
256*96 dots
|
192*64 dot
|
|
Brightness
|
>=5000 nit
|
>=5500 nit
|
>=6500 nit
|
|
Contrast
|
>8000:1
|
|
Scan Mode
|
1/32 scan
|
1/32 scan
|
1/8 scan
|
|
Power Supply Input
|
DC9--24V
|
|
Max Consumption
|
420w
|
270w
|
450w
|
|
Average Consumption
|
130w
|
90w
|
150w
|
|
Optimal Viewing Distance
|
1--20M
|
3--20M
|
5--50M
|
|
Driving ICs:
|
ICN2038
|
|
MTBF
|
10,000 Hours
|
|
Frame Frequency
|
60-85HZ
|
|
Fresh Frequency
|
>1920HZ
|
|
Temperature Operating
|
-40°~+70°
|
|
Working Humidity
|
10%-90%RH
|
|
Screen Weight:
|
24 kg
|
15kg
|
23kg
|
|
Gross Weight:
|
31 kg
|
22Kg
|
30kg
|
