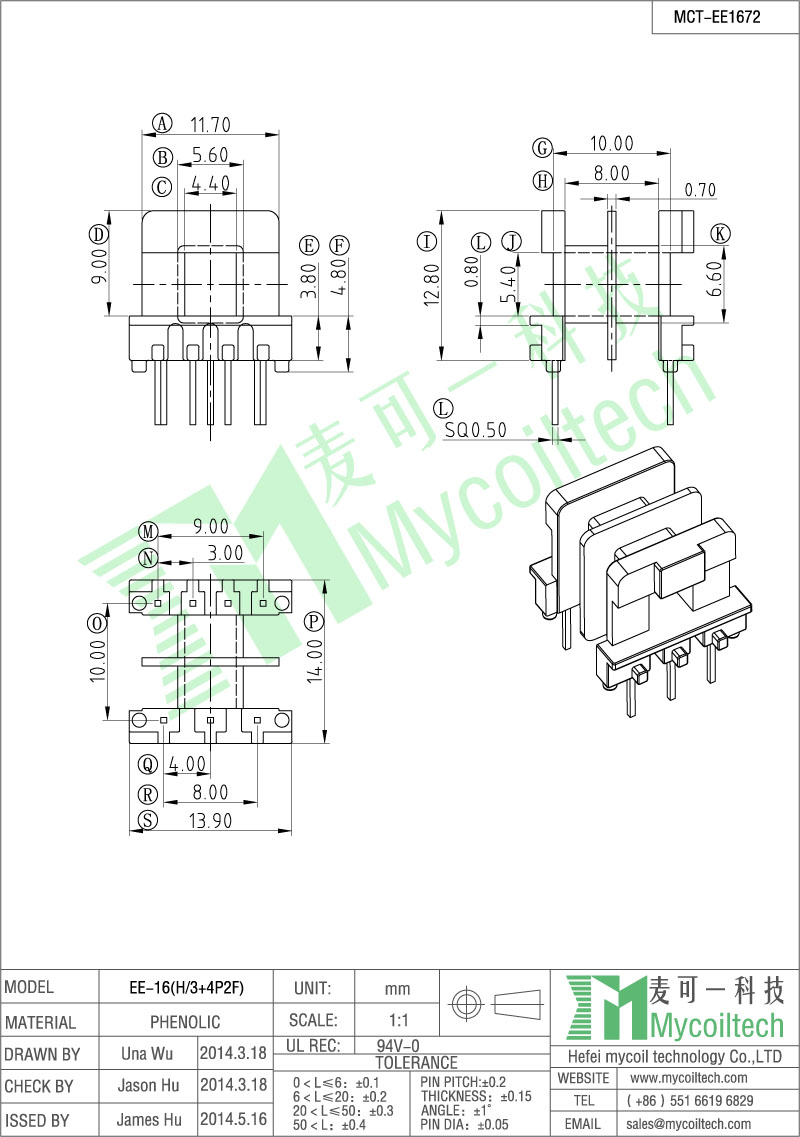

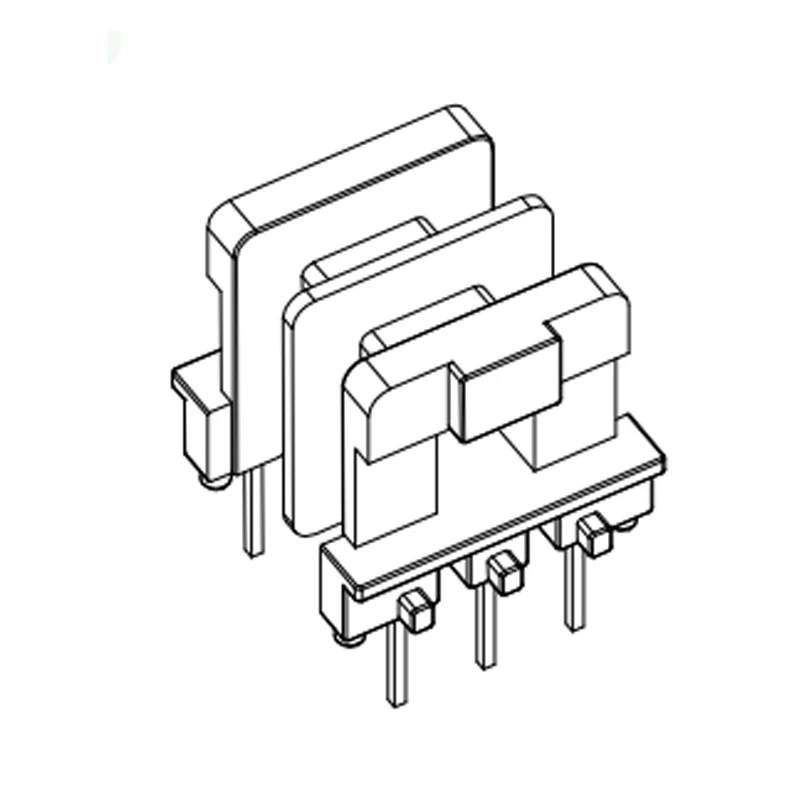

Double Slots EE16 Horizontal Transformer Bobbin With 3+4 Pins

3+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0

Pin Pitch=4mm Parallel Distance=10mm

Size=14mmX13.9mmX12.8mm



EE16 Horizontal bobbin ,phenolic material,Dip Bobbin,3+4 pins ,double slots,we are factory,we mainly produce transformers inductors choke coils,if any requests send us email.


Quick Details

Part Number: MCT-EE1672(H3+4P2F)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity


Part Information

Product Name: Double Slots EE16 Horizontal Transformer Bobbin With 3+4 Pins.

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air ,By ship ,etc.

Advantages: Our Factory is made up of 500 people , huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.



Contact: Miss Qian Gao

Email: qian.gao@mycoiltech.com

Skype: live:qian.gao_5



Product Specification

Double Slots EE16 Horizontal Transformer Bobbin With 3+4 Pins
