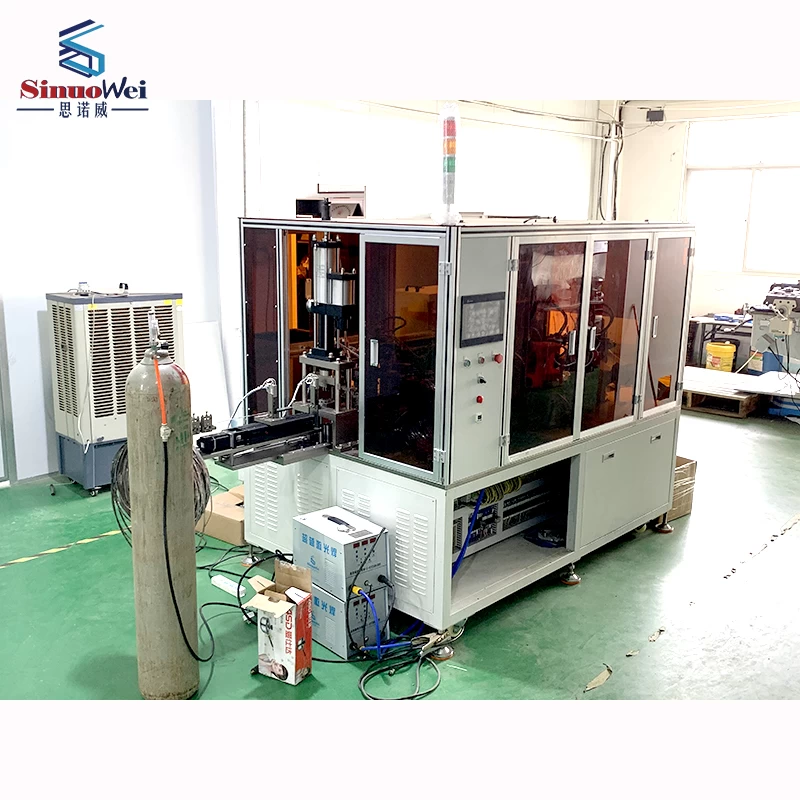

Double Station Germany Type Hose Clamp Automatic Assembly Machine in High Efficiency
This Germany Type Hose Clamp Machine can assemble hose clamp
full-automatically, through straight lines and turntables. All the parts such
as screws, coupling strip, clip and hosing will be assembled of rolling and
locking forming by machine. Machine and process control system with the technologies
of full automation cutting, stamping, strap curling, vision testing with smart
tooling solutions. Hose clamp machine not only improves the production
efficiency and quality in maximum but also lower a lot of the cost for hose
clamp manufacturers. The machine is advanced, high level of automation, stable
performance, wide adjustment range, high efficiency, and good effect.
|
Product name
|
Germany type worm gear hose clamp machine
|
|
Size
|
2600mm(L)*1200mm(W)*1800mm(H)
|
|
Weight
|
1 Ton
|
|
Work Area
|
5000mm(L)*3000mm(W)
|
|
Power
|
Single-phase power 115v，60Hz （ANSI electric standards）
|
|
Presure
|
0.5Mpa-0.7Mpa （72.5-101.5 PSI）
|
|
Free Twisting Force
|
0.8-1.3N/M (7.08-11.505 in/ibs)
|
|
Destructive Twisting Force
|
more than 13.56N/M (120 in/ibs)
|
Equipment Failure Rate
|
less than 0.5%
|
|
Effciency
|
1000pcs/hour
|
|
Warranty Period
|
one year
|
|
Additional Serves
|
Profesional technology training
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.
|
The specific classification of hose clamp - German type hose clamp machine;
The function of our machine is assembly three
parts together and then inspect the quality to make sure the 100% good product.
We're not responsible for semi-finished
making machines.
All the unassembled parts shall be provided
by client.
Unassembled parts：hosing/strap/screw
