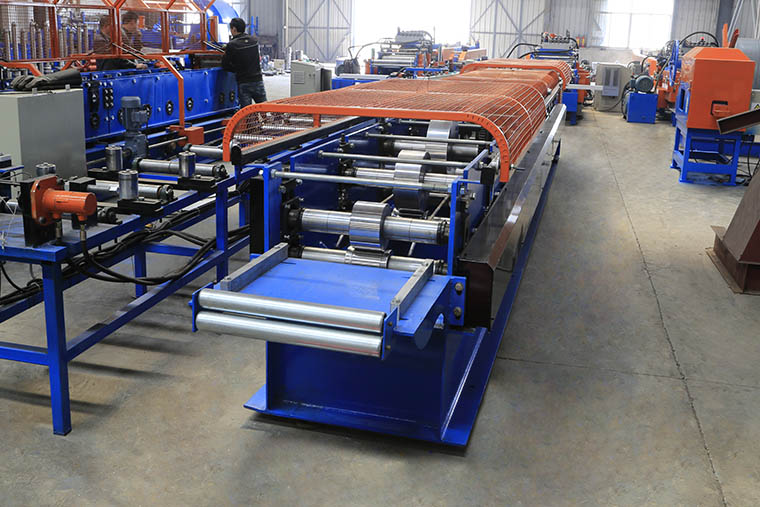

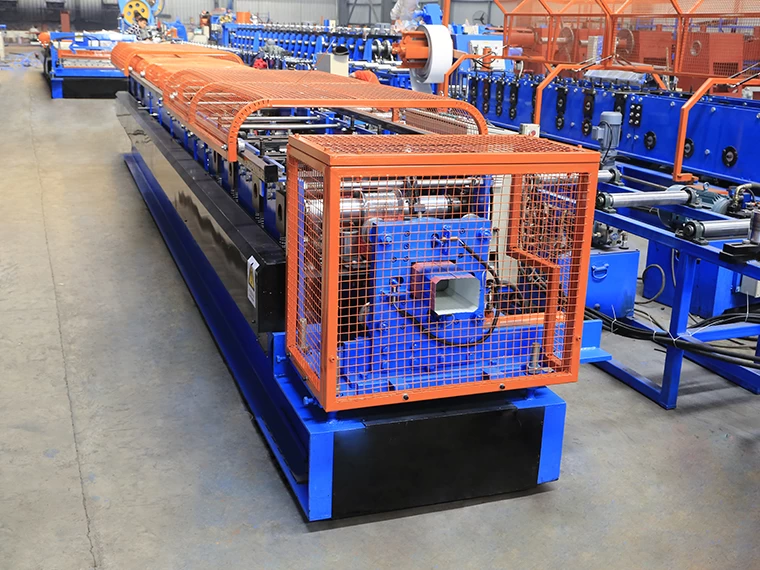

Downspout Pipe Roll Forming Machine
1.Main features of downspout pipe roll forming machine
In order to offer a complete gutter system—and do it all “in-house”—
you need downspout pipe machine to supplement your seamless gutter machine.
This downspout pipe machine has following advantages:
1.Make both downspout pipe and elbows(with bending device for engineering convenience)
2.with square type downspout pipe and round type downspout pipe for optional
3.Easy operation, low maintenance cost
4.Stable and efficient
2.Detailed Images of downspout pipe roll forming machine
Machine Parts

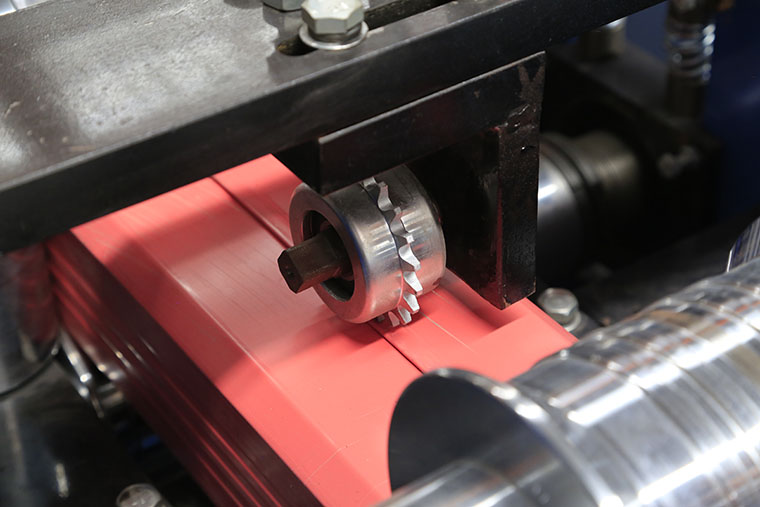

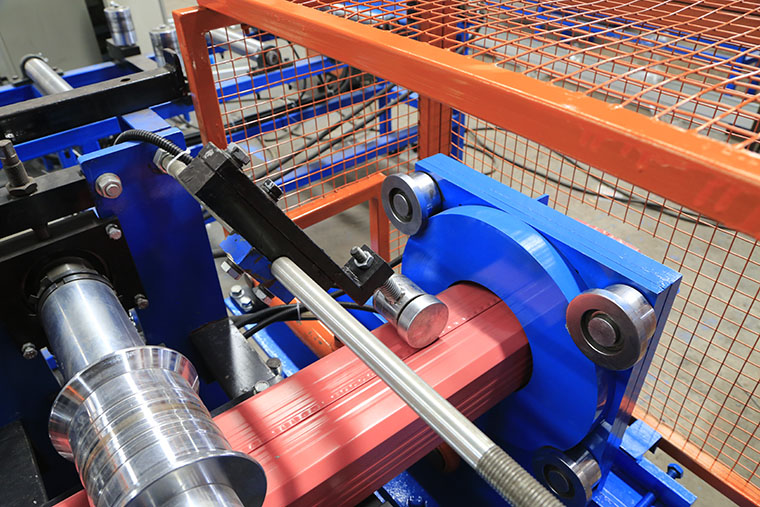

1) Downspout pipe roll forming machine tooth shape making device
Brand: BMS Original: China

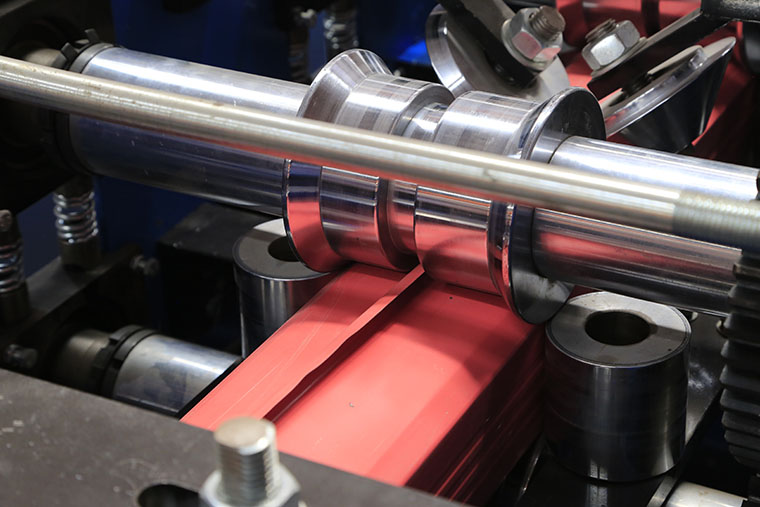

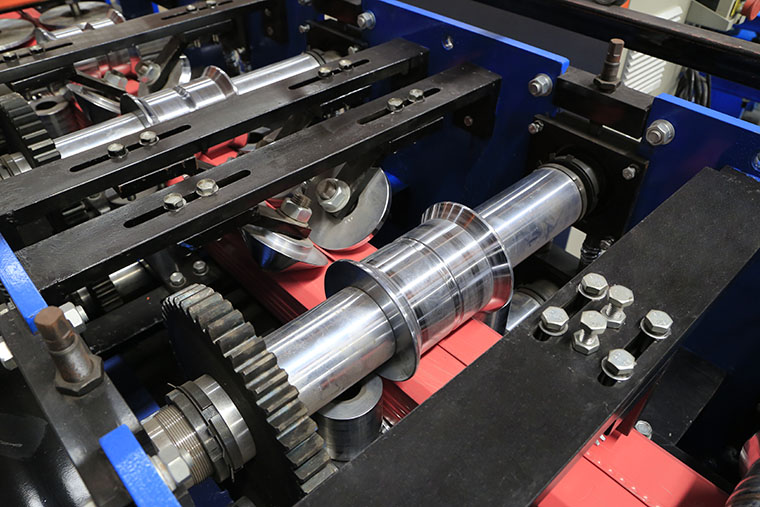

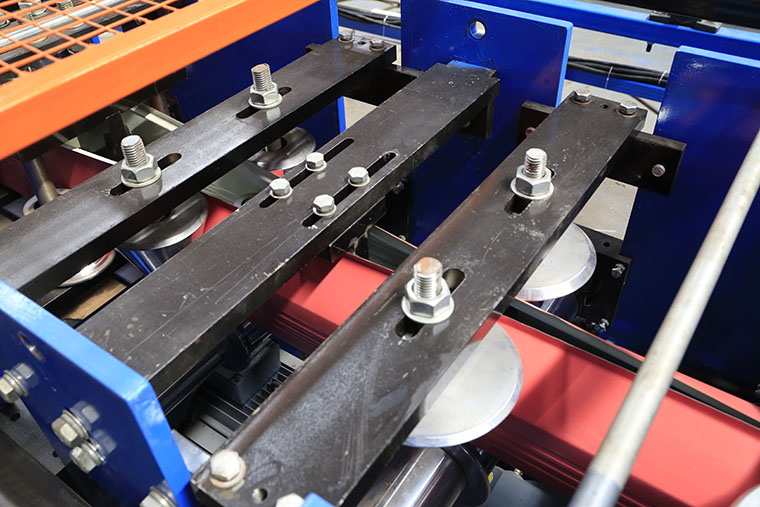

2) Downspout pipe roll forming machine rollers
Rollers manufactured from high quality steel 45#, CNC lathes, Hard-Chrome Coating for options.
With feeding material guide, body framemade from 450# H type steel by welding

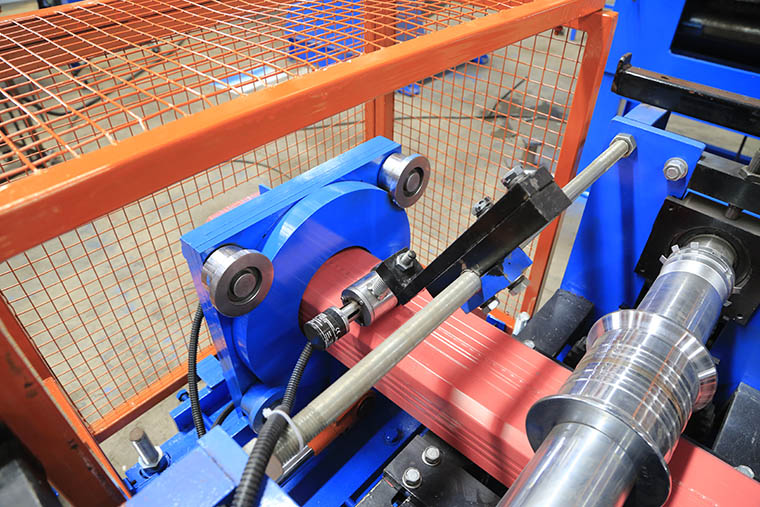

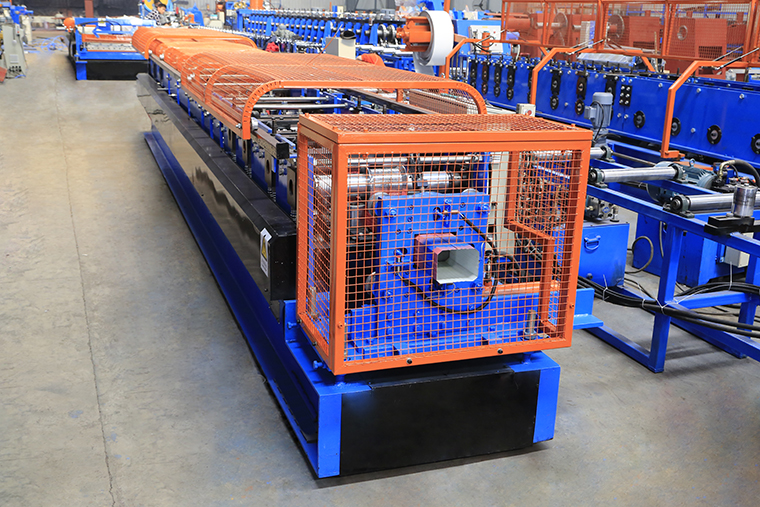

3) Downspout pipe roll forming machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

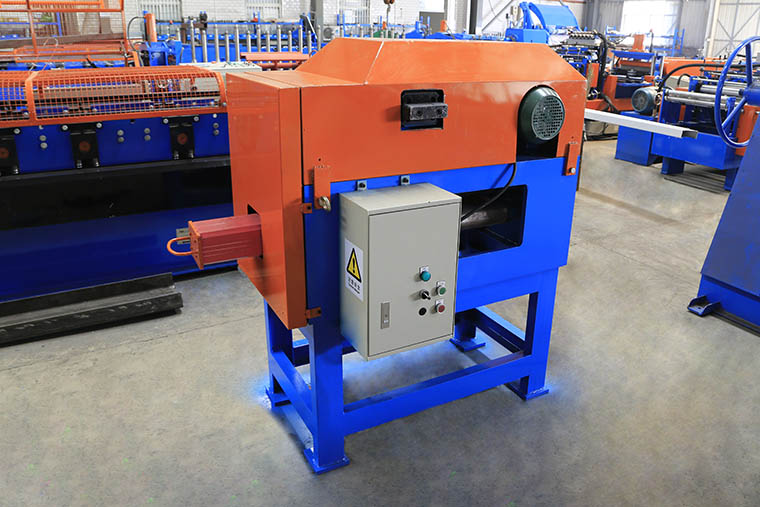

4) Downspout pipe roll forming machine bending device

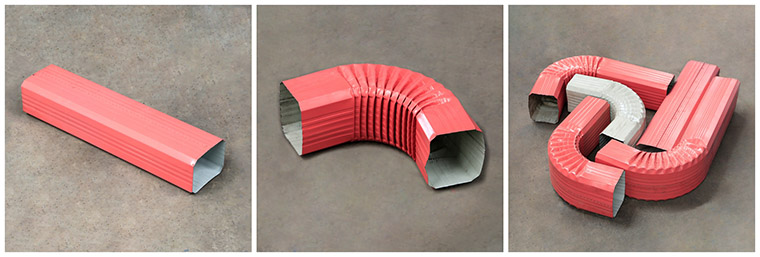

5) Downspout pipe roll forming machine product show

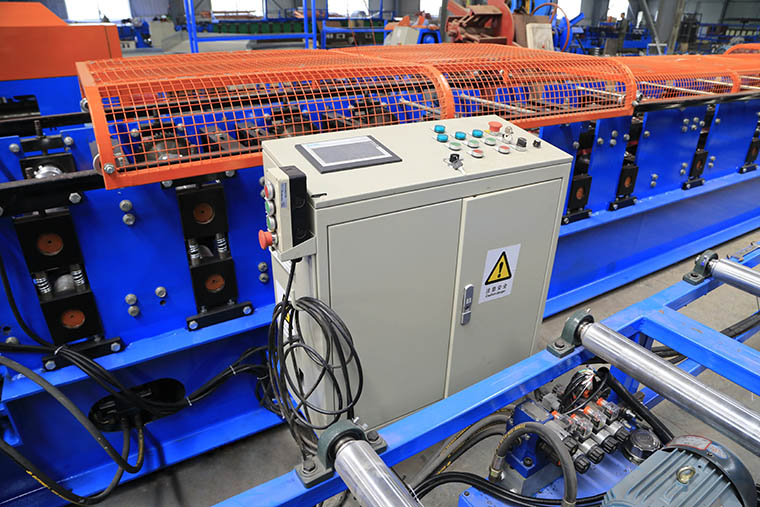

6) Downspout pipe roll forming machine PLC control system
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
7) Downspout pipe roll forming machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 508mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option
6) Downspout pipe roll forming machine exit rack
Un-powered,one unit
Other detailes of downspout pipe roll forming machine
Suitable for material with thickness 0.4-0.6mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 14 rollers to form
Main motor=7.5KW , Frequency speed control. Forming speed approx.8-12m/min
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of downspout pipe roll forming machine
1. The warranty of downspout pipe roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
