Product number |
Q802 |
|

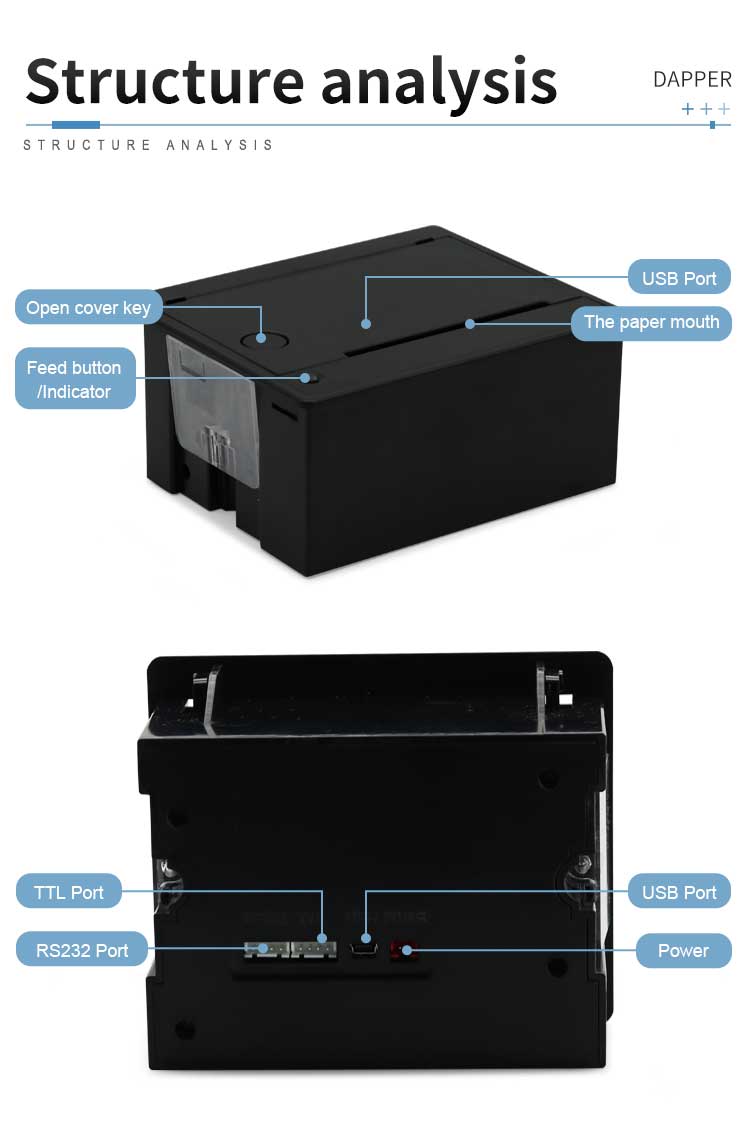

Communication interface |
RS232+TTL+USB |
|
Baud rate |
Default 115200 |
|
Operating Voltage |
12-24V/24V |
|
Working current |
Normal working current 1.8-2.2A peak current 3A |
|
Printing method |
Thermal print |
|
Print color |
black and white output |
|
Resolution |
203dpi 8 dots/mm 576 dots per line |
|
Print speed |
90mm/s |
|
Roll type |
Thermal paper/Label paper |
|
Label gap |
≥3mm |
|
Roll Specifications |
79mm±0.05mm（Width）0.05~0.1mm（Thickness） |
|
Paper roll diameter |
Minimum diameter 40mm |
|

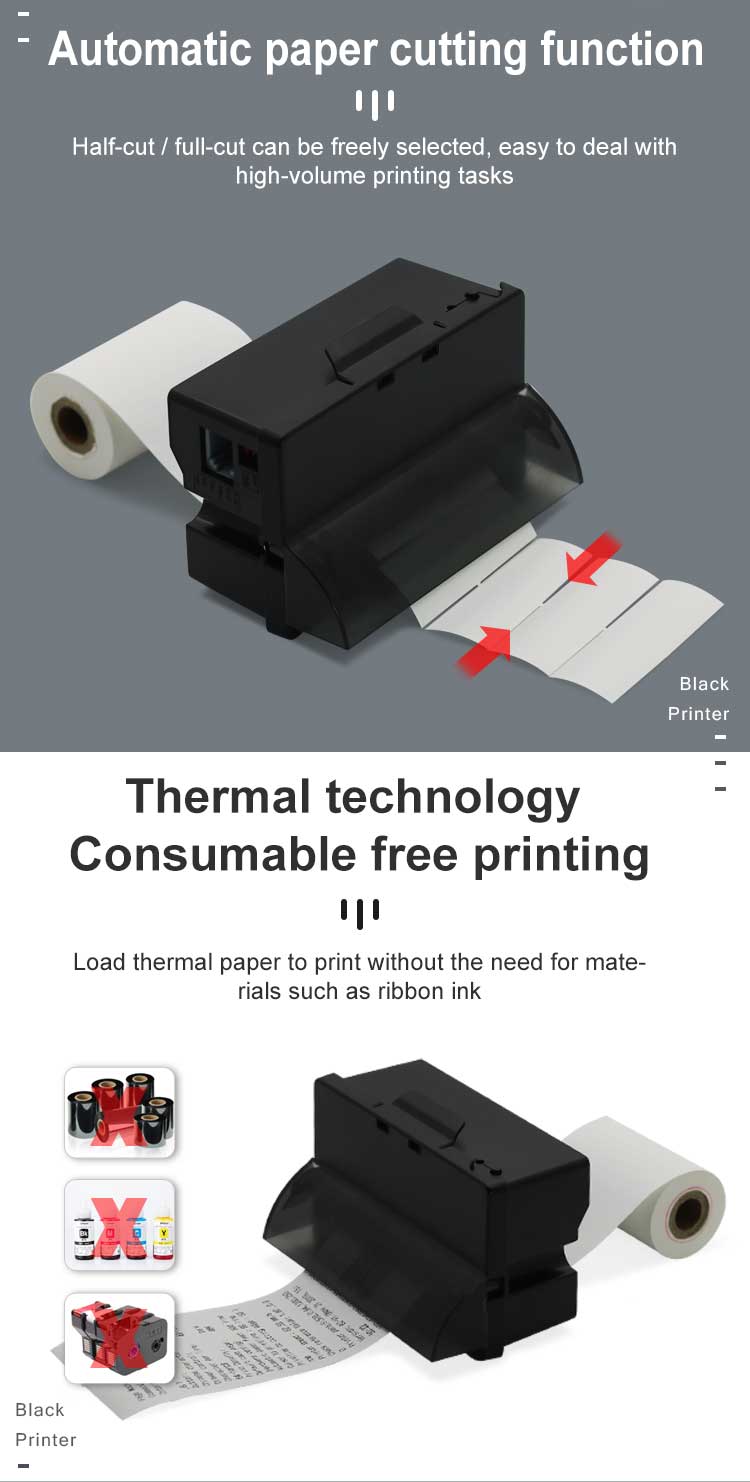

paper cutting method |
Automatic paper cutting support full cut half cut |
|
Service life |
100km |
|
Product color |
Black |
|

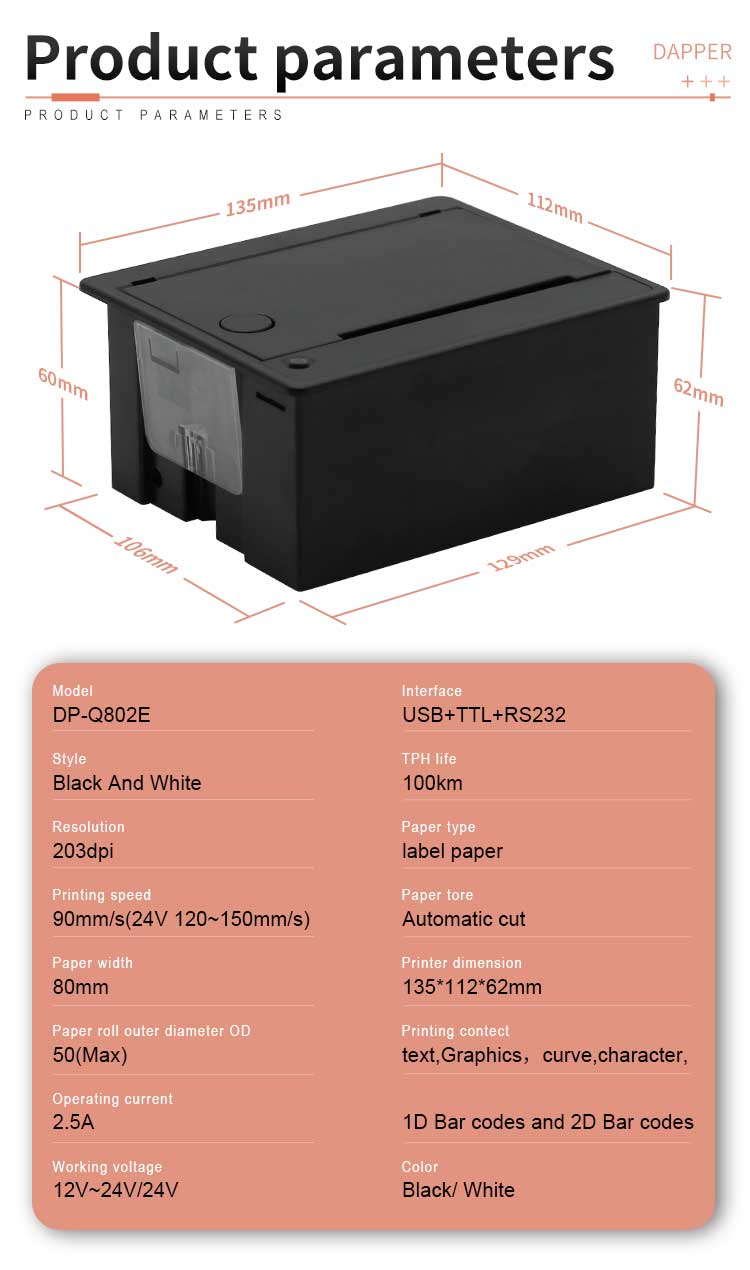

Dimensions |
134x112x62mm(L x W x H） |
|
Installation size |
129x106x60mm( L x W x H） |
|
Platform support |
Windows、linux、And Android, STM32, 51 MCU |
|
Print content |
Text, graphics, characters, barcodes, QR codes |
|
Remark |
The USB interface supports the computer system such as XP/Win7/Win8, which can use the driver to print, and the USB/serial communication can be connected to the Android tablet for printing. It provides the Android development kit and provides technical support guidance. |
