Product number
|
Q802P
|
|

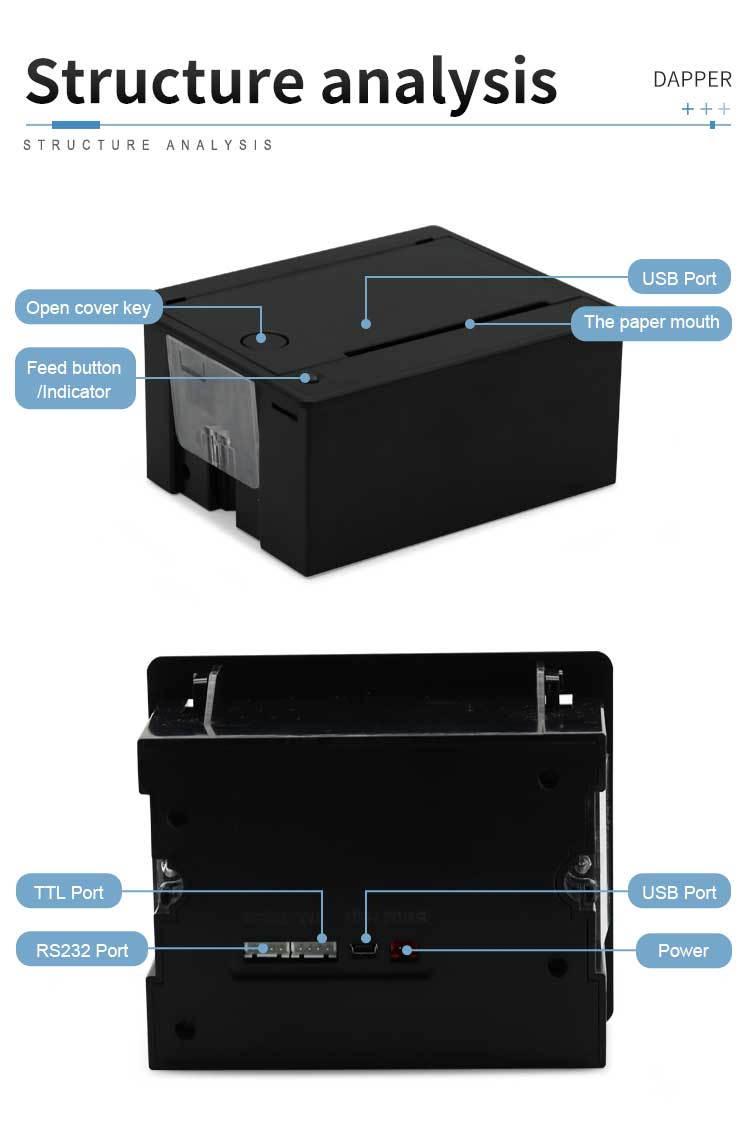

Communication interface
|
RS232+TTL+USB
|
|
Baud rate
|
Default 115200
|
|
Operating Voltage
|
12-24V/24V
|
|
Working current
|
Normal working current 1.8-2.2A peak current 3A
|
|
Printing method
|
Thermal print
|
|
Print color
|
black and white output
|
|
Resolution
|
203dpi 8 dots/mm 576 dots per line
|
|
Print speed
|
90mm/s
|
|
Roll type
|
Thermal paper/Label paper
|
|
Label gap
|
≥3mm
|
|
Roll Specifications
|
79mm±0.05mm（Width）0.05~0.1mm（Thickness）
|
|
Paper roll diameter
|
Minimum diameter 40mm
|
|

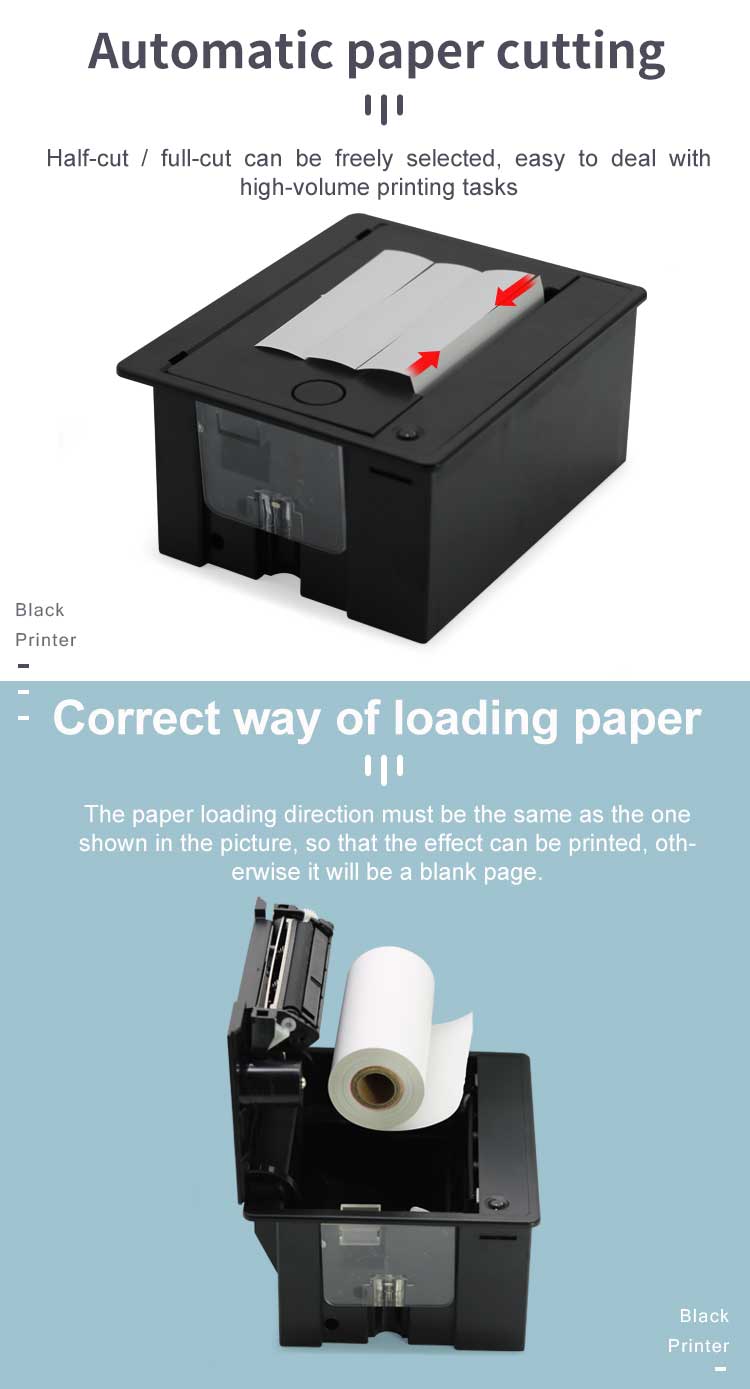

paper cutting method
|
Automatic paper cutting support full cut half cut
|
|
Service life
|
100km
|
|
Product color
|
Black
|
|

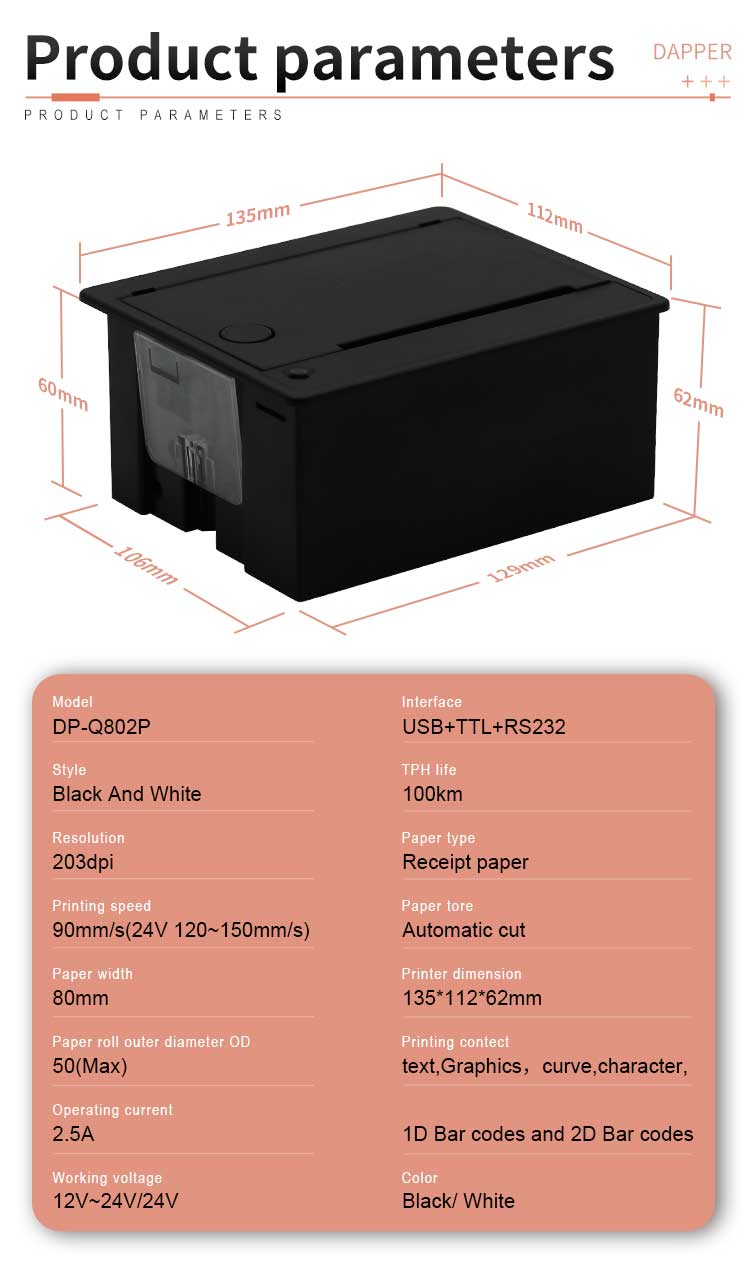

Dimensions
|
134x112x62mm(L x W x H）
|
|
Installation size
|
129x106x60mm( L x W x H）
|
|
Platform support
|
Windows、linux、And Android, STM32, 51 MCU
|
|

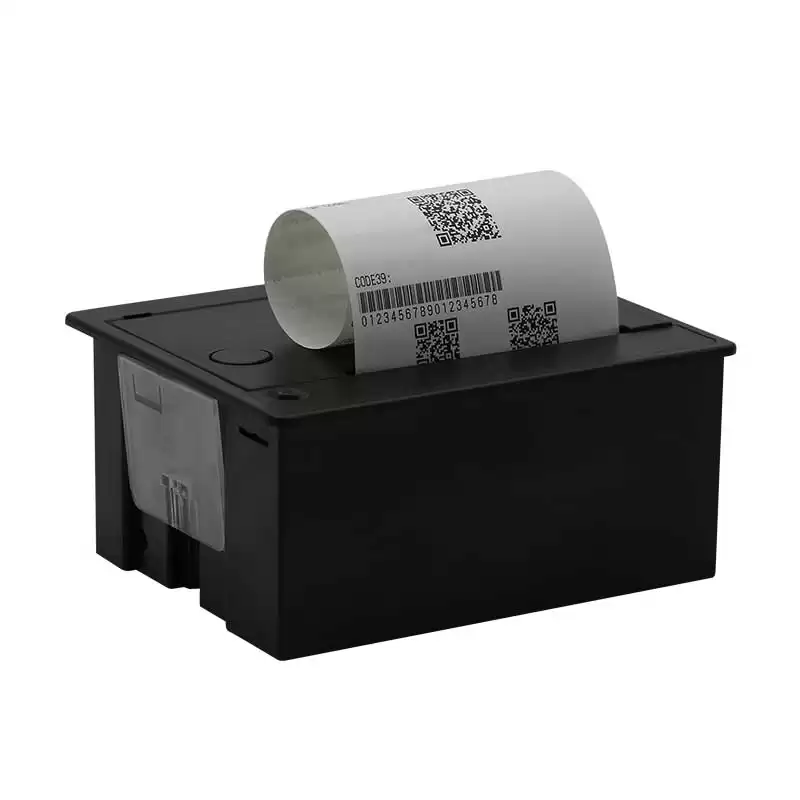

Print content
|
Text, graphics, characters, barcodes, QR codes
|
|
Remark
|
The USB interface supports the computer system such as XP/Win7/Win8, which can use the driver to print, and the USB/serial communication can be connected to the Android tablet for printing. It provides the Android development kit and provides technical support guidance.
|
