Product number
|
Q803L
|
|

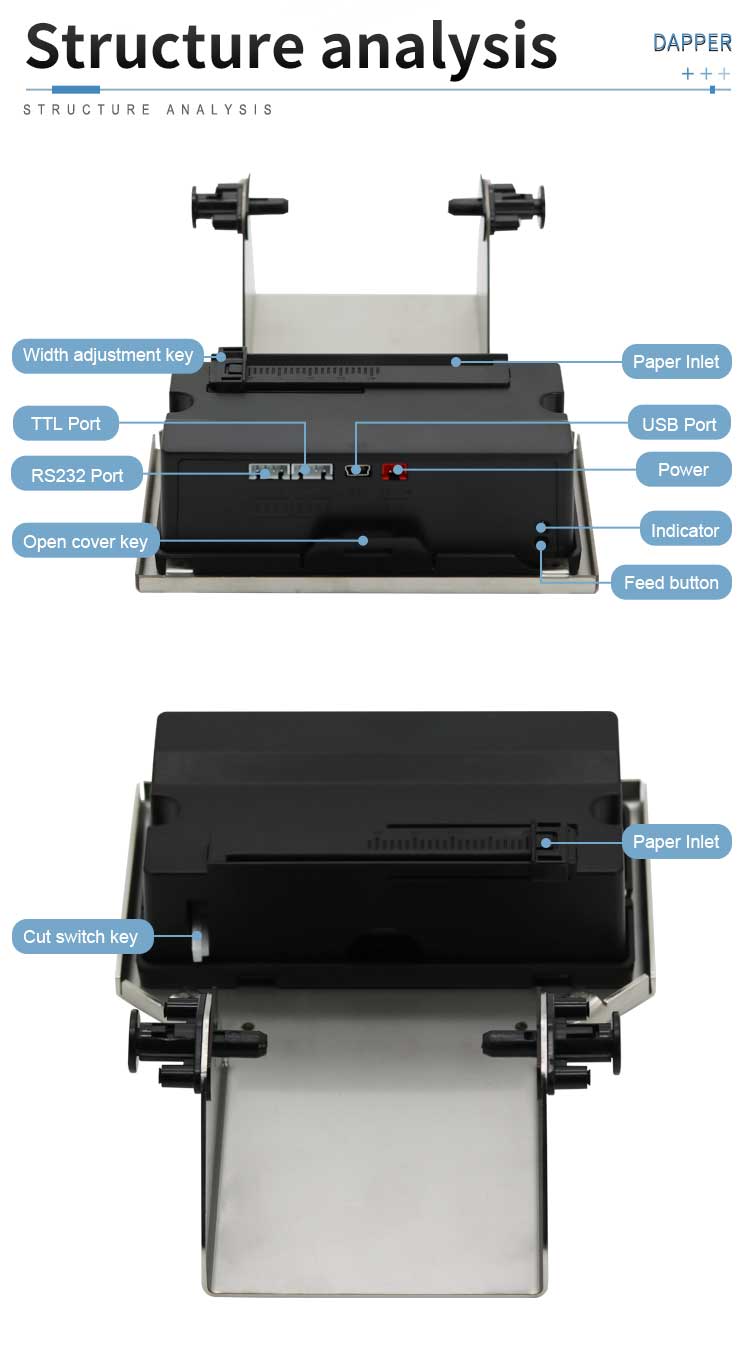

Communication Interface
|
RS232+TTL+USB
|
|
baud rate
|
Default 115200
|
|
Operating Voltage
|
12V/24V
|
|
Working current
|
Normal working current 1.8-2.2A peak current 3A
|
|
printing method
|
thermal printing
|
|
print color
|
black and white output
|
|
Resolution
|
203dpi 8 dots/mm 576 dots per line
|
|
printing speed
|
60mm/s
|
|
roll type
|
Thermal paper/Label paper
|
|
Roll Specifications
|
79mm±0.05mm (width) 0.05~0.1mm (thickness)
|
|
Paper roll diameter
|
Maximum diameter 80mm
|
|

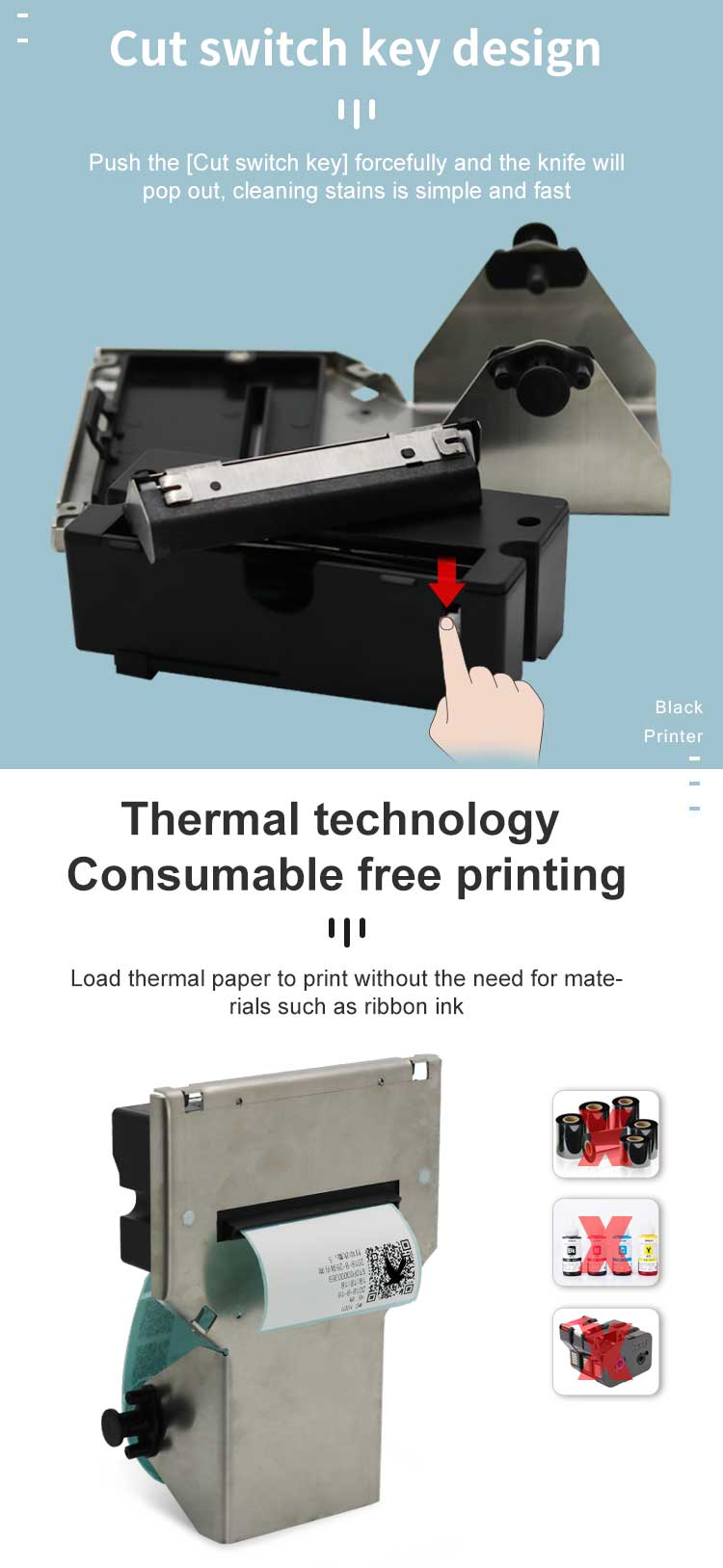

paper cutting method
|
Automatic paper cutting support full cut half cut
|
|
service life
|
100 km
|
|
Product color
|
black
|
|

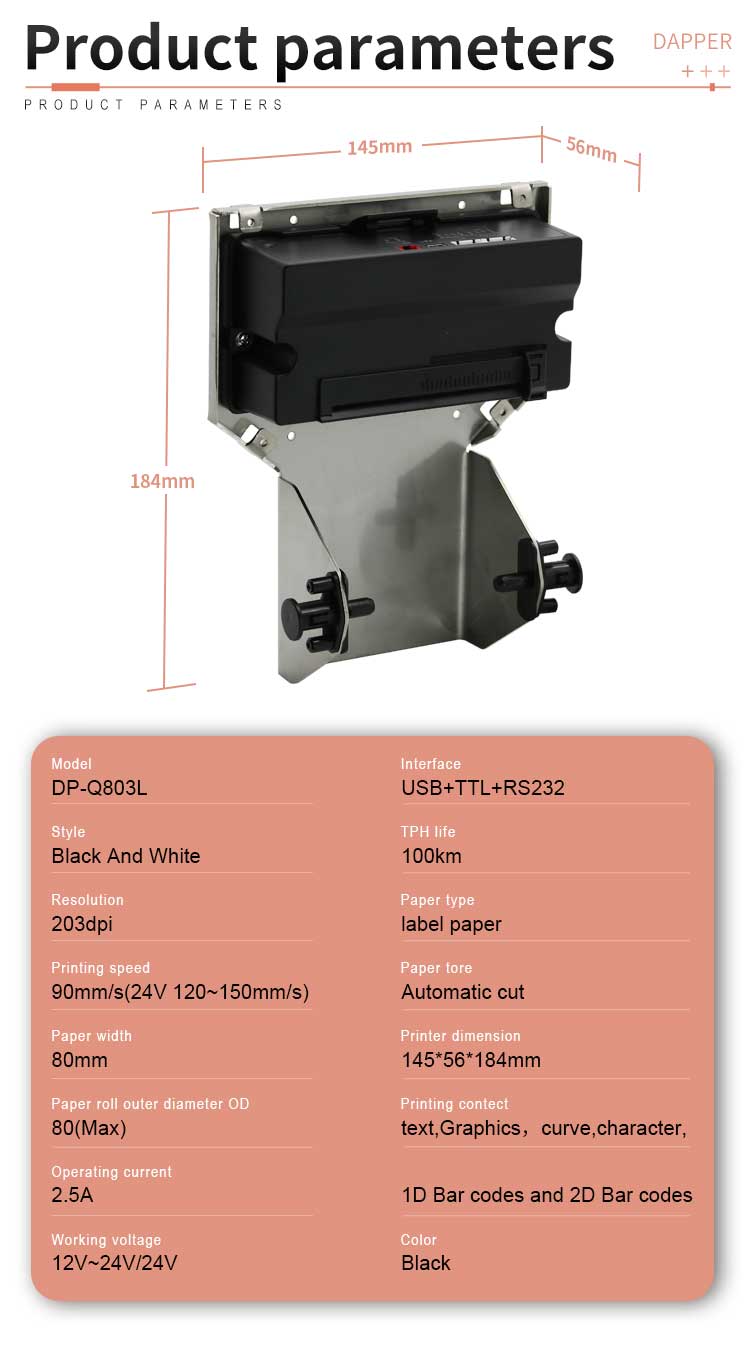

Dimensions
|
145x56x184mm (LxWxH)
|
|
Platform support
|
Windows, linux, and Android, STM32, 51 MCU
|
|
print content
|
Text, graphics, characters, barcodes, QR codes
|
|
Remark
|
The USB interface supports the computer system such as XP/Win7/Win8, which can use the driver to print, and the USB/serial communication can be connected to the Android tablet for printing. It provides the Android development kit and provides technical support guidance.
|
