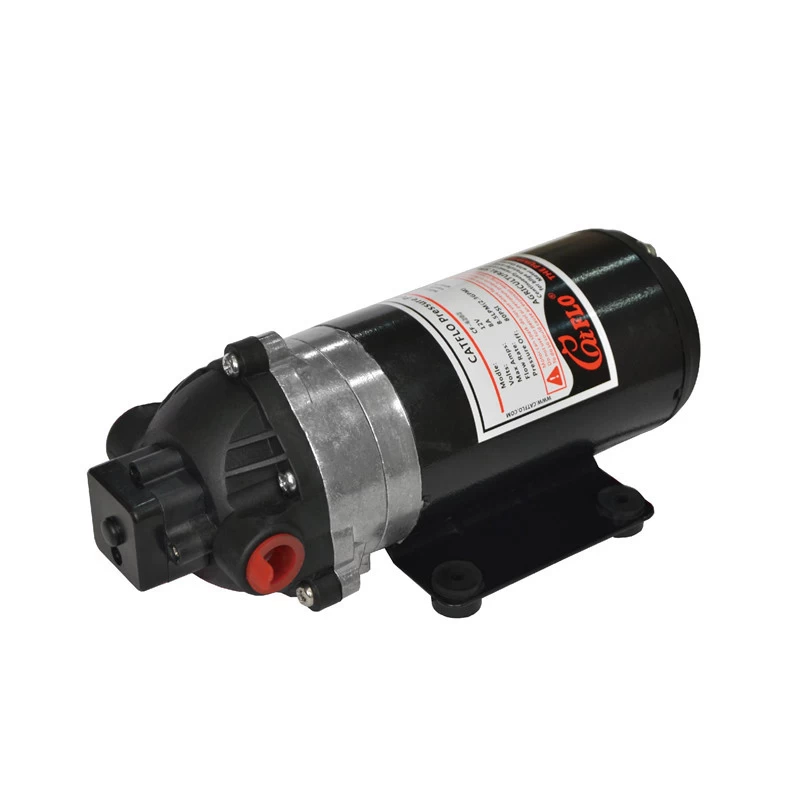

DP Series DC Diaphragm high pressure pump 12V/24V 4.6.5-5.5LPM 60-170PSI
The DP series pumps are capable of continuous heavy duty and extreme workloads. Matched with high performance motor, the DP series has extreme chemical capability and goes beyond the normal call of duty with many other additives as well. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.
Features and Benefits
l Thread connections with multiple fittings allow connection to any outlet
l It provides reliable performance in moderate water flow,high pressure applications.
l Run smooth and quietly
l Can run dry without damage
l Iron and rubber feet for for noise reduction from vibration
l Compact design and heavy duty demand switch
l Adjustable pressure switch from 60psi-170psi for OEM service
TYPICAL APPLICATIONS
Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.
|
PUMP
|
|
Type
|
3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
pressure switch controlled or by-pass controlled
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Pressure off
|
Shut-off Pressure60 PSI : 45 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI :85 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 120 PSI : 105 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 160 PSI : 145 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 170 PSI : 155 PSI ±5 PSI (±0.3 bar)
|
|
Inlet/Outlet Ports
|
3/8"-18 FNPT
|
|
Valve
|
EPDM
|
|
Wire Connections
|
2-Pin/Leads
|
|
MOTOR
|
|
Leads
|
16 AWG, 13" (33 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent/continuous
|
|
Max.Amp Draw
|
10.8A
|
PUMP CONFIGURATIONS
|
Model
|
Voltage(V)
|
Open flow(LPM/GPM)
|
Pressure off(psi/bar)
|
AMP Draw(A)
|
|
DP-60
|
12
|
4.6/1.2
|
60/4.2
|
7.0
|
|
DP-60B
|
24
|
4.6/1.2
|
60/4.2
|
4.0
|
|
DP-80
|
12
|
5.5/1.5
|
80/5.5
|
8.0
|
|
DP-100
|
12
|
5.5/1.5
|
100/6.9
|
9.0
|
|
DP-120
|
12
|
5.5/1.5
|
120/8.3
|
9.5
|
|
DP-120B
|
24
|
5.5/1.5
|
120/8.3
|
4.5
|
|
DP-160
|
12
|
5.5/1.5
|
160/11.0
|
10.5
|
|
DP-160B
|
24
|
5.5/1.5
|
160/11.0
|
4.2
|
|
DP-170
|
12
|
5.5/1.5
|
170/11.8
|
10.8
|

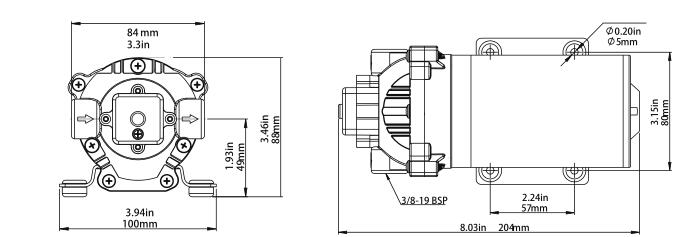

DIMENSIONS
DETAILS
|
Item
|
Description
|
Quantity
|
|
A
|
Pump head assembly
|
1
|
|
B
|
Valve assembly
|
1
|
|
C
|
Diaphragm assembly
|
1
|
|
D
|
Motor assembly
|
1
|
|
1
|
Pressure switch
|
1
|
|
2
|
Diaphragm of pressure switch
|
1
|
|
3
|
Pump head
|
1
|
|
4
|
Diaphragm
|
1
|
|
5
|
Rubber feet
|
1
|
|
6
|
Iron base plate
|
1
|
|
7
|
Motor
|
1
|
Shipping information
|
Unit pump weight(N.W/G.W)
|
1.9/2.1 kg 2.4/2.65
|
|
Unit size
|
260*120*100mm
|
|
Mater carton size
|
63*29*23.5cm
|
|
Mater carton quantity
|
10pcs
|
|
Mater carton weight
|
27kgs
|
