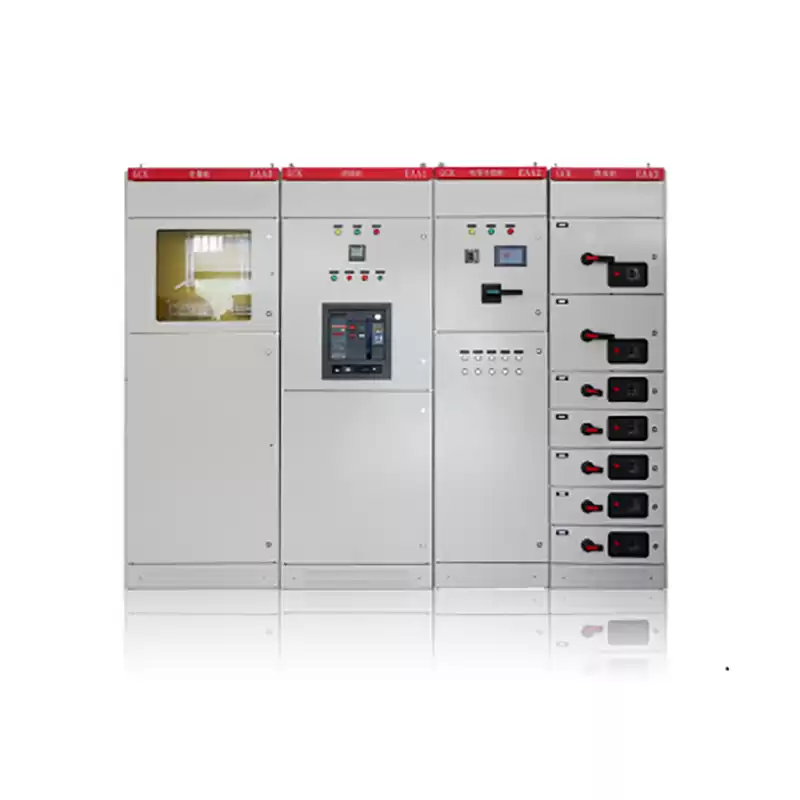

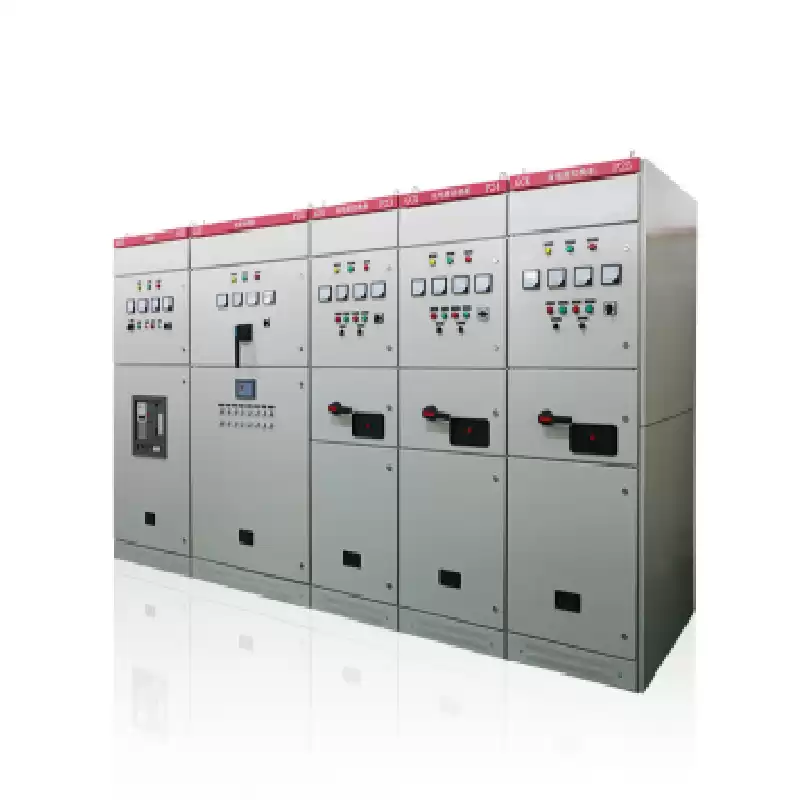

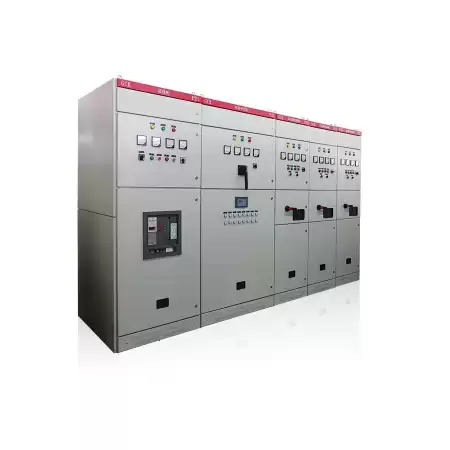

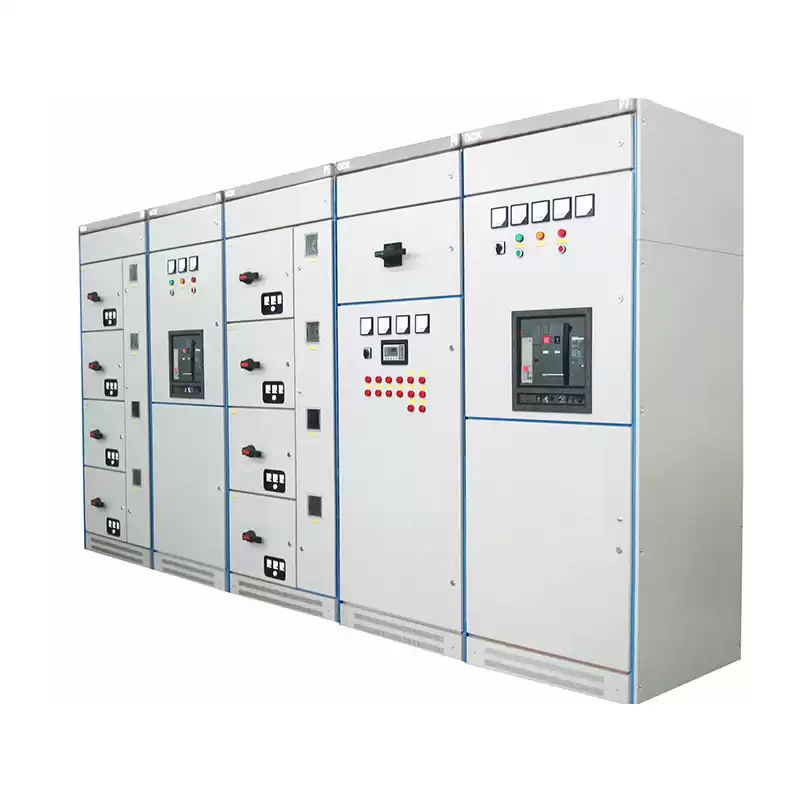

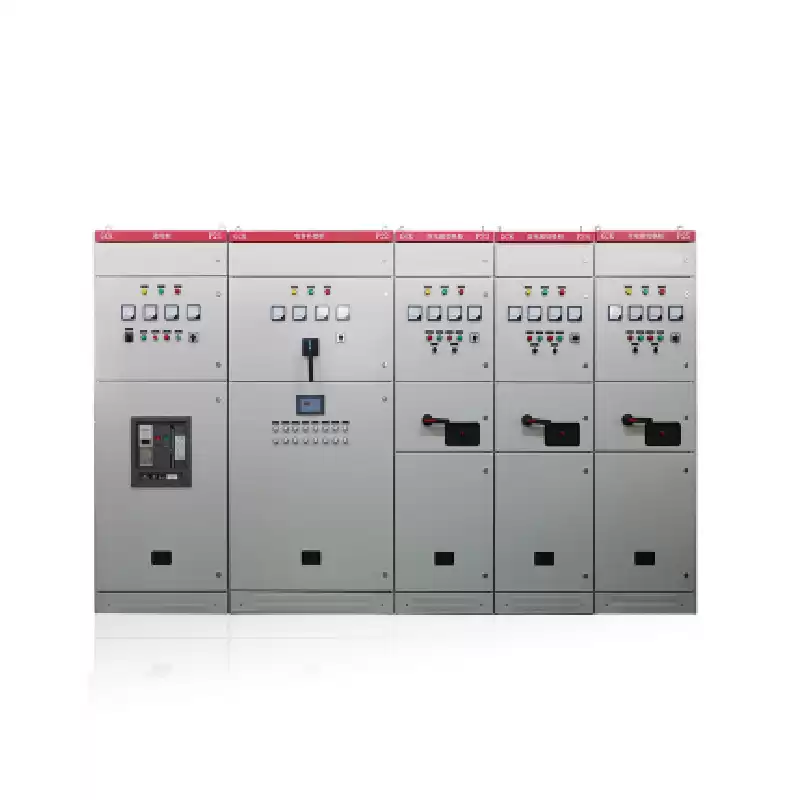

1. GCK Drawer-type enclosed low voltage switchgear: it is a fully assembled combination structure, and the basic skeleton is made of special materials and assembled
2. The frame of the cabinet, the outer size of the parts and the size of the holes, according to the basic modulus, E=20mm change.
3. In the MCC scheme, the cabinet is divided into four areas (rooms): horizontal bus area, vertical bus area, functional unit area, cable room, each areas are isolated from each other to ensure the normal operation of the line and effectively prevent the expansion of the fault.
4. Because all the structures of the frame are fixed with screws, avoid welding deformation and stress, improve the accuracy.
5. Parts have strong universality, good applicability and high standardization
6. The function unit (drawer) is drawn and inserted for lever operation, coupled with the configuration of rolling bearing operation is light and reliable.
|
Model
|
Item
|
Specification
|
|
GCK
|
Standard
|
IEC 439-1，GB7251、1
|
|
IP grade
|
IP30
|
|
Rated operational voltage（V）
|
AC 360,600
|
|
Frequency(Hz)
|
50/60
|
|
Rated insulation voltage（V）
|
660
|
|
Operating conditions
|
Environment
|
Indoor
|
|
Altitude
|
≤2000m
|
|
Environmental temperature
|
-5℃～+40℃（The lowest temperature under storage
and transportation conditions is -25℃）
|
|
relative temperature
|
≤90%
|
|
Control motor capacity（kW）
|
0.45～155
|
|
Mechanical life（times）
|
500
|
|
Rated current（A）
|
Horizontal bus
|
1600、2000、2500、3150
|
|
Vertical bus
|
630、800
|
|
Main circuit contact connector
|
200、400、630
|
|
Auxiliary circuit contact connector
|
10、20
|
|
Maximum current of feed circuit
|
PC cabinet
|
1600
|
|
MCC cabinet
|
630
|
|
Electric circuit
|
1000、1600、2000、2500、3150
|
|
Rated short-time withstand current（kA）
|
30、50、80
|
|
Rated peak withstand current（kA）
|
63、105、176
|
|
Withstand Voltage（V/min）
|
2500
|
1. Altitude ≤2000m
2. Indoor without fire, explosion risk, severe dust, violent vibration and rain attack
3. The ambient air temperature shall be no higher than +40℃, and the average temperature within 24 hours shall be no higher than +35℃ and no lower than -5℃. The minimum temperature under storage and transportation conditions shall be -30℃
4. The air should be clean, and the relative humidity should not exceed 50% at the highest temperature +40℃, while a higher relative humidity is allowed at a lower temperature, such as 90% at +20℃
5. The pollution level is level 3
