Description

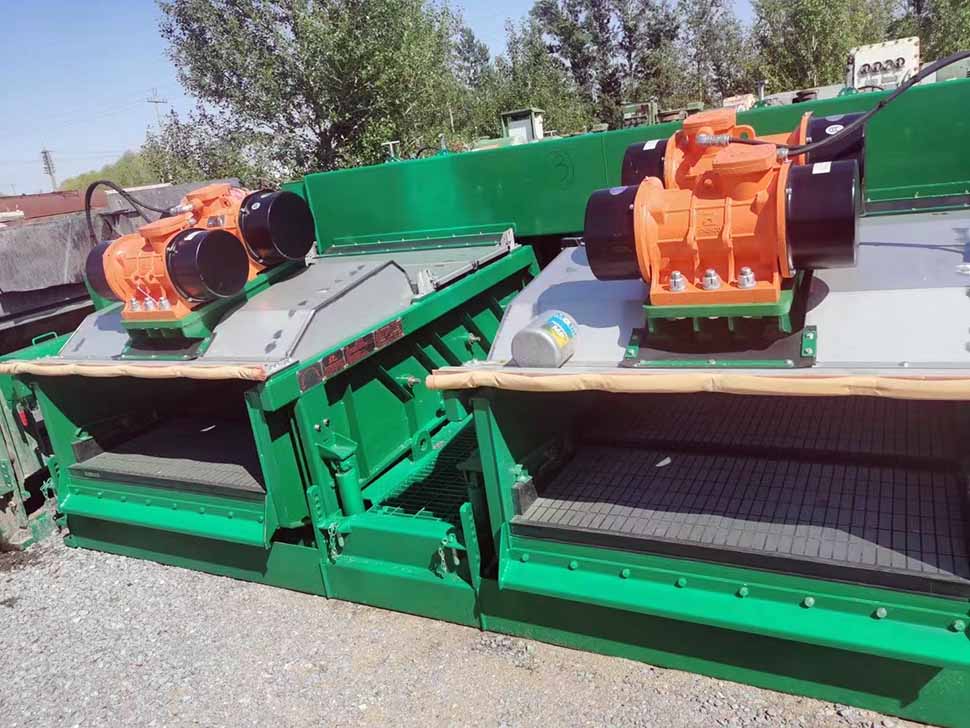

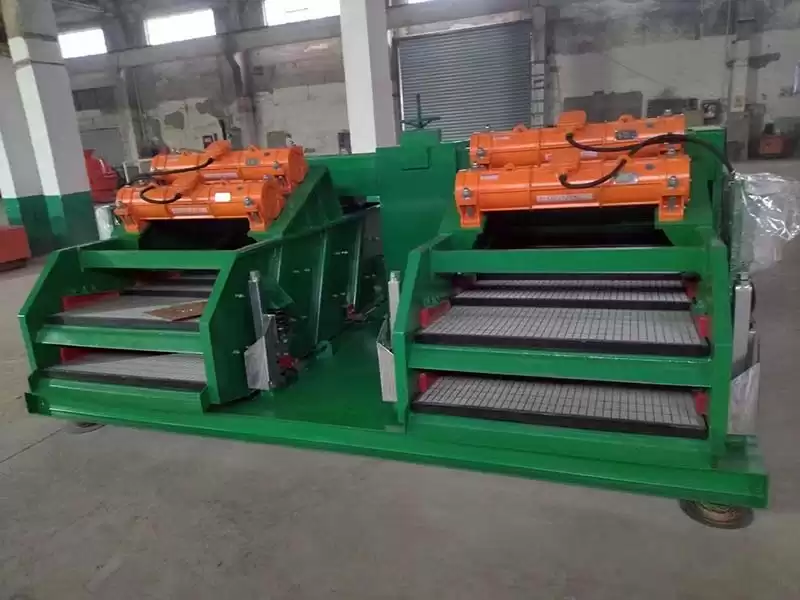

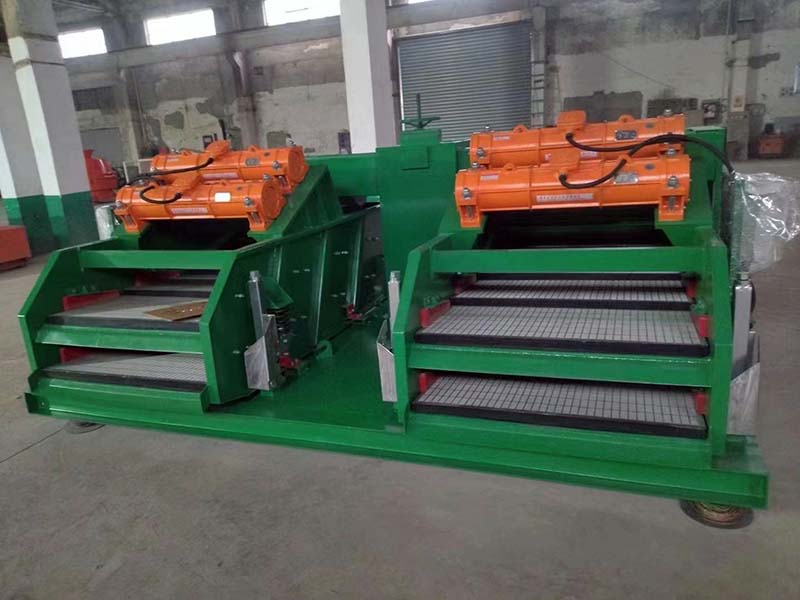

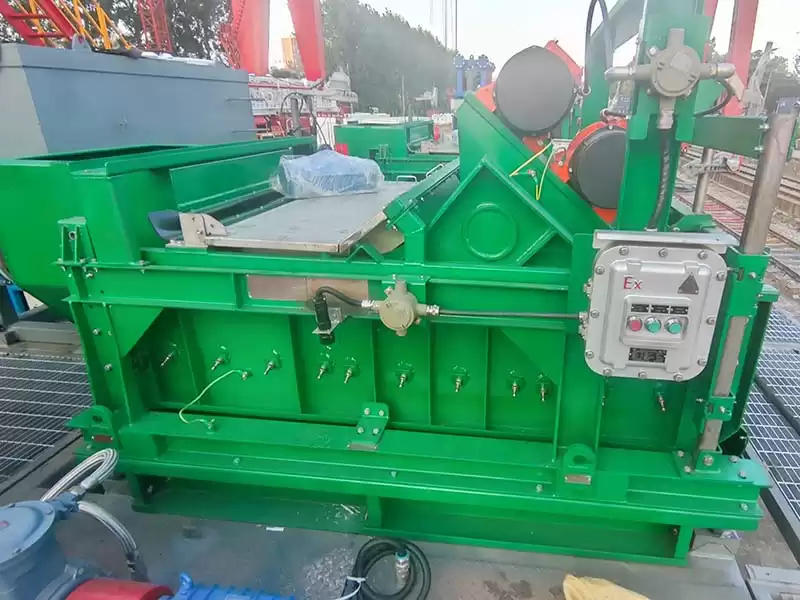

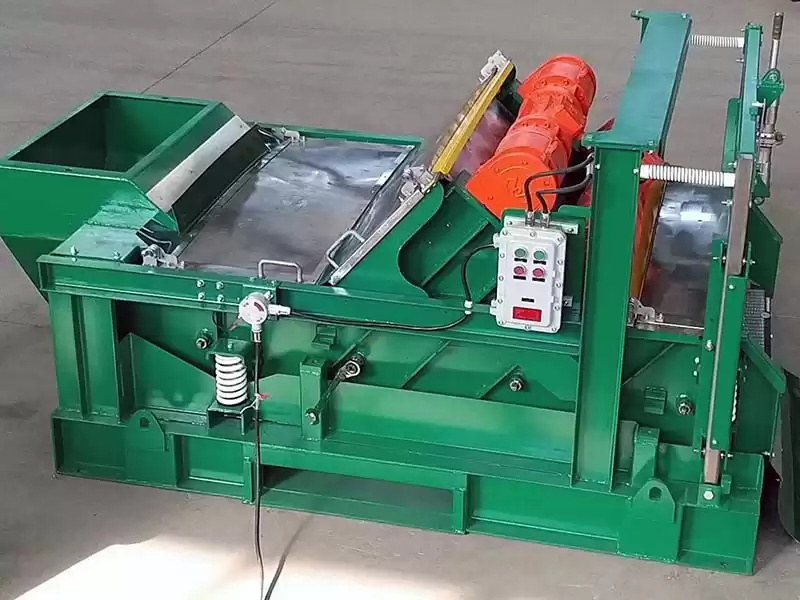

Drilling fluid shale shakers are first stage solids removal equipment. We adopt intelligent control system and advanced vibrating motors, and supply single deck shaker panel, double deck shaker panel, duplex or triplex shaker panel upon user request. Our products are highlighted by intelligent control, high G force, large screen area, adjustable angle of shaker deck and compact structure etc.
Features
- High G force for high viscosity and density mud separation.
- Whole Heat treatment for shaker deck enables long working time under high G force.
- Wedge block screen panel tensioning mechanism facilitates faster panel replacement time.
- Faster mud conveyance rate and higher processing capacity.
Specifications
|
Model
|
ZS-752
|
ZS-583
|
ZS-584
|
ZS-585S
|
ZS-586D
|
|
Track of motion
|
Linear motion/dual motion
|
|
Process capacity, m³/h
|
60
|
120
|
140
|
165
|
140
|
|
Motor power, kW
|
2x0.8
|
2x2.2
|
2x2.2
|
2x2.2+1x1.3
|
2x2.2
|
|
Screen panels quantity
|
2
|
3
|
4
|
5
|
6
|
|
Screen panels dimension, mm
|
750x900
|
585x1165
|
585x1165
|
585x1165
|
585x1165
|
|
G force
|
7.5G
|
|
Dual amplitude, mm
|
4.5~6.0
|
4.5~6.0
|
4.5~6.0
|
4.5~6.3
|
4.5~6.3
|
|
Deck adjustment angle
|
0~+2°
|
-1~+5°
|
-1~+5°
|
-1~+4°
|
-1~+5°
|
|
Noise
|
<85dB
|
|
Explosion proof rating
|
ExdIIBt4/IECEX/ATEX
|
|
Weight, kg
|
900
|
1,300
|
1,500
|
1,900
|
1,600
|
Packaging & Shipment
Packaging type: Export Seaworthy
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
