DS200TBQCG1ABB General Electric RST Analog Termination Board

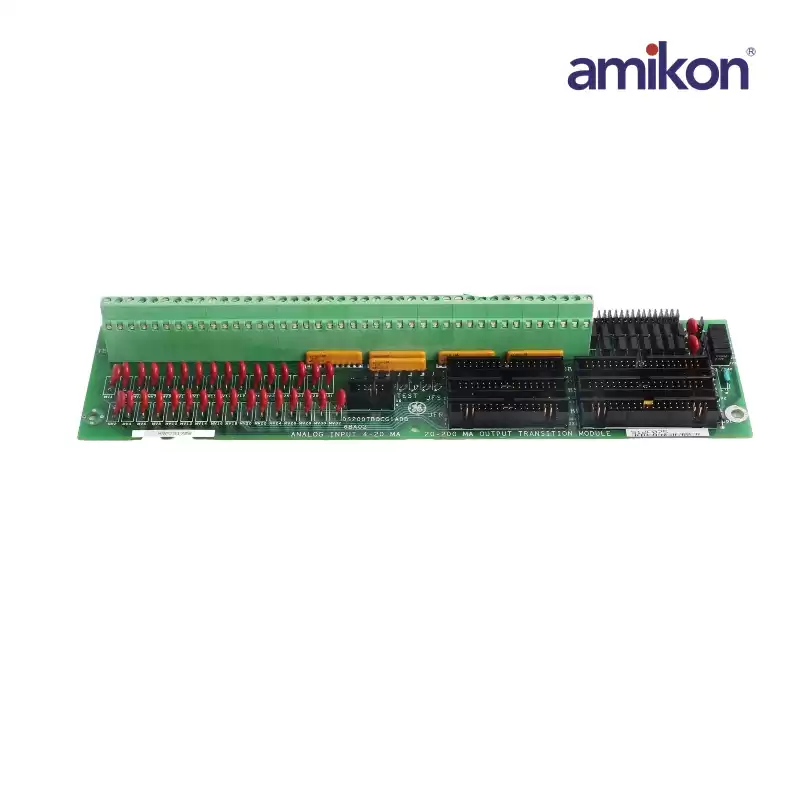

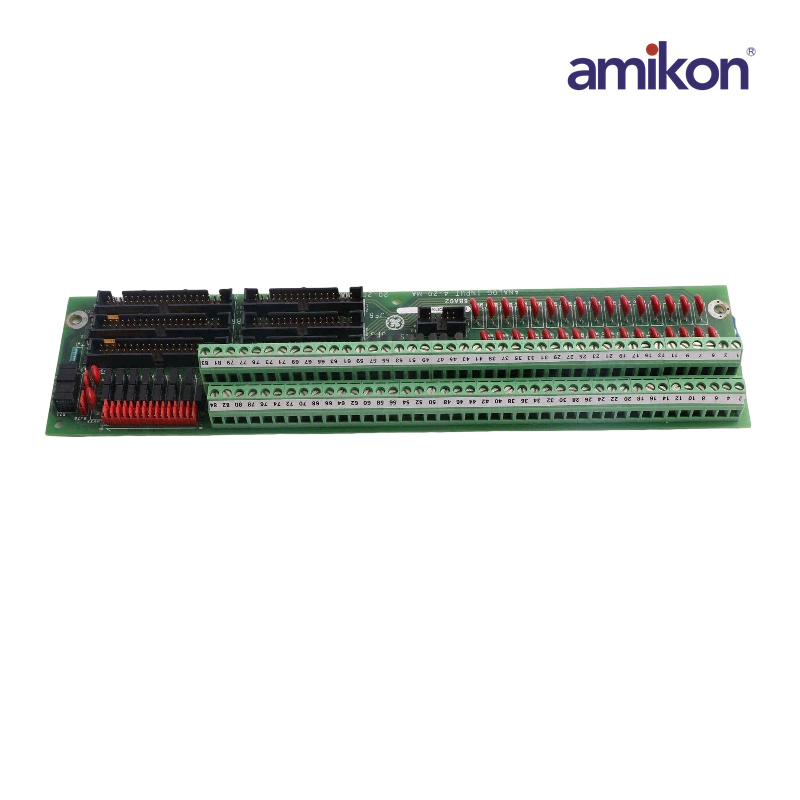

The GE RST Analog Termination Board DS200TBQCG1ABB features 2 terminal blocks. Each block contains 83 terminals for signal wires. The GE RST Analog Termination Board DS200TBQCG1 also contains 15 jumpers, 3 40-pin connectors, and 3 34-pin connectors.

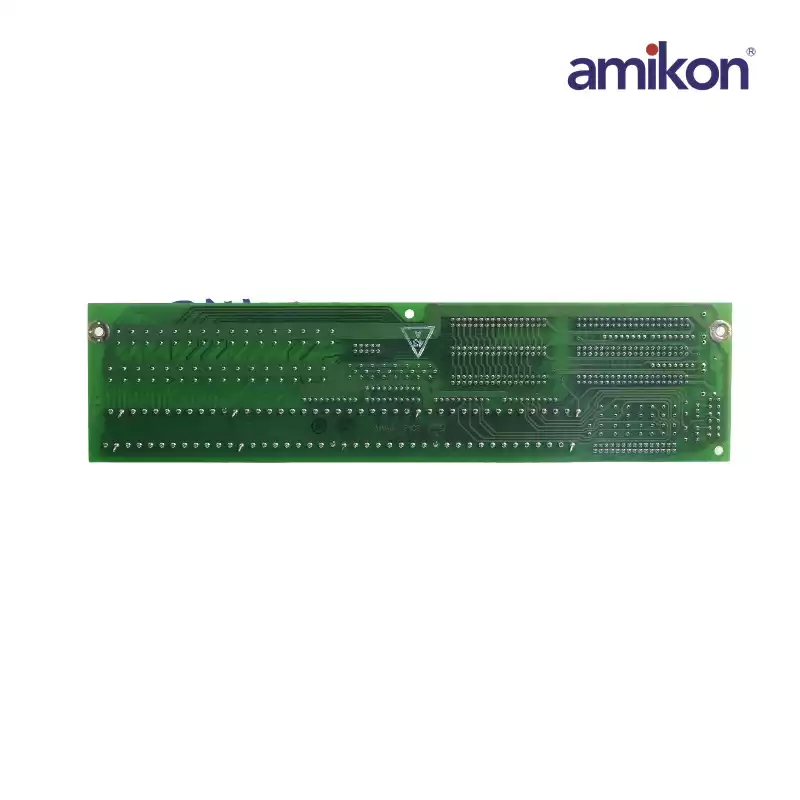

The GE RST Analog Termination Board DS200TBQCG1 is 11.25 inches in length and 3 inches in height. It also contains one screw hole in each corner for attaching the board in the rack located inside the drive. Use care when you remove the screws

because a lost screw might fall on a board and cause an electrical short that leads to a fire or electrical burn. It might also jam in the moving parts which will damage the parts or cause the drive to fail. Instead, use one hand to turn the screwdriver

and the other hand to hold the screws after they are loosened. Save them in a location where they will not be disturbed or lost. Then, retrieve them to secure the replacement board. If washers were also used with the defective board, insert them

with the screws when you install the replacement board.
