Overview

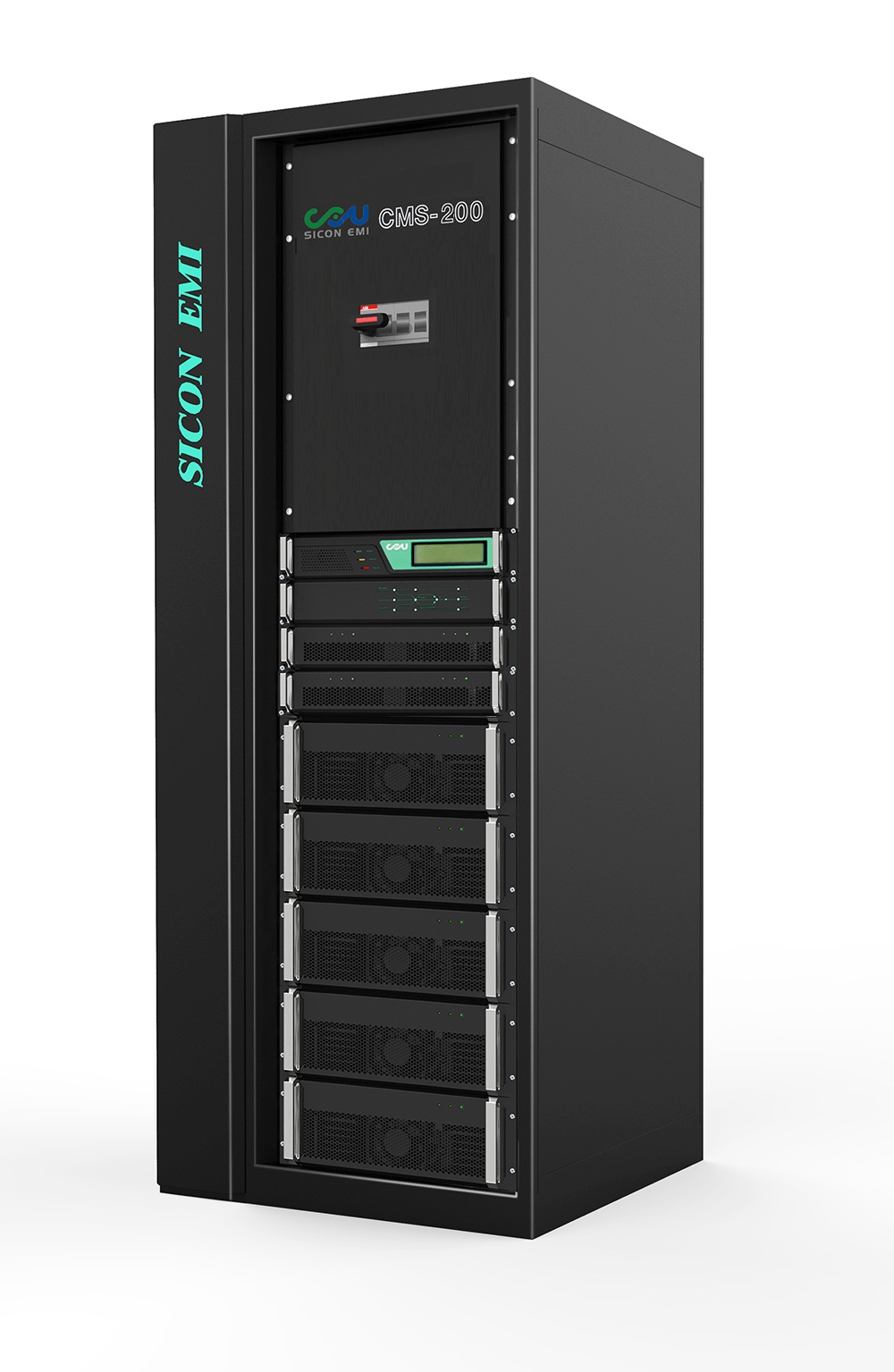

Sicon DSM is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability.
DSM is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs.
DSM online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.
DSM Support Lithium-ion Battery Solution.
Feature
3Phase Uninterruptible Power Supplies 40kVA- 80kVA -120kVA to -to 640kVA
UPS module: 40 kVA

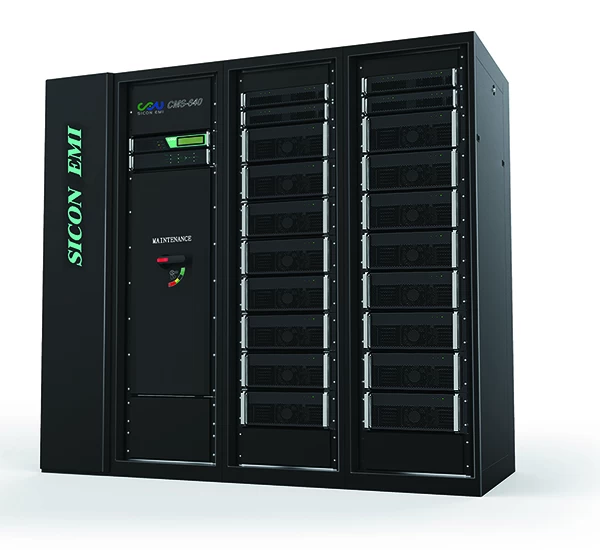

System frame/chassis: 120kVA, 200kVA, 400kVA, 640kVA
Transformer Free UPS technology, lower space and weight
Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy
High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency
Input low current harmonic distortion · THDI ≤ 3%
High input power factor · input PF ≥ 0.99
High output power factor · Output PF = 0.9
Static and Maintenance bypass switch
Short circuit and overload protection
RS232 serial ports and dry contacts
Multi-level decentralized control technology and Master-slave synchronization in sequency control
Each module automatically even shares the input and output current, all UPS modules share batteries
Selectable input/ output voltage/ frequency range
Split by-pass
Battery management:
Battery discharge management
Auto-transfer between floating and even charging
Temperature compensation
Optional SNMP, Modbus adapters
Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS
2 year warranty, 10 years spare parts support
Application
Date Center ups solution
