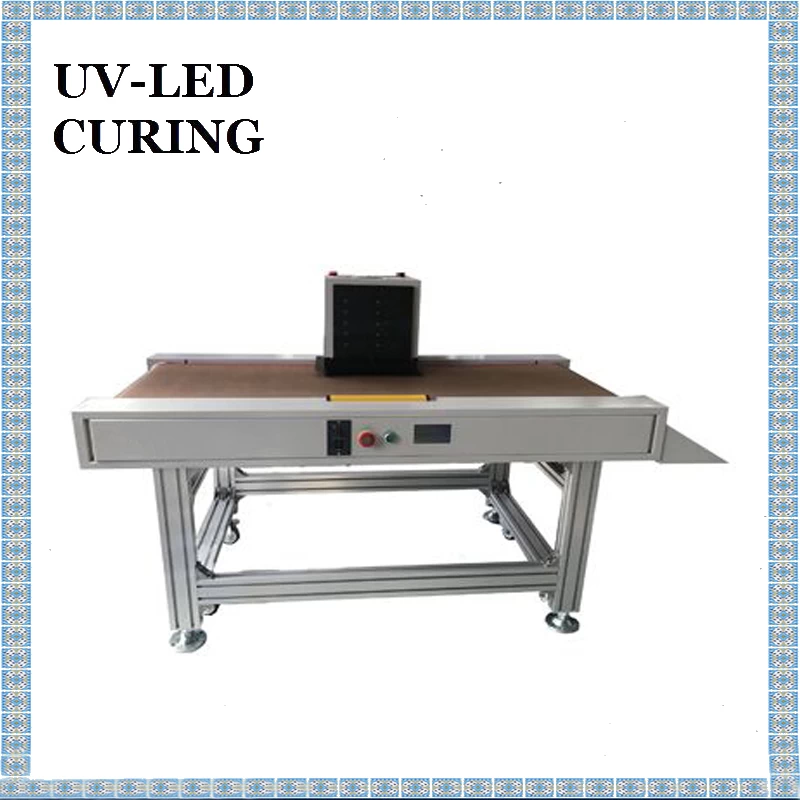

UV LED curing machine, to replace the traditional mercury lamp, low temperature, no ozone, no deep UV, low energy consumption, high efficiency.
UV LED data line solder joint reinforcement curing machine, replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption and high efficiency.
Product Survey

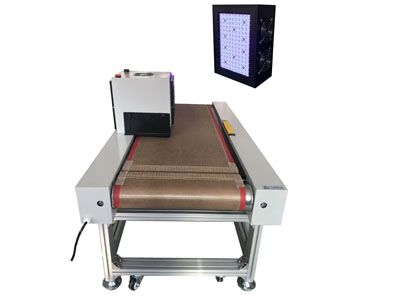

DSX-SL150-100x150-365 is a high-performance UVLED curing system, the system includes the controller, UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 100x150mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line .
Specification Parameter
Control System :
Panel display, touch operation, real-time
Monitoring of the head of working state
Intensity adjustable from 0-100%
Temperature monitoring
Infrared sensor control, work mode selection

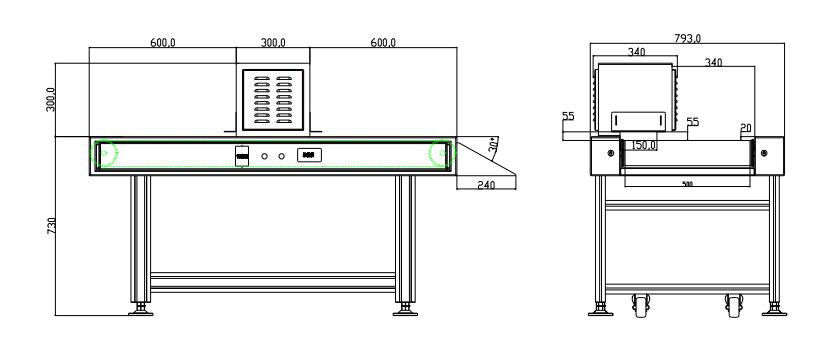

Whole machine size : L1500*W793*H1030mm
UV LED Irradiation Head (DSX-S150-100x150-365) :
Wavelength : 365nm
Curing Area : 100*150mm
Optic power : 1300nW/cm2 (10mm irradiation distance)
Recommended height of irradiation : 10-100nm
Dimension : L171*W115*H76mm
|
Technical Data :
|
|
Wavelength (+/- 5nm)
|
365nm
|
|
Curing Area
|
100*150nm
|
|
Electronic Power
|
450W
|
|
Input Voltage
|
220VAC 50Hz
|
|
Cooling Method
|
Air cooling
|
|
Life
|
> 20000H
|
|
Conveyor Speed
|
1-10m/min adjustable
|
|
Irradiation Distance
|
10-100mm adjustable
|
