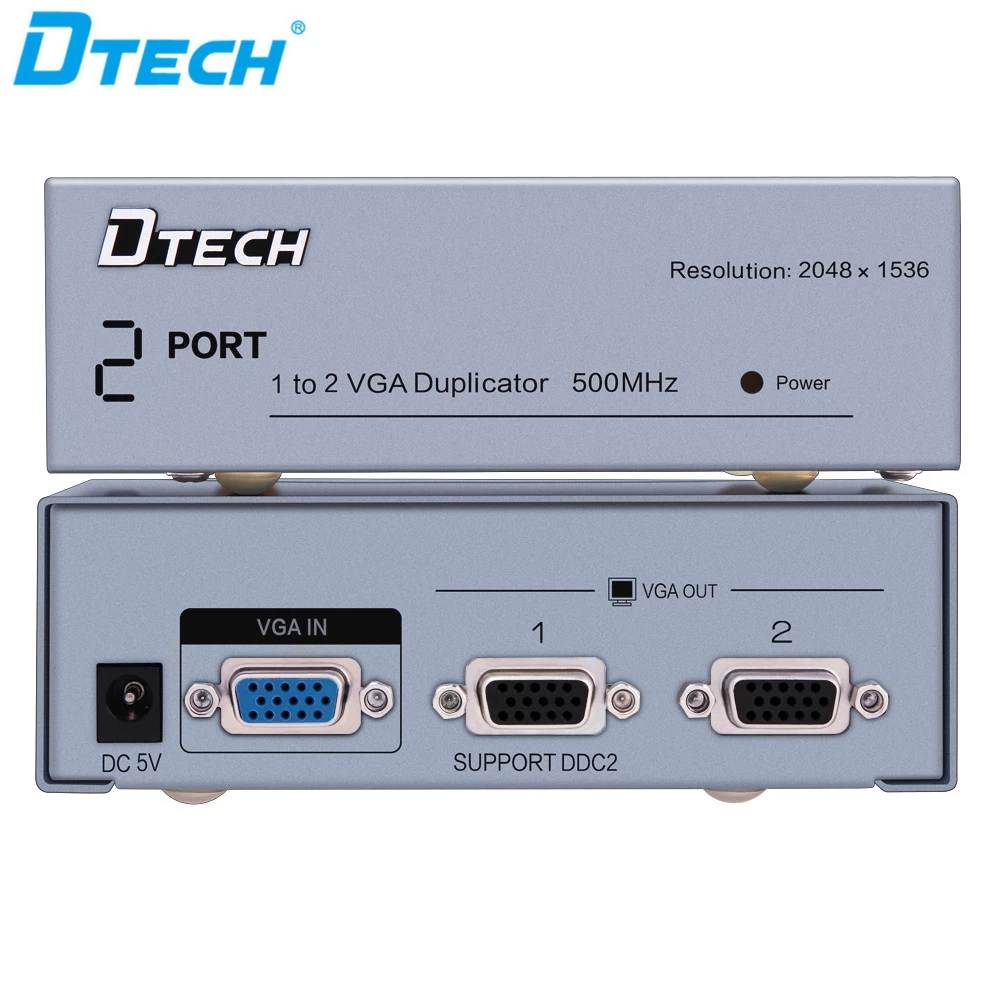

DT-7502 DTECH 1 TO 2 500MHZ VGA SPLITTER
Feature:

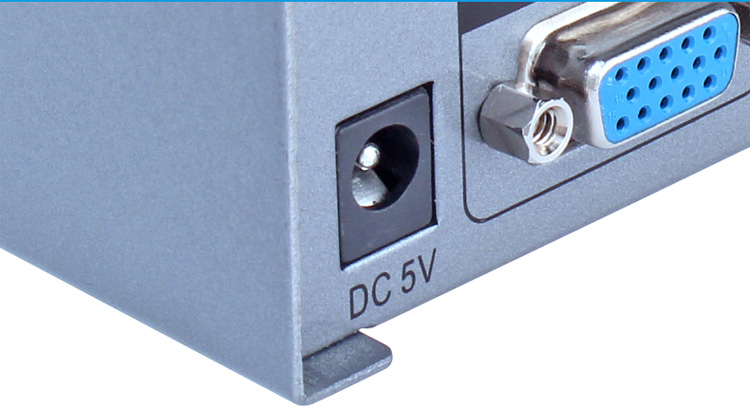

1. VGA splitter, 1x2, 1 input 2 output, support usb power supply and AC power supply.

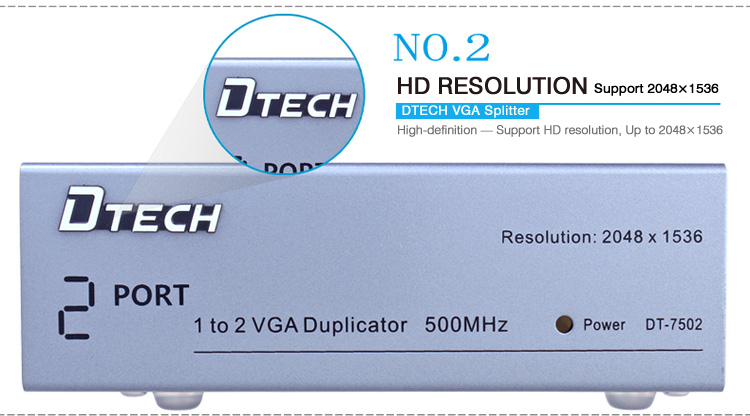

2. VGA Bandwidth 500MHz, Support VGA, XGA, SVGA, UXGA video signal, support VGA resolution up to 2048×1536@60Hz
3. Bandwidth of video driver: 500MHz-3dB
4. Input & Output impedance: 75 Ω
5. support VGA resolution:VGA, SVGA, XGA, SXGA,WXGA,UXGA
6. Input at most 10m, output less than 25m( use AWG24 standard 3+6 VGA cable)
7. Each output signal port supports three-level cascade

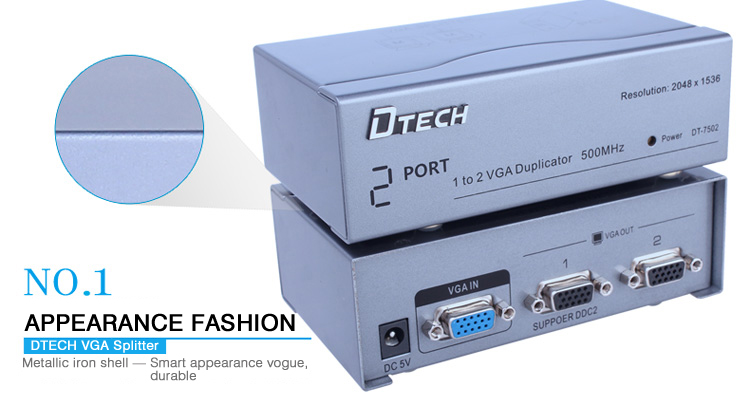

8. High-grade metal shell design, perfect hand feeling
