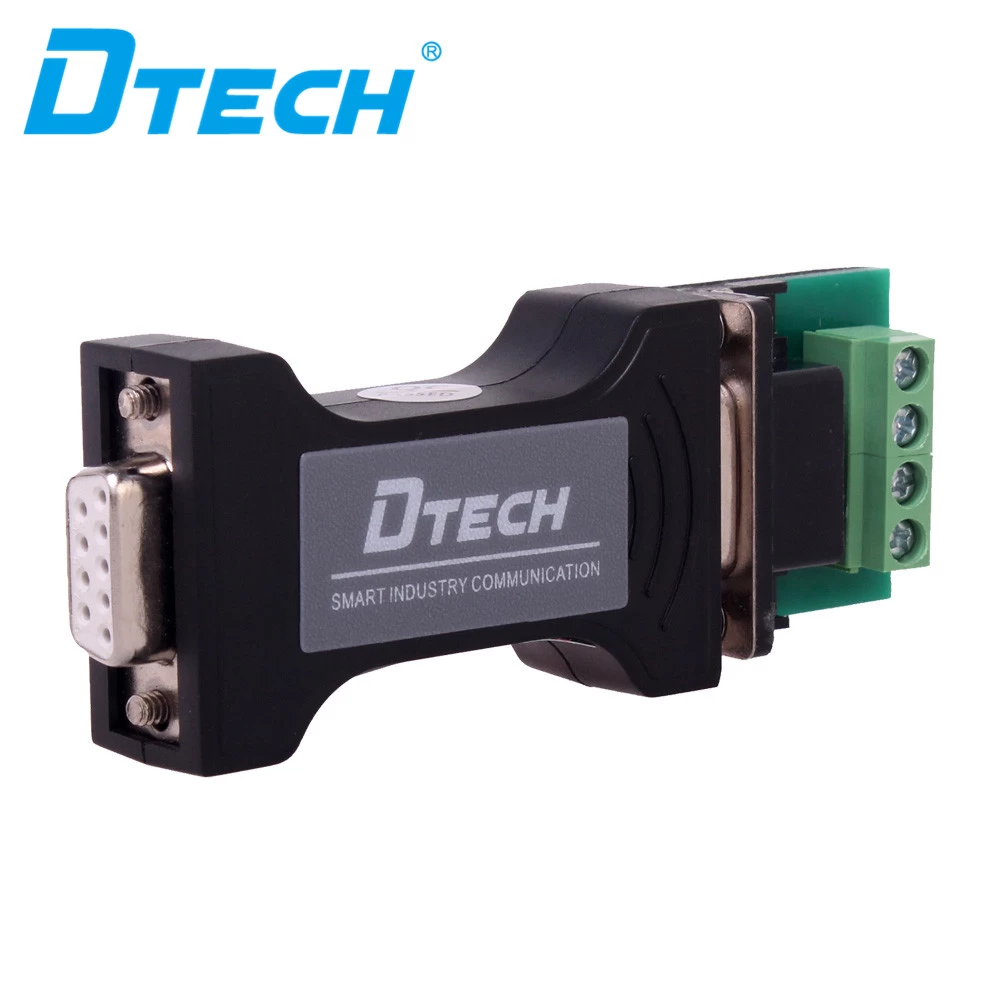

DT-9000 Passive RS232 to RS485 converter
Feature:

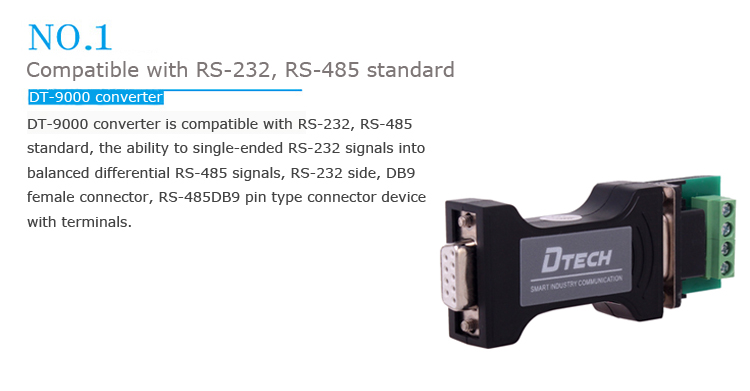

1,Compatible with RS232,RS485 TIA/EIA standard.
2,Automatically send/receive data ,without external traffic control signals.
3,Communication rate:300~38400bps

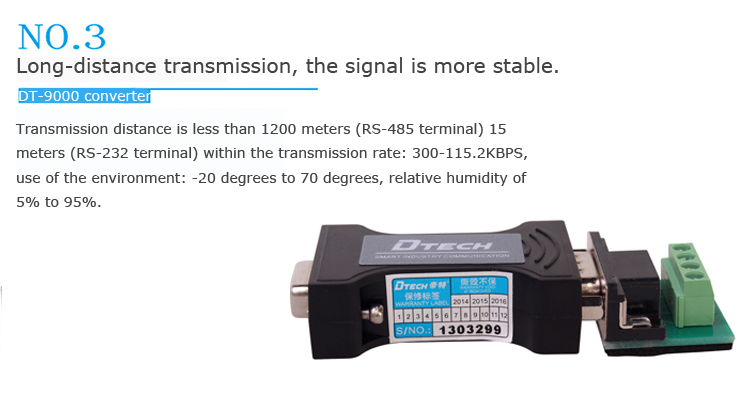

4,Communication distance: 1.2Km(9600bps),can connect 32pcs RS232 or RS485 device.
5,Power and two color data traffic indicator light, can detect the fault point.

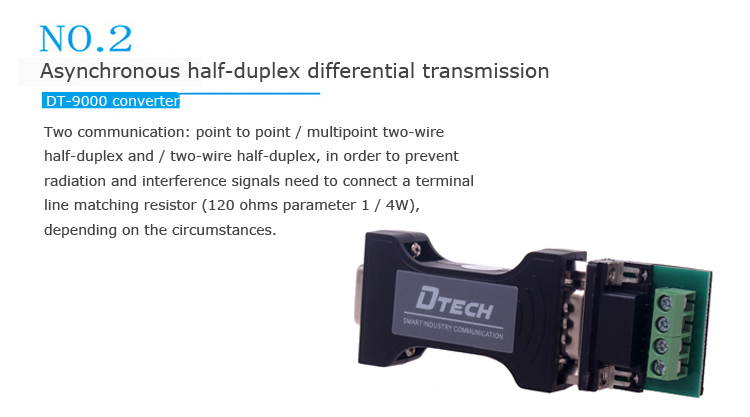

6, Work way: Asynchronous half-duplex(RS485),no need jumper wire settings.

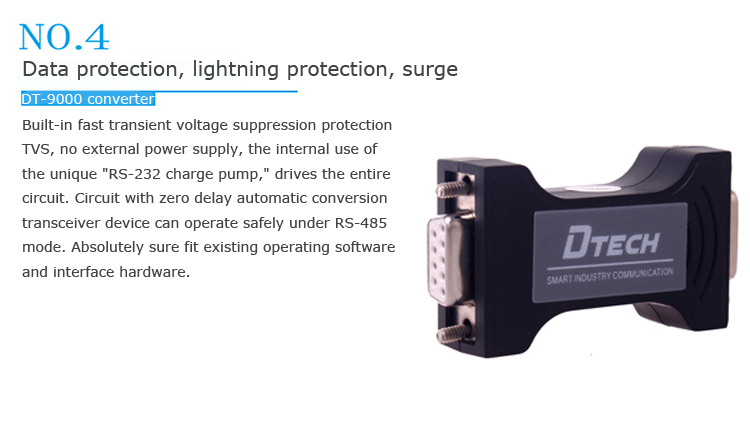

7,Optical and electrical isolated(isolated voltage 2.5KVrms/500VDC insulation),RS485 provide 600W per line lighting protection
and prevent common ground interference.

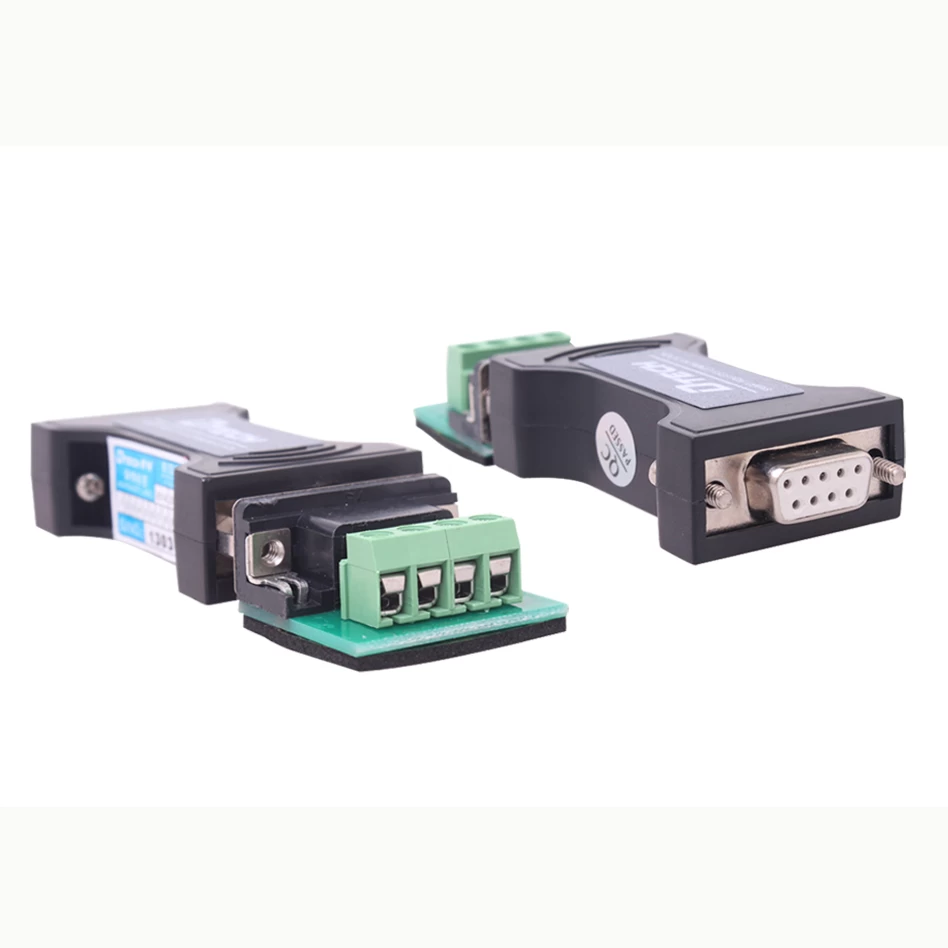

8,Electrical interface: RS232 interface connect DB9 hole type connector,RS485 interface 4 terminals binding post
transmission medium(twisted pair or shielded cable)
9, Use environment:-40β~85β;Relative humidity 5%~95%(Non-condensing)
10, Support DOS/WIN95/WIN2000/NT/XP Linux.etc.
11,Applies to all used communication software. plug and play.
