Product Item: DT Swiss 240s SP hub + Sapim CX-Ray spoke custom road disc carbon wheels
Rim:
Carbonal disc brake carbon rims tubular & clincher tubeless. With
the best blend of lightweight, aerodynamic, high stiffness and great
strength to deliver the highest possible efficiency.
Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.
5 years warranty.

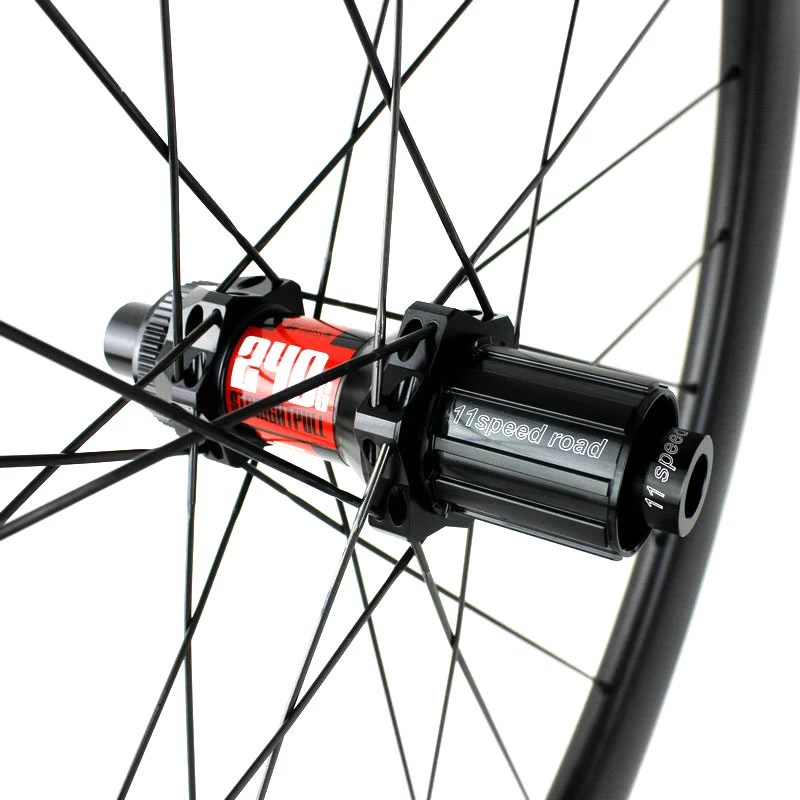

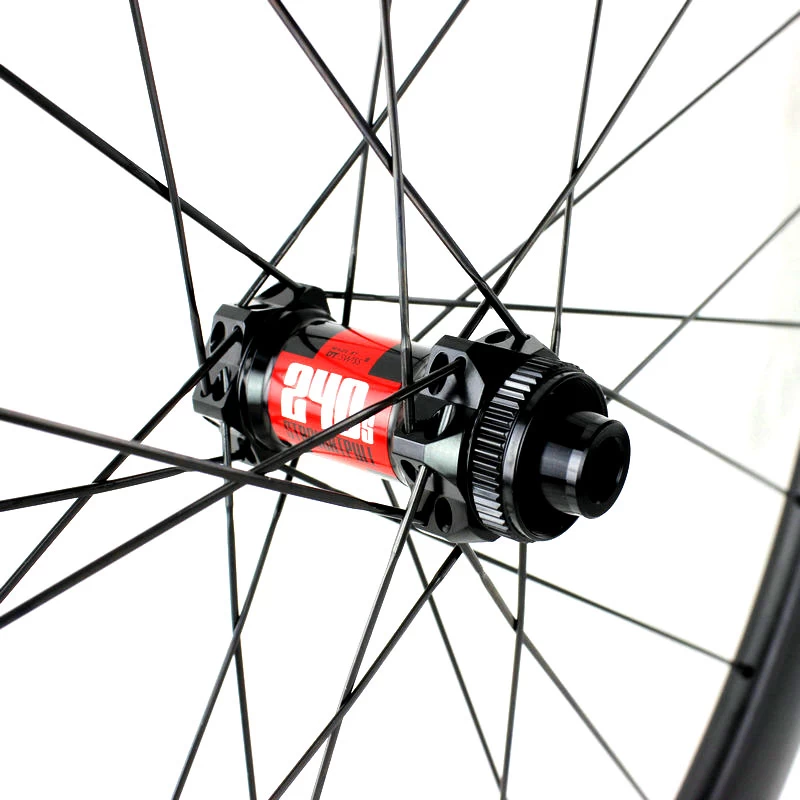

Hub:
DT Swiss 240s hub, straight pull;
Axle system: F - 12x100mm, R - 12x142mm;
Free hub system: Ratchet System 18T (optional 36T / 54T);
Cassette body: Shimano Road 11S / Sram XDR;
Brake system: Disc 6 bolts / Disc center lock;
Hole: Front 24, Rear 24;
Color: black.
Spoke:
Sapim CX-Ray spokes, black;
Nipple:
Sapim alloy nipples, black or red.
Lacing:
Front wheel - 2 cross;
Rear wheel - 2 cross.
Weight:
Hub: 360g/set;
Spokes + nipples: 218g;
Weight without rims: 578g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
DX30S
|
700c clincher 30x25mm
|
370g
|
1318g
|
115kgs
|
DX38S
|
700c clincher 38x25mm
|
400g
|
1378g
|
120kgs
|
DX38D
|
700c clincher 38x25mm- asymmetric
|
400g
|
1378g
|
120kgs
|
DX45S
|
700c clincher 45x25mm
|
430g
|
1438g
|
125kgs
|
DX50S
|
700c clincher 50x25mm
|
450g
|
1478g
|
125kgs
|
DX50D
|
700c clincher 50x25mm - asymmetric
|
450g
|
1478g
|
125kgs
|
DX60S
|
700c clincher 60x25mm
|
500g
|
1578g
|
130kgs
|
DX88S
|
700c clincher 88x25mm
|
680g
|
1938g
|
135kgs
|
DX38L
|
700c clincher 38x28mm
|
410g
|
1398g
|
120kgs
|
DX50L
|
700c clincher 50x28mm
|
460g
|
1498g
|
125kgs
|
DT30S
|
700c tubular 30x25mm
|
290g
|
1158g
|
115kgs
|
DT38S
|
700c tubular 38x25mm
|
330g
|
1238g
|
120kgs
|
DT38D
|
700c tubular 38x25mm- asymmetric
|
330g
|
1238g
|
120kgs
|
DT50S
|
700c tubular 50x25mm
|
360g
|
1298g
|
125kgs
|
DT50D
|
700c tubular 50x25mm- asymmetric
|
360g
|
1298g
|
125kgs
|
DT60S
|
700c tubular 60x25mm
|
430g
|
1438g
|
130kgs
|
DT88S
|
700c tubular 88x25mm
|
530g
|
1638g
|
135kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
Choose your favorite rim model, leave a message below with the rim item number (such as DT30S) to get a best quote for your next carbon road wheelset!
