DTECH 4K HDMI Fiber Extender 20KM DT-7052A

DTECH 4K HDMI fiber extender is used to solve the problems appears when the HDMI signal is in long distance transmitting, such as image mosaic, color distortion, and inability to transmit. It is designed for internet tablet display and large-screen advertising wall display, and other occasions require high-quality HDMI audio and video signal long distance transmission. You can select the corresponding fiber module according to the transmission distance, and can also realize cascade transmission via fiber optic switch. It is widely used in all supermarkets, video conference, security center, computer teaching systems and data management systems, etc.



DTECH 4K HDMI Fiber Extender 20KM DT-7052A

Feature:

1. With a fiber module the HDMI signal can be transmitted to 20km via the optical fiber cable.

2. HDMI signal resolution supports 3840*2160@30Hz, backward compatible;

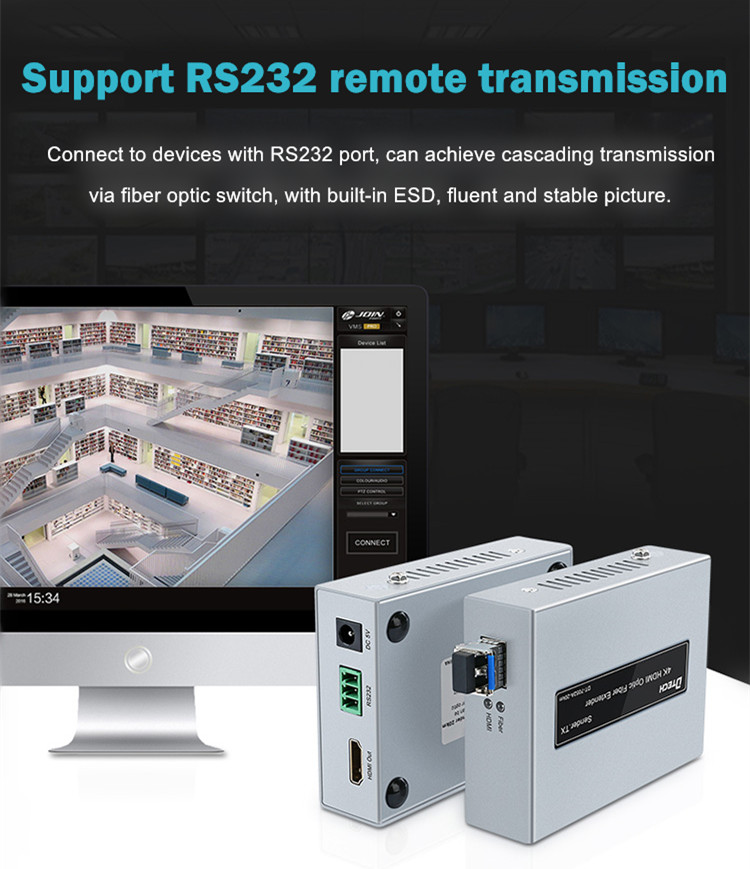

3. Support RS232 far end transmission;

4. Built-in automatic equalization system makes the picture smooth, clear and stable;

5. With lightning protection, dust prevention, static prevention, can prolong the service life;

6. Cascading transmission can be implemented via optical fiber switch;

7. By using of 26AWG HDMI standard cable, the input transmission distance can be up to 10 meters, the output transmission distance can be up to 5 meters.

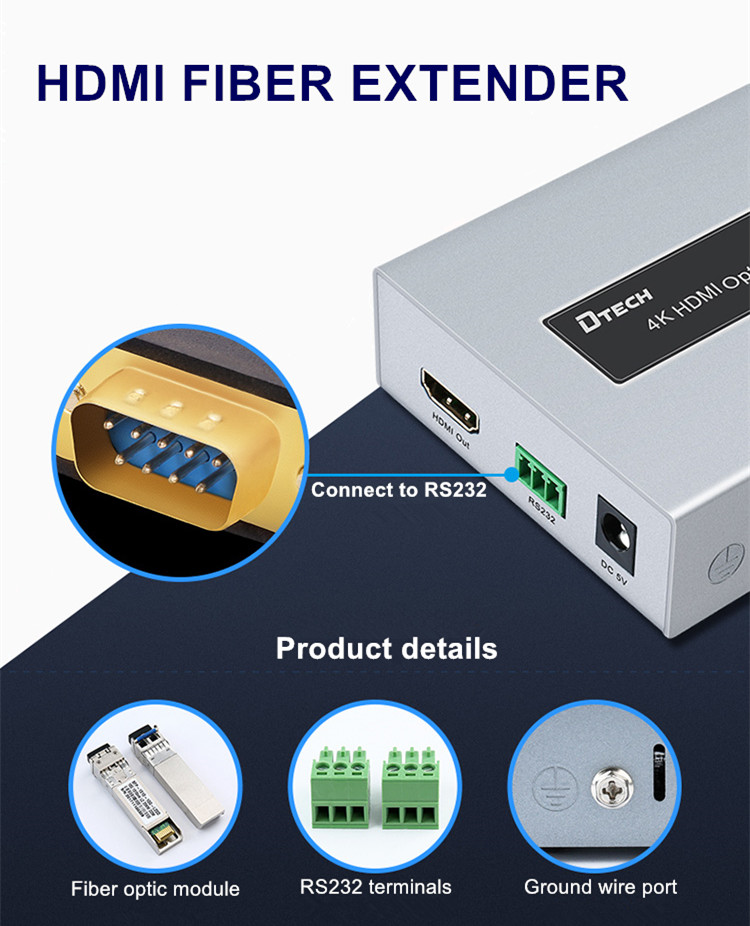

Product Details:

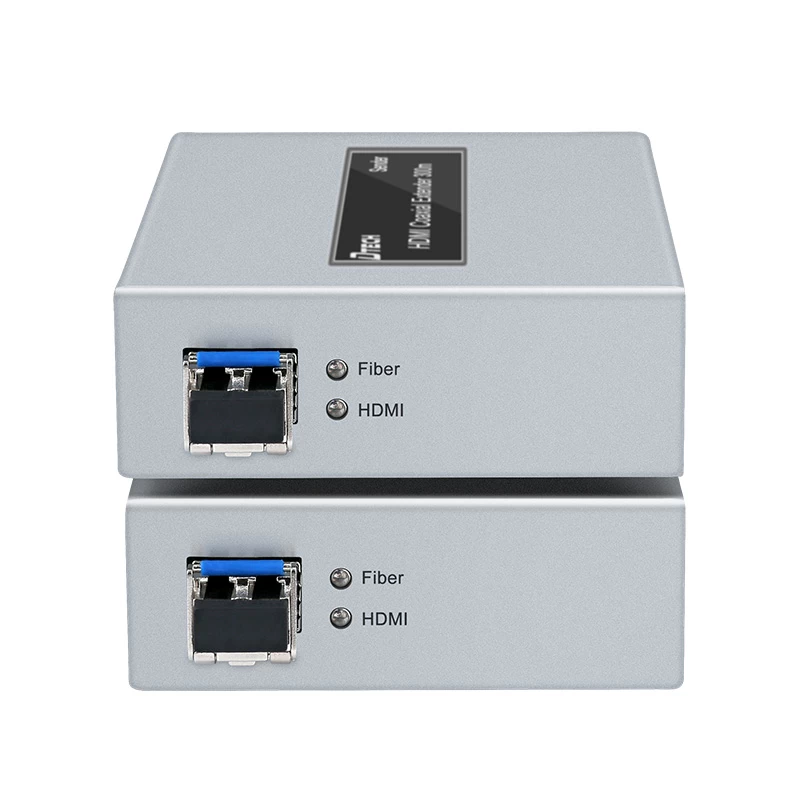

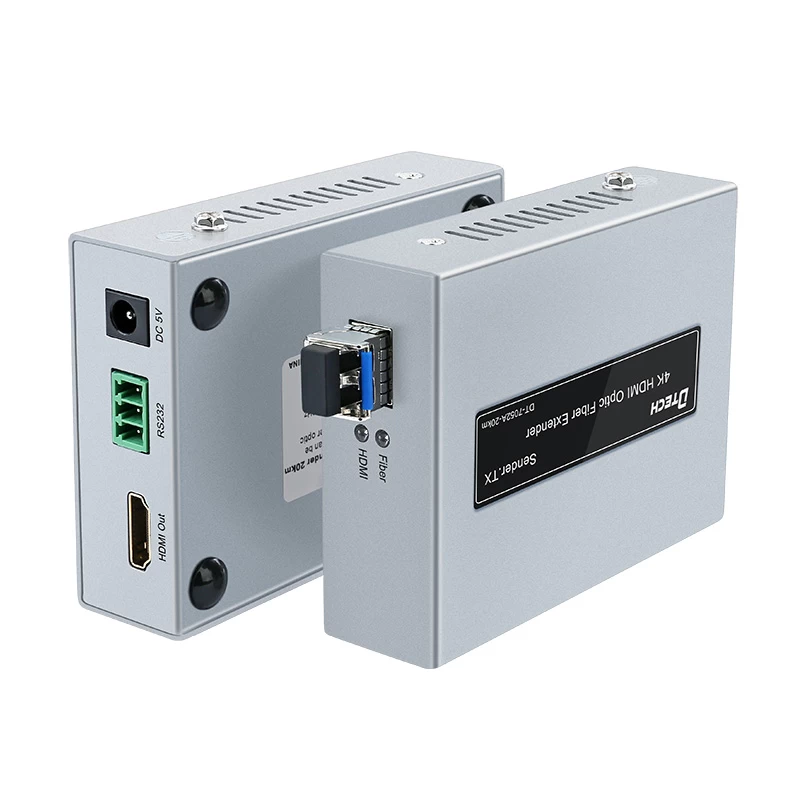

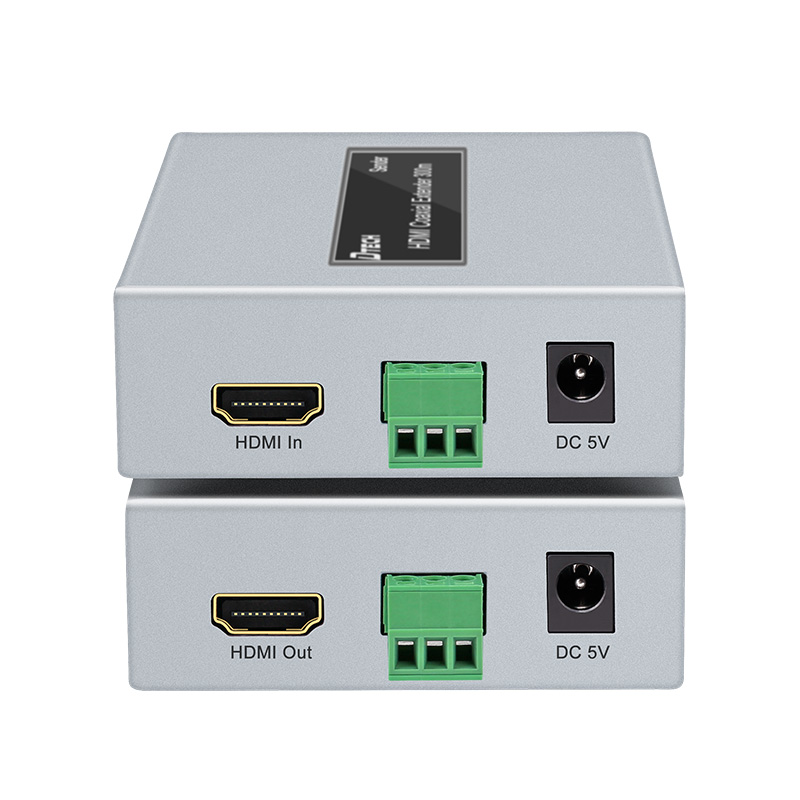

Product Show:

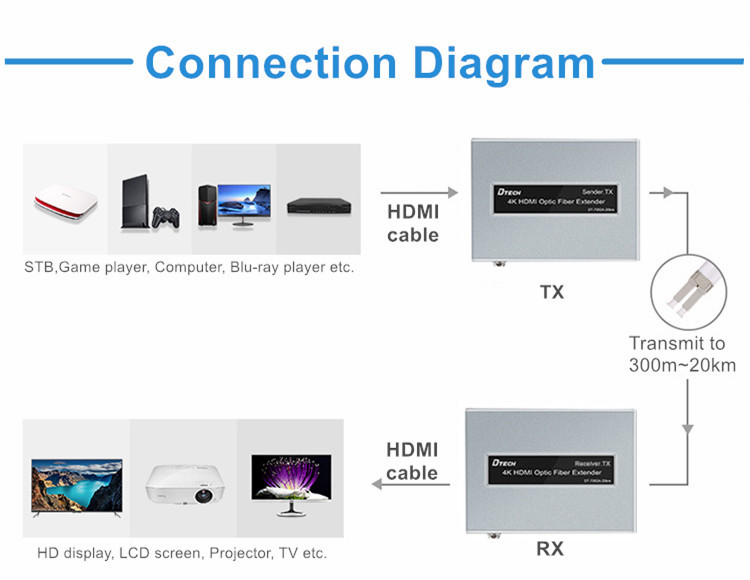

Connection:


Application:
