DTECH DT-7040A 4K HDMI USB2.0 KVM Extender 100m

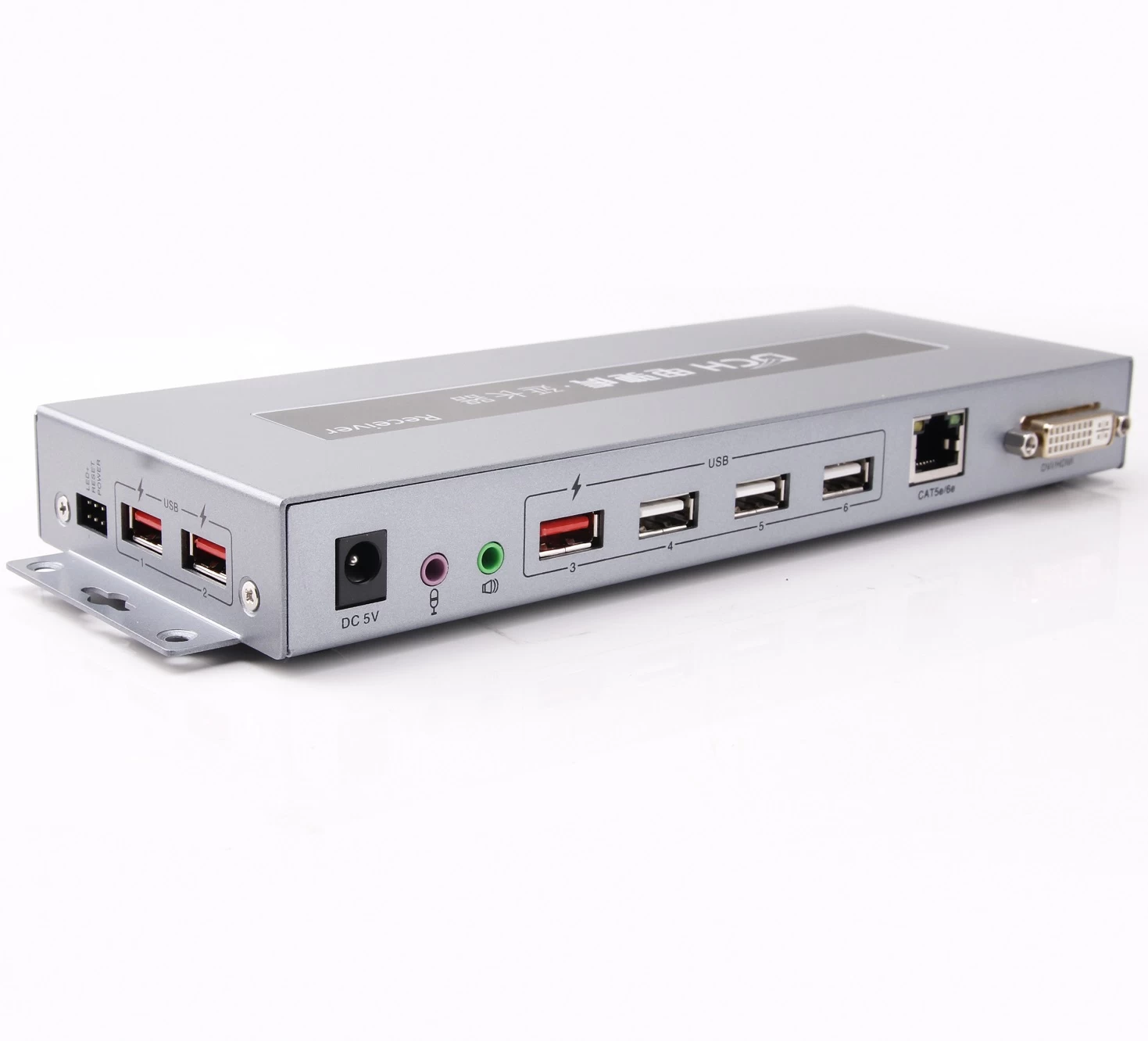

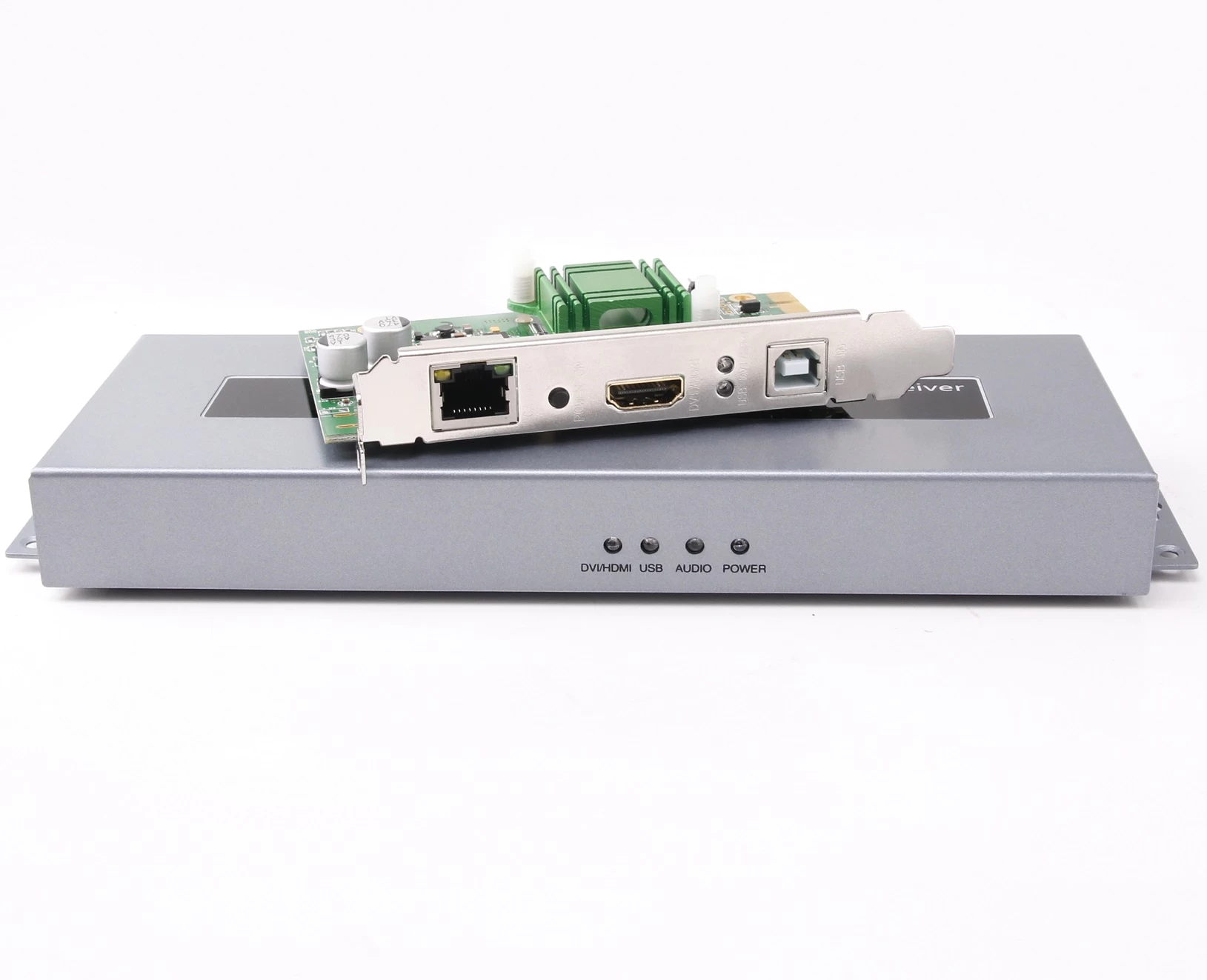

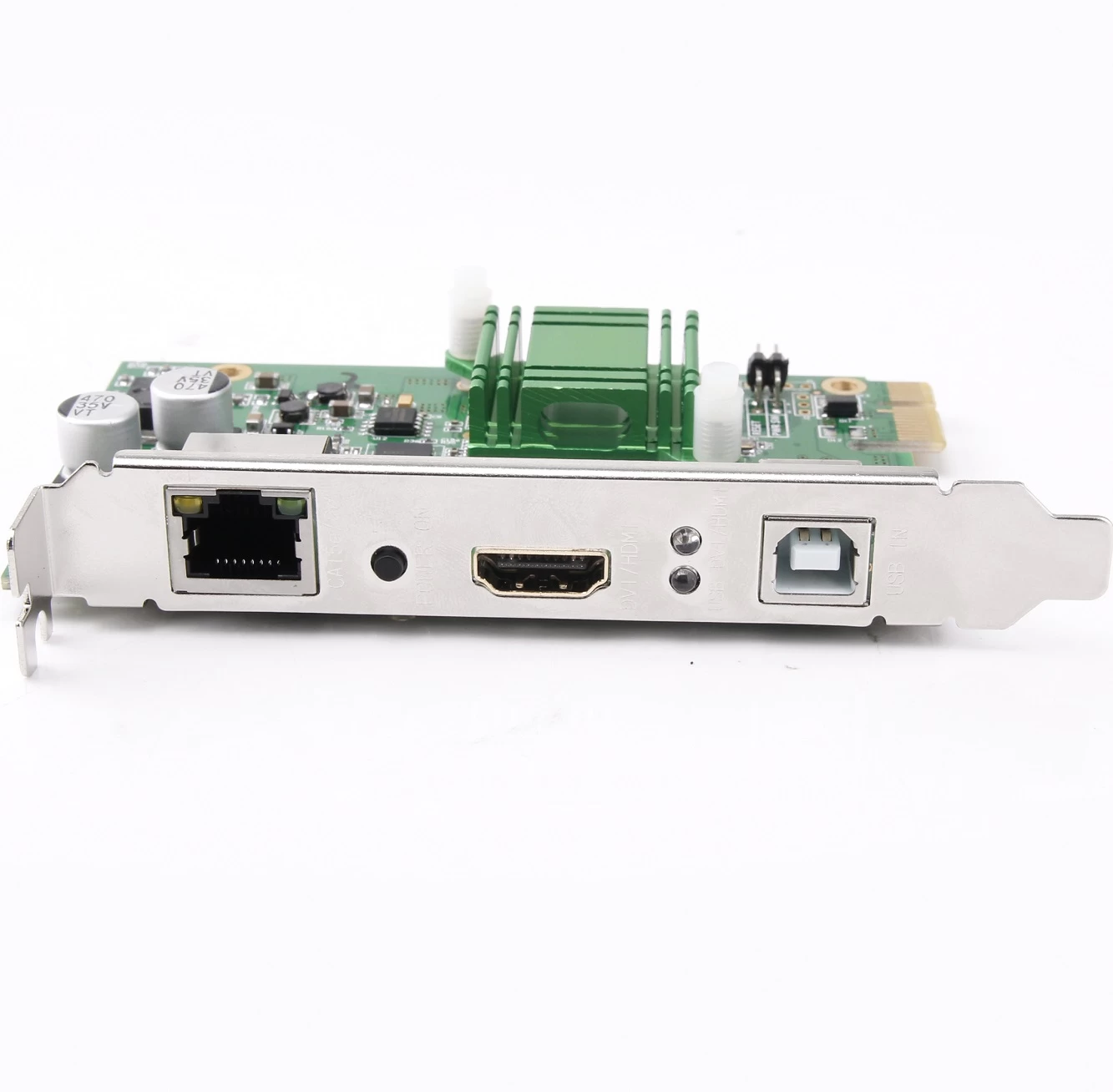

HDMI USB2.0 KVM Extender is an Internet cafe extender specially designed for internet cafe centralized management. It supports HDMI signals, USB signals, keyboard, mouse and audio signal extension transmission, as well as supports switch and reset the computer host remotely. This product consists of a transmitter and a receiver,  the transmitter and receiver connected through a CAT5e/6e LAN cable. The transmitter is connected to the HDMI and USB output of the computer host, and it is sent to the receiver via the LAN cable to restore the signals. The HDMI signal is used to connect the monitor, USB is used to connect the U-disk, camera  and other USB external devices, and the receiver can also connect the keyboard mouse with USB port.



DTECH DT-7040A 4K HDMI USB2.0 KVM Extender 100m

Feature:

1. Support DVI/HDMI high-definition digital signals, USB signal transmission distance up to 100 meters with no delay and compression.

2. Compatible with various USB devices such as USB camera, sound card, and keyboard. Mouse, joystick. Tablet, tablet (digit board), etc.

3. Support USB2.0 device, compatible with USB1.1, USB charging interface.

4. The built-in sound card is automatically disabled when an external USB headset is plugged in, resulting in better sound quality and lower noise.

5. DVI/HDMI high-definition digital signal, image transmission without delay and compression.

6. Support CAT6e/5e Ethernet cable, standard USB cable, twisted pair cable, lossless transmission.

7. Max. supported resolution: 3840*2160@30Hz

8. Completely eliminate the mobile phones&interphone interference, black screen, and splash screen.

9. Standard RJ45 wiring mode for easier construction on site.

10. Remote switch on/off the computer host.


Connection:
